global Window
global Tabs
global Label0
global Label1
global Label2
global Label3
global Label4
global Label5
global Edit0
global Edit1
global Edit2
global Edit3
global Edit4
global Edit5
global Ok
global SidesEdit
global StepsEdit
global SidesLabel
global StepsLabel
global StartEdit
global EndEdit
global StartLabel
global EndLabel

startBlue "", ""

createUI()

disable escapekey

autocam off
type vertice
   x as float
   y as float
   z as float
   nx as float
   ny as float
   nz as float
endtype
dim vertices(-1) as vertice

global p0 as float
global p1 as float
global p2 as float
global p3 as float
global p4 as float
global p5 as float
global steps as float = 1.0
global sides as integer = 5

global maxY as float = 0.0
global maxZ as float = 0.0

global start as float = 0.0
global finish as float = 3.0

dim coords1(-1) as vertice
dim coords2(-1) as vertice
dim endFace(-1) as vertice
global x1 as float
global y1 as float
global x2 as float
global y2 as float
global h1 as float
global h2 as float

load image "Grid2a.png", 2
draw to back
draw sprites first
backdrop off
set camera range 0, 3000

volume as float
inkey as string
do
   paste image 2, 0, 0
   getEvent
   if eventSource() = Ok and eventType() = MOUSE_CLICK
      getData()
      render()
   endif
   if eventSource() = Window and eventType() = WINDOW_CLOSE then end

   if object exist(1) and screen fps() <> 0
      inkey= inkey$()
      if inkey = "+" then move camera 1/6.0 *(60.0/screen fps())
      if inkey = "-" then move camera -1/6.0 *(60.0/screen fps())
      EZro_Set object angle x(1), object angle y(1), object angle z(1)
      if leftkey() or rightkey() then EZro_GY (rightkey()-leftkey())*2*(60.0/screen fps())
      if upkey() or downkey() then EZro_GX (upkey()-downkey())*2*(60.0/screen fps())
      rotate object 1, EZro_GetX(), EZro_GetY(), EZro_GetZ()

      volume = (sides/(4*tan(180/sides)))*(integral(finish)-integral(start))

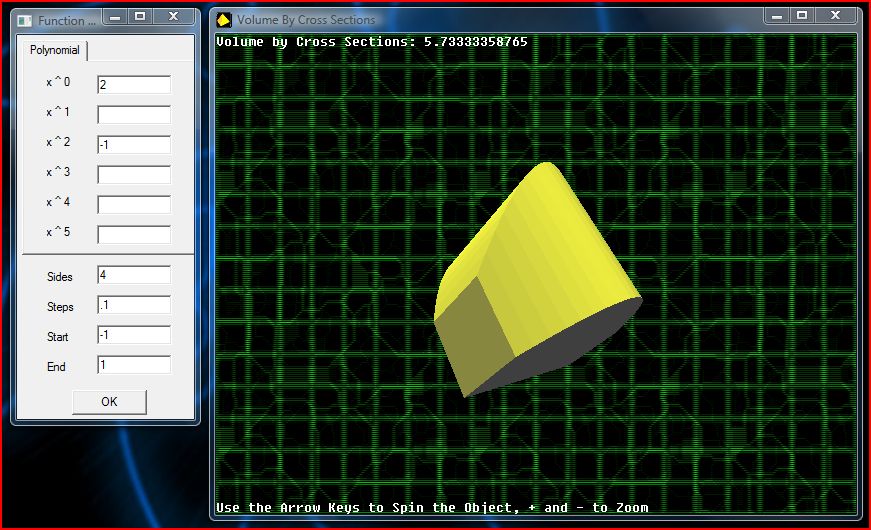

      text 0, 0, "Volume by Cross Sections: " + str$(volume)
      text 0, 466, "Use the Arrow Keys to Spin the Object, + and - to Zoom"
   endif
loop

function render()
   maxY = 0
   maxZ = 0
   empty array vertices(0)
   i as float
   for i = start to finish - steps + 0.000001 step steps
      empty array coords1(0)
      empty array coords2(0)
      x1 = i
      y1 = f(x1)/2.0/tan(360.0/(2*sides))
      h1 = sqrt(f(x1)*f(x1)/4 + y1*y1)
      x2 = i + steps
      y2 = f(x2)/2.0/tan(360.0/(2*sides))
      h2 = sqrt(f(x2)*f(x2)/4 + y2*y2)
      angle as float
      for angle = 1.0*(-90 + 360/(2*sides)) to 1.0*(270+360/(2*sides)) step 360.0/sides
         array insert at bottom coords1(0)
         coords1().x = x1
         coords1().y = y1 + h1*sin(angle)
         coords1().z = f(x1)/2 + h1*cos(angle)
         array insert at bottom coords2(0)
         coords2().x = x2
         coords2().y = y2 + h2*sin(angle)
         coords2().z = f(x2)/2 + h2*cos(angle)
      next angle

      x1 = start
      y1 = f(x1)/2.0/tan(360.0/(2*sides))
      h1 = sqrt(f(x1)*f(x1)/4 + y1*y1)
      empty array endFace(0)
      angle as float
      for angle = 1.0*(-90  + 360/(2*sides)) to 1.0*(270+360/(2*sides)) step 360.0/sides
         array insert at bottom  endFace(0)
         endFace().x = x1
         endFace().y = y1 + h1*sin(angle)
         endFace().z = f(x1)/2 + h1*cos(angle)
      next angle
      for a = 2 to sides-1
         v1 as vertice
         v1 = endFace(1)
         v2 as vertice
         v2 = endFace(a)
         v3 as vertice
         v3 = endFace(a+1)
         addFace(v1, v2, v3)
      next a

      x1 = finish
      y1 = f(x1)/2.0/tan(360.0/(2*sides))
      h1 = sqrt(f(x1)*f(x1)/4 + y1*y1)
      empty array endFace(0)
      angle as float
      for angle = 1.0*(-90  + 360/(2*sides)) to 1.0*(270+360/(2*sides)) step 360.0/sides
         array insert at bottom  endFace(0)
         endFace().x = x1
         endFace().y = y1 + h1*sin(angle)
         endFace().z = f(x1)/2 + h1*cos(angle)
      next angle
      for a = 2 to sides-1
         v1 as vertice
         v1 = endFace(1)
         v2 as vertice
         v2 = endFace(a)
         v3 as vertice
         v3 = endFace(a+1)
         addFace(v1, v3, v2)
      next a

      for b = 0 to array count(coords1(0)) - 1
         va as vertice
         va.x = coords1(b).x
         va.y = coords1(b).y
         va.z = coords1(b).z
         vb as vertice
         vb.x = coords2(b).x
         vb.y = coords2(b).y
         vb.z = coords2(b).z
         vc as vertice
         vc.x = coords2(b+1).x
         vc.y = coords2(b+1).y
         vc.z = coords2(b+1).z
         vd as vertice
         vd.x = coords1(b+1).x
         vd.y = coords1(b+1).y
         vd.z = coords1(b+1).z
         addFace(va, vb, vc)
         addFace(vc, vd, va)
      next b
   next i
   makeObject()
   position camera 0, 0, -20
   point camera 0, 0, 0
endfunction

function addFace(va as vertice, vb as vertice, vc as vertice)
   null = make vector3(1)
   null = make vector3(2)
   null = make vector3(3)
   set vector3 1, va.x, va.y, va.z
   set vector3 2, vb.x, vb.y, vb.z
   set vector3 3, vc.x, vc.y, vc.z
   subtract vector3 2, 2, 1
   subtract vector3 3, 3, 1
   normalize vector3 2,2
   normalize vector3 3,3
   cross product vector3 1, 2,3
   normalize vector3 1,1
   addVertice(va.x, va.y, va.z, x vector3(1), y vector3(1), z vector3(1))
   addVertice(vb.x, vb.y, vb.z, x vector3(1), y vector3(1), z vector3(1))
   addVertice(vc.x, vc.y, vc.z, x vector3(1), y vector3(1), z vector3(1))
   null = delete vector3(1)
   null = delete vector3(2)
   null = delete vector3(3)
endfunction

function addVertice(x as float y as float z as float, nx as float, ny as float, nz as float)
   array insert at bottom vertices(0)
   vertices().x = x
   vertices().y = y
   vertices().z = z
   vertices().nx = nx
   vertices().ny = ny
   vertices().nz = nz

   if y > maxY then maxY = y
   if z > maxZ then maxZ = z
endfunction

function makeObject()
   if memblock exist(1) then delete memblock 1
   if mesh exist(1) then delete mesh 1
   if object exist(1) then delete object 1
   if object exist(1) then delete object 1
   make memblock 1, 12+(array count(vertices(0))+1)*36
   write memblock dword 1, 0, 338
   write memblock dword 1, 4, 36
   write memblock dword 1, 8, array count(vertices(0))+1
   pointer as integer = 12
   for i = 0 to array count(vertices(0))
      write memblock float 1, pointer, vertices(i).x
      write memblock float 1, pointer + 4, vertices(i).y
      write memblock float 1, pointer + 8, vertices(i).z
      write memblock float 1, pointer + 12, vertices(i).nx
      write memblock float 1, pointer + 16, vertices(i).ny
      write memblock float 1, pointer + 20, vertices(i).nz
      write memblock dword 1, pointer + 24, rgb(255, 255, 0)
      inc pointer, 36
   next i
   make mesh from memblock 1, 1
   make object 1, 1, 1
   offset limb 1, 0, -(start + finish)/2.0, -maxY/2.0, -maxZ/2.0
endfunction

function freeObject()
   id as integer
   id = 1
   while object exist(id)
      inc id
   endwhile
endfunction id

function f(x as float)
   temp as float
   temp = p5*x*x*x*x*x + p4*x*x*x*x + p3*x*x*x + p2*x*x + p1*x + p0
endfunction temp

function getData
   tmp as string
   tmp = getGadgetText(Edit0)
   if tmp = ""
      p0 = 0
   else
      p0 = val(tmp)
   endif
   tmp = getGadgetText(Edit1)
   if tmp = ""
      p1 = 0
   else
      p1 = val(tmp)
   endif
   tmp = getGadgetText(Edit2)
   if tmp = ""
      p2 = 0
   else
      p2 = val(tmp)
   endif
   tmp = getGadgetText(Edit3)
   if tmp = ""
      p3 = 0
   else
      p3 = val(tmp)
   endif
   tmp = getGadgetText(Edit4)
   if tmp = ""
      p4 = 0
   else
      p4 = val(tmp)
   endif
   tmp = getGadgetText(Edit5)
   if tmp = ""
      p5 = 0
   else
      p5 = val(tmp)
   endif
   steps = val(getGadgetText(StepsEdit))
   sides = val(getGadgetText(SidesEdit))
   start = val(getGadgetText(StartEdit))
   finish = val(getGadgetText(EndEdit))
endfunction

function createUI()
    Window=createWindow(100,210,193,420,"Function Data",WINDOW_NORMAL,0,0,0)
    Tabs=createTabs(5,5,175,215,Window)
    Label0=createLabel(25,35,45,20,"x ^ 0",Tabs)
    Label1=createLabel(25,65,50,20,"x ^ 1",Tabs)
    Label2=createLabel(25,95,50,20,"x ^ 2",Tabs)
    Label3=createLabel(25,125,50,20,"x ^ 3",Tabs)
    Label4=createLabel(25,155,50,20,"x ^ 4",Tabs)
    Label5=createLabel(25,185,50,20,"x ^ 5",Tabs)
    Edit0=createEdit(75,35,75,20,0,Tabs)
    Edit1=createEdit(75,65,75,20,0,Tabs)
    Edit2=createEdit(75,95,75,20,0,Tabs)
    Edit3=createEdit(75,125,75,20,0,Tabs)
    Edit4=createEdit(75,155,75,20,0,Tabs)
    Edit5=createEdit(75,185,75,20,0,Tabs)
    SidesEdit=createEdit(80,230,75,20,0,Window)
    StepsEdit=createEdit(80,260,75,20,0,Window)
    StartEdit=createEdit(80,290,75,20,0,Window)
    EndEdit=createEdit(80,320,75,20,0,Window)
    Ok=createButton(55,355,75,25,"OK",0,Window)

    SidesLabel=createLabel(30,235,50,20,"Sides",Window)
    StepsLabel=createLabel(30,265,50,20,"Steps",Window)
    StartLabel=createLabel(30,295,50,20,"Start",Window)
    EndLabel=createLabel(30,325,50,20,"End",Window)
    addTab Tabs,"Polynomial"
endfunction

function polygonArea(n as integer, s as float)
   area as float
   area = 0.25*n*s*s/tan(180/n)
endfunction area

function pow(x as float, p as integer)
   number as float
   number = 1
   for a = 1 to p
      number = number*x
   next a
endfunction number

function integral(x as integer)
   total as float
   total = 0
   inc total, (1/11.0)*p5*p5*pow(x,11) + (2/10.0)*p5*p4*pow(x,10) + (2/9.0)*p5*p3*pow(x,9) + (2/8.0)*p5*p2*pow(x,8) + (2/7.0)*p5*p1*pow(x,7) +(2/6.0)*p5*p0*pow(x,6)
   inc total, (1/9.0)*p4*p4*pow(x,9)   + (2/8.0)*p4*p3*pow(x,8)   + (2/7.0)*p4*p2*pow(x,7) + (2/6.0)*p4*p1*pow(x,6) + (2/5.0)*p4*p0*pow(x,5)
   inc total, (1/7.0)*p3*p3*pow(x,7)   + (2/6.0)*p3*p2*pow(x,6)   + (2/5.0)*p3*p1*pow(x,5) + (2/4.0)*p3*p0*pow(x,4)
   inc total, (1/5.0)*p2*p2*pow(x,5)   + (2/4.0)*p2*p1*pow(x,4)   + (2/3.0)*p2*p0*pow(x,3)
   inc total, (1/3.0)*p1*p1*pow(x,3)   + (2/2.0)*p1*p0*pow(x,2)
   inc total, (1/1.0)*p0*p0*pow(x,1)
endfunction total
