Geek Culture / Power supply weirdness... How is my computer still working?

Author
Message
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 26th Aug 2009 21:20 Edited at: 26th Aug 2009 21:25
Link
Ok, so I have a 250W power supply, which came with my machine when I bought it.
I recently looked at this article from tiger direct, and I realized, my computer shouldn't be able to run!
According to the chart from the article, I am using approximately 600 watts. But I only have a 250 watt power supply!
I am slightly confused as to how this is working, because I am somehow drawing more watts from my power supply than my power supply can provide.

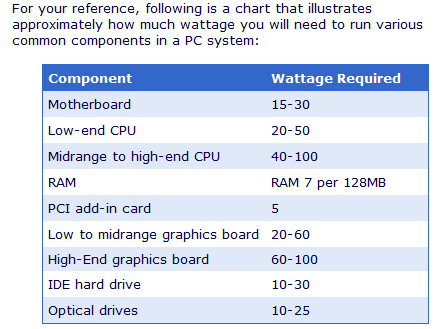

Here's the chart:

Here's what I am using:
Motherboard: 30W
A high end (2.83 GHz Intel Quad core) CPU: 100W
6.5 GB of RAM: 350W
PCI modem: 5W
160GB IDE HDD: 30W
1TB SATA HDD: 30W
500GB SATA HDD: 30W
DVD/RW drive: 25W
------------------------------------------------------------------
Total: 600W

Yes, I am assuming I am using the maximum wattage from each component, but even if I wasn't, its still more than 250 watts. (Something around 440, I believe.)
So I'm pretty confused as to how this is possible. I mean, my RAM alone is drawing too many watts!
Can someone please explain this to me?

I have a devious mind.

Attachments

Login to view attachments
Back to top
Profile PM Email
NeX the Fairly Fast Ferret
20
Years of Service
User Offline
Joined: 10th Apr 2005
Location: The Fifth Plane of Oblivion
Posted: 26th Aug 2009 21:29
Link
7W per 128Mb RAM sounds a touch excessive to me.

Back to top
Profile PM Website
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 26th Aug 2009 21:32
Link
Quote: "7W per 128Mb RAM sounds a touch excessive to me."

what would you say is more accurate then? 5W per 128MB? 3W?
Even at 3W per 128MB, it still comes out to approximately 400 watts, which is still more than my power supply can give.

I have a devious mind.
Back to top
Profile PM Email
David R
21
Years of Service
User Offline
Joined: 9th Sep 2003
Location: 3.14
Posted: 26th Aug 2009 21:34 Edited at: 26th Aug 2009 21:34
Link
Most memory is 1.5 - 1.8v per stick. The current it draws is a bit wishy washy.

However, since 1W = 1V x 1A I would assume that when that table says "7W per 128MB" it is referring to entire sticks (i.e. 7W per 128MB stick)

09-f9-11-02-9d-74-e3-5b-d8-41-56-c5-63-56-88-c0
Back to top
Profile PM Email Website
NeX the Fairly Fast Ferret
20
Years of Service
User Offline
Joined: 10th Apr 2005
Location: The Fifth Plane of Oblivion
Posted: 26th Aug 2009 21:38 Edited at: 26th Aug 2009 21:39
Link


I think the 7W figure is very bad even if this is taken at an unreasonable temperature.

Back to top
Profile PM Website
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 26th Aug 2009 21:42
Link
Quote: "7W per 128MB stick"

Hmm... well if its X number of watts per RAM stick, then that's way different. How many watts do you think it is per 2GB stick? I have 3 2GB sticks and 1 500MB stick.
If we completely disregard the watts taken up by RAM, my machine is still using 250 watts on everything else. So, even if the RAM used up 10 watts, I'd still be over the 250 watt maximum output.
Plus, I'm looking to get a Graphics card soon. (Only have the integrated one now.) So that'll be using up another 60-100 watts when I get it...
Definitely gonna have to buy a new power supply soon...

I have a devious mind.
Back to top
Profile PM Email
NeX the Fairly Fast Ferret
20
Years of Service
User Offline
Joined: 10th Apr 2005
Location: The Fifth Plane of Oblivion
Posted: 26th Aug 2009 21:51
Link
You have two CPUs on the list. Also remember those are the peak usages. You'll very rarely be spinning up your HDD and CD drive and maxing out all other hardware simultaneously.

Back to top
Profile PM Website
TheComet
17
Years of Service
User Offline
Joined: 18th Oct 2007
Location: I`m under ur bridge eating ur goatz.
Posted: 26th Aug 2009 22:13
Link
There is something wrong with your calculations...

600W at 12 volts would be 50 Amps, Which would be 5.45454545 Amps at 110 Volts at your mains. This power draw is equivalent to a vacuum engine running at a low speed. Do you know how much power that is? Way too much for a computer.

250 W power supply is 2.7 Watts at 110V AC, which is a lot for a computer.

350 W RAM --> 30 Amps 12V. That would fry your RAM in milliseconds.

You are probably talking about milliWatts, which is more realistic.

TheComet


Make the paths of your enemies easier with WaypointPro!
Back to top
Profile PM Email Website
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 26th Aug 2009 22:25
Link
I don't know... Im not really savvy with all the watts and amps and volts and stuff... So, based on that chart, your own electrical knowledge, and my list of hardware, am I or am I not using too much power?
Also, do you think I'll need a better power supply if I get a graphics card?
(this one)

I have a devious mind.
Back to top
Profile PM Email
Green Gandalf
VIP Member
20
Years of Service
User Offline
Joined: 3rd Jan 2005
Playing: Malevolence:Sword of Ahkranox, Skyrim, Civ6.
Posted: 26th Aug 2009 23:37
Link
Is all the power being supplied by the same power outlet? My setup uses four.

And I've no idea how much power I'm using - but I have noticed that I can turn down the central heating in my study.
Back to top
Profile PM Email
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 26th Aug 2009 23:38
Link
Well, all the power for the Computer is coming from one outlet; I have separate plugs for the monitor, speakers, etc...

I have a devious mind.
Back to top
Profile PM Email
mm0zct
21
Years of Service
User Offline
Joined: 18th Nov 2003
Location: scotland-uk
Posted: 30th Aug 2009 16:36 Edited at: 30th Aug 2009 17:15
Link
It also depends on the quality of the power supply, a good powersupply will be stable right up to and a little above it's rated power. A cheap one will drop off in efficience as it gets hot and not even reach it's rated power once it's got hot (which it will after supplying maximum load for more than a few seconds)

I think you've probbably got lucky with your power supply, but you might want to see if it's running a bit hot, or undervolting your system (some monitoring apps for the computer can tell you that).
Although thinking about it all your components there won't draw nearly as much power as you've quoted. 30W per hard disk? my netbook might only be a 2.5" drive (not flash based) but my whole netbook, including screen, draws about 15W
that's including 1GB of ram that you're putting 70W for

If you're ocnsidering getting a high end graphics card then you probably want something nearer the 400W region, which will give you some overhead too.

AMD AthlonX2 5000 black edition @2.8ghz, 2gb pc5400, AMD/ATi hd3850, creative xfi music, 24" hp widescreen 1920x1200, ECS KA3 MVP mobo
Back to top
Profile PM Email
Phaelax
DBPro Master
22
Years of Service
User Offline
Joined: 16th Apr 2003
Location: Metropia
Posted: 31st Aug 2009 00:18
Link
80% efficiency is pretty common these days, and a few will hit over 90%


6.5GB of ram will definitely NOT require 350w of power, no where even close. I know I'm always yelling at people not to waste money on 600w PSU cause it simply isn't needed, but 250w seems low to even me. I didn't even know ppl sold em that small anymore. Sure it isn't a 350?

Should check this out, a C2D system powered by only a 250w PSU.
http://www.behardware.com/articles/670-4/pc-s-actual-power-consumption.html

Here's my system:
E6750 - 65w(peak)
8600GTS - 21,31,47(idle,2d,3d)
ABIT IP35 Pro - 99-130w (i think, but reviews state its lower than most boards)
CD-rom - 2-15.6w
3xHDD - (9-12w, from a Raptor)
4x1gb ddr2-800 - 1.6w?

Total: 166.8w

http://www.behardware.com/art/imprimer/670/
http://www.xbitlabs.com/articles/video/display/geforce8600gts_7.html

How accurate all the numbers are I can't be 100% sure.

[url="http://www.nocleanfeed.com"][/url]
Back to top
Profile PM Email Website
Conjured Entertainment
AGK Developer
19
Years of Service
User Offline
Joined: 12th Sep 2005
Location: Nirvana
Posted: 1st Sep 2009 00:06
Link
Quote: "Here's my system:
E6750 - 65w(peak)
8600GTS - 21,31,47(idle,2d,3d)
ABIT IP35 Pro - 99-130w (i think, but reviews state its lower than most boards)
CD-rom - 2-15.6w
3xHDD - (9-12w, from a Raptor)
4x1gb ddr2-800 - 1.6w?

Total: 166.8w"



Quote: "It also depends on the quality of the power supply, a good powersupply will be stable right up to and a little above it's rated power. A cheap one will drop off in efficience as it gets hot and not even reach it's rated power once it's got hot (which it will after supplying maximum load for more than a few seconds)"


This is good to know, because I upgraded my 400w to 600w when I got a new NVIDIA 8800 GT.

Now my 600w is giving me trouble, and after hearing what you guys have said, I may put the 400w back in because it is a better quality than the 600w.

Back to top
Profile PM Website
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 1st Sep 2009 01:34
Link
Ok, I've ordered a new power supply and graphics card.

Thanks for all the info guys, its been really helpful.

I have a devious mind.
Back to top
Profile PM Email
MIDN90
16
Years of Service
User Offline
Joined: 11th Mar 2009
Location: Colville, Washington
Posted: 1st Sep 2009 01:35 Edited at: 1st Sep 2009 01:35
Link
Quote: "Ok, I've ordered a new power supply and graphics card."





Attachments

Login to view attachments
Back to top
Profile PM
Omega gamer 89
17
Years of Service
User Offline
Joined: 10th Sep 2007
Location: Pittsburgh, PA
Posted: 1st Sep 2009 01:36
Link
SIR, YES SIR!

I have a devious mind.
Back to top
Profile PM Email
puppyofkosh
18
Years of Service
User Offline
Joined: 9th Jan 2007
Location:
Posted: 1st Sep 2009 01:46
Link
MIDN90: I set that as my background.
Back to top
Profile PM
Phaelax
DBPro Master
22
Years of Service
User Offline
Joined: 16th Apr 2003
Location: Metropia
Posted: 1st Sep 2009 04:06
Link
I use a SeaSonic PSU, its awesome!

[url="http://www.nocleanfeed.com"][/url]
Back to top
Profile PM Email Website
Silvester
19
Years of Service
User Offline
Joined: 7th Dec 2005
Location: Netherlands
Posted: 1st Sep 2009 16:53
Link
Erm, my PSU gives like... 300W, and my Graphics card alone uses over 400. Never had an issue with it though.

It's not the world that turns against you, it's you that turns against the world.
