Here's a nice simple posterise shader. Pretty useful example for a fullscreen shader:

+ Code Snippet

#ifdef GL_ES
	#ifdef GL_FRAGMENT_PRECISION_HIGH
		precision highp float;
	#else
		precision mediump float;
	#endif
#endif

uniform sampler2D texture0;
varying vec2 uvVarying;

uniform float gamma;
uniform float numColors;

void main()
{
  vec3 c = texture2D(texture0, uvVarying.xy).rgb;
  c = pow(c, vec3(gamma, gamma, gamma));
  c = c * numColors;
  c = floor(c);
  c = c / numColors;
  c = pow(c, vec3(1.0/gamma));
  gl_FragColor = vec4(c, 1.0);
}

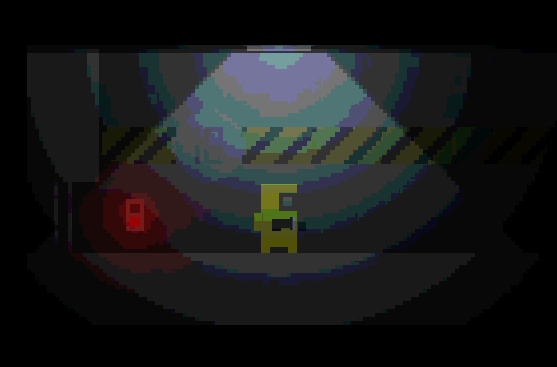

Example image:

Some other superb examples here: http://www.geeks3d.com/shader-library/

Using AppGameKit V2 Tier 1

Attachments

Login to view attachments

Back to top

Profile PM Email

BatVink

Moderator

21

Years of Service

User Offline

Joined: 4th Apr 2003

Location: Gods own County, UK

Posted: 19th Jan 2015 14:16

Link

Some nice shaders there.

What I need is a tutorial that shows how to work with shaders in AGK. Not a specific shader but how to implement them and understand how to apply it to any shader. I seem to have a mental block for shaders!

There's a space in the newsletter for anyone who wants to take up the challenge!

Quidquid latine dictum sit, altum sonatur

Back to top

Profile PM Email

baxslash

Valued Member

Bronze Codemaster

17

Years of Service

User Offline

Joined: 26th Dec 2006

Location: Duffield

Posted: 19th Jan 2015 14:36 Edited at: 19th Jan 2015 14:37

Link

I'm not really very knowledgeable about shaders. Most of what I've been doing is hacking other people's hard work

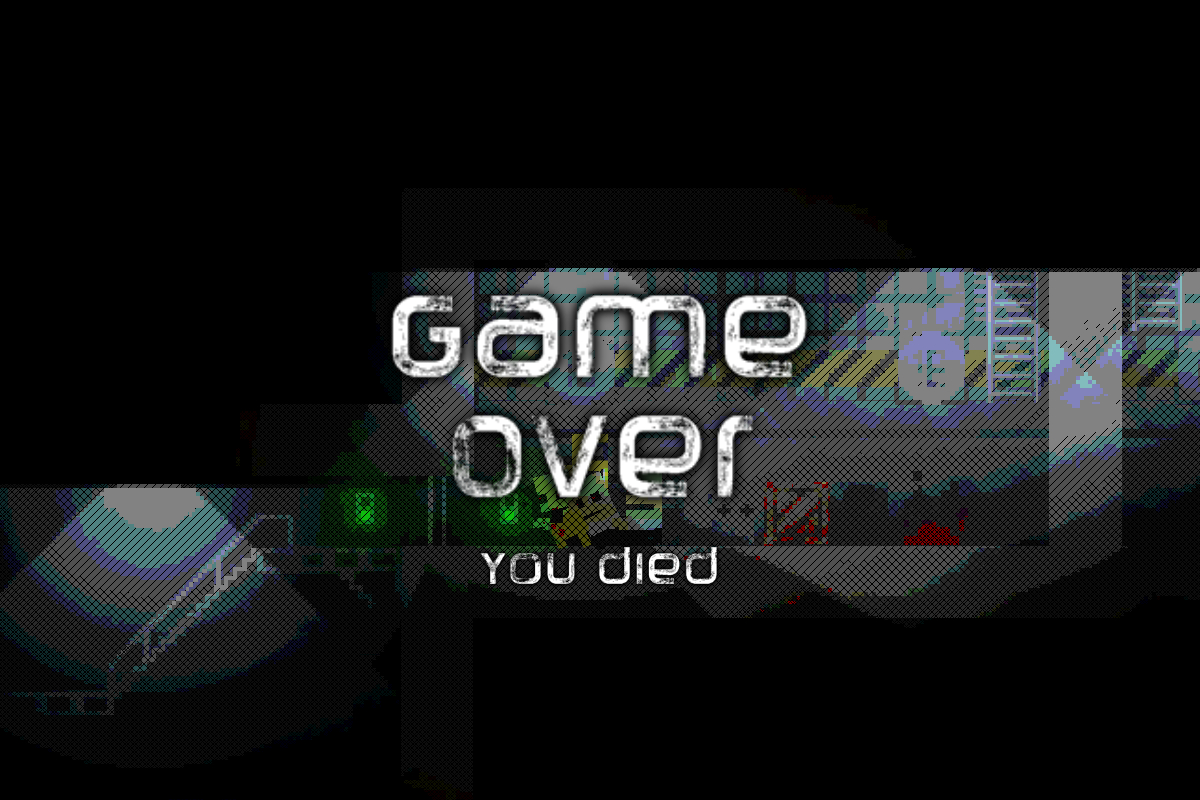

I've mainly been messing around with pixel shaders used on quads and had all sorts of odd little problems. I finally have my "Game Over" shader working for my latest WIP:

If you get stuck I might be able to write something simple about fullscreen shaders in general but I wouldn't really know what I'm talking about...
