I am suffering from severe code blindness!

What I want to achieve is this: Create a 3D plain where the first 2 vertices share the same height (Y position) and the second 2 vertices share the same height (but may be different from the first 2). In this image, vertices 0 and 1 should be the same and vertices 2 and 3 should be the same. The white bar is perfectly horizontal, so should not cut through the plains at an angle!

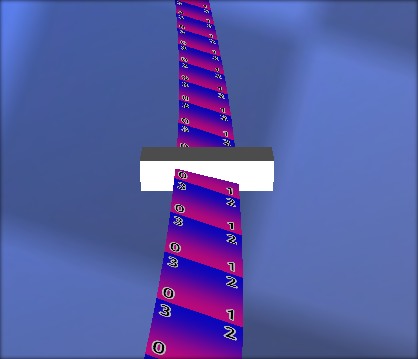

The texture is designed to show the vertex numbers

Here is the code for positioning the vertices.

+ Code Snippet

				SetObjectPosition(o, point[n].x, point[n].y, point[n].z)
				SetObjectRotation(o, 0, 180, 0)
				RotateObjectGlobalY(o,point[n].rot.y)
				MoveObjectLocalX(o,-0.5)
				SetMeshMemblockVertexPosition(mb,1, getobjectx(o), point[n].y, getobjectz(o))
				MoveObjectLocalX(o,1)
				SetMeshMemblockVertexPosition(mb,0, getobjectx(o),point[n].y, getobjectz(o))
				SetObjectPosition(o, point[n+1].x, point[n+1].y, point[n+1].z)
				SetObjectRotation(o, 0, 180, 0)
				RotateObjectGlobalY(o,point[n+1].rot.y)
				MoveObjectLocalX(o,-0.5)
				SetMeshMemblockVertexPosition(mb,2, getobjectx(o), point[n+1].y, getobjectz(o))
				MoveObjectLocalX(o,1)
				SetMeshMemblockVertexPosition(mb,3, getobjectx(o), point[n+1].y, getobjectz(o))
                               Point[n].obj = CreateObjectFromMeshMemblock(mb)

You should be able to see the method to position the vertices, I use a cube, which I position and record the values in the mesh memblock.
Most importantly, I use the same Y value (point[n].y) for 0 and 1, and the same Y value (point[n+1].y) for 2 and 3.
So how is it different in the final result?!?!

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Quidquid latine dictum sit, altum sonatur
TutCity is being rebuilt

Attachments

Login to view attachments

Back to top

Profile PM Email

CJB

Valued Member

20

Years of Service

User Offline

Joined: 10th Feb 2004

Location: Essex, UK

Posted: 15th Dec 2015 10:00

Link

Have you tried changing the vertex order? Something like:

+ Code Snippet

SetObjectPosition(o, point[n].x, point[n].y, point[n].z)
SetObjectRotation(o, 0, 180, 0)
RotateObjectGlobalY(o,point[n].rot.y)
MoveObjectLocalX(o,-0.5)
SetMeshMemblockVertexPosition(mb,3, getobjectx(o), point[n].y, getobjectz(o))
MoveObjectLocalX(o,1)
SetMeshMemblockVertexPosition(mb,1, getobjectx(o),point[n].y, getobjectz(o))
SetObjectPosition(o, point[n+1].x, point[n+1].y, point[n+1].z)
SetObjectRotation(o, 0, 180, 0)
RotateObjectGlobalY(o,point[n+1].rot.y)
MoveObjectLocalX(o,-0.5)
SetMeshMemblockVertexPosition(mb,0, getobjectx(o), point[n+1].y, getobjectz(o))
MoveObjectLocalX(o,1)
SetMeshMemblockVertexPosition(mb,2, getobjectx(o), point[n+1].y, getobjectz(o))
               Point[n].obj = CreateObjectFromMeshMemblock(mb)

V2 T1 (Mostly)
Phone Tap!
Uzmadesign

Back to top

Profile PM Email Website

Preben

AGK Studio Developer

20

Years of Service

User Offline

Joined: 30th Jun 2004

Location:

Posted: 15th Dec 2015 11:40

Link

Possible bug:

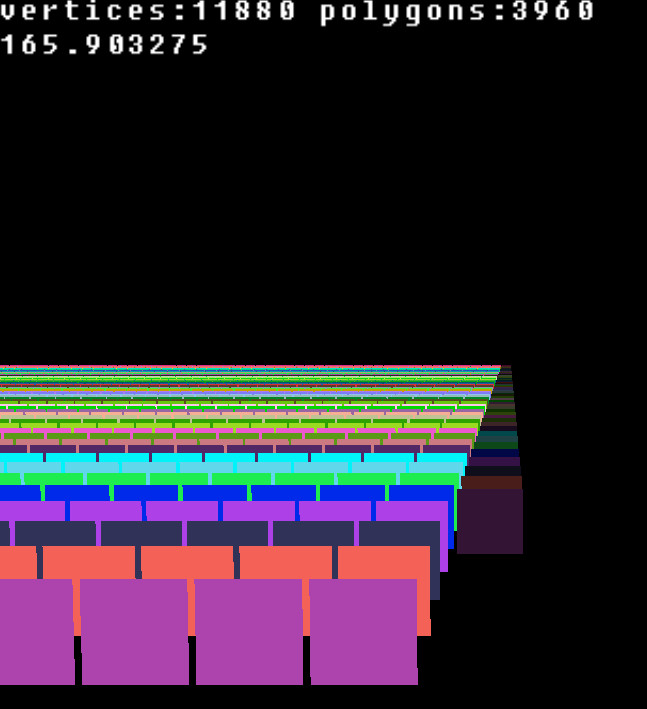

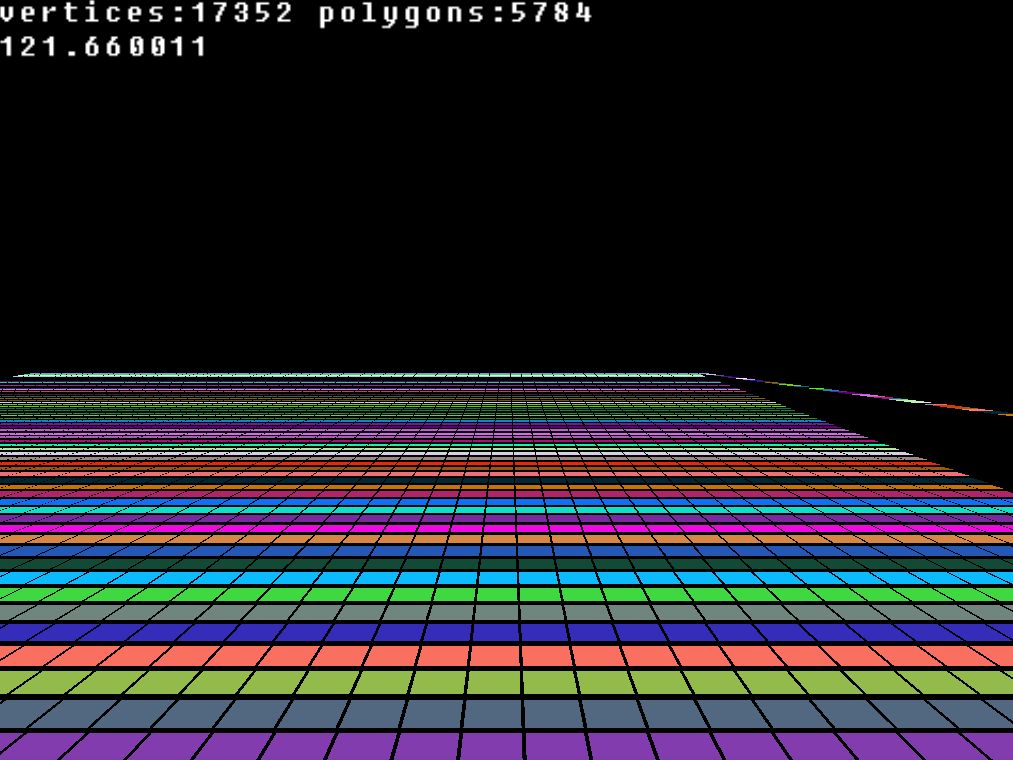

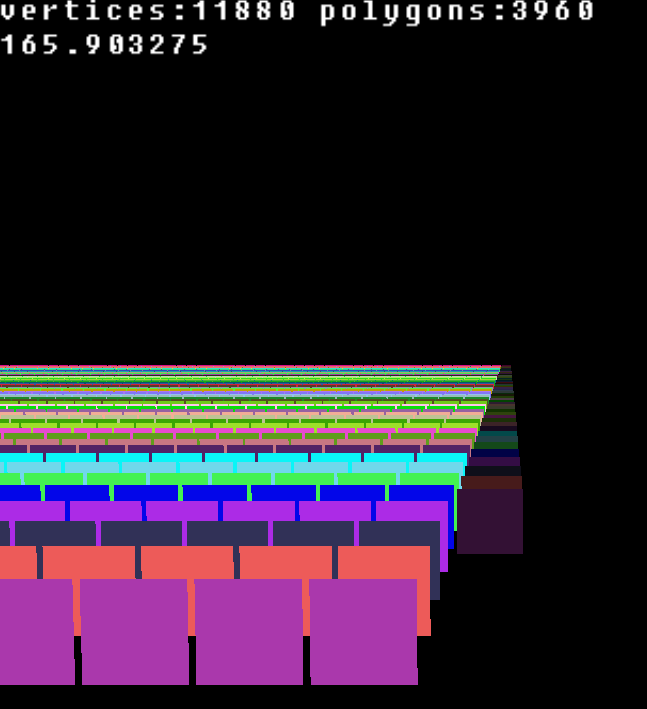

i have a small sample to test how mush to gain from mesh batching.

for y = 0 to 64
	terrainobject[0,y] = CreateObjectPlane(15.0,15.0)
	SetObjectPosition(terrainobject[0,y],0,0,y*16)
	rencolr = random(1,255)
	rencolg = random(1,255)
	rencolb = random(1,255)
	SetObjectColor(terrainobject[0,y],rencolr,rencolg,rencolb,255)
	for x = 1 to 64 step 2

if batching = 1
			terrainmesh[x,y] = CreateMemblockFromObjectMesh( plane, 1 )
			for a = 0 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+(x*16) ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a )+y)
			next a

for a = 6 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+16 ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a ))
			next a

AddObjectMeshFromMemblock( terrainobject[0,y], terrainmesh[x,y] )
			SetObjectColor(terrainobject[0,y],rencolr,rencolg,rencolb,255)
			SetObjectCollisionMode(terrainobject[0,y],0)
			SetObjectTransparency(terrainobject[0,y],0)
			SetObjectLightMode(terrainobject[0,y],0)
			SetObjectCullMode(terrainobject[0,y],0)
			DeleteMemblock(terrainmesh[x,y])
		else
			terrainmesh[x,y] = CreateMemblockFromObjectMesh( plane , 1 )
			for a = 0 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+(x*16) ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a )+y)
			next a

for a = 6 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+16 ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a ))
			next a
			terrainobject[x,y] = CreateObjectFromMeshMemblock( terrainmesh[x,y] )
			SetObjectPosition(terrainobject[x,y],0,0,y*16)
			SetObjectRotation(terrainobject[x,y],90,0,0)
			SetObjectColor(terrainobject[x,y],rencolr,rencolg,rencolb,255)
			SetObjectCollisionMode(terrainobject[x,y],0)
			SetObjectTransparency(terrainobject[x,y],0)
			SetObjectLightMode(terrainobject[x,y],0)
			SetObjectCullMode(terrainobject[x,y],0)
			DeleteMemblock(terrainmesh[x,y])
		endif

next x
	SetObjectRotation(terrainobject[0,y],90,0,0)
next y
DeleteObject(plane)

+ Code Snippet

for y = 0 to 64
	terrainobject[0,y] = CreateObjectPlane(15.0,15.0)
	SetObjectPosition(terrainobject[0,y],0,0,y*16)
	rencolr = random(1,255)
	rencolg = random(1,255)
	rencolb = random(1,255)
	SetObjectColor(terrainobject[0,y],rencolr,rencolg,rencolb,255)
	for x = 1 to 64 step 2

		if batching = 1
			terrainmesh[x,y] = CreateMemblockFromObjectMesh( plane, 1 )
			for a = 0 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+(x*16) ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a )+y)
			next a

			for a = 6 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+16 ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a ))
			next a

			AddObjectMeshFromMemblock( terrainobject[0,y], terrainmesh[x,y] )
			SetObjectColor(terrainobject[0,y],rencolr,rencolg,rencolb,255)
			SetObjectCollisionMode(terrainobject[0,y],0)
			SetObjectTransparency(terrainobject[0,y],0)
			SetObjectLightMode(terrainobject[0,y],0)
			SetObjectCullMode(terrainobject[0,y],0)
			DeleteMemblock(terrainmesh[x,y])
		else
			terrainmesh[x,y] = CreateMemblockFromObjectMesh( plane , 1 )
			for a = 0 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+(x*16) ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a )+y)
			next a

			for a = 6 to 11
				SetMeshMemblockVertexPosition( terrainmesh[x,y], a, GetMeshMemblockVertexX( terrainmesh[x,y], a )+16 ,GetMeshMemblockVertexY( terrainmesh[x,y], a ), GetMeshMemblockVertexZ( terrainmesh[x,y], a ))
			next a
			terrainobject[x,y] = CreateObjectFromMeshMemblock( terrainmesh[x,y] )
			SetObjectPosition(terrainobject[x,y],0,0,y*16)
			SetObjectRotation(terrainobject[x,y],90,0,0)
			SetObjectColor(terrainobject[x,y],rencolr,rencolg,rencolb,255)
			SetObjectCollisionMode(terrainobject[x,y],0)
			SetObjectTransparency(terrainobject[x,y],0)
			SetObjectLightMode(terrainobject[x,y],0)
			SetObjectCullMode(terrainobject[x,y],0)
			DeleteMemblock(terrainmesh[x,y])
		endif

	next x
	SetObjectRotation(terrainobject[0,y],90,0,0)
next y
DeleteObject(plane)

Tried to add +y to the SetMeshMemblockVertexPosition Z pos , and it looks like it change the Y , so perhaps SetMeshMemblockVertexPosition has swapped Y and Z , X look fine.
Please confirm by changing your sample by swapping Y,Z when using SetMeshMemblockVertexPosition.

BTW: if you batch meshes using AddObjectMeshFromMemblock , you gain a 100% increase in speed , yes 100%

, but i assume your making one large object , so you will not have this problem.

best regards Preben Eriksen,

Attachments

Login to view attachments

Back to top

Profile PM Email

BatVink

Moderator

21

Years of Service

User Offline

Joined: 4th Apr 2003

Location: Gods own County, UK

Posted: 15th Dec 2015 12:07

Link

Thanks for the suggestions.

Quote: "Have you tried changing the vertex order?"

I have checked that the vertices match the texture (and therefore in the right place) by moving them outwards, one by one. That way I could see that each one was where I expect it to be.

Quote: "Please confirm by changing your sample by swapping Y,Z when using SetMeshMemblockVertexPosition."

This didn't fix it, I got an unrecognisable mashup of shapes.
Perhaps you made the same mistake as I did, and thought a Plane is a horizontal shape? It is actually created vertically.

Quote: "BTW: if you batch meshes using AddObjectMeshFromMemblock , you gain a 100% increase in speed , yes 100% , but i assume your making one large object , so you will not have this problem."

Thanks for the information. Step 1 is creating individual objects, but then I will move to meshes which combine 100 Planes into 1 object. Good to know this will improve performance.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Quidquid latine dictum sit, altum sonatur
TutCity is being rebuilt

Back to top

Profile PM Email

Preben

AGK Studio Developer

20

Years of Service

User Offline

Joined: 30th Jun 2004

Location:

Posted: 15th Dec 2015 14:19 Edited at: 15th Dec 2015 14:21

Link

My bad:
Im rotation the object , but rotation dont change the vertex , so when i rotate x by 90 to place the plane vertically , then when i change the vertex z if will actually look like it move along y. Its a bit confusing when your also rotating objects. ( screenshot when i dont rotate x it actually move in the z direction , so SetMeshMemblockVertexPosition is fine ).

Anyway perhaps you have some of the same using rotation.

best regards Preben Eriksen,

Attachments

Login to view attachments

Back to top

Profile PM Email

CJB

Valued Member

20

Years of Service

User Offline

Joined: 10th Feb 2004

Location: Essex, UK

Posted: 15th Dec 2015 15:44 Edited at: 15th Dec 2015 15:45

Link

I don't mean to hijack, but why do I keep seing .png attachments as grabled text? Is this a problem with the boards or is it just my browser? I can't see your attachment Preben, just a page full of ascii... [edit] but I CAN see your previous attachment (https://forum.thegamecreators.com/attachment/76818).

V2 T1 (Mostly)
Phone Tap!
Uzmadesign

Back to top

Profile PM Email Website

Preben

AGK Studio Developer

20

Years of Service

User Offline

Joined: 30th Jun 2004

Location:

Posted: 15th Dec 2015 16:24 Edited at: 15th Dec 2015 16:24

Link

Quote: "attachments as grabled text?"

Must be a forum thing , the small thumb is working. i upladed a jpg instead and its working. i will keep the png if anyone want to find out why it dont display

best regards Preben Eriksen,

Back to top

Profile PM Email

BatVink

Moderator

21

Years of Service

User Offline

Joined: 4th Apr 2003

Location: Gods own County, UK

Posted: 15th Dec 2015 16:28

Link

My Jpg didn't work either. I had to host the upload on my webspace.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Quidquid latine dictum sit, altum sonatur
TutCity is being rebuilt

Back to top

Profile PM Email

BatVink

Moderator

21

Years of Service

User Offline

Joined: 4th Apr 2003

Location: Gods own County, UK

Posted: 16th Dec 2015 08:41

Link

I solved my problem, the problem was me.
I was using a cube to calculate my rotation and positioning. I had incorrectly positioned the cube when doing the LookAt to get the angle., and all plains were being warped.

Thanks for your efforts as always.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Quidquid latine dictum sit, altum sonatur
TutCity is being rebuilt

Back to top

Profile PM Email
