this is a bug? - GameCreators Forum

Author

Message

pamercomov

FPSC Reloaded TGC Backer

9

Years of Service

User Offline

Joined: 2nd Jan 2015

Location: palma de mallorca

Posted: 27th Dec 2015 07:05

Link

hi.
when I create a sprite so:

createsprite(1,monta)

this comand no works fine

SetImageWrapU(1, 1)
SetImageWrapv(1, 1)

but if I do so

c=createsprite(monta)
SetImageWrapU(c, 1)
SetImageWrapv(c, 1)

if it does.

I thought it was like creating a sprite of two ways, but I see not, and if it's a bug or really should be.
and if so more differences like these there?

using AppGameKit V2 tier 1

Back to top

Profile PM Email

Rich Dersheimer

AGK Developer

15

Years of Service

User Offline

Joined: 1st Jul 2009

Location: Inside the box

Posted: 27th Dec 2015 07:55 Edited at: 27th Dec 2015 08:43

Link

Without seeing the rest of your code (or at least enough to test) it's hard to say what's going on.

Try this...

+ Code Snippet


// Project: test image wrap
// Created: 2015-12-27

// set window properties
SetWindowTitle( "test image wrap" )
SetWindowSize( 1024, 768, 0 )

// set display properties
SetVirtualResolution( 1024, 768 )
SetOrientationAllowed( 1, 1, 1, 1 )

ClearScreen()

white = MakeColor(255,255,255)
red = MakeColor(255,0,0)
DrawBox(0,0,64,64,red,red,red,red,1)
DrawEllipse(32,32,32,32,white,white,1)

MyImage = GetImage(0,0,64,64)
SetImageWrapU(MyImage, 1)
SetImageWrapv(MyImage, 1)

MyImage2 = GetImage(0,0,64,64)
SetImageWrapU(MyImage2, 1)
SetImageWrapv(MyImage2, 1)

MySprite = CreateSprite(MyImage)
CreateSprite(1,MyImage2)

SetSpritePosition(MySprite, 100,100)
SetSpritePosition(1,200,100)

Dupes = 3.0

SetSpriteUV(1, 0,0, 0,Dupes, Dupes,0, Dupes,Dupes)
SetSpriteUV(MySprite, 0,0, 0,Dupes, Dupes,0, Dupes,Dupes)

setclearcolor(0,0,255)

do
    Sync()
loop

You'll see that both sprites uv wrap correctly.

Can you post an example of how yours doesn't work?

EDIT: Oh! I see what you are doing. You are setting the image wrap behavior on the sprite ID, not the image ID. So it should be

SetImageWrapv(monta, 1)

LOL, that was an easy catch that I completely missed the first time around!

BraindeaD caught it though.

Attachments

Login to view attachments

Back to top

Profile PM Email

BraindeaD

16

Years of Service

User Offline

Joined: 30th Mar 2008

Location:

Posted: 27th Dec 2015 08:00

Link

Hi Pamercomov!

I'm not sure, but maybe the problem is that SetImageWrapU is related to Images instead sprites... not sure why in the second piece of code it works...

Regards

Back to top

Profile PM

Rich Dersheimer

AGK Developer

15

Years of Service

User Offline

Joined: 1st Jul 2009

Location: Inside the box

Posted: 27th Dec 2015 08:15 Edited at: 27th Dec 2015 08:45

Link

@BraindeaD - Setting the image wrap tells AppGameKit what to do when the image uv's are not the default.

I could have used SetSpriteUVScale(MySprite,.3333,.3333) to get the same result, but you still have to tell AppGameKit how to handle the image assigned to the sprite, either to clamp or repeat it.

EDIT: However, you may notice that I used the same image for both sprites in my example. A better example would be to use two separate images. If you change the uv wrap on an image multiple times, only the last change applies when the image is used.

At least I think that's how it works.

I'll change the example to better reflect this. Good catch on the "image vs sprite" behavior!

Back to top

Profile PM Email

pamercomov

FPSC Reloaded TGC Backer

9

Years of Service

User Offline

Joined: 2nd Jan 2015

Location: palma de mallorca

Posted: 27th Dec 2015 16:11

Link

hi...

i dont use this in this way

i use this

+ Code Snippet

// Project: test image wrap
// Created: 2015-12-27

// set window properties
SetWindowTitle( "test image wrap" )
SetWindowSize( 800, 600, 0 )
global wrap1#=0.0
global back
// set display properties
SetVirtualResolution( 800, 600 )
SetOrientationAllowed( 1, 1, 1, 1 )

back=loadimage("fondo.png")
createsprite (1,back)
SetImageWrapU(1, 1)
do
	wrap1#=wrap1#+0.001
	SetSpriteUVOffset(1,wrap1#,0)

    Sync()
loop

this dont work
and this work

+ Code Snippet

// Project: test image wrap
// Created: 2015-12-27

// set window properties
SetWindowTitle( "test image wrap" )
SetWindowSize( 800, 600, 0 )
global wrap1#=0.0
global back
global fondo
// set display properties
SetVirtualResolution( 800, 600 )
SetOrientationAllowed( 1, 1, 1, 1 )

back=loadimage("fondo.png")
fondo=createsprite (back)
SetimageWrapU(fondo, 1)
do
	wrap1#=wrap1#+0.001
	SetSpriteUVOffset(fondo,wrap1#,0)

    Sync()
loop

upload 2 images
1 to test code "fondo.png"

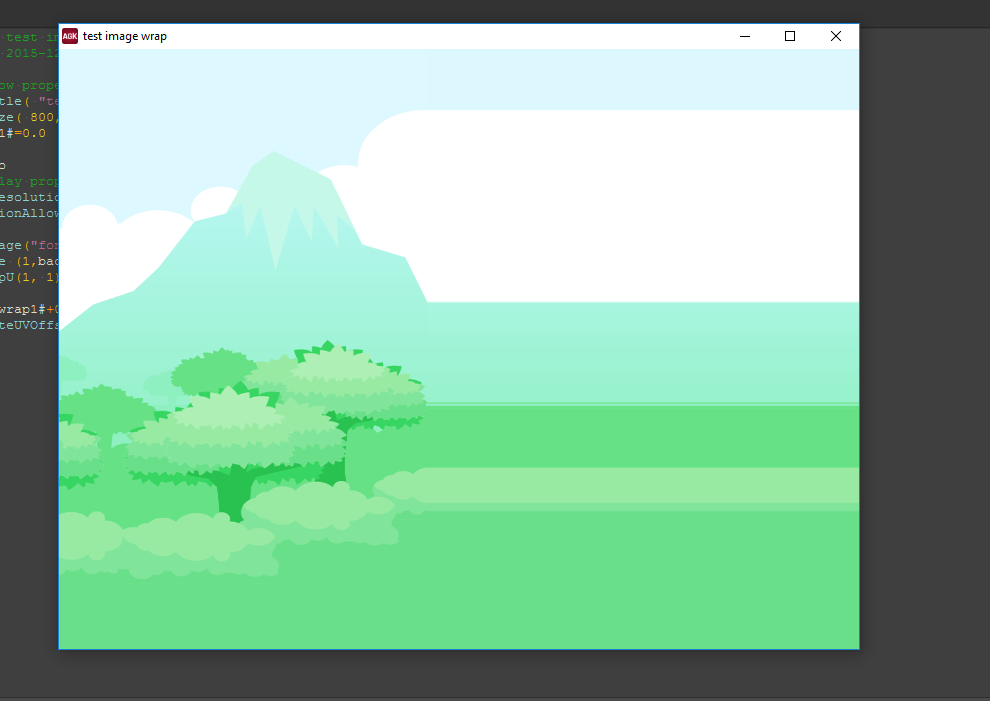

1 to see error

using AppGameKit V2 tier 1

Attachments

Login to view attachments

Back to top

Profile PM Email

Markus

Valued Member

20

Years of Service

User Offline

Joined: 10th Apr 2004

Location: Germany

Posted: 27th Dec 2015 16:30 Edited at: 27th Dec 2015 16:30

Link

this
back=loadimage("fondo.png")
fondo=createsprite (back)
SetimageWrapU(fondo, 1)

should be this

back=loadimage("fondo.png")
fondo=createsprite (back)
SetimageWrapU(back, 1) <image not sprite

AGK (Steam) V2.0.16 : Windows 10 Pro 64 Bit : AMD (15.30.1025) Radeon R7 265 : Mac mini OS X 10.10 (Yosemite)

Back to top

Profile PM Email

Scary Little Rabbit

15

Years of Service

User Offline

Joined: 4th Aug 2009

Location: Chelyabinsk, Russian Federation.

Posted: 27th Dec 2015 16:39

Link

again, just as it was said above you do it wrong. don't pass any sprite's index to setImageWrapU() because it needs an image's one.

by the way createSprite() returns indexes starting at 100001 and so it sets your fondo variable to 100001. then since there is no image with index 100001 all is tending to go crazy.

error #1:
'too many stars, too many stares. disembody.'
WIP: MIND!! free fonts for your AGKs

Back to top

Profile PM Email Website

pamercomov

FPSC Reloaded TGC Backer

9

Years of Service

User Offline

Joined: 2nd Jan 2015

Location: palma de mallorca

Posted: 27th Dec 2015 17:08

Link

oooookkkki

thx

using AppGameKit V2 tier 1

Back to top

Profile PM Email
