3d models/objects with Qubicle and AGK?

Author

Message

Fluorescent

FPSC Reloaded TGC Backer

18

Years of Service

User Offline

Joined: 1st Aug 2005

Location: Stockholm, Sweden

Posted: 2nd May 2016 17:30

Link

I've been thinking about trying out 3d in AppGameKit and since I recently got a 3d program called Qubicle that looked like fun I tried exporting a model from it to use in AGK. It appeared to be rendered upside down and inside out for some reason.

has anybody tried creating content with Qubicle and using it in AppGameKit? If so, did it work and how did you do it?

Back to top

Profile PM

SoftMotion3D

AGK Developer

18

Years of Service

User Offline

Joined: 24th Aug 2005

Location: Calgary,Alberta

Posted: 2nd May 2016 19:04

Link

What format is that program exporting? Maybe you could try a different export format

Back to top

Profile PM Email Website

haliop_New

User Banned

Posted: 3rd May 2016 17:48

Link

I actually took a look at the trailer of Qubicle , which seams awesome btw..
and in the trailer it says it can export into FBX I think its autocad file or something
so AppGameKit can load FBX file format so you can try it... just see the Export tool inside Qubicle
and see the AppGameKit Documentation : LoadObject , to see what kind of 3d file types AppGameKit can handle...

haliop.

Back to top

Profile

Fluorescent

FPSC Reloaded TGC Backer

18

Years of Service

User Offline

Joined: 1st Aug 2005

Location: Stockholm, Sweden

Posted: 4th May 2016 17:37

Link

If I try to load a collada file I get this error message.
"Failed to load object "sphere.dae" - Collada: sphere.dae - Unknown reference format in url "Matrix-position-array" in source attribute of <accessor> element. in main.agc at line 13"

FBX and Obj both give the same result where the model, at least in my opinion seems a bit inside out.

I'm attaching the obj-file and you can have an opinion also. Maybe I'm doing something wrong when I load the model?

Attachments

Login to view attachments

Back to top

Profile PM

Paul Johnston

TGC Developer

21

Years of Service

User Offline

Joined: 16th Nov 2002

Location: United Kingdom

Posted: 4th May 2016 17:49

Link

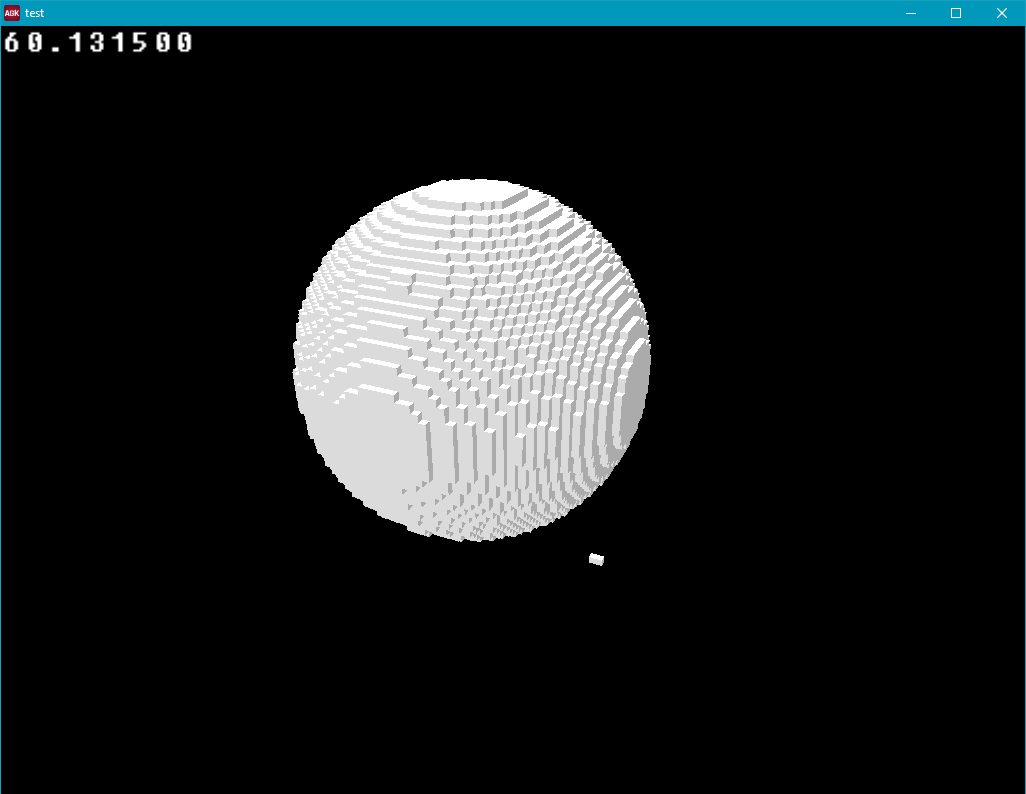

Just tested the sphere.obj file you attached, worked here and looked fine, but it is quite big so I had to move the camera back to see it properly, otherwise the camera starts inside the sphere. I've attached a screenshot.

Attachments

Login to view attachments

Back to top

Profile PM Email

Fluorescent

FPSC Reloaded TGC Backer

18

Years of Service

User Offline

Joined: 1st Aug 2005

Location: Stockholm, Sweden

Posted: 4th May 2016 18:11

Link

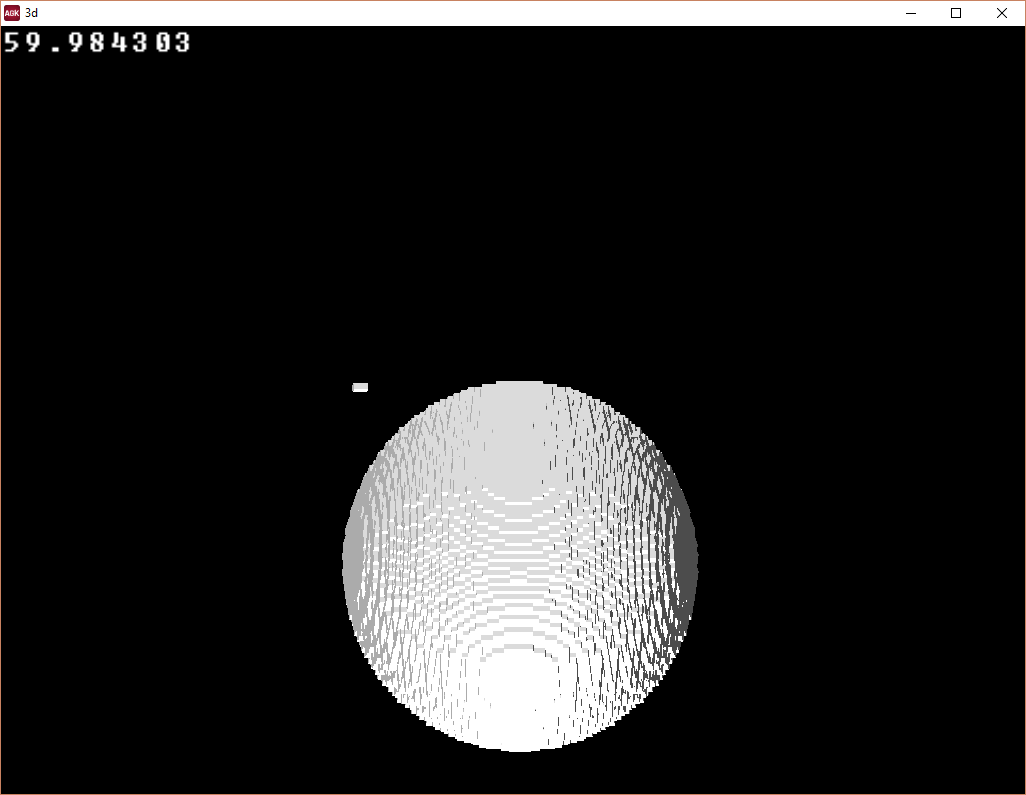

I still think mine looks different from yours. Also min is clearly upside down compared to yours since the little stray box is in a different possition. What code did you use to load it?

Attachments

Login to view attachments

Back to top

Profile PM

Paul Johnston

TGC Developer

21

Years of Service

User Offline

Joined: 16th Nov 2002

Location: United Kingdom

Posted: 4th May 2016 21:17

Link

Here is my code

// set window properties
SetWindowTitle( "test" )
SetWindowSize( 1024, 768, 0 )

// set display properties
SetVirtualResolution( 1024, 768 )
SetOrientationAllowed( 1, 1, 1, 1 )
SetScissor(0,0,0,0)

LoadObject(1, "sphere.obj")

do
    speed# = 2.0
    if ( GetRawKeyState( 16 ) ) then speed# = 0.3

    if ( GetRawKeyState( 87 ) ) then MoveCameraLocalZ( 1, speed# )
	if ( GetRawKeyState( 83 ) ) then MoveCameraLocalZ( 1, -speed# )

if ( GetRawKeyState( 65 ) ) then MoveCameraLocalX( 1, -speed# )
	if ( GetRawKeyState( 68 ) ) then MoveCameraLocalX( 1, speed# )

if ( GetRawKeyState( 81 ) ) then MoveCameraLocalY( 1, -speed# )
	if ( GetRawKeyState( 69 ) ) then MoveCameraLocalY( 1, speed# )

	if ( GetPointerPressed() )
        startx# = GetPointerX()
        starty# = GetPointerY()
        angx# = GetCameraAngleX(1)
        angy# = GetCameraAngleY(1)
        pressed = 1
    endif

if ( GetPointerState() = 1 )
        fDiffX# = (GetPointerX() - startx#)/4.0
        fDiffY# = (GetPointerY() - starty#)/4.0

newX# = angx# + fDiffY#
        if ( newX# > 89 ) then newX# = 89
        if ( newX# < -89 ) then newX# = -89
        SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
    endif

    Print( ScreenFPS() )
    Sync()
loop

+ Code Snippet

// set window properties
SetWindowTitle( "test" )
SetWindowSize( 1024, 768, 0 )

// set display properties
SetVirtualResolution( 1024, 768 )
SetOrientationAllowed( 1, 1, 1, 1 )
SetScissor(0,0,0,0)

LoadObject(1, "sphere.obj")


do
    speed# = 2.0
    if ( GetRawKeyState( 16 ) ) then speed# = 0.3

    if ( GetRawKeyState( 87 ) ) then MoveCameraLocalZ( 1, speed# )
	if ( GetRawKeyState( 83 ) ) then MoveCameraLocalZ( 1, -speed# )

	if ( GetRawKeyState( 65 ) ) then MoveCameraLocalX( 1, -speed# )
	if ( GetRawKeyState( 68 ) ) then MoveCameraLocalX( 1, speed# )

	if ( GetRawKeyState( 81 ) ) then MoveCameraLocalY( 1, -speed# )
	if ( GetRawKeyState( 69 ) ) then MoveCameraLocalY( 1, speed# )

	if ( GetPointerPressed() )
        startx# = GetPointerX()
        starty# = GetPointerY()
        angx# = GetCameraAngleX(1)
        angy# = GetCameraAngleY(1)
        pressed = 1
    endif

    if ( GetPointerState() = 1 )
        fDiffX# = (GetPointerX() - startx#)/4.0
        fDiffY# = (GetPointerY() - starty#)/4.0

        newX# = angx# + fDiffY#
        if ( newX# > 89 ) then newX# = 89
        if ( newX# < -89 ) then newX# = -89
        SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
    endif

    Print( ScreenFPS() )
    Sync()
loop
