help build Icosahedron - GameCreators Forum

Author

Message

Star Vitebsk

16

Years of Service

User Offline

Joined: 18th Oct 2007

Location: Belarus

Posted: 25th Aug 2016 08:50

Link

help build Icosahedron

using dbpro

VitebskStar@tut.by
icq: 157980031

Back to top

Profile PM Email

WickedX

15

Years of Service

User Offline

Joined: 8th Feb 2009

Location: A Mile High

Posted: 25th Aug 2016 15:18

Link

In Dark-Basic you can create a icosahedron by building the object from triangle meshes. The triangle meshes can be combined into a single object with Add Limb or Add Mesh To Vertexdata. The Matrix1Utils plugin has the function Make Object New. With this function you can set the Flexible Vertex Format, Vertex Count and Index Count to build a blank object. Then with the vertex data and index data functions you can set the vertex data and index data for the object.

Back to top

Profile PM Email

chafari

Valued Member

17

Years of Service

User Offline

Joined: 2nd May 2006

Location: Canary Islands

Posted: 25th Aug 2016 15:48

Link

Hi there.
@WickedX.....good answer...I was making an example more or less with the same result.

@Star Vitesbsk.
This question looks more like a challenge to me . I didn't even know an icosahedron had 20 faces. I'm not good at math, but if we see an image of it, we all can guess where the vertex are and how manage to spread out all vertex.

If we make a function to make triangle each tri vertex, we can do nearly everything. Here's a little example of an icosahedron made in Dbpro. I hope it helps.

set display mode 800,600,32
autocam off
sync on
hide light 0:set ambient light 0
make light 1:position light 1,100,0,0:color light 1,rgb(0,255,0)
make light 2:position light 2,-100,-100,0:color light 2,rgb(0,255,255)
make light 3:position light 3,50,100,0:color light 3,rgb(255,0,0)

rem vertex to see where to make triangles
for i= 1 to 12
    make object box i,1,1,1
    yrotate object i,72*i
    move object up i,9
    if i>5 then move object down i,18:yrotate object i,(i*72)+72/2
    move object i,15
next
position object 11,0,20,0
position object 12,0,-20,0
rem faces
tri(20,11,1,2)
tri(21,11,2,3)
tri(22,11,3,4)
tri(23,11,4,5)
tri(24,11,5,1)
tri(25,1,6,2)
tri(26,2,7,3)
tri(27,3,8,4)
tri(28,5,4,9)
tri(29,1,5,10)
tri(30,1,10,6)
tri(31,2,6,7)
tri(32,3,7,8)
tri(33,4,8,9)
tri(34,5,9,10)
tri(35,6,10,12)
tri(36,10,9,12)
tri(37,9,8,12)
tri(38,8,7,12)
tri(39,7,6,12)

rem joining all meshes to a single object
make object box 100,0,0,0:position object 100,50,0,0
for i= 20 to 39
  inc mesh
  make mesh from object mesh,i
  add limb 100,mesh,mesh
next

position camera 20,-10,-150
point camera 20,-10,0
do
g#=g#+0.1
 rotate object 100,g#,g#,g#
ink rgb(0,255,0),1
for i= 1 to 12
  text object screen x(i),object screen y(i),str$(i)
next

control camera using arrowkeys 0,0.1,0.1
a#=wrapvalue(a#+mousemovex()/2)
cam#=wrapvalue(cam#+mousemovey()/2)
rotate camera cam#,a#,0
if leftkey() then move camera left 0.1
if rightkey() then move camera right 0.1
sync
loop

function tri(n,a,b,c)
   xx#=object position x(a)
   yy#=object position y(a)
   zz#=object position z(a)
   xx2#=object position x(b)
   yy2#=object position y(b)
   zz2#=object position z(b)
   xx3#=object position x(c)
   yy3#=object position y(c)
   zz3#=object position z(c)
   make object triangle n,xx#,yy#,zz#,xx2#,yy2#,zz2#,xx3#,yy3#,zz3#
   set object normals n
endfunction tri

+ Code Snippet

set display mode 800,600,32
autocam off
sync on
hide light 0:set ambient light 0
make light 1:position light 1,100,0,0:color light 1,rgb(0,255,0)
make light 2:position light 2,-100,-100,0:color light 2,rgb(0,255,255)
make light 3:position light 3,50,100,0:color light 3,rgb(255,0,0)

rem vertex to see where to make triangles
for i= 1 to 12
    make object box i,1,1,1
    yrotate object i,72*i
    move object up i,9
    if i>5 then move object down i,18:yrotate object i,(i*72)+72/2
    move object i,15
next
position object 11,0,20,0
position object 12,0,-20,0
rem faces
tri(20,11,1,2)
tri(21,11,2,3)
tri(22,11,3,4)
tri(23,11,4,5)
tri(24,11,5,1)
tri(25,1,6,2)
tri(26,2,7,3)
tri(27,3,8,4)
tri(28,5,4,9)
tri(29,1,5,10)
tri(30,1,10,6)
tri(31,2,6,7)
tri(32,3,7,8)
tri(33,4,8,9)
tri(34,5,9,10)
tri(35,6,10,12)
tri(36,10,9,12)
tri(37,9,8,12)
tri(38,8,7,12)
tri(39,7,6,12)


rem joining all meshes to a single object
make object box 100,0,0,0:position object 100,50,0,0
for i= 20 to 39
  inc mesh
  make mesh from object mesh,i
  add limb 100,mesh,mesh
next


position camera 20,-10,-150
point camera 20,-10,0
do
g#=g#+0.1
 rotate object 100,g#,g#,g#
ink rgb(0,255,0),1
for i= 1 to 12
  text object screen x(i),object screen y(i),str$(i)
next

control camera using arrowkeys 0,0.1,0.1
a#=wrapvalue(a#+mousemovex()/2)
cam#=wrapvalue(cam#+mousemovey()/2)
rotate camera cam#,a#,0
if leftkey() then move camera left 0.1
if rightkey() then move camera right 0.1
sync
loop


function tri(n,a,b,c)
   xx#=object position x(a)
   yy#=object position y(a)
   zz#=object position z(a)
   xx2#=object position x(b)
   yy2#=object position y(b)
   zz2#=object position z(b)
   xx3#=object position x(c)
   yy3#=object position y(c)
   zz3#=object position z(c)
   make object triangle n,xx#,yy#,zz#,xx2#,yy2#,zz2#,xx3#,yy3#,zz3#
   set object normals n
endfunction tri

I'm not a grumpy grandpa

Back to top

Profile PM Email

Derek Darkly

12

Years of Service

User Offline

Joined: 22nd Sep 2011

Location: Whats Our Vector, Victor?

Posted: 25th Aug 2016 23:54

Link

Nice Chafari!

How did you work out the positions? Trial and error? Logical progression? Pure math?

Send your parents to noisy sprite demo hell... enter the D-Zone

Back to top

Profile PM

chafari

Valued Member

17

Years of Service

User Offline

Joined: 2nd May 2006

Location: Canary Islands

Posted: 26th Aug 2016 08:32

Link

Quote: "How did you work out the positions? Trial and error?"

Well as you can see, it has 12 vertex...one up, then two rings of five and the one down.

First I made them all at once....

Quote: "
for i= 1 to 12
make object box i,1,1,1
yrotate object i,72*i
move object up i,9
if i>5 then move object down i,18:yrotate object i,(i*72)+72/2
move object i,15
next"

Then move all vertex to the first ring position( 9 units up )

Vertex number bigger than five correspond to the second ring...so we have to move them all 18 units downwards ...the las step was position manually the vertex of top and down.

As you can see, I made it ti show in screen all vertex numbers....so it was easy to guess what vertex to use for each triangle....so I wrote down in a piece of paper all vertex combination....that was all....that us not really math

....as I commented , I didn't know exactly what figure was an icosahedron....then I saw an image at google and as you know... I like challenges...it took me no more than half an hour....of course I had my function for make triangles....so I think using the same method, we could do lots of different primitives.

Chers

I'm not a grumpy grandpa

Back to top

Profile PM Email

Derek Darkly

12

Years of Service

User Offline

Joined: 22nd Sep 2011

Location: Whats Our Vector, Victor?

Posted: 27th Aug 2016 01:14

Link

Quote: "I think using the same method, we could do lots of different primitives."

Yes indeed... I'm surprised there haven't been more attempts by members at their own modeling programs in DBP....or at least a nice custom primitives generator.

Send your parents to noisy sprite demo hell... enter the D-Zone

Back to top

Profile PM

Star Vitebsk

16

Years of Service

User Offline

Joined: 18th Oct 2007

Location: Belarus

Posted: 27th Aug 2016 07:56

Link

excellent !!!

VitebskStar@tut.by
icq: 157980031

Back to top

Profile PM Email

Star Vitebsk

16

Years of Service

User Offline

Joined: 18th Oct 2007

Location: Belarus

Posted: 28th Aug 2016 12:21

Link

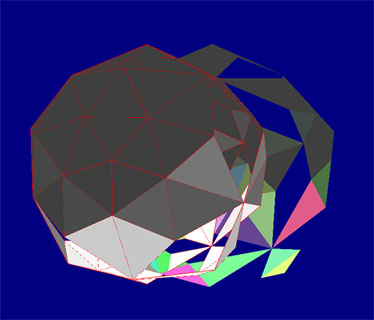

drawn incorrectly, please help

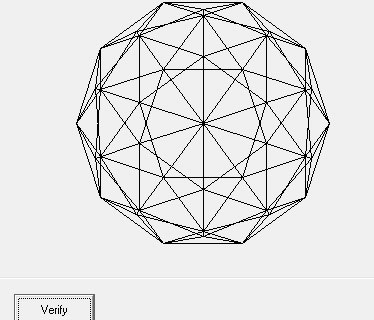

original code attached in the file

here is the code:

global height as integer
global weight as integer
height=desktop WIDTH()
weight=desktop HEIGHT()
bit=SCREEN DEPTH()
height2=height/2:weight2=weight/2: SET DISPLAY MODE height,weight,bit
POSITION MOUSE height2,weight2:`HIDE MOUSE
backdrop on
SET TEXT FONT "ms serif"
SET TEXT SIZE 12
`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
D3D_Init

D3D_Font 2,"Arial",11,0,0,1
D3D_Color 255,255,255,255
set camera range 1,52000

`*************************************************************

Type Point1
    Name As String
    X As float
    Y As float
    Z As float
EndType

Type Edge
    Pt1 As Integer
    Pt2 As Integer
EndType

Type Face
    Pt1 As Integer
    Pt2 As Integer
    Pt3 As Integer
EndType

Type Triangle
    Pt1 As Integer
    Pt2 As Integer
    Pt3 As Integer
EndType

global Dim m_Points() As Point1
global Dim m_Edges() As Edge
global Dim m_Faces() As Face
global Dim m_Triangles() As Triangle

`**************************************************************

global S as double float

global t1 As float
global t2 As float
global t3 As float
global t4 As float
global R As double float
global H As float
global Cx As float
global Cy As float
global H1 As float
global H2 As float
global Z1 As float
global Z2 As float

i As Integer
global rad as float

global x as float
global y as float
global z as float

global num_faces As Integer
global num_points As Integer
global dist As float

global Pi1 as double float
`**************************************************
LineColor=D3D_RGBA(255,0,0,255) `ÒÎ×ÊÈ

sync on:sync rate 100

` print
` print

` paste image 1,450,0

S = 100.0

` Pi1=3.14159265
 rad=57.295`53.6
` print pi1/5
` print sin(pi1/5)
` print s/2.0
` print (s/2.0)/sin((pi1/5)*57.3)

` Calculate intermediate values.
    t1 = 2.0 * Pi() / 5.0:                       `print "1 ";t1
    t2 = Pi() / 10.0:                          `print "2 ";t2
    t4 = (Pi() / 5.0):                          ` print "3 ";t4
    t3 = (-3.0 * Pi()) / 10.0:                  ` print "4 ";t3

`    R = (((S / 2.0))) / (Sin(t4)):                  print "5 ";R
    R = (((S / 2.0))) / (Sin(t4)*rad):                `  print "5 ";R

    H = Cos(t4*rad) * R:                       ` print "6 ";H
    Cx = R * Cos(t2*rad):                      ` print "7 ";Cx
    Cy = R * Sin(t2*rad):                     `  print "8 ";Cy
    Z2 = 1.0

H1 = Sqrt(S * S - R * R):          ` print "9 ";H1
    H2 = Sqrt((H + R) * (H + R) - H * H):  ` print "10 ";H2
    Z2 = (H2 - H1) / 2.0:                  `   print "11 ";Z2
    Z1 = Z2 + H1:                          ` print "12 ";Z1
   ` print

` Create the points.
    `Ôóíêöèè
` print  "POINT"
    MakePoint("a", 0, 0, Z1)
    MakePoint("b", 0.0, R, Z2)
    MakePoint("c", Cx, Cy, Z2)
    MakePoint("d", S / 2.0, -H, Z2)
    MakePoint("e", -S / 2.0, -H, Z2)
    MakePoint("f", -Cx, Cy, Z2)
    MakePoint("g", 0.0, -R, -Z2)
    MakePoint("h", -Cx, -Cy, -Z2)
    MakePoint("i", -S / 2.0, H, -Z2)
    MakePoint("j", S / 2.0, H, -Z2)
    MakePoint("k", Cx, -Cy, -Z2)
    MakePoint("l", 0.0, 0.0, -Z1)
 `print  "FACE"
    ` Make the outwardly-oriented faces.
    MakeFace("a", "c", "b")
    MakeFace("a", "b", "f")
    MakeFace("a", "f", "e")
    MakeFace("a", "e", "d")
    MakeFace("a", "d", "c")
    MakeFace("c", "d", "k")
    MakeFace("c", "k", "j")
    MakeFace("c", "j", "b")
    MakeFace("b", "j", "i")
    MakeFace("b", "i", "f")
    MakeFace("f", "i", "h")
    MakeFace("f", "h", "e")
    MakeFace("e", "h", "g")
    MakeFace("e", "g", "d")
    MakeFace("d", "g", "k")
    MakeFace("l", "j", "k")
    MakeFace("l", "k", "g")
    MakeFace("l", "g", "h")
    MakeFace("l", "h", "i")
    MakeFace("l", "i", "j")
`print "End_face"

For i = 1 To ARRAY COUNT(m_Faces())
 TileFace(i)
    Next i
`sync
` goto n1

`  print  "-----"
` print ARRAY COUNT(f()) `êîëè÷åñòâî ýëåìåíòîâ â ìàññèâå

`remstart
``hide light 0:set ambient light 0
`make light 1:position light 1,100,0,0:color light 1,rgb(0,255,0)
`make light 2:position light 2,-100,-100,0:color light 2,rgb(0,255,255)
`make light 3:position light 3,50,100,0:color light 3,rgb(255,0,0)

For i = 1 To ARRAY COUNT(m_Triangles())
`    make object triangle i,m_Points(m_Triangles(i).Pt1).X,m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).Z,m_Points(m_Triangles(i).Pt2).X,m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).Z,m_Points(m_Triangles(i).Pt3).X,m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).Z
    make object triangle i,m_Points(m_Triangles(i).Pt2).X,m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).Z,m_Points(m_Triangles(i).Pt1).X,m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).Z,m_Points(m_Triangles(i).Pt3).X,m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).Z
    set object normals i
    next i

mesh=0
    make object box 1000,0,0,0:position object 1000,50,0,0
    For i = 1 To ARRAY COUNT(m_Triangles())
      inc mesh
      make mesh from object mesh,i
      add limb 1000,mesh,mesh
      COLOR LIMB 1000, mesh, rgb(rnd(255),rnd(255),rnd(255))

next


    position camera 0,0,0
move camera -500
point camera 0,0,0

`remend

do
    ` Make faces for the triangles.
    For i = 1 To ARRAY COUNT(m_Triangles())
      `    D3D_Line3D mx1#,my1#,mz1#,mx2#,my2#,mz2#,LineColor,LineColor, 0

        D3D_Line3d m_Points(m_Triangles(i).Pt1).X, m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).Z,m_Points(m_Triangles(i).Pt2).X, m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).z,LineColor,LineColor,1
        D3D_Line3d m_Points(m_Triangles(i).Pt2).X, m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).z,m_Points(m_Triangles(i).Pt3).X, m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).z,LineColor,LineColor,1
        D3D_Line3d m_Points(m_Triangles(i).Pt1).X, m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).z,m_Points(m_Triangles(i).Pt3).X, m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).z,LineColor,LineColor,1
`      print i;"=";m_Points(m_Triangles(i).Pt1).X;"--";m_Points(m_Triangles(i).Pt1).Y
`per=640
`        d3d_Line per + m_Points(m_Triangles(i).Pt1).X, per + m_Points(m_Triangles(i).Pt1).Y,per + m_Points(m_Triangles(i).Pt2).X, per + m_Points(m_Triangles(i).Pt2).Y
`        d3d_Line per + m_Points(m_Triangles(i).Pt2).X, per + m_Points(m_Triangles(i).Pt2).Y,per + m_Points(m_Triangles(i).Pt3).X, per + m_Points(m_Triangles(i).Pt3).Y
`        d3d_Line per + m_Points(m_Triangles(i).Pt1).X, per + m_Points(m_Triangles(i).Pt1).Y,per + m_Points(m_Triangles(i).Pt3).X, per + m_Points(m_Triangles(i).Pt3).Y
`        Print i; " 1="; m_Points(m_Triangles(i).Pt1).X; "-"; m_Points(m_Triangles(i).Pt1).Y; "    2="; m_Points(m_Triangles(i).Pt2).X; "-"; m_Points(m_Triangles(i).Pt2).Y; "   3="; m_Points(m_Triangles(i).Pt3).X; "-"; m_Points(m_Triangles(i).Pt3).Y
`        sync
    Next i

n1:

set cursor 0,0
 print screen fps()
 gosub camera

sync

loop
`wait key
end

` Add an Face to the m_Faces array.
function MakeFace(name1$,name2$,name3$)

num_faces=0
    num_faces = ARRAY COUNT(m_Faces())
    if num_faces=-1 then num_faces=1: goto nn2
    num_faces = num_faces + 1
nn2:
    Dim m_Faces(num_faces)

m_Faces(num_faces).Pt1 = FindPointByName(name1$)
        m_Faces(num_faces).Pt2 = FindPointByName(name2$)
        m_Faces(num_faces).Pt3 = FindPointByName(name3$)
Endfunction

`ÒÎ×ÍÎ ÔÓÍÊÖÈß
` Add a point to the m_Points array.
Function MakePoint(new_name$,X,Y,Z)
num_points=0
    num_points = ARRAY COUNT(m_Points())
`    if ARRAY COUNT(m_Points())>71 then num_points=0

if num_points=-1 then num_points=1: goto nn3
    num_points = num_points + 1
nn3:
    Dim m_Points(num_points)

i As Integer

`    print new_name$;
        m_Points(num_points).Name = new_name$
        m_Points(num_points).X = X
        m_Points(num_points).Y = Y
        m_Points(num_points).Z = Z

`Print ARRAY COUNT(m_Points()); "____";new_name$;"_";X;"_";Y;"_";Z

EndFunction num_points

remstart
`ÒÎ×ÍÎ ÔÓÍÊÖÈß
` Add a point to the m_Points array.
Function MakePoint(new_name$,X,Y,Z)
num_points=0
    ` Make room.
 `   On Error Resume Next
    num_points = ARRAY COUNT(m_Points())
`    if num_points<0 then num_points=1
    `Print ARRAY COUNT(m_Points());
    if ARRAY COUNT(m_Points())>71 then num_points=0
`    if ARRAY COUNT(m_Points())=0  then num_points=1

i As Integer
    `For i = 1 To 20
    print new_name$;
        m_Points(num_points).Name = new_name$
        m_Points(num_points).X = X
        m_Points(num_points).Y = Y
        m_Points(num_points).Z = Z
    `Next i
Print ARRAY COUNT(m_Points())
 num_points = num_points + 1
    Dim m_Points(num_points)

`    MakePoint = num_points
EndFunction num_points
remend

` Create a geodesic tiling for this face.
function TileFace(ii)
`TileFace:

LEVEL = 3`.0

x0 As float
y0 As float
z0 As float
v1x As float
v1y As float
v1z As float
v2x As float
v2y As float
v2z As float
base_name As String
p10 As Integer
p01 As Integer
p11 As Integer
i As Integer
    ` Get the Face's origin.

    For i = 1 To 12
        x0 = m_Points(m_Faces(ii).Pt1).X
        y0 = m_Points(m_Faces(ii).Pt1).Y
        z0 = m_Points(m_Faces(ii).Pt1).Z
    Next i

` Get the tiling's generating vectors.
    v1x = (m_Points(m_Faces(ii).Pt2).X - m_Points(m_Faces(ii).Pt1).X) / LEVEL
    v1y = (m_Points(m_Faces(ii).Pt2).Y - m_Points(m_Faces(ii).Pt1).Y) / LEVEL
    v1z = (m_Points(m_Faces(ii).Pt2).Z - m_Points(m_Faces(ii).Pt1).Z) / LEVEL
    v2x = (m_Points(m_Faces(ii).Pt3).X - m_Points(m_Faces(ii).Pt1).X) / LEVEL
    v2y = (m_Points(m_Faces(ii).Pt3).Y - m_Points(m_Faces(ii).Pt1).Y) / LEVEL
    v2z = (m_Points(m_Faces(ii).Pt3).Z - m_Points(m_Faces(ii).Pt1).Z) / LEVEL

` Generate the points.
    base_name = str$(m_Faces(ii).Pt1) + "-" + str$(m_Faces(ii).Pt2) + "-" + str$(m_Faces(ii).Pt1) + ":"
    p10 = MakeNormalizedPoint(base_name + "1,0", x0 + v1x, y0 + v1y, z0 + v1z)
    p01 = MakeNormalizedPoint(base_name + "0,1", x0 + v2x, y0 + v2y, z0 + v2z)
    p11 = MakeNormalizedPoint(base_name + "1,1", x0 + v1x + v2x, y0 + v1y + v2y, z0 + v1z + v2z)

` Make the triangles.
    MakeTriangle(m_Faces(ii).Pt1, p10, p01)
    MakeTriangle(p10, p11, p01)
    MakeTriangle(p10, m_Faces(ii).Pt2, p11)
    MakeTriangle(p01, p11, m_Faces(ii).Pt3)
`return
endfunction

` Add a Triangle to the m_Triangles array.
function MakeTriangle(Pt1,Pt2,Pt3)

num_triangles As Integer

num_triangles = ARRAY COUNT(m_Triangles())

if num_triangles=-1 then num_triangles=1: goto nn4
    num_triangles = num_triangles + 1
nn4:

Dim m_Triangles(num_triangles)

i As Integer

m_Triangles(num_triangles).Pt1 = Pt1
        m_Triangles(num_triangles).Pt2 = Pt2
        m_Triangles(num_triangles).Pt3 = Pt3

Endfunction

` Add a point to the m_Points array.
Function MakeNormalizedPoint(new_name$,X,Y,Z)
dist=0

dist = Sqrt(X * X + Y * Y + Z * Z)
    X = X / dist * Z1
    Y = Y / dist * Z1
    Z = Z / dist * Z1

MakeNormalizedPoint = MakePoint(new_name$, X, Y, Z)
EndFunction MakeNormalizedPoint

`*******************************************

Function FindPointByName(point_name$)

i As Integer

For i = 1 To ARRAY COUNT(m_Points())
        If m_Points(i).Name = point_name$` Then
            FindPointByName1 = i
            goto ex1
        EndIf
    Next i
ex1:
EndFunction FindPointByName1

` Add an edge to the m_Edges array.
function MakeEdge(name1$, name2$)
`exitfunction
num_edges As Integer
    num_edges = ARRAY COUNT(m_Edges())

if num_edges=-1 then num_edges=1: goto nn5
    num_edges = num_edges + 1
nn5:

Dim m_Edges(num_edges)

        m_Edges(num_edges).Pt1 = FindPointByName(name1$)
        m_Edges(num_edges).Pt2 = FindPointByName(name2$)

Endfunction

`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
`========================================================================================
CAMERA:
`if shiftkey()=1
    Mx1=(MOUSEX()-(height/2))
    My1=(MOUSEY()-(weight/2))
    nn#=180
    if Mx1<-12 then TURN CAMERA LEFT 0,-Mx1/nn#
    if Mx1>12 then TURN CAMERA RIGHT 0,Mx1/nn#
    if My1<-12 then PITCH CAMERA UP 0,-My1/nn#
    if My1>12 then PITCH CAMERA DOWN 0,My1/nn#

    if mousecLick()=1 then move camera 10
    if mousecLick()=2 then move camera -10

`endif
return
`========================================================================================

+ Code Snippet

global height as integer
global weight as integer
height=desktop WIDTH()
weight=desktop HEIGHT()
bit=SCREEN DEPTH()
height2=height/2:weight2=weight/2: SET DISPLAY MODE height,weight,bit
POSITION MOUSE height2,weight2:`HIDE MOUSE
backdrop on
SET TEXT FONT "ms serif"
SET TEXT SIZE 12
`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
D3D_Init

D3D_Font 2,"Arial",11,0,0,1
D3D_Color 255,255,255,255
set camera range 1,52000

`*************************************************************


Type Point1
    Name As String
    X As float
    Y As float
    Z As float
EndType

Type Edge
    Pt1 As Integer
    Pt2 As Integer
EndType

Type Face
    Pt1 As Integer
    Pt2 As Integer
    Pt3 As Integer
EndType

Type Triangle
    Pt1 As Integer
    Pt2 As Integer
    Pt3 As Integer
EndType

global Dim m_Points() As Point1
global Dim m_Edges() As Edge
global Dim m_Faces() As Face
global Dim m_Triangles() As Triangle


`**************************************************************

global S as double float


global t1 As float
global t2 As float
global t3 As float
global t4 As float
global R As double float
global H As float
global Cx As float
global Cy As float
global H1 As float
global H2 As float
global Z1 As float
global Z2 As float

i As Integer
global rad as float


global x as float
global y as float
global z as float


global num_faces As Integer
global num_points As Integer
global dist As float

global Pi1 as double float
`**************************************************
LineColor=D3D_RGBA(255,0,0,255) `ÒÎ×ÊÈ

sync on:sync rate 100

` print
` print

` paste image 1,450,0

S = 100.0

` Pi1=3.14159265
 rad=57.295`53.6
` print pi1/5
` print sin(pi1/5)
` print s/2.0
` print (s/2.0)/sin((pi1/5)*57.3)

    ` Calculate intermediate values.
    t1 = 2.0 * Pi() / 5.0:                       `print "1 ";t1
    t2 = Pi() / 10.0:                          `print "2 ";t2
    t4 = (Pi() / 5.0):                          ` print "3 ";t4
    t3 = (-3.0 * Pi()) / 10.0:                  ` print "4 ";t3

`    R = (((S / 2.0))) / (Sin(t4)):                  print "5 ";R
    R = (((S / 2.0))) / (Sin(t4)*rad):                `  print "5 ";R

    H = Cos(t4*rad) * R:                       ` print "6 ";H
    Cx = R * Cos(t2*rad):                      ` print "7 ";Cx
    Cy = R * Sin(t2*rad):                     `  print "8 ";Cy
    Z2 = 1.0

    H1 = Sqrt(S * S - R * R):          ` print "9 ";H1
    H2 = Sqrt((H + R) * (H + R) - H * H):  ` print "10 ";H2
    Z2 = (H2 - H1) / 2.0:                  `   print "11 ";Z2
    Z1 = Z2 + H1:                          ` print "12 ";Z1
   ` print

    ` Create the points.
    `Ôóíêöèè
` print  "POINT"
    MakePoint("a", 0, 0, Z1)
    MakePoint("b", 0.0, R, Z2)
    MakePoint("c", Cx, Cy, Z2)
    MakePoint("d", S / 2.0, -H, Z2)
    MakePoint("e", -S / 2.0, -H, Z2)
    MakePoint("f", -Cx, Cy, Z2)
    MakePoint("g", 0.0, -R, -Z2)
    MakePoint("h", -Cx, -Cy, -Z2)
    MakePoint("i", -S / 2.0, H, -Z2)
    MakePoint("j", S / 2.0, H, -Z2)
    MakePoint("k", Cx, -Cy, -Z2)
    MakePoint("l", 0.0, 0.0, -Z1)
 `print  "FACE"
    ` Make the outwardly-oriented faces.
    MakeFace("a", "c", "b")
    MakeFace("a", "b", "f")
    MakeFace("a", "f", "e")
    MakeFace("a", "e", "d")
    MakeFace("a", "d", "c")
    MakeFace("c", "d", "k")
    MakeFace("c", "k", "j")
    MakeFace("c", "j", "b")
    MakeFace("b", "j", "i")
    MakeFace("b", "i", "f")
    MakeFace("f", "i", "h")
    MakeFace("f", "h", "e")
    MakeFace("e", "h", "g")
    MakeFace("e", "g", "d")
    MakeFace("d", "g", "k")
    MakeFace("l", "j", "k")
    MakeFace("l", "k", "g")
    MakeFace("l", "g", "h")
    MakeFace("l", "h", "i")
    MakeFace("l", "i", "j")
`print "End_face"

    For i = 1 To ARRAY COUNT(m_Faces())
 TileFace(i)
    Next i
`sync
` goto n1

`  print  "-----"
` print ARRAY COUNT(f()) `êîëè÷åñòâî ýëåìåíòîâ â ìàññèâå



`remstart
``hide light 0:set ambient light 0
`make light 1:position light 1,100,0,0:color light 1,rgb(0,255,0)
`make light 2:position light 2,-100,-100,0:color light 2,rgb(0,255,255)
`make light 3:position light 3,50,100,0:color light 3,rgb(255,0,0)

    For i = 1 To ARRAY COUNT(m_Triangles())
`    make object triangle i,m_Points(m_Triangles(i).Pt1).X,m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).Z,m_Points(m_Triangles(i).Pt2).X,m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).Z,m_Points(m_Triangles(i).Pt3).X,m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).Z
    make object triangle i,m_Points(m_Triangles(i).Pt2).X,m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).Z,m_Points(m_Triangles(i).Pt1).X,m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).Z,m_Points(m_Triangles(i).Pt3).X,m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).Z
    set object normals i
    next i

mesh=0
    make object box 1000,0,0,0:position object 1000,50,0,0
    For i = 1 To ARRAY COUNT(m_Triangles())
      inc mesh
      make mesh from object mesh,i
      add limb 1000,mesh,mesh
      COLOR LIMB 1000, mesh, rgb(rnd(255),rnd(255),rnd(255))

    next


    position camera 0,0,0
move camera -500
point camera 0,0,0


`remend

do
    ` Make faces for the triangles.
    For i = 1 To ARRAY COUNT(m_Triangles())
      `    D3D_Line3D mx1#,my1#,mz1#,mx2#,my2#,mz2#,LineColor,LineColor, 0

        D3D_Line3d m_Points(m_Triangles(i).Pt1).X, m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).Z,m_Points(m_Triangles(i).Pt2).X, m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).z,LineColor,LineColor,1
        D3D_Line3d m_Points(m_Triangles(i).Pt2).X, m_Points(m_Triangles(i).Pt2).Y,m_Points(m_Triangles(i).Pt2).z,m_Points(m_Triangles(i).Pt3).X, m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).z,LineColor,LineColor,1
        D3D_Line3d m_Points(m_Triangles(i).Pt1).X, m_Points(m_Triangles(i).Pt1).Y,m_Points(m_Triangles(i).Pt1).z,m_Points(m_Triangles(i).Pt3).X, m_Points(m_Triangles(i).Pt3).Y,m_Points(m_Triangles(i).Pt3).z,LineColor,LineColor,1
`      print i;"=";m_Points(m_Triangles(i).Pt1).X;"--";m_Points(m_Triangles(i).Pt1).Y
`per=640
`        d3d_Line per + m_Points(m_Triangles(i).Pt1).X, per + m_Points(m_Triangles(i).Pt1).Y,per + m_Points(m_Triangles(i).Pt2).X, per + m_Points(m_Triangles(i).Pt2).Y
`        d3d_Line per + m_Points(m_Triangles(i).Pt2).X, per + m_Points(m_Triangles(i).Pt2).Y,per + m_Points(m_Triangles(i).Pt3).X, per + m_Points(m_Triangles(i).Pt3).Y
`        d3d_Line per + m_Points(m_Triangles(i).Pt1).X, per + m_Points(m_Triangles(i).Pt1).Y,per + m_Points(m_Triangles(i).Pt3).X, per + m_Points(m_Triangles(i).Pt3).Y
`        Print i; " 1="; m_Points(m_Triangles(i).Pt1).X; "-"; m_Points(m_Triangles(i).Pt1).Y; "    2="; m_Points(m_Triangles(i).Pt2).X; "-"; m_Points(m_Triangles(i).Pt2).Y; "   3="; m_Points(m_Triangles(i).Pt3).X; "-"; m_Points(m_Triangles(i).Pt3).Y
`        sync
    Next i

n1:

 set cursor 0,0
 print screen fps()
 gosub camera

sync

loop
`wait key
end




` Add an Face to the m_Faces array.
function MakeFace(name1$,name2$,name3$)

num_faces=0
    num_faces = ARRAY COUNT(m_Faces())
    if num_faces=-1 then num_faces=1: goto nn2
    num_faces = num_faces + 1
nn2:
    Dim m_Faces(num_faces)

        m_Faces(num_faces).Pt1 = FindPointByName(name1$)
        m_Faces(num_faces).Pt2 = FindPointByName(name2$)
        m_Faces(num_faces).Pt3 = FindPointByName(name3$)
Endfunction


`ÒÎ×ÍÎ ÔÓÍÊÖÈß
` Add a point to the m_Points array.
Function MakePoint(new_name$,X,Y,Z)
num_points=0
    num_points = ARRAY COUNT(m_Points())
`    if ARRAY COUNT(m_Points())>71 then num_points=0

    if num_points=-1 then num_points=1: goto nn3
    num_points = num_points + 1
nn3:
    Dim m_Points(num_points)

   i As Integer

`    print new_name$;
        m_Points(num_points).Name = new_name$
        m_Points(num_points).X = X
        m_Points(num_points).Y = Y
        m_Points(num_points).Z = Z

`Print ARRAY COUNT(m_Points()); "____";new_name$;"_";X;"_";Y;"_";Z

EndFunction num_points


remstart
`ÒÎ×ÍÎ ÔÓÍÊÖÈß
` Add a point to the m_Points array.
Function MakePoint(new_name$,X,Y,Z)
num_points=0
    ` Make room.
 `   On Error Resume Next
    num_points = ARRAY COUNT(m_Points())
`    if num_points<0 then num_points=1
    `Print ARRAY COUNT(m_Points());
    if ARRAY COUNT(m_Points())>71 then num_points=0
`    if ARRAY COUNT(m_Points())=0  then num_points=1




   i As Integer
    `For i = 1 To 20
    print new_name$;
        m_Points(num_points).Name = new_name$
        m_Points(num_points).X = X
        m_Points(num_points).Y = Y
        m_Points(num_points).Z = Z
    `Next i
Print ARRAY COUNT(m_Points())
 num_points = num_points + 1
    Dim m_Points(num_points)

`    MakePoint = num_points
EndFunction num_points
remend

` Create a geodesic tiling for this face.
function TileFace(ii)
`TileFace:

LEVEL = 3`.0

x0 As float
y0 As float
z0 As float
v1x As float
v1y As float
v1z As float
v2x As float
v2y As float
v2z As float
base_name As String
p10 As Integer
p01 As Integer
p11 As Integer
i As Integer
    ` Get the Face's origin.

    For i = 1 To 12
        x0 = m_Points(m_Faces(ii).Pt1).X
        y0 = m_Points(m_Faces(ii).Pt1).Y
        z0 = m_Points(m_Faces(ii).Pt1).Z
    Next i


    ` Get the tiling's generating vectors.
    v1x = (m_Points(m_Faces(ii).Pt2).X - m_Points(m_Faces(ii).Pt1).X) / LEVEL
    v1y = (m_Points(m_Faces(ii).Pt2).Y - m_Points(m_Faces(ii).Pt1).Y) / LEVEL
    v1z = (m_Points(m_Faces(ii).Pt2).Z - m_Points(m_Faces(ii).Pt1).Z) / LEVEL
    v2x = (m_Points(m_Faces(ii).Pt3).X - m_Points(m_Faces(ii).Pt1).X) / LEVEL
    v2y = (m_Points(m_Faces(ii).Pt3).Y - m_Points(m_Faces(ii).Pt1).Y) / LEVEL
    v2z = (m_Points(m_Faces(ii).Pt3).Z - m_Points(m_Faces(ii).Pt1).Z) / LEVEL

    ` Generate the points.
    base_name = str$(m_Faces(ii).Pt1) + "-" + str$(m_Faces(ii).Pt2) + "-" + str$(m_Faces(ii).Pt1) + ":"
    p10 = MakeNormalizedPoint(base_name + "1,0", x0 + v1x, y0 + v1y, z0 + v1z)
    p01 = MakeNormalizedPoint(base_name + "0,1", x0 + v2x, y0 + v2y, z0 + v2z)
    p11 = MakeNormalizedPoint(base_name + "1,1", x0 + v1x + v2x, y0 + v1y + v2y, z0 + v1z + v2z)

    ` Make the triangles.
    MakeTriangle(m_Faces(ii).Pt1, p10, p01)
    MakeTriangle(p10, p11, p01)
    MakeTriangle(p10, m_Faces(ii).Pt2, p11)
    MakeTriangle(p01, p11, m_Faces(ii).Pt3)
`return
endfunction

` Add a Triangle to the m_Triangles array.
function MakeTriangle(Pt1,Pt2,Pt3)

num_triangles As Integer

    num_triangles = ARRAY COUNT(m_Triangles())

    if num_triangles=-1 then num_triangles=1: goto nn4
    num_triangles = num_triangles + 1
nn4:

    Dim m_Triangles(num_triangles)

    i As Integer

        m_Triangles(num_triangles).Pt1 = Pt1
        m_Triangles(num_triangles).Pt2 = Pt2
        m_Triangles(num_triangles).Pt3 = Pt3

Endfunction





` Add a point to the m_Points array.
Function MakeNormalizedPoint(new_name$,X,Y,Z)
dist=0

    dist = Sqrt(X * X + Y * Y + Z * Z)
    X = X / dist * Z1
    Y = Y / dist * Z1
    Z = Z / dist * Z1

    MakeNormalizedPoint = MakePoint(new_name$, X, Y, Z)
EndFunction MakeNormalizedPoint

`*******************************************


Function FindPointByName(point_name$)

i As Integer

    For i = 1 To ARRAY COUNT(m_Points())
        If m_Points(i).Name = point_name$` Then
            FindPointByName1 = i
            goto ex1
        EndIf
    Next i
ex1:
EndFunction FindPointByName1


` Add an edge to the m_Edges array.
function MakeEdge(name1$, name2$)
`exitfunction
num_edges As Integer
    num_edges = ARRAY COUNT(m_Edges())


    if num_edges=-1 then num_edges=1: goto nn5
    num_edges = num_edges + 1
nn5:

   Dim m_Edges(num_edges)

        m_Edges(num_edges).Pt1 = FindPointByName(name1$)
        m_Edges(num_edges).Pt2 = FindPointByName(name2$)

Endfunction








`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
`--------------------------------------------------------------------------------------------------------------------
`========================================================================================
CAMERA:
`if shiftkey()=1
    Mx1=(MOUSEX()-(height/2))
    My1=(MOUSEY()-(weight/2))
    nn#=180
    if Mx1<-12 then TURN CAMERA LEFT 0,-Mx1/nn#
    if Mx1>12 then TURN CAMERA RIGHT 0,Mx1/nn#
    if My1<-12 then PITCH CAMERA UP 0,-My1/nn#
    if My1>12 then PITCH CAMERA DOWN 0,My1/nn#

    if mousecLick()=1 then move camera 10
    if mousecLick()=2 then move camera -10

`endif
return
`========================================================================================

VitebskStar@tut.by
icq: 157980031

Attachments

Login to view attachments

Back to top

Profile PM Email

chafari

Valued Member

17

Years of Service

User Offline

Joined: 2nd May 2006

Location: Canary Islands

Posted: 28th Aug 2016 18:31

Link

Hi there.
This is much more a child's play

.....we need really math here....it is hard to guess where the problem ist on the fly....at first view it looks like you have missing vertex or triangles...there must be a math out there that could help here.

Cheers.

I'm not a grumpy grandpa

Back to top

Profile PM Email

Star Vitebsk

16

Years of Service

User Offline

Joined: 18th Oct 2007

Location: Belarus

Posted: 28th Aug 2016 19:21 Edited at: 28th Aug 2016 19:21

Link

I think it's in the formula:

original code vb6:

+ Code Snippet

    t1 = 2 * Pi / 5
    t2 = Pi / 10
    t4 = Pi / 5
    t3 = (-3 * Pi) / 10
    R = (S / 2) / Sin(t4)
    H = Cos(t4) * R
    Cx = R * Cos(t2)
    Cy = R * Sin(t2)
    Z2 = 1

    H1 = Sqr(S * S - R * R)
    H2 = Sqr((H + R) * (H + R) - H * H)
    Z2 = (H2 - H1) / 2
    Z1 = Z2 + H1

in the original, no radians, I introduced them, and only then began to draw more or less normal:

+ Code Snippet

 rad=57.295`53.6

    t1 = 2.0 * Pi() / 5.0
    t2 = Pi() / 10.0
    t4 = (Pi() / 5.0)
    t3 = (-3.0 * Pi()) / 10.0
    R = (((S / 2.0))) / (Sin(t4)*rad)
    H = Cos(t4*rad) * R
    Cx = R * Cos(t2*rad)
    Cy = R * Sin(t2*rad)
    Z2 = 1.0

    H1 = Sqrt(S * S - R * R)
    H2 = Sqrt((H + R) * (H + R) - H * H)
    Z2 = (H2 - H1) / 2.0
    Z1 = Z2 + H1

probably in one of the lines necessary to also change the degrees to radiants

VitebskStar@tut.by
icq: 157980031

Back to top

Profile PM Email

chafari

Valued Member

17

Years of Service

User Offline

Joined: 2nd May 2006

Location: Canary Islands

Posted: 28th Aug 2016 19:53

Link

Quote: "probably in one of the lines necessary to also change the degrees to radiants"

Yeah...it works ok in front and back but something wrong happens on left/right sides

I'm not a grumpy grandpa

Back to top

Profile PM Email

Star Vitebsk

16

Years of Service

User Offline

Joined: 18th Oct 2007

Location: Belarus

Posted: 28th Aug 2016 19:58

Link

I suffer with it for a week, well, I can not figure out where it is not so ....

VitebskStar@tut.by
icq: 157980031

Back to top

Profile PM Email

Sorry your browser is not supported!

DarkBASIC Professional Discussion / help build Icosahedron

Attachments
