DarkBASIC Professional Discussion / artifacts on objects

Author
Message
smerf
19
Years of Service
User Offline
Joined: 24th Feb 2005
Location: nm usa
Posted: 2nd Dec 2016 02:16
using Dbpro

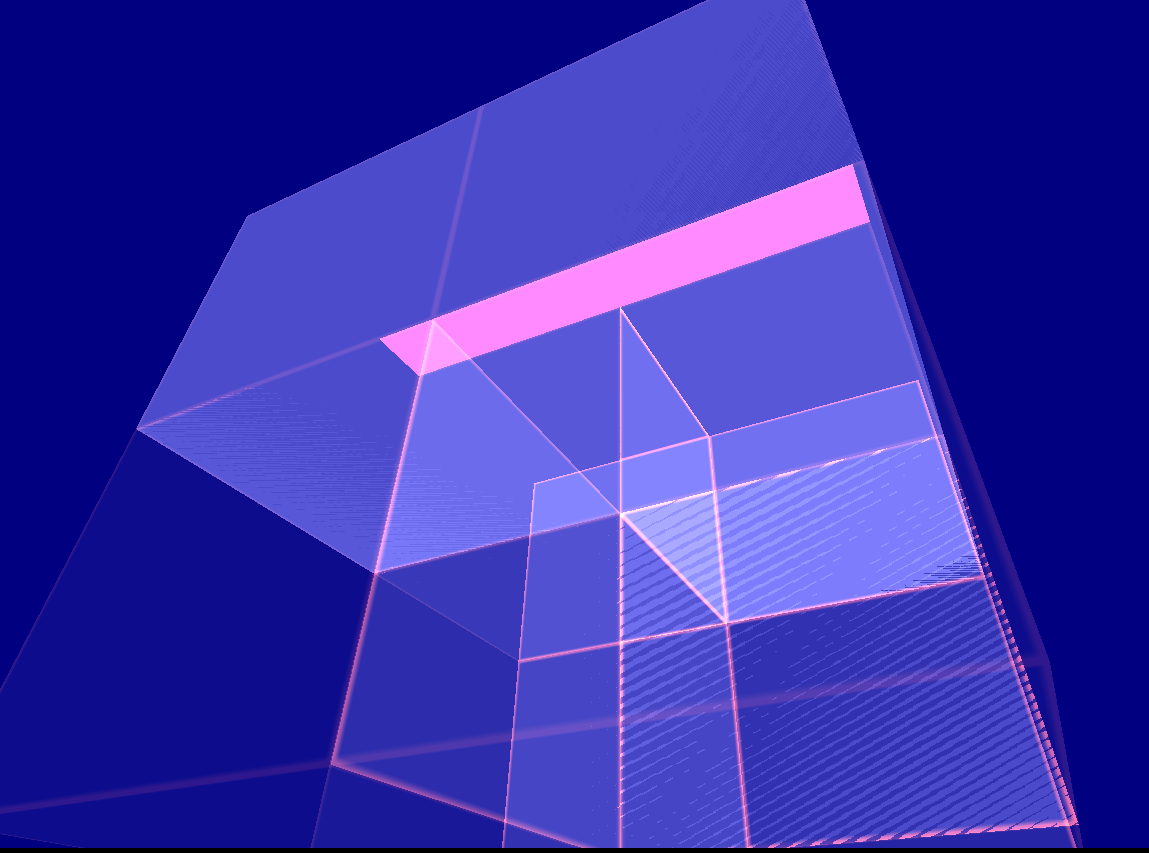

attached is the image. There are artifacts on the objects instead of a smooth even surface there is a discoloration
currently using ghost object 1,2
set object 1,1,1,0
set blend mapping on 1,0,1,0,26.

its possible im going about it the wrong way but what I was trying to do was have multiple objects that were semi transparent with a very light texture like looking through multiple layers of stained glass
tried using alpha but I cant see textures on another object behind an object
is there another way to achieve this affect if the problem is coding.
A child's dream never dies.





Attachments

Login to view attachments
Ortu
DBPro Master
16
Years of Service
User Offline
Joined: 21st Nov 2007
Location: Austin, TX
Posted: 2nd Dec 2016 06:08
That appears to be 'z fighting' where 2 faces occupy the same space. To eliminate it, you will need to space them more, or remove conflicting polygons.


A single player RPG featuring a branching, player driven storyline of meaningful choices and multiple endings alongside challenging active combat and intelligent AI.
http://games.joshkirklin.com/sulium
smerf
19
Years of Service
User Offline
Joined: 24th Feb 2005
Location: nm usa
Posted: 2nd Dec 2016 06:26

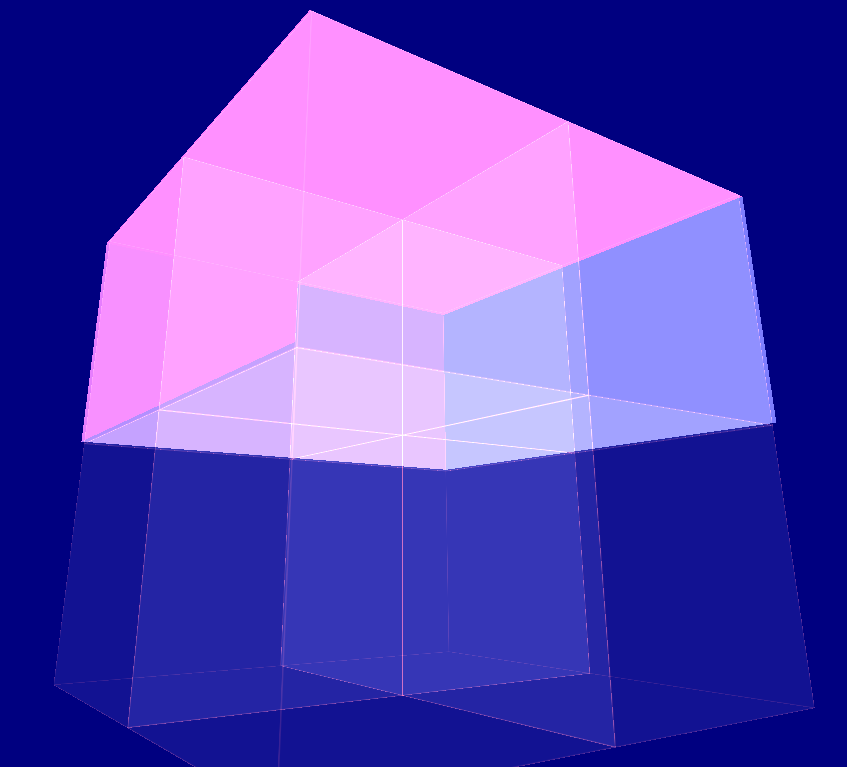

that's what I was thinking like 2 faces fighting for priority. Not sure what I did but I resolved the issue im sure there was a redundant line of code somewhere I deleted that was conflicting. It simultaneously fixed a few other problems I was having thank you for your response ortu below is how it looks now how its supposed to look
A child's dream never dies.





Attachments

Login to view attachments
hakimfullmetal
9
Years of Service
User Offline
Joined: 17th Feb 2015
Location:
Posted: 19th Dec 2016 17:02
I had this problem too.
Remedied it by decreasing the gap between minimum and maximum camera render distance.

If the minimum distance is too small (0.01) and the maximum distance is too high (1000000) then there wil be more z-fighting.
