3D Vectors - positions and angles - explanations needed

Author

Message

nz0

AGK Developer

17

Years of Service

User Offline

Joined: 13th Jun 2007

Location: Cheshire,UK

Posted: 19th Apr 2017 00:52

Link

I have fumbled around with vectors in various forms, but I think it would be incredibly useful if someone could explain in plain English how to use positional vectors and directional vectors, with real uses of the various vector functions, such as dot and multiply in terms I can understand.

e.g.

* using positional vectors to describe 2 objects and then:
* using directional vectors to describe the angle between the 2 objects
* normalising vectors explained

One second it all makes a kind of sense, then the next I start getting mixed up with positional vectors and directional vectors and how they work together.

I would like to fully switch my brain over to using vectors instead of doing loads of maths to find x,y,z angles and distances or cheating by using XZ in 2D calculations and faking Y etc.

My Robotron remake
My I,Robot remake WIP
My Defender remake

Back to top

Profile PM Email Website

Jack

20

Years of Service

User Offline

Joined: 4th Oct 2004

Location: [Germany]

Posted: 19th Apr 2017 01:14

Link

This is a case for:
'favorite search machine'
https://en.wikipedia.org/wiki/Vector_(mathematics_and_physics)
Youtube will even give you visual references.

[/url]

Back to top

Profile PM Email Website

Stab in the Dark software

Valued Member

21

Years of Service

User Offline

Joined: 12th Dec 2002

Playing: Badges, I don't need no stinkin badges

Posted: 19th Apr 2017 01:53

Link

Here is a function I wrote to help someone recently on this forum with getting a direction vector for 3D physics.
It includes a normalizing function which just simply converts all the vector values to be between 0.0 and 1.0.
Also a function to get the angle between 2 3D position vectors.

//Fills empty vector with a normalized direction vector.
// 1 = FWD, 2 = REV, 3 = UP, 4 = DOWN, 5 = RIGHT, 6 = LEFT
Function GetObjectDirectionVector( objID as integer, direction as integer, outDirectionVector as integer )
    tempObj = CreateObjectBox( 1.0, 1.0, 1.0 )
    objXPos# = GetObjectWorldX( objID )
    objYPos# = GetObjectWorldY( objID )
    objZPos# = GetObjectWorldZ( objID )
    SetObjectPosition( tempObj, objXPos#, objYPos#, objZPos# )
    SetObjectRotation( tempObj, GetobjectWorldAngleX( objID ), GetobjectWorldAngleY(objID), GetobjectWorldAngleZ( objID ) )
    select direction
		case 1 :
			MoveObjectLocalZ( tempObj, 1.0 )
		endcase
		case 2 :
			MoveObjectLocalZ( tempObj, -1.0 )
		endcase
		case 3 :
			MoveObjectLocalY( tempObj, 1.0 )
		endcase
		case 4 :
			MoveObjectLocalY( tempObj, -1.0 )
		endcase
		case 5 :
			MoveObjectLocalX( tempObj, 1.0 )
		endcase
		case 6 :
			MoveObjectLocalX( tempObj, -1.0 )
		endcase
    SetVector3( outDirectionVector, GetObjectWorldX( tempObj ) - objXPos# , GetObjectWorldY( objID ) - objYPos#, GetObjectWorldZ( tempObj ) - objZPos# )
    DeleteObject( tempObj )
	NormalizeVec3( outDirectionVector )
EndFunction

Function NormalizeVec3( vec3ID as integer )
    length as float
    length  = GetVector3Length( vec3ID )
   	length = Sqrt( length )
    SetVector3( vec3ID, GetVector3X( vec3ID ) / length , GetVector3Y( vec3ID ) / length, GetVector3Z( vec3ID ) / length )
EndFunction

function GetAngleBetweenPositionVectors( vector1 as integer, vector2 as integer)
		s# = Sqrt( GetVector3Length( vector1) * GetVector3Length(vector2 ) )
		angle# = Acos( GetVector3Dot( vector1, vector2 ) / s# )
endfunction angle#

+ Code Snippet

//Fills empty vector with a normalized direction vector.
// 1 = FWD, 2 = REV, 3 = UP, 4 = DOWN, 5 = RIGHT, 6 = LEFT
Function GetObjectDirectionVector( objID as integer, direction as integer, outDirectionVector as integer )
    tempObj = CreateObjectBox( 1.0, 1.0, 1.0 )
    objXPos# = GetObjectWorldX( objID )
    objYPos# = GetObjectWorldY( objID )
    objZPos# = GetObjectWorldZ( objID )
    SetObjectPosition( tempObj, objXPos#, objYPos#, objZPos# )
    SetObjectRotation( tempObj, GetobjectWorldAngleX( objID ), GetobjectWorldAngleY(objID), GetobjectWorldAngleZ( objID ) )
    select direction
		case 1 :
			MoveObjectLocalZ( tempObj, 1.0 )
		endcase
		case 2 :
			MoveObjectLocalZ( tempObj, -1.0 )
		endcase
		case 3 :
			MoveObjectLocalY( tempObj, 1.0 )
		endcase
		case 4 :
			MoveObjectLocalY( tempObj, -1.0 )
		endcase
		case 5 :
			MoveObjectLocalX( tempObj, 1.0 )
		endcase
		case 6 :
			MoveObjectLocalX( tempObj, -1.0 )
		endcase
    SetVector3( outDirectionVector, GetObjectWorldX( tempObj ) - objXPos# , GetObjectWorldY( objID ) - objYPos#, GetObjectWorldZ( tempObj ) - objZPos# )
    DeleteObject( tempObj )
	NormalizeVec3( outDirectionVector )
EndFunction

Function NormalizeVec3( vec3ID as integer )
    length as float
    length  = GetVector3Length( vec3ID )
   	length = Sqrt( length )
    SetVector3( vec3ID, GetVector3X( vec3ID ) / length , GetVector3Y( vec3ID ) / length, GetVector3Z( vec3ID ) / length )
EndFunction

function GetAngleBetweenPositionVectors( vector1 as integer, vector2 as integer)
		s# = Sqrt( GetVector3Length( vector1) * GetVector3Length(vector2 ) )
		angle# = Acos( GetVector3Dot( vector1, vector2 ) / s# )
endfunction angle#

The coffee is lovely dark and deep,and I have code to write before I sleep.

Back to top

Profile PM Email Website

nz0

AGK Developer

17

Years of Service

User Offline

Joined: 13th Jun 2007

Location: Cheshire,UK

Posted: 19th Apr 2017 02:07

Link

Thanks for the example stab. However, a float value for a 3D angle means what exactly?

I understand 2D angle, but how do I convert a float to an X,Y,Z angle?

My Robotron remake
My I,Robot remake WIP
My Defender remake

Back to top

Profile PM Email Website

nz0

AGK Developer

17

Years of Service

User Offline

Joined: 13th Jun 2007

Location: Cheshire,UK

Posted: 19th Apr 2017 02:08

Link

Quote: "This is a case for:
'favorite search machine'
https://en.wikipedia.org/wiki/Vector_(mathematics_and_physics)
Youtube will even give you visual references.
"

I've looked at a lot of this. I'm asking for a correlation between "that" and how to implement in AGK..

My Robotron remake
My I,Robot remake WIP
My Defender remake

Back to top

Profile PM Email Website

Phaelax

DBPro Master

21

Years of Service

User Offline

Joined: 16th Apr 2003

Location: Metropia

Posted: 19th Apr 2017 02:11

Link

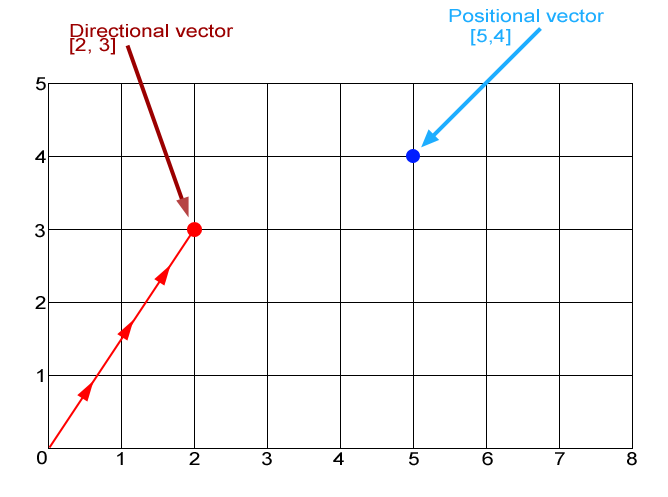

A positional vector is really nothing more than a point in space. Vector is a fancy way to say point! If you have an object position at [x,y.z] then you can say that is its positional vector.

Directional vectors point towards a direction of space and are generally normalized. A normalized vector (also can be called a unit vector) only means that it has a length of 1. So if you draw a line from the origin [0,0] to the coordinates of the directional vector, that would show you the direction. Why normalize? Because then it's easy to move objects in that direction. By multiplying the directional unit vector by a scalar (single value), like the speed of your spaceship, you can determine how far to move on the X, Y, and Z axis.

Technically, you can't look at a directional and positional vector and tell them apart, it's kind of the same thing. It's how the vector is being used. But as I said, if the vector is normalized, it's probably being used for some sort of direction.

How do you normalize a vector? Divide each component by the vector's length. The length of a vector is nothing more than using pythagorean theorm. So take the square root of the sum of each component squared.

length = sqrt(V.x^2 + V.y^2 + V.z^2)

N.x = V.x / length
N.y = V.y / length
N.z = V.z / length

To convert an angle into a directional vector, use SIN and COS.

X = COS(angle)
Y = SIN(angle)

No need to normalize this as they already will be.

For example, say you want to move your spaceship at [x,y] by 10 units pointing at 38 degrees.

x = x + cos(38)*10
y = y + sin(38)*10

On my site I keep a list of vector calculations, they might interest you.
http://www.zimnox.com/resources/articles/math/?ar=m001

"I like offending people, because I think people who get offended should be offended." - Linus Torvalds

Attachments

Login to view attachments

Back to top

Profile PM Email Website

Stab in the Dark software

Valued Member

21

Years of Service

User Offline

Joined: 12th Dec 2002

Playing: Badges, I don't need no stinkin badges

Posted: 19th Apr 2017 03:14

Link

Quote: "Thanks for the example stab. However, a float value for a 3D angle means what exactly?

I understand 2D angle, but how do I convert a float to an X,Y,Z angle?"

The function returns an angle in radians which is a float.

The coffee is lovely dark and deep,and I have code to write before I sleep.

Back to top

Profile PM Email Website

MadBit

VIP Member

Gold Codemaster

15

Years of Service

User Offline

Joined: 25th Jun 2009

Location: Germany

Posted: 19th Apr 2017 08:55

Link

nz0 wrote: "I understand 2D angle, but how do I convert a float to an X,Y,Z angle?"

It does not matter if you measure the angle between two lines in the 2d or 3d world. It is just the angle between these two lines.
What you mean with X, Y, Z angle is actually a directional vector. Converting back the angle in one direction is somewhat more difficult.
This requires the Up-Vector and the Look-At Vector (directional vectors). So how your object is actually oriented. From this base you can then calculate a new look-at vector.

This is a good site for more information and 3d-maths.

Share your knowledge. It\'s a way to achieve immortality. (Tenzin Gyatso)
Pixie-Particle-Engine

Back to top

Profile PM Email

nz0

AGK Developer

17

Years of Service

User Offline

Joined: 13th Jun 2007

Location: Cheshire,UK

Posted: 20th Apr 2017 01:54

Link

Thanks for the info.

I've patched together enough stuff to see me along at the moment.

It occurred to me that AppGameKit may be well served if you could apply vectors to objects directly, instead of converting between euler and vectors?

I'll continue to mess around with what I've got until it sinks into my dumb head.

My Robotron remake
My I,Robot remake WIP
My Defender remake

Back to top

Profile PM Email Website
