[BUG] Shadows broken in new AGK version?

Author

Message

Rick Nasher

6

Years of Service

User Offline

Joined: 25th Jul 2017

Location: Amsterdam

Posted: 24th Oct 2017 23:29 Edited at: 15th Dec 2017 18:00

Link

*) EDIT: This has been solved -see last post.
Off topic: Would be nice if we could change or at least add to the topic title something like [SOLVED] or [WORKAROUND FOUND]..

Hi,

I've stumbled onto something puzzeling.. Before I could have 2 animated characters displaying shadows without any issues in Win 10 x64. See pics below:

(code+media can be downloaded here: http://www.mediafire.com/file/55whby55hsv1dj1/CharacterController_Ragdoll3.rar )

// Project: CharacterController Ragdoll
// Created: 2016-06-07
#include "Camera.agc"
#include "Ragdoll.agc"
#include "CharacterController.agc"

// set window properties
SetWindowTitle( "CharacterController Ragdoll" )
SetWindowSize( GetDeviceWidth(), GetDeviceHeight(), 0 )
//Set display properties
SetVirtualResolution ( GetDeviceWidth(), GetDeviceHeight() )
SetVSync( 1 )
//Set Backdrop color
SetClearColor( 0,170,204 ) // light blue
//Set display orientation for mobile device
SetOrientationAllowed( 0, 0, 1, 0 )
SetScissor( 0, 0, 0, 0 )
//Set camera
SetCameraRange( 1, 1, 50000 )
SetCameraPosition( 1, 0, 100.0, -150.0 )
SetCameraLookAt( 1, 0.0, 100.0, 0.0, 0.0 )
//Set Text size and color as displayed to screen.
SetPrintSize( 22.0 )
SetPrintColor( 255, 255, 0 )
//SetSkyBoxVisible( 1 )
//Set the error reporting for debugging.
//SetErrorMode( 2 )

DisplayLogo()

Create3DPhysicsWorld()

//  ###################### camera & fog######################

global fog=0   				// fog is 'on'/off
global shadowMode = 3 	// shadows
global useCharacter = 1    //
global time# = 0
global DeltaTime# = 0
global ColorTime# = 0
//global ColorID
global Red# = 0
global Green# = 0
global Blue# = 0

SetCameraRange( 1, 0.1, 2000 )
//SetCameraRange( 1, 0.1, 100 )
// point camera towards the object
//SetCameraPosition(1, 383, 30, 383)
//SetCameraPosition( 1, 340,10,460 )
//SetCameraLookAt( 1, 330,2,420,0 )

// add some atmospheric fog
SetFogMode( fog )
SetFogColor( 161,183,209 )
SetFogRange( 50, 700 )
//SetFogRange( 60,95 )
SetFogSunColor( 255,230,179 )

// ###################### lighting  & shadows #################
//SetAmbientColor( 128,128,128 )
SetAmbientColor( 28,28,28 )

// shadows
shadowMode = 3 // start with cascade shadow mapping which gives the best quality
SetShadowMappingMode( shadowMode )
SetShadowSmoothing( 2 ) // random sampling
SetShadowMapSize( 1024, 1024 )
SetShadowRange( -1 ) // use the full camera range
SetShadowBias( 0.0012 ) // offset shadows slightly to avoid shadow artifacts

// ###################### skybox & sun #### #################
// enable the sky box, show the sun, not necessary but improves the experience
SetSkyBoxVisible( 1 )

//dx# = -0.3714
xdir# = -0.3714
//dy# = -0.7428
ydir# = -0.7428
//dz# =   0.5571
zdir# =   0.5571

//SetSunDirection( dx#, dy#, dz# )
SetSunDirection( xdir#, ydir#, zdir# )
SetAmbientColor( 30,30,30 )

// DayNight - SunColor stuff thing...
type ColorData
	Red#
	Green#
	Blue#
	Time#
endtype

global Color as ColorData[]
global ColorID=0
AddColor(60,60,60,0)
AddColor(255,180,150,90)
AddColor(255,230,179,180)
AddColor(255,60,60,270)
AddColor(60,60,60,360)
//########################################

//collision groups and masks
global group0 = 1
global group1 = 2
global group2 = 4
global group3 = 8
global group4 = 16
global group5 = 32
global mask0 = 1
global mask1 = 2
global mask2 = 4
global mask3 = 8
global mask4 = 16
global mask5 = 32

global FPS as integer
global floorBoxID as integer
global floorTexID as integer
global ballTex as integer
global crateTex as integer
global concreteTex as integer
global dumpsterTex as integer
global chapelTex as integer

global L_VirtualJoystick as integer
global R_VirtualJoystick as integer
global C_VirtualJoystick as integer

LoadDemoTextures()

//Make Physics floor
floorBoxID = CreateObjectBox( 10000.0, 12.0, 10000.0 )
floorTexID = LoadImage("/media/steelPanelTiled.png")
SetObjectImage( floorBoxID, floorTexID, 0 )
SetImageWrapU ( floorTexID,1)
SetImageWrapV ( floorTexID,1)
SetObjectUVScale (floorBoxID, 0,20,20)
//SetObjectImage( floorBoxID, floorTexID, 0 )
//SetObjectColor( floorBoxID, 112, 100, 100, 255 )

SetObjectLightMode( floorBoxID, 1 )
SetObjectPosition( floorBoxID, 0.0, 0.0, 0.0 )
//This command creates a static physics body for the floor box with a triangle mesh collision shape.
//A static physics body has no mass and does not get moved.
Create3DPhysicsStaticBody( floorBoxID )
//This 3D Physics command changes the collision shape to a primative box shape since we do not need the accuracy of
// polygon collision for just a box. The physics body is still static.
SetObjectShapeBox( floorBoxID ) //

SetObjectReceiveShadow( floorBoxID, 1 )

stairsObj = LoadObject( "/media/Stairs.x" )
SetObjectImage( stairsObj, concreteTex, 0 )
SetObjectPosition( stairsObj, 0.0, 6.0, 200.0 )
RotateObjectGlobalY( stairsObj, 180.0 )
Create3DPhysicsStaticBody( stairsObj )
SetObject3DPhysicsGroupAndMask( stairsObj, group0, -1 )

SetObjectReceiveShadow( stairsObj, 1 )
SetObjectCastShadow( stairsObj, 1 )

global	dumpster
			dumpster = LoadObject( "/media/dumpster_3yardOnFloor.x")
			SetObjectImage( dumpster, dumpsterTex, 0 )
			//SetObjectColor( dumpster, 255-200, 3, 239, 255 )
			SetObjectPosition( dumpster , -300.0, 1500, 0.0 )
			Create3DPhysicsDynamicBody( dumpster )
			//This command changes the collison shape to a convex hull.
			//SetObjectShapeConvexHull( dumpster )
			SetObject3DPhysicsMass( dumpster, 2.0 )
			SetObjectReceiveShadow( dumpster, 1 )
			SetObjectCastShadow( dumpster, 1 )

chapelObj = LoadObject( "/media/Models/chapel.obj" )
SetObjectImage( chapelObj, chapelTex, 0 )
//SetObjectUVScale (chapelObj, 0,20,20)
SetObjectPosition( chapelObj, -500.0, 6.0, 0.0 )
RotateObjectGlobalY( chapelObj, 180.0 )
SetObjectScale(chapelObj, .5,.5,.5)

Create3DPhysicsStaticBody( chapelObj )
SetObject3DPhysicsGroupAndMask( chapelObj, group0, -1 )

SetObjectReceiveShadow( chapelObj, 1 )
SetObjectCastShadow( chapelObj, 1 )

// Payer

remstart
stairsObj = LoadObject( "/media/stairsObj.x" )
SetObjectImage( stairsObj, concreteTex, 0 )
SetObjectPosition( stairsObj, 0.0, 6.0, 200.0 )
RotateObjectGlobalY( stairsObj, 180.0 )
Create3DPhysicsStaticBody( stairsObj )
SetObject3DPhysicsGroupAndMask( stairsObj, group0, -1 )

SetObjectReceiveShadow( stairsObj, 1 )
SetObjectCastShadow( stairsObj, 1 )
remend

maskedSoldierTex = LoadImage( "/media/Masked Soldier.png" )
SetImageWrapU(maskedSoldierTex,1)
SetImageWrapV(maskedSoldierTex,1)

global maskedSoldier // <<< Added for follow cam
maskedSoldier = LoadObjectWithChildren( "/media/Masked Soldier Frag.x" )
SetObjectImage( maskedSoldier, maskedSoldierTex, 0 )

SetObjectLightMode( maskedSoldier, 1 )
//position above floor for charcater controller
SetObjectPosition( maskedSoldier, -40.0, 10.0, -20.0 )
SetObjectRotation( maskedSoldier, 0, 90, 0 )
SetObjectAnimationSpeed( maskedSoldier, 30.0 )
PlayObjectAnimation( maskedSoldier, "Animation", 3002, 3547, 1, 0.0 )

SetObject3DPhysicsMass( maskedSoldier, 5.0 )
CreateCharacterController( maskedSoldier )
Stand3DPhysicsCharacterController( maskedSoldier )
Set3DPhysicsCharacterControllerStepHeight( maskedSoldier,12.0 )
Set3DPhysicsCharacterControllerJumpSpeed( maskedSoldier, 7.0 )

SetObjectCastShadow( maskedSoldier, 1 )
SetObjectReceiveShadow( maskedSoldier, 1 )

PickJointSetup()
CreateRagdollVectors()

//========= dude 2 ==============================

SoldierTex = LoadImage( "/media/Soldier_body_1_D.png" )
SetImageWrapU(SoldierTex,1)
SetImageWrapV(SoldierTex,1)

global Soldier // <<< Added for follow cam
Soldier = LoadObjectWithChildren( "/media/Original_Soldier.X" )
SetObjectImage( Soldier, SoldierTex, 0 )

SetObjectLightMode( Soldier, 1 )
//position above floor..
SetObjectPosition( Soldier, 60.0, 15.0, 0.0 )
SetObjectRotation( Soldier, 0, 0, 0 )
SetObjectAnimationSpeed( Soldier, 20 )
PlayObjectAnimation( Soldier, "Anim1", 1000, 1282, 1, 0 )

SetObject3DPhysicsMass( Soldier, 2.0 )
SetObjectCastShadow( Soldier, 1 )
SetObjectReceiveShadow( Soldier, 1 )

// =============================================
remstart
CheckSizeObject=CreateObjectCapsule(20,80,90)
SetObjectPosition( CheckSizeObject, 120.0, 45.0, 0.0 )
SetObjectCastShadow( CheckSizeObject, 1 )
SetObjectReceiveShadow( CheckSizeObject, 1 )
remend

L_VirtualJoystick = 1
R_VirtualJoystick = 2
C_VirtualJoystick = 3
AddVirtualJoystick( L_VirtualJoystick, 60.0, GetScreenBoundsBottom() - 60.0, 120.0 )
AddVirtualJoystick( R_VirtualJoystick, GetScreenBoundsRight() -60, GetScreenBoundsBottom() - 60.0, 120.0 )
AddVirtualJoystick( C_VirtualJoystick, GetDeviceWidth() / 2 , GetScreenBoundsBottom() - 60.0, 120.0 )

do
	FreeFlightCameraUsingMouseAndArrowKeys( 1, 2.0 )
	FreeFlightCameraUsingVirtualJoysticks( 1, 3.0 )
	//This function casts a ray, then creates a pick joint at that the contact point.
    PickJointCreateAndUpdate()


    if GetRawMouseRightPressed()
		//To move dynamic physics bodies we need to apply velocity to the physics body.
		ThrowBall( 800.0, 2.0 )

	endif
		//Press R to create ragdoll
	if GetRawKeyPressed( 82 )
		if Get3DPhysicsRagdollExist( maskedSoldier ) = 0 then CreateRagdollSkelton( maskedSoldier )
		Delete3DPhysicsCharacterController( maskedSoldier )
	endif

if Get3DPhysicsCharacterControllerExists( maskedSoldier )
		CharacterControllerInput( maskedSoldier )
	endif
	if GetRawKeyPressed( 70 )  // f= reset
		if Get3DPhysicsRagdollExist( maskedSoldier )
			Delete3DPhysicsRagdoll( maskedSoldier )
			SetObjectAnimationFrame ( maskedSoldier, "Animation", 3002, 0.75 )

			CreateCharacterController( maskedSoldier )
			Stand3DPhysicsCharacterController( maskedSoldier )
			Set3DPhysicsCharacterControllerStepHeight( maskedSoldier,12.0 )
			Set3DPhysicsCharacterControllerJumpSpeed( maskedSoldier, 6.0 )
		endif
	endif
	//Sun()
	FPS = ScreenFPS()
    PrintC( "Fame Rate: " ) : Print( FPS )
    PrintC( "Total Physics Objects: " ) : Print( Get3DPhysicsTotalObjects()  )
    PrintC( "Active Physics Objects: " ) : Print( Get3DPhysicsActiveObjects()  )
    Print( "Rmb to throw sphere object " )
	Print( "Lmb to pick Dynamic objects " )
	Print( "Arrow Keys to move camera, Mouse to Rotate" )
	Print( "WASD To Move Character, Q & E to Rotate, " )
	Print( "SpaceBar to jump and C to crouch " )
	Print( "The R Key will Ragdoll the Character , F key will Reset" )
	Sync()
    Step3DPhysicsWorld() //required for updating physics.

loop

function DisplayLogo()
	bulletLogo = LoadImage("/media/agk2_logokit/bullet_logo_small.png")
	SetImageWrapU( bulletLogo,1 )
	SetImageWrapV( bulletLogo,1 )
	bulletSprite = CreateSprite( bulletLogo )
	SetSpritePosition( bulletSprite, GetScreenBoundsRight() -310.0, GetScreenBoundsTop() )
	agkLogo = LoadImage("/media/agk2_logokit/Made-With-AGK-128px.png")
	SetImageWrapU( agkLogo,1 )
	SetImageWrapV( agkLogo,1 )
	agkSprite = CreateSprite( agkLogo )
	SetSpritePosition( agkSprite, GetScreenBoundsRight() -128.0, GetScreenBoundsTop() )
endfunction

function LoadDemoTextures()
	floorTexID = LoadImage( "/media/steelPanelTiled.png" )
	SetImageWrapU( floorTexID, 0 )
	SetImageWrapV( floorTexID, 0 )
	ballTex = LoadImage( "/media/soccerball2.jpg" )
	SetImageWrapU( ballTex, 1 )
	SetImageWrapV( ballTex, 1 )
	crateTex = LoadImage( "/media/Crate_color.png" )
	SetImageWrapU( crateTex, 1 )
	SetImageWrapV( crateTex, 1 )
	concreteTex = LoadImage( "/media/Concrete.png" )
	SetImageWrapU( concreteTex, 1 )
	SetImageWrapV( concreteTex, 1 )

dumpsterTex = LoadImage( "/media/dumpster_D.png" )
	SetImageWrapU( dumpsterTex, 1 )
	SetImageWrapV( dumpsterTex, 1 )

chapelTex = LoadImage( "/media/Models/chapel_D.png" )
	SetImageWrapU( chapelTex, 1 )
	SetImageWrapV( chapelTex, 1 )

endfunction

function ThrowBall( initialSpeed as float, mass as float )

	local directionX as float
	local directionY as float
	local directionZ as float
	directionX = Get3DVectorXFromScreen( GetPointerX(), GetPointerY() )
	directionY = Get3DVectorYFromScreen( GetPointerX(), GetPointerY() )
	directionZ = Get3DVectorZFromScreen( GetPointerX(), GetPointerY() )
	throwBall as integer
	throwBall = CreateObjectSphere( 8, 16, 32 )
	SetObjectImage( throwBall, ballTex, 0 )
	SetObjectPosition( throwBall, GetCameraX( 1 ), GetCameraY( 1 ), GetCameraZ( 1 ) )

SetObjectReceiveShadow( throwBall, 1 )
SetObjectCastShadow( throwBall, 1 )

	//3D Physics code
	Create3DPhysicsDynamicBody( throwBall )
	SetObjectShapeSphere( throwBall )
	SetObject3DPhysicsMass( throwBall, mass )
	SetObject3DPhysicsLinearVelocity( throwBall, directionX, directionY, directionZ, initialSpeed )
	SetObject3DPhysicsFriction( throwBall, 0.8 )
	SetObject3DPhysicsRollingFriction( throwBall, 0.7 )
endfunction

function PickJointCreateAndUpdate()
	//Left mouse btn pressed creates pick joint
	if GetPointerPressed()
		SetVector3( toVecID, Get3DVectorXFromScreen( GetPointerX(), GetPointerY() ),
														Get3DVectorYFromScreen( GetPointerX(), GetPointerY() ),
																Get3DVectorZFromScreen( GetPointerX(), GetPointerY() ) )
		GetVector3Multiply( toVecID, 1500.0 )
		SetVector3( origPosCamVecID, GetCameraX(1), GetCameraY(1), GetCameraZ(1) )

GetVector3Add( toVecID, origPosCamVecID )
		RayCast3DPhysics( pickObjectRayID, origPosCamVecID, toVecID, 1 )
		HitObjID = Get3DPhysicsRayCastObjectHit( pickObjectRayID, 0 )
		if HitObjID > 0
			Get3DPhysicsRayCastContactPosition( pickObjectRayID, 0.0, PickVecID )
			pickJointID = Create3DPhysicsPickJoint( HitObjID, PickVecID )
		endif
	endif

	//Left Mouse btn held down holds pick joint
	if GetPointerState() and pickJointID > 0
		SetVector3( updatedPickVecID, Get3DVectorXFromScreen( GetPointerX(), GetPointerY() ),
															Get3DVectorYFromScreen( GetPointerX(), GetPointerY() ),
																	Get3DVectorZFromScreen( GetPointerX(), GetPointerY() ) )
		origDistance = GetVector3Distance( origPosCamVecID, PickVecID )
		GetVector3Multiply( updatedPickVecID, origDistance )
		SetVector3( currPosCamVecID, GetCameraX(1), GetCameraY(1), GetCameraZ(1) )
		GetVector3Add( updatedPickVecID, currPosCamVecID )
		Update3DPhysicsPickJoint( pickJointID, updatedPickVecID )
	elseif pickJointID > 0
		Delete3DPhysicsPickJoint( pickJointID )
		if HitObjID > 0
			SetVector3( updatedPickVecID, Get3DVectorXFromScreen( GetPointerX(), GetPointerY() ),
																Get3DVectorYFromScreen( GetPointerX(), GetPointerY() ),
																	Get3DVectorZFromScreen( GetPointerX(), GetPointerY() ) )
			//Unremark this line to apply a force when releasing object.
			//SetObject3DPhysicsLinearVelocity( HitObjID, updatedPickVecID, 5000.0)
			pickJointID = 0
		endif
	endif
endfunction

function PickJointSetup()
	global pickObjectRayID as integer
	global currPosCamVecID as integer
	global origPosCamVecID as integer
	global toVecID as integer
	global updatedPickVecID as integer
	global PickVecID as integer
	global HitObjID as integer
	global pickJointID as integer
	pickObjectRayID = Create3DPhysicsRay()
	currPosCamVecID = CreateVector3()
	origPosCamVecID  = CreateVector3()
	toVecID = CreateVector3()
	PickVecID = CreateVector3()
	updatedPickVecID = CreateVector3()
endfunction

Function Sun()
		// move the sun
		time# = time# + GetFrameTime()*5.5 // /2
		xdir# = sin(time#)
		ydir# = cos(time#)
		zdir# = -0.5
		SetSunDirection(xdir#,ydir#,zdir#)

		// To Do: make functions for that sun suff
		if time#<Color[ColorID].Time#
			DeltaTime#=(Color[ColorID].Time#-Color[ColorID-1].Time#)
			ColorTime#=(time#/DeltaTime#)-(ColorID-1)
			Red#=Lerp(Color[ColorID-1].Red#,Color[ColorID].Red#,ColorTime#)
			Green#=Lerp(Color[ColorID-1].Green#,Color[ColorID].Green#,ColorTime#)
			Blue#=Lerp(Color[ColorID-1].Blue#,Color[ColorID].Blue#,ColorTime#)
			SetSunColor(Red#,Green#,Blue#)
			SetFogSunColor(128+Red#*0.5,128+Green#*0.5,128+Blue#*0.5)
			SetSkyBoxSunColor(128+Red#*0.5,128+Green#*0.5,128+Blue#*0.5)
			SetSkyBoxHorizonColor(128+Red#*0.5,128+Green#*0.5,128+Blue#*0.5)
			//print(Red#)
			//print(Green#)
			//print(Blue#)
			//print(ColorTime#)
		else
			inc ColorID
			if ColorID>Color.length
				ColorID=0
				time#=0
			endif
		endif
	Endfunction

function Lerp(Start#,End#,Time#)
endfunction Start#+Time#*(End#-Start#)

function AddColor(Red#,Green#,Blue#,Time#)
	TempColor as ColorData
	TempColor.Red#=Red#
	TempColor.Green#=Green#
	TempColor.Blue#=Blue#
	TempColor.Time#=Time#

	Color.insert(TempColor)
endfunction

+ Code Snippet


// Project: CharacterController Ragdoll
// Created: 2016-06-07
#include "Camera.agc"
#include "Ragdoll.agc"
#include "CharacterController.agc"

// set window properties
SetWindowTitle( "CharacterController Ragdoll" )
SetWindowSize( GetDeviceWidth(), GetDeviceHeight(), 0 )
//Set display properties
SetVirtualResolution ( GetDeviceWidth(), GetDeviceHeight() )
SetVSync( 1 )
//Set Backdrop color
SetClearColor( 0,170,204 ) // light blue
//Set display orientation for mobile device
SetOrientationAllowed( 0, 0, 1, 0 )
SetScissor( 0, 0, 0, 0 )
//Set camera
SetCameraRange( 1, 1, 50000 )
SetCameraPosition( 1, 0, 100.0, -150.0 )
SetCameraLookAt( 1, 0.0, 100.0, 0.0, 0.0 )
//Set Text size and color as displayed to screen.
SetPrintSize( 22.0 )
SetPrintColor( 255, 255, 0 )
//SetSkyBoxVisible( 1 )
//Set the error reporting for debugging.
//SetErrorMode( 2 )

DisplayLogo()

Create3DPhysicsWorld()

//  ###################### camera & fog######################

global fog=0   				// fog is 'on'/off
global shadowMode = 3 	// shadows
global useCharacter = 1    //
global time# = 0
global DeltaTime# = 0
global ColorTime# = 0
//global ColorID
global Red# = 0
global Green# = 0
global Blue# = 0

SetCameraRange( 1, 0.1, 2000 )
//SetCameraRange( 1, 0.1, 100 )
// point camera towards the object
//SetCameraPosition(1, 383, 30, 383)
//SetCameraPosition( 1, 340,10,460 )
//SetCameraLookAt( 1, 330,2,420,0 )

// add some atmospheric fog
SetFogMode( fog )
SetFogColor( 161,183,209 )
SetFogRange( 50, 700 )
//SetFogRange( 60,95 )
SetFogSunColor( 255,230,179 )


// ###################### lighting  & shadows #################
//SetAmbientColor( 128,128,128 )
SetAmbientColor( 28,28,28 )

// shadows
shadowMode = 3 // start with cascade shadow mapping which gives the best quality
SetShadowMappingMode( shadowMode )
SetShadowSmoothing( 2 ) // random sampling
SetShadowMapSize( 1024, 1024 )
SetShadowRange( -1 ) // use the full camera range
SetShadowBias( 0.0012 ) // offset shadows slightly to avoid shadow artifacts


// ###################### skybox & sun #### #################
// enable the sky box, show the sun, not necessary but improves the experience
SetSkyBoxVisible( 1 )

//dx# = -0.3714
xdir# = -0.3714
//dy# = -0.7428
ydir# = -0.7428
//dz# =   0.5571
zdir# =   0.5571

//SetSunDirection( dx#, dy#, dz# )
SetSunDirection( xdir#, ydir#, zdir# )
SetAmbientColor( 30,30,30 )

 // DayNight - SunColor stuff thing...
type ColorData
	Red#
	Green#
	Blue#
	Time#
endtype

global Color as ColorData[]
global ColorID=0
AddColor(60,60,60,0)
AddColor(255,180,150,90)
AddColor(255,230,179,180)
AddColor(255,60,60,270)
AddColor(60,60,60,360)
//########################################


//collision groups and masks
global group0 = 1
global group1 = 2
global group2 = 4
global group3 = 8
global group4 = 16
global group5 = 32
global mask0 = 1
global mask1 = 2
global mask2 = 4
global mask3 = 8
global mask4 = 16
global mask5 = 32


global FPS as integer
global floorBoxID as integer
global floorTexID as integer
global ballTex as integer
global crateTex as integer
global concreteTex as integer
global dumpsterTex as integer
global chapelTex as integer

global L_VirtualJoystick as integer
global R_VirtualJoystick as integer
global C_VirtualJoystick as integer


LoadDemoTextures()

//Make Physics floor
floorBoxID = CreateObjectBox( 10000.0, 12.0, 10000.0 )
floorTexID = LoadImage("/media/steelPanelTiled.png")
SetObjectImage( floorBoxID, floorTexID, 0 )
SetImageWrapU ( floorTexID,1)
SetImageWrapV ( floorTexID,1)
SetObjectUVScale (floorBoxID, 0,20,20)
//SetObjectImage( floorBoxID, floorTexID, 0 )
//SetObjectColor( floorBoxID, 112, 100, 100, 255 )



SetObjectLightMode( floorBoxID, 1 )
SetObjectPosition( floorBoxID, 0.0, 0.0, 0.0 )
//This command creates a static physics body for the floor box with a triangle mesh collision shape.
//A static physics body has no mass and does not get moved.
Create3DPhysicsStaticBody( floorBoxID )
//This 3D Physics command changes the collision shape to a primative box shape since we do not need the accuracy of
// polygon collision for just a box. The physics body is still static.
SetObjectShapeBox( floorBoxID ) //

SetObjectReceiveShadow( floorBoxID, 1 )

stairsObj = LoadObject( "/media/Stairs.x" )
SetObjectImage( stairsObj, concreteTex, 0 )
SetObjectPosition( stairsObj, 0.0, 6.0, 200.0 )
RotateObjectGlobalY( stairsObj, 180.0 )
Create3DPhysicsStaticBody( stairsObj )
SetObject3DPhysicsGroupAndMask( stairsObj, group0, -1 )

SetObjectReceiveShadow( stairsObj, 1 )
SetObjectCastShadow( stairsObj, 1 )


			global	dumpster
			dumpster = LoadObject( "/media/dumpster_3yardOnFloor.x")
			SetObjectImage( dumpster, dumpsterTex, 0 )
			//SetObjectColor( dumpster, 255-200, 3, 239, 255 )
			SetObjectPosition( dumpster , -300.0, 1500, 0.0 )
			Create3DPhysicsDynamicBody( dumpster )
			//This command changes the collison shape to a convex hull.
			//SetObjectShapeConvexHull( dumpster )
			SetObject3DPhysicsMass( dumpster, 2.0 )
			SetObjectReceiveShadow( dumpster, 1 )
			SetObjectCastShadow( dumpster, 1 )

chapelObj = LoadObject( "/media/Models/chapel.obj" )
SetObjectImage( chapelObj, chapelTex, 0 )
//SetObjectUVScale (chapelObj, 0,20,20)
SetObjectPosition( chapelObj, -500.0, 6.0, 0.0 )
RotateObjectGlobalY( chapelObj, 180.0 )
SetObjectScale(chapelObj, .5,.5,.5)

Create3DPhysicsStaticBody( chapelObj )
SetObject3DPhysicsGroupAndMask( chapelObj, group0, -1 )

SetObjectReceiveShadow( chapelObj, 1 )
SetObjectCastShadow( chapelObj, 1 )


// Payer

remstart
stairsObj = LoadObject( "/media/stairsObj.x" )
SetObjectImage( stairsObj, concreteTex, 0 )
SetObjectPosition( stairsObj, 0.0, 6.0, 200.0 )
RotateObjectGlobalY( stairsObj, 180.0 )
Create3DPhysicsStaticBody( stairsObj )
SetObject3DPhysicsGroupAndMask( stairsObj, group0, -1 )

SetObjectReceiveShadow( stairsObj, 1 )
SetObjectCastShadow( stairsObj, 1 )
remend




maskedSoldierTex = LoadImage( "/media/Masked Soldier.png" )
SetImageWrapU(maskedSoldierTex,1)
SetImageWrapV(maskedSoldierTex,1)

global maskedSoldier // <<< Added for follow cam
maskedSoldier = LoadObjectWithChildren( "/media/Masked Soldier Frag.x" )
SetObjectImage( maskedSoldier, maskedSoldierTex, 0 )

SetObjectLightMode( maskedSoldier, 1 )
//position above floor for charcater controller
SetObjectPosition( maskedSoldier, -40.0, 10.0, -20.0 )
SetObjectRotation( maskedSoldier, 0, 90, 0 )
SetObjectAnimationSpeed( maskedSoldier, 30.0 )
PlayObjectAnimation( maskedSoldier, "Animation", 3002, 3547, 1, 0.0 )

SetObject3DPhysicsMass( maskedSoldier, 5.0 )
CreateCharacterController( maskedSoldier )
Stand3DPhysicsCharacterController( maskedSoldier )
Set3DPhysicsCharacterControllerStepHeight( maskedSoldier,12.0 )
Set3DPhysicsCharacterControllerJumpSpeed( maskedSoldier, 7.0 )

SetObjectCastShadow( maskedSoldier, 1 )
SetObjectReceiveShadow( maskedSoldier, 1 )

PickJointSetup()
CreateRagdollVectors()

//========= dude 2 ==============================

SoldierTex = LoadImage( "/media/Soldier_body_1_D.png" )
SetImageWrapU(SoldierTex,1)
SetImageWrapV(SoldierTex,1)

global Soldier // <<< Added for follow cam
Soldier = LoadObjectWithChildren( "/media/Original_Soldier.X" )
SetObjectImage( Soldier, SoldierTex, 0 )

SetObjectLightMode( Soldier, 1 )
//position above floor..
SetObjectPosition( Soldier, 60.0, 15.0, 0.0 )
SetObjectRotation( Soldier, 0, 0, 0 )
SetObjectAnimationSpeed( Soldier, 20 )
PlayObjectAnimation( Soldier, "Anim1", 1000, 1282, 1, 0 )

SetObject3DPhysicsMass( Soldier, 2.0 )
SetObjectCastShadow( Soldier, 1 )
SetObjectReceiveShadow( Soldier, 1 )




// =============================================
remstart
CheckSizeObject=CreateObjectCapsule(20,80,90)
SetObjectPosition( CheckSizeObject, 120.0, 45.0, 0.0 )
SetObjectCastShadow( CheckSizeObject, 1 )
SetObjectReceiveShadow( CheckSizeObject, 1 )
remend

L_VirtualJoystick = 1
R_VirtualJoystick = 2
C_VirtualJoystick = 3
AddVirtualJoystick( L_VirtualJoystick, 60.0, GetScreenBoundsBottom() - 60.0, 120.0 )
AddVirtualJoystick( R_VirtualJoystick, GetScreenBoundsRight() -60, GetScreenBoundsBottom() - 60.0, 120.0 )
AddVirtualJoystick( C_VirtualJoystick, GetDeviceWidth() / 2 , GetScreenBoundsBottom() - 60.0, 120.0 )


do
	FreeFlightCameraUsingMouseAndArrowKeys( 1, 2.0 )
	FreeFlightCameraUsingVirtualJoysticks( 1, 3.0 )
	//This function casts a ray, then creates a pick joint at that the contact point.
    PickJointCreateAndUpdate()


    if GetRawMouseRightPressed()
		//To move dynamic physics bodies we need to apply velocity to the physics body.
		ThrowBall( 800.0, 2.0 )

	endif
		//Press R to create ragdoll
	if GetRawKeyPressed( 82 )
		if Get3DPhysicsRagdollExist( maskedSoldier ) = 0 then CreateRagdollSkelton( maskedSoldier )
		Delete3DPhysicsCharacterController( maskedSoldier )
	endif

	if Get3DPhysicsCharacterControllerExists( maskedSoldier )
		CharacterControllerInput( maskedSoldier )
	endif
	if GetRawKeyPressed( 70 )  // f= reset
		if Get3DPhysicsRagdollExist( maskedSoldier )
			Delete3DPhysicsRagdoll( maskedSoldier )
			SetObjectAnimationFrame ( maskedSoldier, "Animation", 3002, 0.75 )

			CreateCharacterController( maskedSoldier )
			Stand3DPhysicsCharacterController( maskedSoldier )
			Set3DPhysicsCharacterControllerStepHeight( maskedSoldier,12.0 )
			Set3DPhysicsCharacterControllerJumpSpeed( maskedSoldier, 6.0 )
		endif
	endif
	//Sun()
	FPS = ScreenFPS()
    PrintC( "Fame Rate: " ) : Print( FPS )
    PrintC( "Total Physics Objects: " ) : Print( Get3DPhysicsTotalObjects()  )
    PrintC( "Active Physics Objects: " ) : Print( Get3DPhysicsActiveObjects()  )
    Print( "Rmb to throw sphere object " )
	Print( "Lmb to pick Dynamic objects " )
	Print( "Arrow Keys to move camera, Mouse to Rotate" )
	Print( "WASD To Move Character, Q & E to Rotate, " )
	Print( "SpaceBar to jump and C to crouch " )
	Print( "The R Key will Ragdoll the Character , F key will Reset" )
	Sync()
    Step3DPhysicsWorld() //required for updating physics.

loop

function DisplayLogo()
	bulletLogo = LoadImage("/media/agk2_logokit/bullet_logo_small.png")
	SetImageWrapU( bulletLogo,1 )
	SetImageWrapV( bulletLogo,1 )
	bulletSprite = CreateSprite( bulletLogo )
	SetSpritePosition( bulletSprite, GetScreenBoundsRight() -310.0, GetScreenBoundsTop() )
	agkLogo = LoadImage("/media/agk2_logokit/Made-With-AGK-128px.png")
	SetImageWrapU( agkLogo,1 )
	SetImageWrapV( agkLogo,1 )
	agkSprite = CreateSprite( agkLogo )
	SetSpritePosition( agkSprite, GetScreenBoundsRight() -128.0, GetScreenBoundsTop() )
endfunction

function LoadDemoTextures()
	floorTexID = LoadImage( "/media/steelPanelTiled.png" )
	SetImageWrapU( floorTexID, 0 )
	SetImageWrapV( floorTexID, 0 )
	ballTex = LoadImage( "/media/soccerball2.jpg" )
	SetImageWrapU( ballTex, 1 )
	SetImageWrapV( ballTex, 1 )
	crateTex = LoadImage( "/media/Crate_color.png" )
	SetImageWrapU( crateTex, 1 )
	SetImageWrapV( crateTex, 1 )
	concreteTex = LoadImage( "/media/Concrete.png" )
	SetImageWrapU( concreteTex, 1 )
	SetImageWrapV( concreteTex, 1 )

	dumpsterTex = LoadImage( "/media/dumpster_D.png" )
	SetImageWrapU( dumpsterTex, 1 )
	SetImageWrapV( dumpsterTex, 1 )

	chapelTex = LoadImage( "/media/Models/chapel_D.png" )
	SetImageWrapU( chapelTex, 1 )
	SetImageWrapV( chapelTex, 1 )


endfunction

function ThrowBall( initialSpeed as float, mass as float )

	local directionX as float
	local directionY as float
	local directionZ as float
	directionX = Get3DVectorXFromScreen( GetPointerX(), GetPointerY() )
	directionY = Get3DVectorYFromScreen( GetPointerX(), GetPointerY() )
	directionZ = Get3DVectorZFromScreen( GetPointerX(), GetPointerY() )
	throwBall as integer
	throwBall = CreateObjectSphere( 8, 16, 32 )
	SetObjectImage( throwBall, ballTex, 0 )
	SetObjectPosition( throwBall, GetCameraX( 1 ), GetCameraY( 1 ), GetCameraZ( 1 ) )

SetObjectReceiveShadow( throwBall, 1 )
SetObjectCastShadow( throwBall, 1 )

	//3D Physics code
	Create3DPhysicsDynamicBody( throwBall )
	SetObjectShapeSphere( throwBall )
	SetObject3DPhysicsMass( throwBall, mass )
	SetObject3DPhysicsLinearVelocity( throwBall, directionX, directionY, directionZ, initialSpeed )
	SetObject3DPhysicsFriction( throwBall, 0.8 )
	SetObject3DPhysicsRollingFriction( throwBall, 0.7 )
endfunction

function PickJointCreateAndUpdate()
	//Left mouse btn pressed creates pick joint
	if GetPointerPressed()
		SetVector3( toVecID, Get3DVectorXFromScreen( GetPointerX(), GetPointerY() ),
														Get3DVectorYFromScreen( GetPointerX(), GetPointerY() ),
																Get3DVectorZFromScreen( GetPointerX(), GetPointerY() ) )
		GetVector3Multiply( toVecID, 1500.0 )
		SetVector3( origPosCamVecID, GetCameraX(1), GetCameraY(1), GetCameraZ(1) )

		GetVector3Add( toVecID, origPosCamVecID )
		RayCast3DPhysics( pickObjectRayID, origPosCamVecID, toVecID, 1 )
		HitObjID = Get3DPhysicsRayCastObjectHit( pickObjectRayID, 0 )
		if HitObjID > 0
			Get3DPhysicsRayCastContactPosition( pickObjectRayID, 0.0, PickVecID )
			pickJointID = Create3DPhysicsPickJoint( HitObjID, PickVecID )
		endif
	endif

	//Left Mouse btn held down holds pick joint
	if GetPointerState() and pickJointID > 0
		SetVector3( updatedPickVecID, Get3DVectorXFromScreen( GetPointerX(), GetPointerY() ),
															Get3DVectorYFromScreen( GetPointerX(), GetPointerY() ),
																	Get3DVectorZFromScreen( GetPointerX(), GetPointerY() ) )
		origDistance = GetVector3Distance( origPosCamVecID, PickVecID )
		GetVector3Multiply( updatedPickVecID, origDistance )
		SetVector3( currPosCamVecID, GetCameraX(1), GetCameraY(1), GetCameraZ(1) )
		GetVector3Add( updatedPickVecID, currPosCamVecID )
		Update3DPhysicsPickJoint( pickJointID, updatedPickVecID )
	elseif pickJointID > 0
		Delete3DPhysicsPickJoint( pickJointID )
		if HitObjID > 0
			SetVector3( updatedPickVecID, Get3DVectorXFromScreen( GetPointerX(), GetPointerY() ),
																Get3DVectorYFromScreen( GetPointerX(), GetPointerY() ),
																	Get3DVectorZFromScreen( GetPointerX(), GetPointerY() ) )
			//Unremark this line to apply a force when releasing object.
			//SetObject3DPhysicsLinearVelocity( HitObjID, updatedPickVecID, 5000.0)
			pickJointID = 0
		endif
	endif
endfunction

function PickJointSetup()
	global pickObjectRayID as integer
	global currPosCamVecID as integer
	global origPosCamVecID as integer
	global toVecID as integer
	global updatedPickVecID as integer
	global PickVecID as integer
	global HitObjID as integer
	global pickJointID as integer
	pickObjectRayID = Create3DPhysicsRay()
	currPosCamVecID = CreateVector3()
	origPosCamVecID  = CreateVector3()
	toVecID = CreateVector3()
	PickVecID = CreateVector3()
	updatedPickVecID = CreateVector3()
endfunction

Function Sun()
		// move the sun
		time# = time# + GetFrameTime()*5.5 // /2
		xdir# = sin(time#)
		ydir# = cos(time#)
		zdir# = -0.5
		SetSunDirection(xdir#,ydir#,zdir#)

		// To Do: make functions for that sun suff
		if time#<Color[ColorID].Time#
			DeltaTime#=(Color[ColorID].Time#-Color[ColorID-1].Time#)
			ColorTime#=(time#/DeltaTime#)-(ColorID-1)
			Red#=Lerp(Color[ColorID-1].Red#,Color[ColorID].Red#,ColorTime#)
			Green#=Lerp(Color[ColorID-1].Green#,Color[ColorID].Green#,ColorTime#)
			Blue#=Lerp(Color[ColorID-1].Blue#,Color[ColorID].Blue#,ColorTime#)
			SetSunColor(Red#,Green#,Blue#)
			SetFogSunColor(128+Red#*0.5,128+Green#*0.5,128+Blue#*0.5)
			SetSkyBoxSunColor(128+Red#*0.5,128+Green#*0.5,128+Blue#*0.5)
			SetSkyBoxHorizonColor(128+Red#*0.5,128+Green#*0.5,128+Blue#*0.5)
			//print(Red#)
			//print(Green#)
			//print(Blue#)
			//print(ColorTime#)
		else
			inc ColorID
			if ColorID>Color.length
				ColorID=0
				time#=0
			endif
		endif
	Endfunction

function Lerp(Start#,End#,Time#)
endfunction Start#+Time#*(End#-Start#)

function AddColor(Red#,Green#,Blue#,Time#)
	TempColor as ColorData
	TempColor.Red#=Red#
	TempColor.Green#=Green#
	TempColor.Blue#=Blue#
	TempColor.Time#=Time#

	Color.insert(TempColor)
endfunction

Now, in AppGameKit-V2017.09.25-Windows, it somehow messes up the shadows of the 2 animated characters see below:

Anybody has an idea what's going on? Is this a new bug caused by the latest changes? Can anybody confirm it's the same for them?

[EDIT]
To make it more clear: as soon as I add the 2nd animated character's shadows, then the shadows of both animated characters get mixed up and they are no longer stuck to the individual characters and do no move along with them. So when I move the player it's shadow doesn't follow him around but remains in the same area and looks distorted, mixed up with the other characters shadow..
BTW: I've now tested under Android too and it's the same there.

Back to top

Profile PM Email Website

Rick Nasher

6

Years of Service

User Offline

Joined: 25th Jul 2017

Location: Amsterdam

Posted: 26th Oct 2017 14:41 Edited at: 26th Oct 2017 17:54

Link

Ok.. Found out I had to go back 2 versions(V2017.08.16) for it to work properly again...

So definitely a bug I'd say. Especially as fails on both Windows 10 *and* Android 7.01.

(BTW: Would be nice if we could also edit the subject title of threads for the question mark can now be removed.)

Back to top

Profile PM Email Website

Paul Johnston

TGC Developer

21

Years of Service

User Offline

Joined: 16th Nov 2002

Location: United Kingdom

Posted: 26th Oct 2017 22:31

Link

Thanks, fixed for the next version. It was caused by the second animated object having more bones than the first. You could work around it by loading the object with the most bones first, then the other animated objects.

Back to top

Profile PM Email

Rick Nasher

6

Years of Service

User Offline

Joined: 25th Jul 2017

Location: Amsterdam

Posted: 27th Oct 2017 17:22

Link

@Paul Johnston:
That's very good to hear. Many thanks for checking this.
I'll try the work around for now.

Back to top

Profile PM Email Website

pavel_sv_1982

11

Years of Service

User Offline

Joined: 9th Apr 2013

Location: Russia

Posted: 28th Nov 2017 12:05

Link

@Rick Nasher:

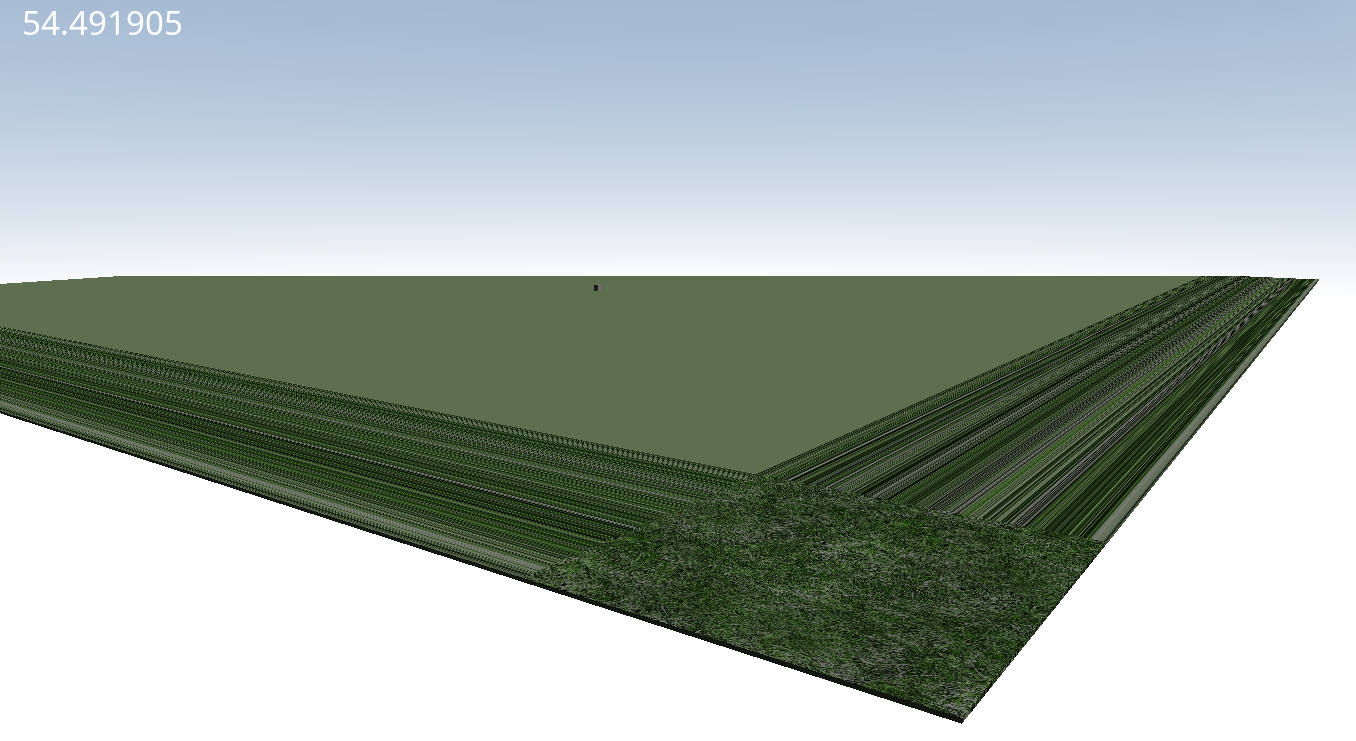

how did you multiply the texture on the floor?
I watched your code sample. I understood how to do the shadows.
But it's unclear why you have the texture multiplied completely, but I only have 2 strips to the right and forward. and that's all.
thanks in advance.

+ Code Snippet

floorBoxID = 1
floorTexID = LoadImage("1.png")
SetObjectImage( floorBoxID, floorTexID, 0 )
SetObjectUVScale (floorBoxID, 0,10,10)

Attachments

Login to view attachments

Back to top

Profile PM Email Website

MikeMax

AGK Academic Backer

12

Years of Service

User Offline

Joined: 13th Dec 2011

Location: Paris

Posted: 3rd Dec 2017 19:12 Edited at: 3rd Dec 2017 22:10

Link

Try to resize your texture as a square texture (it seems rectangular no ?) (power of 2 as janbo said further

Back to top

Profile PM Email

janbo

15

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 3rd Dec 2017 21:11

Link

@pavelman
How about SetImageWrapU(ImageID,1) ?
And check if the image is a power of 2 so it works on all platforms.

Back to top

Profile PM Email Website

Rick Nasher

6

Years of Service

User Offline

Joined: 25th Jul 2017

Location: Amsterdam

Posted: 4th Dec 2017 19:35 Edited at: 4th Dec 2017 20:06

Link

@Pavelman:

Quote: "how did you multiply the texture on the floor?
I watched your code sample. I understood how to do the shadows.
But it's unclear why you have the texture multiplied completely, but I only have 2 strips to the right and forward. and that's all.
thanks in advance."

Well, I can't take all the credit as not all of that code is 'mine'. I actually took the charactercontroller code from here https://forum.thegamecreators.com/thread/216683 , fiddled a little bit with it and added some stuff as a quick test to see how animation, shadows and physics would go together performance wise.
It was doing quite nicely as you can see.

I needed the floor to be larger and scaled it up a bit. When I did, I stumbled upon the floor tile stuff being a bit odd, getting stretched weirdly, so I 'fixed' it, can't remember how really though, is already a little while back and am quite busy doing something without textures and I tend to forget quickly when not using things for a while.

Original code:

+ Code Snippet

floorBoxID = CreateObjectBox( 1000.0, 12.0, 1000.0 )
SetObjectImage( floorBoxID, floorTexID, 0 )
SetObjectLightMode( floorBoxID, 1 )
SetObjectPosition( floorBoxID, 0.0, 0.0, 0.0 )

My scaled up code:

+ Code Snippet

floorBoxID = CreateObjectBox( 10000.0, 12.0, 10000.0 )
floorTexID = LoadImage("/media/steelPanelTiled.png")  // <-- This is a  power of 2 image of 512x512 pixels, which is, as janbo also explained, essential..
SetObjectImage( floorBoxID, floorTexID, 0 )
SetImageWrapU ( floorTexID,1)
SetImageWrapV ( floorTexID,1)
SetObjectUVScale (floorBoxID, 0,20,20)

Check:

Quote: "
SetImageWrapU

Description:
Sets the UV wrap mode of the image when the U coordinate goes outside the range 0-1. The default is mode 0 which clamps the pixel value to the last valid pixel, mode 1 repeats the texture starting from the opposite side.

To use UV values outside 0-1 successfully on all platforms the image in question must be a power of 2 in width and height, and not be part of an atlas texture. This applies to both clamp and repeat.
"

And:

Quote: "
SetObjectUVScale

Description:
Modifies all meshes in the object to use the specified UV scale, see SetObjectMeshUVScale for more information.
"

Back to top

Profile PM Email Website

Rick Nasher

6

Years of Service

User Offline

Joined: 25th Jul 2017

Location: Amsterdam

Posted: 4th Dec 2017 20:17 Edited at: 4th Dec 2017 20:30

Link

@janbo

BTW: love your environment mapping video

Was already wondering how to do mirrors in AppGameKit, for in Blitz3d it was quite clear how to do reflective surfaces, mirrors and cube/sphere mapping.

Back to top

Profile PM Email Website

Rick Nasher

6

Years of Service

User Offline

Joined: 25th Jul 2017

Location: Amsterdam

Posted: 14th Dec 2017 18:25 Edited at: 14th Dec 2017 18:30

Link

Bug fixed in the version latest version 2017.12.12 :

Quote: "•Fixed animated objects causing incorrect shadows if an object with more bones was loaded after an object with less bones"

Many thanks Paul Johnston & AppGameKit team!

Back to top

Profile PM Email Website

Sorry your browser is not supported!

AppGameKit Classic Chat / [BUG] Shadows broken in new AGK version?

Attachments
