AppGameKit Classic Chat / Making a simple Old School Style FPS Game in AppGameKit 2

Author
Message
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 2nd Feb 2018 05:03 Edited at: 2nd Feb 2018 05:16
Okay, so I have not done any game dev for a few months or so now. Recently came back to these forums and seeing all of the cool stuff you folks are making got me interested in doing some game dev again.

Tonight I started on creating a simple old school style FPS game.

And when I say old school style I am talking about the very old ones that uses keyboard controls only not mouse and keyboard.

This is obviously very early on but it feels right so far.

There is no texture mapping... just solid colored walls... but like the games of old that used color cycling creating colored bands to simulate 3D I use this FX on the floor, ceiling and walls even though everything really is 3D. Because it strengthens the 3D movement FX and again it connects it more to those old school games I enjoyed so much.

There is no collision checking yet. When you run the project just "pretend" collision checking is in.



The project is attached to this post. It is tiny just 8 KB. There is no media. Just one main file which I will also include right here.




OH! I should mention this is just something I am dabbling on. I will work on it when I feel the urge to. Almost certainly will not be every day. But I will try to do some more on it sometime this weekend. All depends on what all else is going on.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)

Attachments

Login to view attachments
puzzler2018
1
Years of Service
Recently Online
Joined: 8th Oct 2017
Location:
Posted: 2nd Feb 2018 07:29
Looks promising, keep it up and quiet a nice method on how this is achieved
Lance
15
Years of Service
User Offline
Joined: 22nd Jul 2003
Location: Third planet from Sun
Posted: 2nd Feb 2018 13:45


"Tonight I started on creating a simple old school style FPS game." :

I have been doing the same thing . These type of '3D' look games started it all ; thanks to John Carmak and ID Software . I started out making a 'map' editor and loader using cubes (top down view). It saves the 'map' out as a .txt file . I only do programming starting in late October and stop by the middle of March (winter months) .To me ,it's only a hobby . I purchased AppGameKit back in November . What has slowed me down was not being able to edit a 'map' very well using memblocks .

Lance



GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 2nd Feb 2018 14:33 Edited at: 2nd Feb 2018 15:30
Thanks @puzzler2018

@Lance I understand you very well. My main dev time runs through that same time period although some years I have done projects in late summer early fall. I enjoy being outside moving around doing stuff too much to be sitting staring at the screen. Especially when I already work on the computer all day programming for my job.

Yes I thought the same thing about a map editor. I have experimented with alternatives to map editors many times so I knew a simple string map in code, a simple text map file or an image would work fine.

I will almost certainly end up switching over to using an image to define the map. That works very well just a simple 20x20 image in this case where each color coded pixel represents one block cell in the game. Of course I would have 3 of those in this case for the visual layers. Then I either use the one with the walls or add a 4th that defines doors, enemies, collectibles and so forth.

It is pretty flexible and relatively easy to work with especially going the image route.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)
Lance
15
Years of Service
User Offline
Joined: 22nd Jul 2003
Location: Third planet from Sun
Posted: 2nd Feb 2018 15:17 Edited at: 2nd Feb 2018 15:23

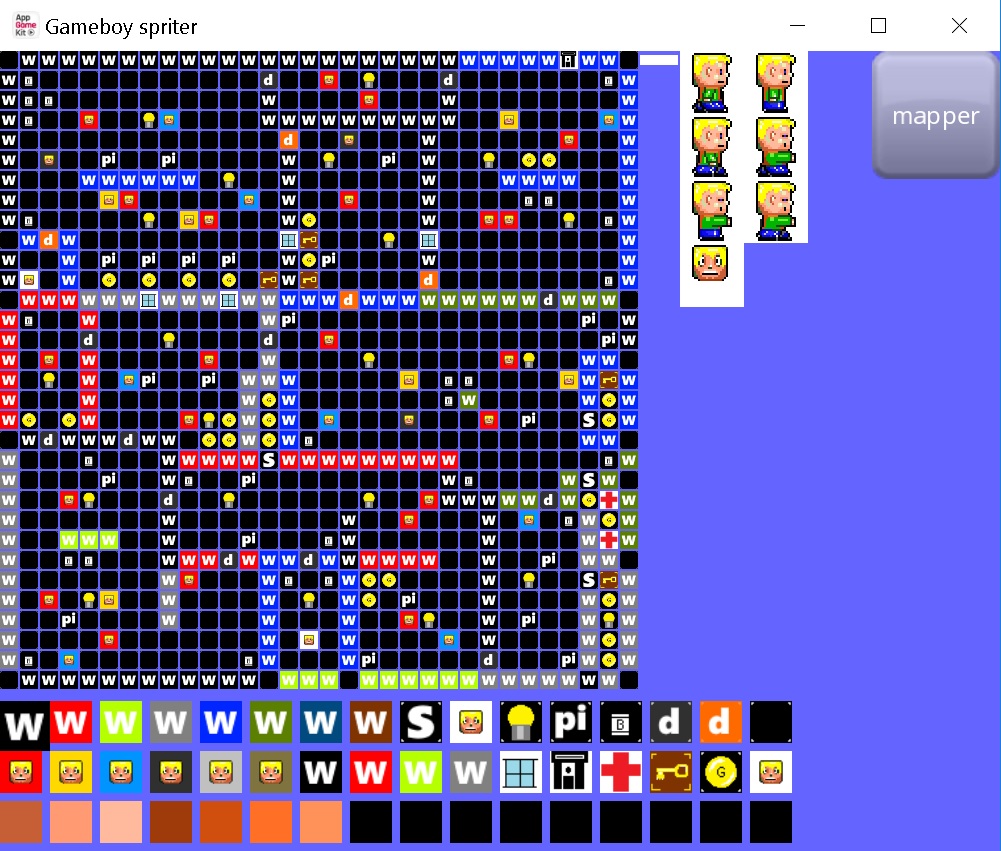

A pic of my map editor . Didn't know what size I should post so I reduced it 50% .

A little too dark

Attachments

Login to view attachments
GunnerJnr
AGK Developer
3
Years of Service
User Offline
Joined: 30th Nov 2015
Location: Bridgwater, UK
Posted: 2nd Feb 2018 18:25
DOOM

looks great!
blink0k
AGK Developer
Gold Codemaster
6
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 2nd Feb 2018 22:23
Looks awesome. Are the NPCs going to be images on planes or full 3D?
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 2nd Feb 2018 22:31
Glad you like it!

I have put no thought into that yet. Just a for fun sort of tutorial thing (I need to work more on that part in the posts) I just figure stuff out as I'm writing it. BUT I'd guess the enemies will be 3D and almost certainly just red cubes stretched vertically. Probably some very basic movement-based animation for walking and so forth. Collectibles just tiny cubes rotated to stand on one point spinning around. That kind of thing.

Ha ha. I hate getting sucked into the black hole of graphics stuff so strive to keep that aspect very simple while using little touches to make it look decent.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)
puzzler2018
1
Years of Service
Recently Online
Joined: 8th Oct 2017
Location:
Posted: 2nd Feb 2018 22:32
We all learn from somewhere - i never knew 3D until 2 weeks ago and quiet ok with it - lots more to learn
blink0k
AGK Developer
Gold Codemaster
6
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 2nd Feb 2018 22:51
If you wanted to go planes with animated textures i have some horror type sprites that might suit.
things like Dracula, Mummy Frankenstein
Cliff Mellangard 3DEGS
Developer
13
Years of Service
User Offline
Joined: 20th Feb 2006
Location: Sweden
Posted: 2nd Feb 2018 22:58

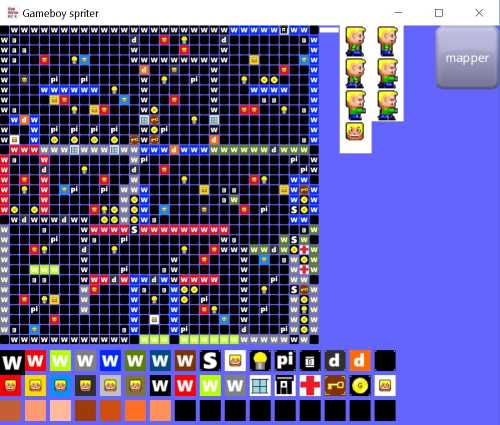

I simply rewrote parts of my sprite editor to become a mapper to get started..
but iam going to write a dedicated mapper in 3d instead as it will speed things up and see how players see the World faster without playtesting alot..
I use textured planes that i animate by image swapping for my enemies.
Good to see some more retro fps games in the works ...

Attachments

Login to view attachments
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 2nd Feb 2018 23:11 Edited at: 3rd Feb 2018 00:03
That is definitely an option and is how I animated the enemies in my Mutant Invaders 3D shmup game.

Just cubes brought to life with animated textures (SetObjectImage) and programming.

We'll see how it goes. Right now I am thinking very basic. Taking a very relaxed approach to it all. Lol

EDIT: Not sure how I missed this was going to write it first. Been another busy workday and I wrote this post right at the tail-end of it. I guess that is as good of an explanation as any. lol

Anyway @blink0k thanks a lot for the offer! I will definitely keep it in mind. I think mainly what I was thinking is I can make a simple game then people can replace the graphics etc. Basically they can reskin it as they want. It's not something I am making to release to public just here on the forums. BUT I definitely appreciate the offer and may end up taking you up on it.

Right now it is Friday and the workweek has finally ended. Going to check out a few threads around here then get off this thing and relax with a nice cold beer.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)
blink0k
AGK Developer
Gold Codemaster
6
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 2nd Feb 2018 23:36
I thought this guy did an awesome job of using billboards. He's done some animation and even used multiple planes to show NPCs getting slashed
Slasher's Keep
puzzler2018
1
Years of Service
Recently Online
Joined: 8th Oct 2017
Location:
Posted: 2nd Feb 2018 23:38
A bit cartoony but fun
Golelorn
2
Years of Service
User Offline
Joined: 20th Nov 2016
Location:
Posted: 3rd Feb 2018 03:47
Reminds me of Bards Tale and old Might and Magic. I like it!
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 3rd Feb 2018 05:01 Edited at: 3rd Feb 2018 05:15
Okay, I decided to do a very quick update just to show how easy it is to reskin a game project / update the graphics.

Previously this was using untextured cubes. Now they are textured.

Just some fast images I knocked out to illustrate this. Feel free to draw whatever you want for those textures. You can actually give variety by creating the additional 2 images for each of the 3 types (floor, wall and ceiling)


I will quite likely revert back to the original untextured when I next work on the project.

Just wanted to show it is super easy to change up the visuals. My focus is always on the actual game programming mainly because I find graphics to be like a black hole a person (well at least me) can spend hours, days and weeks on just iterating over and over and over again... and hence nothing gets done... no actual progress made! lol So I avoid it as long and as much as I can.

But I know lot of people like this stuff so this shows how easy it is to switch over to textured images.

Alright no more time on graphics. Next time I will get something done on the game. Maybe update the map creation to use images (ok so I would make more graphics for that lol). Or maybe just add some collectibles. No idea yet but it will be something focused on supporting game play.

NOTE: I was going too fast and did not clearly comment about all 3 methods creating the block types but you will see the pattern in there. Floor, Walls, Ceiling.

You will need to download the project for this because the media folder now has these images in it.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)

Attachments

Login to view attachments
Rick Nasher
1
Years of Service
User Offline
Joined: 25th Jul 2017
Location: Amsterdam
Posted: 3rd Feb 2018 08:27
Oh-oh.. I can see a creature with an ax lurking round the corner.
hoyoyo80
2
Years of Service
User Offline
Joined: 11th May 2016
Location:
Posted: 3rd Feb 2018 11:19

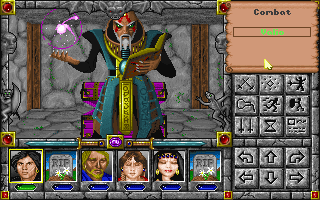

Old school Sword and Arrow pls...might and magic
hoyoyo80
2
Years of Service
User Offline
Joined: 11th May 2016
Location:
Posted: 3rd Feb 2018 11:24 Edited at: 3rd Feb 2018 11:26


Sidenote: I still love old school fantasy rpg compare to NexGen RPG, make me feel younger with all unicorn and dragon stuff
basicFanatic
1
Years of Service
User Offline
Joined: 7th Jun 2017
Location:
Posted: 3rd Feb 2018 12:03
Remember Isle of the Dead? Since the baddies were zombies, they always walked straight towards the player. This meant that they didn't need a sprite for each direction they could be turning. (The game actually had mouse movement, but it was kinda broken)
Ortu
DBPro Master
11
Years of Service
User Offline
Joined: 21st Nov 2007
Location: Austin, TX
Posted: 3rd Feb 2018 15:37
If you haven't yet, you all should really check out Malevolence

http://store.steampowered.com/app/268930/Malevolence_The_Sword_of_Ahkranox/

It is an old school RPG based on this style, made with DBpro by Cumquat .

Good stuff
http://games.joshkirklin.com/sulium

A single player RPG featuring a branching, player driven storyline of meaningful choices and multiple endings alongside challenging active combat and intelligent AI.
Cliff Mellangard 3DEGS
Developer
13
Years of Service
User Offline
Joined: 20th Feb 2006
Location: Sweden
Posted: 3rd Feb 2018 16:23
I would probably recomend a 3d based editor..
i rewrote my old 2d one to 3d in under less the 150 lines of code..
Simpler to see how it would look ingame with textures etc.

GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 3rd Feb 2018 18:14 Edited at: 3rd Feb 2018 19:44
@Ortu That Malevolence: The Sword of Ahkranox looks quite interesting! I just checked it out on Steam.

@Cliff Looks like a great 3D level editor. I was working on a 3D world editor many months ago.

I don't want to get into this kind of stuff here. It's all great stuff but my intent here is only to make a little tutorial type of thing. An unfolding game with source shared here on the forum just in the hope it may be of help to someone. Maybe a new person comes to AGK2 and has no idea where to start to build a maze exploration style of game. This gives them a starting point. @Xaby mentioned the idea in another thread about making some larger examples (than that sample pack we all contributed to a while back). So I thought that sounded like fun.

Just wanted to clarify that I am not making a game here as in an actual game intended to be released on Steam or something like that. That would be far too time consuming and ambitious for me! lol :p

But maybe someone else with a ton of free time & a strong hunger to be the next big Indie game dev superstar can take the base code and expand on it greatly and reskin the graphics to create a game they release for sale or whatever.

For me this is just a bit of fun that may help someone else.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 4th Feb 2018 05:53 Edited at: 4th Feb 2018 06:13
Okay so I actually did work on this again tonight.

After having a quick play of the bit that was in I decided to focus on some very important things:

1. Collisions with the walls. And not just stop moving collisions but sliding along the wall collisions.
2. For anyone wanting to replace the textures I decided I might as well do some graphics work after all and create the 3 images for each of the block types: floor, walls and ceiling.
And so I decided I might as well create a reasonably pleasing palette and have it done with. Something I can stick with from now on.
3. And since I did that I figured I might as well add fogging as well just for that final touch.
4. Oh and I decided to make the movement and turning twice as smooth as it was before and adjusted the speeds on both a bit.

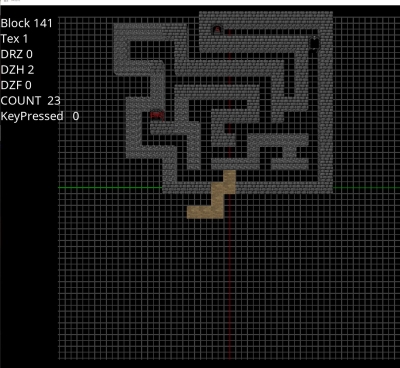

So now it looks like this and all images are in the media folder so people can easily draw their own textures...


And here is a gif of moving and sliding along the walls...


I also made some changes to the size of the blocks and turning collisions on for walls and off for the floor and ceiling.

AGK2 project source is attached to this post. Whopping 14KB.

Alright movement is done! Next time I can get on to some collectibles, or maybe some fireball shooting would be cool.

In case anyone is curious I am thinking about an old game Catacombs Abyss 3D. Not saying I am setting out to make that game just saying I like the whole fantasy magic user and monsters theme.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)

Attachments

Login to view attachments
Ortu
DBPro Master
11
Years of Service
User Offline
Joined: 21st Nov 2007
Location: Austin, TX
Posted: 4th Feb 2018 06:28
Coming along nicely man. The fog is a nice touch
http://games.joshkirklin.com/sulium

A single player RPG featuring a branching, player driven storyline of meaningful choices and multiple endings alongside challenging active combat and intelligent AI.
Lance
15
Years of Service
User Offline
Joined: 22nd Jul 2003
Location: Third planet from Sun
Posted: 4th Feb 2018 17:32 Edited at: 4th Feb 2018 19:48

I used some code from one of Cliff Mellangard 's projects (DBP 'Rolfenstein') to make my 3D map editor . It's very basic but it works . It is not even close to what he has done with his latest example posted above .

I tried to upload a video but it just won't go , sorry ....
Lance

Attachments

Login to view attachments
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 4th Feb 2018 18:08 Edited at: 4th Feb 2018 18:24
Thanks @Ortu.

@Lance I consider building a Map Editor / Level Editor out of scope for this project but I do think a new thread Making a Simple 3D Map / Level Editor in AGK2 would be worthwhile.

For this project I see it like the map data can be generated in multiple ways. We all know this. One can create a dedicated editor application to do it, or they can use Tiled and layers (which is what I may switch over to since it is perfect for building levels for this kind of game.... just have 3 layers in the Tiled map... floor, walls, ceiling... of course then I'd store collectible, enemy, door, etc positions in the map as well), typing it out in a separate text file that is loaded, typing it right inside the program code as I am doing here, etc.

A dedicated thread on building a level editor would probably be a very good thing. I need to focus on enemy placement and such anyway so I will almost certainly be showing how to use the free Tiled 2D Map Editor to build 3D levels for games like this. It's easy and I use Tiled for all of my 2D game projects. A game like this is basically just 2D presented in 3D so Tiled would be perfect.

I keep things simple though so I never built or use any Tiled tmx map loader in AGK2. That seemed like just adding a bunch of overhead that was not necessary in my opinion. I just copy the map data sections from of the tmx file and paste those into a text file and I load that data in from that simple text file.
TI/994a (BASIC) -> C64 (BASIC/PASCAL/ASM/Others) -> Amiga (AMOS/BLITZ/ASM/C/Gamesmith) -> DOS (C/C++/Allegro) -> Windows (C++/C#/Monkey X/GL Basic/Unity/Others)
GarBenjamin
AGK Developer
2
Years of Service
User Offline
Joined: 30th Nov 2016
Location: USA
Posted: 5th Feb 2018 04:34 Edited at: 5th Feb 2018 15:32
Okay, so tonight I started building the game world using the free (Windows/MAC/Linux) Tiled 2D Map Editor.

Here is a gif... and I will briefly describe what is going on in each frame and then provide more detail on how I build the levels (and entire game worlds) in my game projects.


There are 6 frames in this animation. The first frame is the distant view showing the full map size (and the area that is detailed in looks very small).


How I Use 2D Map Editors In Game Development


Frame 1: View of Full Game World

I did not bother to build the outer wall all around the game world only two sides which is enough to show its overall area.

What I typically do is create a single map to represent the entire game world and inside that single map there will be multiple areas (or levels as we often call them).

Let me say that I think 2D Map Editors are a wonderful thing truly one of the best data structures ever devised for building games. They are super easy & fast to work with and near unlimited in just how much stuff we can use them for.

The key is to use layers. And we will take a look at each of the layers shown in frames 3, 4, 5 and 6 below.

And the other key is to just make some tile images that represent each unique object in your game world.

I use a combination of color coding and numbers and sometimes also use a one letter prefix. It doesn't really matter as long as they make sense to you.

Note: These tile images are only used when designing your game world in a 2D Map Editor. They are not actually used in the execution of the game. These tiles represent the various things that are needed in your game world including meta data that will never actually appear in the game as an object.



Frame 2: Zoomed in View of One Area in the Game World

Here we can see an area that has been filled out with floor, walls and ceiling. You cannot actually see the floors (or the marker for where the player starts and the direction they should be facing) because they are on a lower layer.



Frame 3: The Floor Layer

Here we see the floor of our area. For these markers I created images with the text F1, F2, F3 and F4 meaning there are 4 distinct floor tiles available.

I only used 3 of these when building the level because, as you may recall from previous posts above, I only made 3 floor textures. F1 represents txtFloor0.png, F2 = txtFloor1.png and F3 = txtFloor2.png.



Frame 4: The Walls / Interactive Layer

This layer holds the walls. We can actually structure our tile maps anyway we like and often I have a separate layer that holds enemies & collectibles, etc.

Here we are keeping things simple so this single layer will be used for walls, the player start marker, doors, enemies, collectibles and so on.

For walls I created images w1, w2, w3 and w4. These work the same as the floor markers only the represent they wall textures. w1 represents txtWall0png, w2 represents txtWall1png, w3 represents txtWall2png,

For the player start position marker I created 4 images with the text PS and drew an arrow on top pointing in the direction they should be facing. Here we can see the location the player is to be positioned at and we can see they are to be facing up (which in our 3D conversion just means they are facing at angle=0.



Frame 5: The Ceiling Layer

This layer holds the ceiling.

For ceilings I created images c1, c2, c3 and c4. These work the same as the floor and wall markers only they represent the floor textures. c1 represents txtCeiling0.png, c2 represents txtCeiling1.png and c3 represents txtCeiling2.png.



Frame 6: The Area Layer

This layer defines each area in the full game world.

For these I created images with the text 01, 02, 03 and 04 meaning at this point we could define 4 different areas in our game world.

We can see the one area that has been detailed in the map is Area 1 (the tile marker used to defined its boundaries has the text 01).



So... how does it all work?

Simple really... we already have a WorldMap 3 dimensional array. 1 dimension is for layers and the other 2 are for the x and z space.

Currently, our map is defined inside the program in a string variable. This string is parsed and the data is loaded into the array. 3D cubes are created based on this data and positioned in 3D space creating our 3D level.

So all we need to do is load the data from this 2D map into our program and process it in the same way filling our WorldMap.

Floor data will go into the [0][x][z]
Walls/Objects data will be loaded into [1][x][z]
Ceiling data will be stored in [2][x][z]
Area data will be loaded into [3][x][z] ... yes, we will need to increase our WorldMap array to hold this new layer.

Area data will be processed as follows:

We will create a type TArea and this will hold the x and z upper left corners and either the width and height or the x & z of the bottom right corner.
We will create an array of these types.
Layer 3 (Areas) in our WorldMap array will be scanned and we will populate this array of TAreas accordingly.

I hope this helps you to see how and why I use 2D Map Editors so much in my game dev. We can use them for basically everything we need.

For example, in other projects I have added layers to indicate the new area the player will enter when passing through an exit in a different area.
The limit is basically your imagination.

You could even have one or more layers that define waypoints / paths for enemies to move on and so forth.

Hopefully this helps someone.

The next release of the code here will implement the process described above to load the worldmap data from a text file, scan the walls layer to find the position the player starts and their rotation and so forth.
