Can't get setwindowsize to work with getdevicewidth and getdeviceheight

Author

Message

Golelorn

8

Years of Service

User Offline

Joined: 20th Nov 2016

Location:

Posted: 12th Apr 2018 22:20 Edited at: 12th Apr 2018 22:21

Link

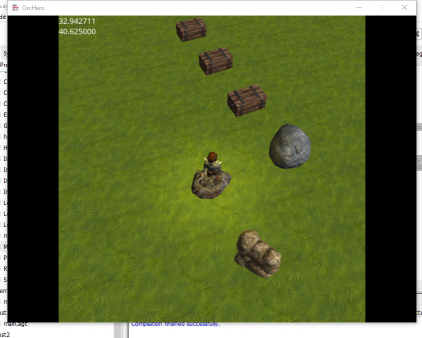

The setwindowsize is not accepting the parameters for getdevicewidth and height. It keeps reverting back to the last actual numbers I put in. I would think I should not be getting any black borders on this, but I am.

What do I need to do to ensure my window size aligns with my Displayaspect on Windows? I want to set this up correctly on mobile, but its very hard to do when flying "blind".

+ Code Snippet

// set display properties
SetWindowSize( GetDeviceWidth(), GetDeviceHeight(), 0 )
//SetVirtualResolution(1024, 768) // doesn't have to match the window
SetDisplayAspect( GetDeviceWidth()/GetDeviceHeight() )
SetOrientationAllowed ( 0, 0, 1, 1 ) //landscape
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery
//SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

Attachments

Login to view attachments

Back to top

Profile PM

Golelorn

8

Years of Service

User Offline

Joined: 20th Nov 2016

Location:

Posted: 13th Apr 2018 00:03 Edited at: 13th Apr 2018 00:12

Link

I seem to be getting different results every time I change something and run on mobile with broadcast. And now I am getting different results even when I change no code... Is broadcast unreliable? Is landscape unreliable?

Back to top

Profile PM

Golelorn

8

Years of Service

User Offline

Joined: 20th Nov 2016

Location:

Posted: 13th Apr 2018 00:11

Link

And again, I keep testing in broadcast. It works 50% of the time on iPhone and Android. I literally change nothing except hit the broadcast button to restart it. How am I not getting a consistent result?

What is going on?

Back to top

Profile PM

Golelorn

8

Years of Service

User Offline

Joined: 20th Nov 2016

Location:

Posted: 13th Apr 2018 00:27 Edited at: 17th Apr 2018 03:31

Link

So... more testing.. if I do not set any windowsize, virtualsize or aspectratio it defaults to aspectratio... Im not sure how setaspectratio breaks it... but it does.

The bad thing is on the iPhone if I start the app with the phone in the typical portrait mode orientation it does not default to landscape despite my code SetOrientationAllowed ( 0, 0, 1, 1 ). Andriod works. Is that a broadcast bug, or will this also occur if I send my app to the iStore?

But the setwindowsize will still not accept getdevicewidth and getdeviceheight on Windows.

This also will not work.
w# = GetDeviceWidth()
h# = GetDeviceHeight()
SetWindowSize( w#, h#, 0 )
SetVirtualResolution(GetDeviceWidth(), GetDeviceHeight())

This does not work:
SetWindowSize( GetDeviceWidth(), GetDeviceHeight(), 0 )
SetVirtualResolution(GetDeviceWidth(), GetDeviceHeight())

This does work:
SetWindowSize( 1366, 768, 0 ) // but no way to know what monitor the user is using why????????????????
SetVirtualResolution(GetDeviceWidth(), GetDeviceHeight())
The virtual resolution is correct. The window size will not change!!!!!!!!!!!!!!!!!!!!!!

Why in the world can I not set my window screen based off my monitor? It literally has no effect unless I use actual integer numbers and not variables.

Back to top

Profile PM

smallg

Valued Member

18

Years of Service

User Offline

Joined: 8th Dec 2005

Location: steam

Posted: 13th Apr 2018 09:34

Link

+ Code Snippet

SetOrientationAllowed(0,0,1,1)
Repeat
Until GetDeviceWidth() > GetDeviceHeight()
Dwidth = GetDeviceWidth()
Dheight = GetDeviceHeight()
SetWindowSize(Dwidth,Dheight,0)
SetVirtualResolution(Dwidth,Dheight)

life's one big game
spec= 4ghz, 16gb ram, AMD R9 2700 gpu

Back to top

Profile PM Email

Ortu

DBPro Master

17

Years of Service

User Offline

Joined: 21st Nov 2007

Location: Austin, TX

Posted: 13th Apr 2018 19:18

Link

Quote: "Repeat
Until GetDeviceWidth() > GetDeviceHeight"

Neat

http://games.joshkirklin.com/sulium

A single player RPG featuring a branching, player driven storyline of meaningful choices and multiple endings alongside challenging active combat and intelligent AI.

Back to top

Profile PM Email Website

Dybing

13

Years of Service

User Offline

Joined: 12th Sep 2011

Location: Bergen, Norway

Posted: 13th Apr 2018 21:00 Edited at: 13th Apr 2018 21:03

Link

Here's how I do it:

type device_t
	width		as integer
	height		as integer
	aspect		as float
	os			as string
	ios			as integer
endType

global device as device_t

deviceX			as integer
deviceY			as integer
fDeviceX		as float
fDeviceY		as float

device.os = GetDeviceBaseName()

if device.os = "linux" or device.os = "windows" or device.os = "pi" or device.os = "mac"
	SetAntialiasMode(1)
	aspectMode = 2
	select aspectMode
	case 0
		device.width = 1024					// iPad 50% 4/3
		device.height = 768					// iPad 50% 4/3
	endCase
	case 1
		device.width = 1136					// iPhone 16/9
		device.height = 640					// iPhone 16/9
	endCase
	case 2
		device.width = 1280					// tablet 16/9
		device.height = 720					// tablet 16/9
	endCase
	endSelect
else
	device.width = getDeviceWidth()
	device.height = getDeviceHeight()
endif

// convert to float and get aspect
fDeviceX = device.width
fDeviceY = device.height
device.aspect = fDeviceX / fDeviceY

SetWindowSize(device.width, device.height, 0)
SetWindowAllowResize(1)
SetDisplayAspect(device.aspect)
SetScissor(0,0,0,0)
SetOrientationAllowed(0, 0, 1, 1)
SetSyncRate(30, 0)

+ Code Snippet

type device_t
	width		as integer
	height		as integer
	aspect		as float
	os			as string
	ios			as integer
endType

global device as device_t

deviceX			as integer
deviceY			as integer
fDeviceX		as float
fDeviceY		as float

device.os = GetDeviceBaseName()

if device.os = "linux" or device.os = "windows" or device.os = "pi" or device.os = "mac"
	SetAntialiasMode(1)
	aspectMode = 2
	select aspectMode
	case 0
		device.width = 1024					// iPad 50% 4/3
		device.height = 768					// iPad 50% 4/3
	endCase
	case 1
		device.width = 1136					// iPhone 16/9
		device.height = 640					// iPhone 16/9
	endCase
	case 2
		device.width = 1280					// tablet 16/9
		device.height = 720					// tablet 16/9
	endCase
	endSelect
else
	device.width = getDeviceWidth()
	device.height = getDeviceHeight()
endif

// convert to float and get aspect
fDeviceX = device.width
fDeviceY = device.height
device.aspect = fDeviceX / fDeviceY

SetWindowSize(device.width, device.height, 0)
SetWindowAllowResize(1)
SetDisplayAspect(device.aspect)
SetScissor(0,0,0,0)
SetOrientationAllowed(0, 0, 1, 1)
SetSyncRate(30, 0)

For testing on say WIndows for any device resolution and aspect, I just change the 'aspectMode' variable to one of the presets in the following SELECT/CASE. Where I can add any resolutions I wish if needed. Makes it easy to test all most common resolutions without actually owning all those devices.

Back to top

Profile PM

Golelorn

8

Years of Service

User Offline

Joined: 20th Nov 2016

Location:

Posted: 15th Apr 2018 03:22 Edited at: 15th Apr 2018 03:46

Link

Wow... Amazing. Thank you so much, smallg and Dybing. I redid all my sprites today to work with aspect ratio. You guys are bad ass.

smallg, your code works great for android, but for iphone I have to flip the phone around like 6 times(otherwise it stays in the endless loop). Not sure what is up with the iPhones and making it so difficult to force landscape mode. And I have no idea how this is AGK's fault but once I exit AppGameKit I have to lock the phone to get it back to portrait mode. No other app has caused that bug.

Back to top

Profile PM
