Depth#

#constant width=1024
#constant height=768

SetWindowSize(width,height,0)
Setvirtualresolution(width,height)
CreateObjectBox(1,16,16,16)
SetObjectPosition(1,50,1,50)
CreateObjectBox(2,10*16,1*16,10*16)
SetObjectColor(2,0,255,0,255)
SetObjectPosition(2,50,-15,50)
//SetCameraPosition(1,50,50,-10)
global angx#=30
global angy#=0
global camerax#=50
global cameray#=50
global cameraz#=-10
global startx#=512
global starty#=384
#constant Depth#=48
do
			moveblockwithmouse()
			//movecamerawithmouse()
			sync()
loop

function movecamerawithmouse()

    fDiffX# = (GetPointerX() - startx#)/6.0
    fDiffY# = (GetPointerY() - starty#)/6.0

    newX# = angx# + fDiffY#
    if ( newX# > 89 ) then newX# = 89
    if ( newX# < -89 ) then newX# = -89
    SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
    SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction


function moveblockwithmouse()

VectorX# = Get3DVectorXFromScreen( GetPointerX(), GetPointerY() )
VectorY# = Get3DVectorYFromScreen( GetPointerX(), GetPointerY() )
VectorZ# = Get3DVectorZFromScreen( GetPointerX(), GetPointerY()*2 )

// get a vector that points in the direction the camera is looking
VectorX2# = Get3DVectorXFromScreen( GetVirtualWidth()/2.0, GetVirtualHeight()/2.0 )
VectorY2# = Get3DVectorYFromScreen( GetVirtualWidth()/2.0, GetVirtualHeight()/2.0 )
VectorZ2# = Get3DVectorZFromScreen( GetVirtualWidth()/2.0, GetVirtualHeight()/2.0 )

// normalise Vector in the direction of Vector2
Dot# = VectorX#*VectorX2# + VectorY#*VectorY2# + VectorZ#*VectorZ2#
if ( Dot# > 0 )
    VectorX# = VectorX# / Dot#
    VectorY# = VectorY# / Dot#
    VectorZ# = VectorZ# / Dot#
endif

WorldX# = VectorX# * Depth# + GetCameraX(1)
WorldY# = VectorY# * Depth# + GetCameraY(1)
WorldZ# = VectorZ# * Depth# + GetCameraZ(1)
SetObjectPosition(1,WorldX#,GetObjectY( 1) ,WorldZ#)
endfunction

type _Point3D

	x as float
	y as float
	z as float

endtype

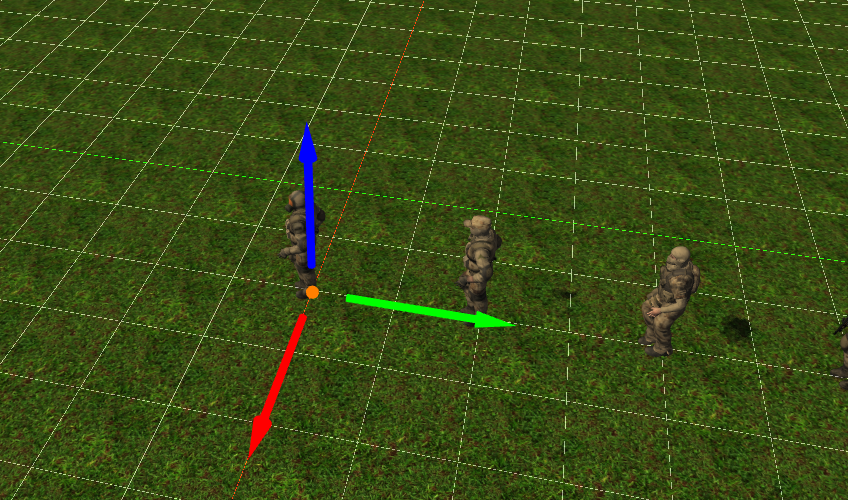

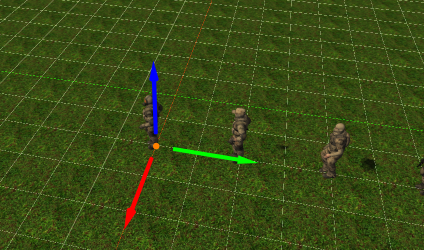

type _CtrlGizmo3D

	o as integer
	l as integer

endtype

// set display properties
device_Init(1024, 768, 0)
pointer_Init()

// set window properties
SetWindowTitle("Gizmo 3D")
SetOrientationAllowed(1, 1, 1, 1)

global cam as _Camera
global cam_org as _Point3D
global gizmo as _CtrlGizmo3D
global point as _Point3D
global dist as float

camera_Create(cam, 0.0, 10.0, 0.0, 0.0, 20.0, 10.0, 0.0)
camera_SetWalkMode(cam, 1)
camera_SetActive(cam, 1)

ctrlgizom3D_Create(gizmo, 2.0, 2.0, 2.0)

do
	pointer_Update()
	camera_Update(cam)
	if GetRawKeyState(_W) then camera_MoveLocalZ(cam, 0.25)
	if GetRawKeyState(_S) then camera_MoveLocalZ(cam, -0.25)
	if GetRawKeyState(_D) then camera_MoveLocalX(cam, 0.25)
	if GetRawKeyState(_A) then camera_MoveLocalX(cam, -0.25)
	ctrlgizmo3D_Draw(gizmo)
	cam_org.x = GetCameraX(1)
	cam_org.y = GetCameraY(1)
	cam_org.z = GetCameraZ(1)
	dist = ctrlgizom3D_GetDistFromPoint(gizmo, cam_org)
	point = Get3DPointFromScreen(thePointer.x, thePointer.y, dist)
	Print("Dist = " + str(dist))
	Print("x = " + str(point.x))
	Print("y = " + str(point.y))
	Print("z = " + str(point.z))
	sync()
loop

function ctrlgizom3D_Create(g ref as _CtrlGizmo3D, lx as float, ly as float, lz as float)

	g.o = CreateVector3(0.0, 0.0, 0.0)
	g.l = CreateVector3(Abs(lx), Abs(ly), Abs(lz))

endfunction

function ctrlgizom3D_Delete(g ref as _CtrlGizmo3D)

	DeleteVector3(g.o)
	DeleteVector3(g.l)

endfunction

function ctrlgizmo3D_Draw(g ref as _CtrlGizmo3D)

	x as float
	y as float
	z as float
	lx as float
	ly as float
	lz as float
	x1 as float
	y1 as float
	x2 as float
	y2 as float

	x = GetVector3X(g.o)
	y = GetVector3Y(g.o)
	z = GetVector3Z(g.o)
	lx = GetVector3X(g.l)
	ly = GetVector3Y(g.l)
	lz = GetVector3Z(g.l)

	x1 = GetScreenXFrom3D(x, y, z)
	y1 = GetScreenYFrom3D(x, y, z)
	x2 = GetScreenXFrom3D(x + lx, y, z)
	y2 = GetScreenYFrom3D(x + lx, y, z)
	DrawLine(x1, y1, x2, y2, MakeColor(255, 0, 0), MakeColor(255, 0, 0))

	x2 = GetScreenXFrom3D(x, y + ly, z)
	y2 = GetScreenYFrom3D(x, y + ly, z)
	DrawLine(x1, y1, x2, y2, MakeColor(0, 255, 0), MakeColor(0, 255, 0))

	x2 = GetScreenXFrom3D(x, y, z + lz)
	y2 = GetScreenYFrom3D(x, y, z + lz)
	DrawLine(x1, y1, x2, y2, MakeColor(0, 0, 255), MakeColor(0, 0, 255))

endfunction

function ctrlgizom3D_GetDistFromPoint(g ref as _CtrlGizmo3D, point ref as _Point3D)

	d as float
	p as integer

	p = CreateVector3(point.x, point.y, point.z)
	d = GetVector3Distance(g.o, p)

endfunction d

function Get3DPointFromScreen(x as float, y as float, z as float)

	point3D as _Point3D

	VectorX# = Get3DVectorXFromScreen(x, y)
	VectorY# = Get3DVectorYFromScreen(x, y)
	VectorZ# = Get3DVectorZFromScreen(x, y)

	// get a vector that points in the direction the camera is looking
	VectorX2# = Get3DVectorXFromScreen(GetVirtualWidth()/2.0, GetVirtualHeight()/2.0)
	VectorY2# = Get3DVectorYFromScreen(GetVirtualWidth()/2.0, GetVirtualHeight()/2.0)
	VectorZ2# = Get3DVectorZFromScreen(GetVirtualWidth()/2.0, GetVirtualHeight()/2.0)

	// normalise Vector in the direction of Vector2
	Dot# = VectorX#*VectorX2# + VectorY#*VectorY2# + VectorZ#*VectorZ2#
	if ( Dot# > 0 )
		VectorX# = VectorX# / Dot#
		VectorY# = VectorY# / Dot#
		VectorZ# = VectorZ# / Dot#
	endif

	point3D.x = VectorX# * z + GetCameraX(1)
	point3D.y = VectorY# * z + GetCameraY(1)
	point3D.z = VectorZ# * z + GetCameraZ(1)

endfunction point3D
