Hello AppGameKit lovers,

I played "State of Mind" from Daedalic and saw, that it looks great, it feels immersive. Like "Detroid: Become Human". But "State of Mind" uses Low-Poly-models and the ambience has to come from movement and light and sound. And I liked it very much.

I thought about it and had also the following games in mind.
AER Memories of Old

Mulaka

Morphite

Astroneer

I think, that light is / could be more important than texture quality or high polycount models.

So maybe we could create as a community some low-poly royalty free models for our demos and tutorials.
Maybe we could also use the FPS Creator Classic models https://github.com/TheGameCreators/FPS-Creator-Classic

And we could provide some code snippes for:
- easy light setups
- easy 3rd person movement with gamepad controls
- maybe a new, but half automated animation system, with a few keyframes and more dynamic

Why?

To make programming in AppGameKit more accessible.
Making demos and little programs smaller, so that they could better be shared.
Also more children friendly, not only the "dude with the gun", the "terrorist", but with a more neutral character.
Also having some 3D objects, we can share or use, when providing code snippets, so that we don't have to search long for them or half of the code doesn't compile because of missing assets and so on.
It also could be a benefit in the AppGameKit versions for Raspberry Pi, Android, iOS, because we could use "placeholder" assets, to try out our game ideas on the go and could later replace it with maybe more unique characters or 3d objects.
It would be better for sharing prototype ideas.

We also could provide a website (HTML5 export) with our "little" games, using these low-poly models. And save loading time, because textures are not such important. But light

So my questions to you:

- what do you think about that idea?
- do you know, how to setup the lights, to get these results
- how can we use more 3D objects with low-polycount in one drawcall (like we try to do in the Minecraft-clone)

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 21st Aug 2018 14:33 Edited at: 21st Aug 2018 15:23

Link

I think it's an awesome idea.

I also like the look of ultra low poly greatly and any 3D game projects always go ultra low poly.

You are right... lighting is far more important than fidelity in making a scene look fantastic. Heck there are plenty of examples showing how games using just primitives cubes, spheres etc can look fantastic with well done lighting and shadows.

It is a cool aesthetic in itself and has all of the other benefits you mentioned such as being much better for performance meaning you can pack more into your games.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 21st Aug 2018 17:28 Edited at: 21st Aug 2018 17:51

Link

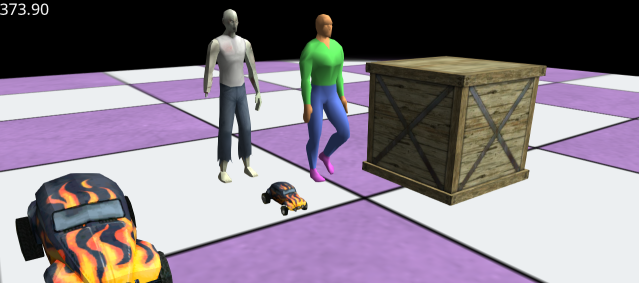

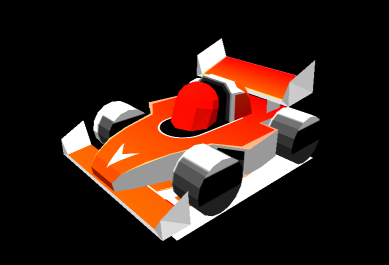

The Beachbuggy from DarkBasic professional e.g. without textures. (Screenshot from: Open 3D Model Viewer)
Open it in Fragmotion and export it to *.x file with compression, it's under 30kByte with the animation of the wheels.

I also put one of the Zombies from FPSC Classic here. And change the texture. To have a "normal" human.

I guess, some of the animations and also the meshes have to be redone. They are to big or don't work right in AppGameKit anymore.
For Low-Poly they have sometimes to many polygones, but for highpolygone meshes, they have not enough

We could also do some texture work, to have a more friendly look to the assets. I don't know, if "Overwatch", "Super Mario Odyssee", "Disney", "Fortnite" ... and so on, are the best for that. But it could prevent some of the lighting problems in dark areas and it would look more friendly, but also more cartoony without the need of shaders (or without the need of many shaders).

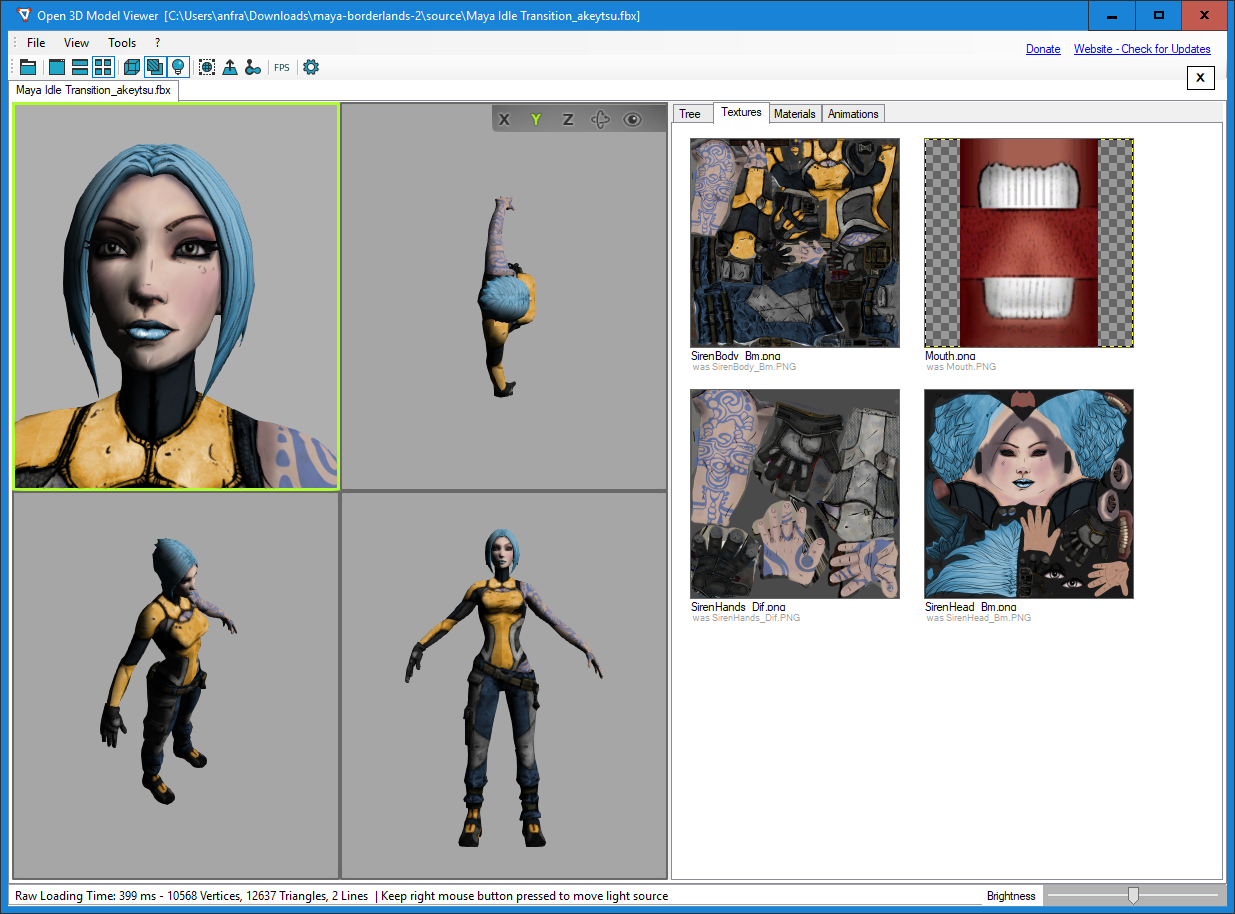

Also "Boderlands" or "Telltale Games" texture and cellshading-look could be an option.
The benefits would also be less memory for the texture and the possibility to compress it much more with PNG, but without JPEG artefacts.

Attachments

Login to view attachments

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 21st Aug 2018 18:00

Link

Perhaps maybe something similar to this

// Project: codingtrain-terrain
// Created: 2018-08-17

// show all errors
SetErrorMode(2)

// set window properties
SetWindowTitle( "codingtrain-terrain" )
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 0, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

global perlinheight=600
 type _perlinmap
    r,g, b, a, x, y
    level
    texture
    noise
endtype
#constant perlinw = 512 //power of 2
#constant perlinh = 512 //power of 2
#constant perlinz = 0
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz
global ang#, angx#, angy#, fDiffY#, fDiffX#,newX#,startx#, starty#, camerax#,cameray#,cameraz#,memblock, noiseterrain#,offsetx#,offsety#,meshobject

global landsizex#=300
global landsizez#=300

Type Vertex

	x as float
	y as float
	z as float
	nx as float
	ny as float
	nz as float
	u as float
	v as float
	color as integer
endtype

Type Triangle
	v1 as integer
	v2 as integer
	v3 as integer
endtype

Type Mesh
	VertexList as Vertex[]
	TriangleList as Triangle[]
endtype

global MeshID as Mesh

blocksimage = LoadImage("test.png")
NoiseInit()

setupskyandfog()

offsetx#=0:offsety#=0

//next

meshobject = buildlandscape(offsetx#,offsety#)
//SetObjectImage(meshobject,blocksimage,0)
//SetImageMagFilter(blocksimage,0)
//SetImageMinFilter(blocksimage,0)
//SetObjectUVScale(meshobject,0,2,2)

SetCameraRange(1,.01,10000)

//SetObjectRotation(meshobject,0,180,0)
camerax#=landsizex#/2
cameray#=60
cameraz#=landsizez#/2
playerspeed#=.005
SetCameraPosition(1,camerax#,cameray#,cameraz#)

// these work the landscape rolling - everytime move the player - it moves the camera
// and increases/decreases these values too.
// if they hit past the rebuildstep variable the landscape gets rebuilt and repositioned back to the origin
// of the players starting point - but the landscapes vertcies and colours get changed depending on
/// the map location
rebuildx#=0
rebuildy#=0
rebuildstep=8
SetRawMousePosition(1024/2,768/2)
do


	if GetRawKeyState(32)
		DeleteObject(meshobject)
		meshobject = buildlandscape(offsetx#, offsety#)

inc offsetx#,1
		inc offsety#,1
	endif


	//cameray#=getlandposition(landsizex#/2,landsizez#/2)+1
//	cameray#=1


//	RotateObjectLocalY(meshobject,.1)
	//RotateObjectLocalX(meshobject,.1)
	//RotateObjectLocalZ(meshobject,.1)
	movecamerawithmouse()
    if GetRawKeyState(38)

dec offsety#,playerspeed#
		dec rebuildy#,playerspeed#
		//dec cameraz#,playerspeed#
		// set vertices for the landscape
//		setverticesandcolor()
	endif

if GetRawKeyState(40)

inc offsety#,playerspeed#
		inc rebuildy#,playerspeed#
	//	inc cameraz#,playerspeed#
		// set vertices for the landscape
//		setverticesandcolor()
	endif

if GetRawKeyState(37) then rotateCameraLocalY( 1, -playerspeed#*5 )
	if GetRawKeyState(39) then 	rotateCameraLocalY( 1, playerspeed#*5 )

    if GetRawKeyState(38) then	MoveCameraLocalZ(1, playerspeed#)
	if GetRawKeyState(40) then	MoveCameraLocalZ(1,-playerspeed#)

if GetRawKeyState(39)

dec offsetx#,playerspeed#
		dec rebuildx#,playerspeed#
//		dec camerax#,playerspeed#

// set vertices for the landscape
//		setverticesandcolor()
	endif

		if GetRawKeyState(87)

			inc cameray#,playerspeed#
	endif
	print(GetRawLastKey())
		if GetRawKeyState(83)

			dec cameray#,playerspeed#
	endif

    if GetRawKeyState(37)

inc offsetx#,playerspeed#
		inc rebuildx#,playerspeed#
		//inc camerax#,playerspeed#

// set vertices for the landscape
//		setverticesandcolor()
	endif

if (rebuildx#>rebuildstep)
		rebuildx#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif

if (rebuildx#<-rebuildstep)
		rebuildx#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif

if (rebuildy#>rebuildstep)
		rebuildy#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif
	if (rebuildy#<-rebuildstep)
		rebuildy#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif

print (GetMemblockSize(memblock))
	print (GetMemblockInt(memblock,0))
    Print( ScreenFPS() )
    Sync()
loop

function setverticesandcolor()
	col=255
	scale#=1

col=255
	scale#=1
	noiseterrain#=100 // the higher this is the lower the hills and vica versa - 10-12 is a nice smooth effect
	for i=1 to 600-1 // get num of vertices
		SetMeshMemblockVertexPosition(memblock,i,GetMeshMemblockVertexX(memblock,i)+.01,GetMeshMemblockVertexY(memblock,i)+.01,GetMeshMemblockVertexZ(memblock,i)+.001)
//		SetMeshMemblockVertexPosition(memblock,i,0,0,0)
		SetMeshMemblockVertexColor(memblock,i,GetMeshMemblockVertexRed(memblock,i),GetMeshMemblockVertexGreen(memblock,i),GetMeshMemblockVertexBlue(memblock,i),255)

next
	SetObjectMeshFromMemblock(meshobject,1,memblock)

endfunction
function getlandposition(x#,y#)

	ret = noise2d((x#+offsetx#)/noiseterrain#,			(y#+offsety#)/noiseterrain#)+1
endfunction ret

function buildlandscape(offsetx#, offsety#)
	DeleteObject(meshobject)

	meshID.TriangleList.length=-1
	meshID.VertexList.length=-1
	// build triangle strip
	randomheight=3
	col=255
	scale#=1

	uvx#=1/15
	uvy#=1/11
	print(uvx#)
	print(uvy#)

	noiseterrain#=30 // the higher this is the lower the hills and vica versa - 10-12 is a nice smooth effect
	for x#=1 to landsizex#
		for y#=1 to landsizez#

//noise = 255.0*noise2d(x/120.0,y/120.0)
			colvertice1 = checkcolorlevels(noise2d((x#+offsetx#)/noiseterrain#		,(y#+offsety#)/noiseterrain#)*col)
			colvertice2 = checkcolorlevels(noise2d(((x#+offsetx#)+1)/noiseterrain#	,((y#+offsety#)-1)/noiseterrain#)*col)
			colvertice3 = checkcolorlevels(noise2d(((x#+offsetx#)+1)/noiseterrain#	,(y#+offsety#)/noiseterrain#)*col)
			colvertice4 = checkcolorlevels(noise2d((x#+offsetx#)/noiseterrain#		,(y#+offsety#)/noiseterrain#)*col)
			colvertice5 = checkcolorlevels(noise2d((x#+offsetx#)/noiseterrain#		,((y#+offsety#)-1)/noiseterrain#)*col)
			colvertice6 = checkcolorlevels(Noise2D(((x#+offsetx#)+1)/noiseterrain#	,((y#+offsety#)-1)/noiseterrain#)*col)

		r#=0
			AddVertex(meshID,((x#)*scale#)	 		,noise2d((x#+offsetx#)/noiseterrain#+r#,			(y#+offsety#)/noiseterrain#) 		,y#	*scale#			,0,1,0					,   0		,0, colvertice1)
			AddVertex(meshID,((x#)+scale#)*scale#	,Noise2D(((x#+offsetx#)+scale#)/noiseterrain#+r#,	((y#+offsety#)-scale#)/noiseterrain#) 		,(y#-scale#)*scale#		,0,1,0		,   0.066667/2,0.090909/2, colvertice1)
			AddVertex(meshID,((x#)+scale#)*scale# ,Noise2D(((x#+offsetx#)+scale#)/noiseterrain#+r#,	((y#+offsety#)/noiseterrain#))		,y# *scale#				,0,1,0				,   0.066667/2,0, colvertice1)
			AddVertex(meshID,((x#)*scale#) 			,Noise2D((x#+offsetx#)/noiseterrain#+r#,			(y#+offsety#)/noiseterrain#)		,y# * scale#				,0,1,0			,   0,0, colvertice1)
			AddVertex(meshID,((x#)*scale#) 			,Noise2D((x#+offsetx#)/noiseterrain#+r#,			((y#+offsety#)-scale#)/noiseterrain#)		,(y#-scale#)*scale#		,0,1,0		,   0,0.090909/2, colvertice1)
			AddVertex(meshID,((x#)+scale#)*scale# ,Noise2D(((x#+offsetx#)+scale#)/noiseterrain#+r#,	((y#+offsety#)-scale#)/noiseterrain#) 		,(y#-scale#)*scale#		,0,1,0		,   0.066667/2,0.090909/2, colvertice1)

next
	next

meshobject = CreateObjectFromMeshWithColor(meshID)
//	meshobject = CreateObjectFromMeshWithUVTexturing(meshID)
	SetObjectPosition(meshobject,0,0,0)
	camerax#=landsizex#/2
	cameraz#=landsizez#/2

endfunction meshobject
function checkcolorlevels(formula)
		//formula = abs(formula)
	    if (formula<=0) then colvertice1=MakeColor(46,139,87)
		if (formula>-50) then colvertice1=MakeColor(100,100,0) // sand
		if (formula<-300) then colvertice1=MakeColor(0,0,70) // water

if (formula>0) then colvertice1=MakeColor(0,100,0) //
		if (formula>100) then colvertice1=MakeColor(0,200,0)
		if (formula>400) then colvertice1=MakeColor(0,255,0)

endfunction colvertice1

function movecamerawithmouse()

    fDiffX# = (GetPointerX() - startx#)/1.0
    fDiffY# = (GetPointerY() - starty#)/1.0

    newX# = angx# + fDiffY#
   // if ( newX# > 360 ) then newX# = 360
   // if ( newX# < -360 ) then newX# = -360

    // if we keep hold of the left mouse button then rotate the view otherwise the camera stays put
    // so can concentrate on adding/removing blocks at that positon


    SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )

endfunction

function setupskyandfog()
    // setup a skybox
   SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,2000)
    SetFogMode(0)
	SetCameraRange(1,0.1,10000)

endfunction

Function AddVertex(m ref as Mesh, x as float, y as float, z as float, nx as float, ny as float, nz as float, u as float, v as float, color as integer)
	vert as vertex
	vert.x = x
	vert.y = y
	vert.z = z
	vert.nx = nx
	vert.ny = ny
	vert.nz = nz
	vert.u = u
	vert.v = v
	vert.color = color
	m.VertexList.Insert(vert)

endfunction

Function AddTriangle(m ref as Mesh, v1 as integer, v2 as integer, v3 as integer)
	t as Triangle
	t.v1 = v1
	t.v2 = v2
	t.v3 = v3
	m.TriangleList.Insert(t)
endfunction

Function CreateObjectFromMeshWithColor(m ref as mesh)
	VertexCount = m.VertexList.Length + 1
	IndexCount = (m.TriangleList.Length + 1) * 2
	IndexOffset = 72 + VertexCount*36
	memblock = CreateMemblock(IndexOffset+IndexCount*4)
	SetMemblockInt(memblock,0,VertexCount)
	SetMemblockInt(memblock,4,IndexCount)
	SetMemblockInt(Memblock,8,4)
	SetMemblockInt(memblock,12,32) // no color - 36 if color
	SetmemblockInt(memblock,16,72)
	SetMemblockInt(memblock,20,IndexOffset)
	SetMemblockInt(memblock,24,0x0c000300)
	SetMemblockString(Memblock,28,"position")
	SetMemblockInt(memblock,40,0x08000300)
	SetMemblockString(memblock,44,"normal")
	SetMemblockInt(memblock,52,0x04000200)
	SetMemblockString(memblock,56,"uv")
	SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
	SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
		for i = 0 to m.VertexList.Length
		SetMemblockFloat(memblock,72+i*36,m.VertexList[i].x)
		SetMemblockFloat(memblock,76+i*36,m.VertexList[i].y)
		SetMemblockFloat(memblock,80+i*36,m.VertexList[i].z)
		SetMemblockFloat(memblock,84+i*36,m.VertexList[i].nx)
		SetMemblockFloat(memblock,88+i*36,m.VertexList[i].ny)
		SetMemblockFloat(memblock,92+i*36,m.VertexList[i].nz)
		SetMemblockFloat(memblock,96+i*36,m.VertexList[i].u)
		SetMemblockFloat(memblock,100+i*36,m.VertexList[i].v)
		SetMemblockInt(memblock,104+i*36,m.VertexList[i].color) //maybe one day or year in 2019 lol
	next

	for i = 0 to m.TriangleList.Length
		SetMemblockInt(memblock,IndexOffset+i*12,m.TriangleList[i].v1)
		SetMemblockInt(memblock,IndexOffset+i*12+4,m.TriangleList[i].v2)
		SetMemblockInt(memblock,IndexOffset+i*12+8,m.TriangleList[i].v3)
	next
	id = CreateObjectFromMeshMemblock(memblock)
//	DeleteMemblock(memblock)
endfunction id

Function CreateObjectFromMeshWithUVTexturing(m ref as mesh)
	VertexCount = m.VertexList.Length + 1
	IndexCount = (m.TriangleList.Length + 1) * 2
	IndexOffset = 60 + VertexCount*36
	memblock = CreateMemblock(IndexOffset+IndexCount*4)
	SetMemblockInt(memblock,0,VertexCount)
	SetMemblockInt(memblock,4,IndexCount)
	SetMemblockInt(Memblock,8,3)
	SetMemblockInt(memblock,12,32) // no color - 36 if color
	SetmemblockInt(memblock,16,60)
	SetMemblockInt(memblock,20,IndexOffset)
	SetMemblockInt(memblock,24,0x0c000300)
	SetMemblockString(Memblock,28,"position")
	SetMemblockInt(memblock,40,0x08000300)
	SetMemblockString(memblock,44,"normal")
	SetMemblockInt(memblock,52,0x04000200)
	SetMemblockString(memblock,56,"uv")
	//SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
	//SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
		for i = 0 to m.VertexList.Length
		SetMemblockFloat(memblock,60+i*32,m.VertexList[i].x)
		SetMemblockFloat(memblock,64+i*32,m.VertexList[i].y)
		SetMemblockFloat(memblock,68+i*32,m.VertexList[i].z)
		SetMemblockFloat(memblock,72+i*32,m.VertexList[i].nx)
		SetMemblockFloat(memblock,76+i*32,m.VertexList[i].ny)
		SetMemblockFloat(memblock,80+i*32,m.VertexList[i].nz)
		SetMemblockFloat(memblock,84+i*32,m.VertexList[i].u)
		SetMemblockFloat(memblock,88+i*32,m.VertexList[i].v)
		//SetMemblockInt(memblock,104+i*36,m.VertexList[i].color) //maybe one day or year in 2019 lol
	next

	for i = 0 to m.TriangleList.Length
		SetMemblockInt(memblock,IndexOffset+i*12,m.TriangleList[i].v1)
		SetMemblockInt(memblock,IndexOffset+i*12+4,m.TriangleList[i].v2)
		SetMemblockInt(memblock,IndexOffset+i*12+8,m.TriangleList[i].v3)
	next
	id = CreateObjectFromMeshMemblock(memblock)
//	DeleteMemblock(memblock)
endfunction id

// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  perlinheight * (n0 + n1 + n2)
/*
		AddVertex(meshID,x#	*scale#	 	,noise2d(x#,y#)*randomheight 		,y#	*scale#			,0,1,0,   0,0, MakeColor(0,noise2d(x#,y#)*col,0))
		AddVertex(meshID,(x#+scale#)*scale#	,noise2d(x#+scale#,y#-scale#)*randomheight 	,(y#-scale#)*scale#		,0,1,0,   0,0, MakeColor(0,noise2d(x#+1,y#-1)*col,0))
		AddVertex(meshID,(x#+scale#)*scale# 	,noise2d(x#+scale#,y#)*randomheight		,y# *scale#				,0,1,0,   0,0, MakeColor(0,noise2d(x#+1,y#)*col,0))


		AddVertex(meshID,x#*scale# 		,noise2d(x#,y#)*randomheight 		,y# * scale#				,0,1,0,   0,0, MakeColor(0,noise2d(x#,y#)*col,0))
		AddVertex(meshID,x#*scale# 		,noise2d(x#,y#-1)*randomheight		,(y#-scale#)*scale#		,0,1,0,   0,0, MakeColor(0,noise2d(x#,y#-1)*col,0))
		AddVertex(meshID,(x#+scale#)*scale# 	,noise2d(x#+scale#,y#-scale#)*randomheight 	,(y#-scale#)*scale#		,0,1,0,   0,0, MakeColor(0,Noise2D(x#+1,y#-1)*col,0))
*/

+ Code Snippet



// Project: codingtrain-terrain
// Created: 2018-08-17

// show all errors
SetErrorMode(2)

// set window properties
SetWindowTitle( "codingtrain-terrain" )
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 0, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

global perlinheight=600
 type _perlinmap
    r,g, b, a, x, y
    level
    texture
    noise
endtype
#constant perlinw = 512 //power of 2
#constant perlinh = 512 //power of 2
#constant perlinz = 0
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz
global ang#, angx#, angy#, fDiffY#, fDiffX#,newX#,startx#, starty#, camerax#,cameray#,cameraz#,memblock, noiseterrain#,offsetx#,offsety#,meshobject


global landsizex#=300
global landsizez#=300

Type Vertex

	x as float
	y as float
	z as float
	nx as float
	ny as float
	nz as float
	u as float
	v as float
	color as integer
endtype

Type Triangle
	v1 as integer
	v2 as integer
	v3 as integer
endtype

Type Mesh
	VertexList as Vertex[]
	TriangleList as Triangle[]
endtype

global MeshID as Mesh


blocksimage = LoadImage("test.png")
NoiseInit()

setupskyandfog()



offsetx#=0:offsety#=0

//next

meshobject = buildlandscape(offsetx#,offsety#)
//SetObjectImage(meshobject,blocksimage,0)
//SetImageMagFilter(blocksimage,0)
//SetImageMinFilter(blocksimage,0)
//SetObjectUVScale(meshobject,0,2,2)


SetCameraRange(1,.01,10000)

//SetObjectRotation(meshobject,0,180,0)
camerax#=landsizex#/2
cameray#=60
cameraz#=landsizez#/2
playerspeed#=.005
SetCameraPosition(1,camerax#,cameray#,cameraz#)

// these work the landscape rolling - everytime move the player - it moves the camera
// and increases/decreases these values too.
// if they hit past the rebuildstep variable the landscape gets rebuilt and repositioned back to the origin
// of the players starting point - but the landscapes vertcies and colours get changed depending on
/// the map location
rebuildx#=0
rebuildy#=0
rebuildstep=8
SetRawMousePosition(1024/2,768/2)
do


	if GetRawKeyState(32)
		DeleteObject(meshobject)
		meshobject = buildlandscape(offsetx#, offsety#)

		inc offsetx#,1
		inc offsety#,1
	endif


	//cameray#=getlandposition(landsizex#/2,landsizez#/2)+1
//	cameray#=1


//	RotateObjectLocalY(meshobject,.1)
	//RotateObjectLocalX(meshobject,.1)
	//RotateObjectLocalZ(meshobject,.1)
	movecamerawithmouse()
    if GetRawKeyState(38)

		dec offsety#,playerspeed#
		dec rebuildy#,playerspeed#
		//dec cameraz#,playerspeed#
		// set vertices for the landscape
//		setverticesandcolor()
	endif

    if GetRawKeyState(40)

		inc offsety#,playerspeed#
		inc rebuildy#,playerspeed#
	//	inc cameraz#,playerspeed#
		// set vertices for the landscape
//		setverticesandcolor()
	endif

    if GetRawKeyState(37) then rotateCameraLocalY( 1, -playerspeed#*5 )
	if GetRawKeyState(39) then 	rotateCameraLocalY( 1, playerspeed#*5 )

    if GetRawKeyState(38) then	MoveCameraLocalZ(1, playerspeed#)
	if GetRawKeyState(40) then	MoveCameraLocalZ(1,-playerspeed#)


    if GetRawKeyState(39)

		dec offsetx#,playerspeed#
		dec rebuildx#,playerspeed#
//		dec camerax#,playerspeed#

		// set vertices for the landscape
//		setverticesandcolor()
	endif

		if GetRawKeyState(87)

			inc cameray#,playerspeed#
	endif
	print(GetRawLastKey())
		if GetRawKeyState(83)

			dec cameray#,playerspeed#
	endif

    if GetRawKeyState(37)

		inc offsetx#,playerspeed#
		inc rebuildx#,playerspeed#
		//inc camerax#,playerspeed#

		// set vertices for the landscape
//		setverticesandcolor()
	endif


	if (rebuildx#>rebuildstep)
		rebuildx#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif

	if (rebuildx#<-rebuildstep)
		rebuildx#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif

	if (rebuildy#>rebuildstep)
		rebuildy#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif
	if (rebuildy#<-rebuildstep)
		rebuildy#=0
		meshobject = buildlandscape(offsetx#, offsety#)
    endif



	print (GetMemblockSize(memblock))
	print (GetMemblockInt(memblock,0))
    Print( ScreenFPS() )
    Sync()
loop


function setverticesandcolor()
	col=255
	scale#=1

	col=255
	scale#=1
	noiseterrain#=100 // the higher this is the lower the hills and vica versa - 10-12 is a nice smooth effect
	for i=1 to 600-1 // get num of vertices
		SetMeshMemblockVertexPosition(memblock,i,GetMeshMemblockVertexX(memblock,i)+.01,GetMeshMemblockVertexY(memblock,i)+.01,GetMeshMemblockVertexZ(memblock,i)+.001)
//		SetMeshMemblockVertexPosition(memblock,i,0,0,0)
		SetMeshMemblockVertexColor(memblock,i,GetMeshMemblockVertexRed(memblock,i),GetMeshMemblockVertexGreen(memblock,i),GetMeshMemblockVertexBlue(memblock,i),255)

	next
	SetObjectMeshFromMemblock(meshobject,1,memblock)


endfunction
function getlandposition(x#,y#)

	ret = noise2d((x#+offsetx#)/noiseterrain#,			(y#+offsety#)/noiseterrain#)+1
endfunction ret

function buildlandscape(offsetx#, offsety#)
	DeleteObject(meshobject)

	meshID.TriangleList.length=-1
	meshID.VertexList.length=-1
	// build triangle strip
	randomheight=3
	col=255
	scale#=1

	uvx#=1/15
	uvy#=1/11
	print(uvx#)
	print(uvy#)

	noiseterrain#=30 // the higher this is the lower the hills and vica versa - 10-12 is a nice smooth effect
	for x#=1 to landsizex#
		for y#=1 to landsizez#

			//noise = 255.0*noise2d(x/120.0,y/120.0)
			colvertice1 = checkcolorlevels(noise2d((x#+offsetx#)/noiseterrain#		,(y#+offsety#)/noiseterrain#)*col)
			colvertice2 = checkcolorlevels(noise2d(((x#+offsetx#)+1)/noiseterrain#	,((y#+offsety#)-1)/noiseterrain#)*col)
			colvertice3 = checkcolorlevels(noise2d(((x#+offsetx#)+1)/noiseterrain#	,(y#+offsety#)/noiseterrain#)*col)
			colvertice4 = checkcolorlevels(noise2d((x#+offsetx#)/noiseterrain#		,(y#+offsety#)/noiseterrain#)*col)
			colvertice5 = checkcolorlevels(noise2d((x#+offsetx#)/noiseterrain#		,((y#+offsety#)-1)/noiseterrain#)*col)
			colvertice6 = checkcolorlevels(Noise2D(((x#+offsetx#)+1)/noiseterrain#	,((y#+offsety#)-1)/noiseterrain#)*col)

		r#=0
			AddVertex(meshID,((x#)*scale#)	 		,noise2d((x#+offsetx#)/noiseterrain#+r#,			(y#+offsety#)/noiseterrain#) 		,y#	*scale#			,0,1,0					,   0		,0, colvertice1)
			AddVertex(meshID,((x#)+scale#)*scale#	,Noise2D(((x#+offsetx#)+scale#)/noiseterrain#+r#,	((y#+offsety#)-scale#)/noiseterrain#) 		,(y#-scale#)*scale#		,0,1,0		,   0.066667/2,0.090909/2, colvertice1)
			AddVertex(meshID,((x#)+scale#)*scale# ,Noise2D(((x#+offsetx#)+scale#)/noiseterrain#+r#,	((y#+offsety#)/noiseterrain#))		,y# *scale#				,0,1,0				,   0.066667/2,0, colvertice1)
			AddVertex(meshID,((x#)*scale#) 			,Noise2D((x#+offsetx#)/noiseterrain#+r#,			(y#+offsety#)/noiseterrain#)		,y# * scale#				,0,1,0			,   0,0, colvertice1)
			AddVertex(meshID,((x#)*scale#) 			,Noise2D((x#+offsetx#)/noiseterrain#+r#,			((y#+offsety#)-scale#)/noiseterrain#)		,(y#-scale#)*scale#		,0,1,0		,   0,0.090909/2, colvertice1)
			AddVertex(meshID,((x#)+scale#)*scale# ,Noise2D(((x#+offsetx#)+scale#)/noiseterrain#+r#,	((y#+offsety#)-scale#)/noiseterrain#) 		,(y#-scale#)*scale#		,0,1,0		,   0.066667/2,0.090909/2, colvertice1)


		next
	next


	meshobject = CreateObjectFromMeshWithColor(meshID)
//	meshobject = CreateObjectFromMeshWithUVTexturing(meshID)
	SetObjectPosition(meshobject,0,0,0)
	camerax#=landsizex#/2
	cameraz#=landsizez#/2

endfunction meshobject
function checkcolorlevels(formula)
		//formula = abs(formula)
	    if (formula<=0) then colvertice1=MakeColor(46,139,87)
		if (formula>-50) then colvertice1=MakeColor(100,100,0) // sand
		if (formula<-300) then colvertice1=MakeColor(0,0,70) // water

		if (formula>0) then colvertice1=MakeColor(0,100,0) //
		if (formula>100) then colvertice1=MakeColor(0,200,0)
		if (formula>400) then colvertice1=MakeColor(0,255,0)

endfunction colvertice1

function movecamerawithmouse()

    fDiffX# = (GetPointerX() - startx#)/1.0
    fDiffY# = (GetPointerY() - starty#)/1.0

    newX# = angx# + fDiffY#
   // if ( newX# > 360 ) then newX# = 360
   // if ( newX# < -360 ) then newX# = -360

    // if we keep hold of the left mouse button then rotate the view otherwise the camera stays put
    // so can concentrate on adding/removing blocks at that positon


    SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )

endfunction


function setupskyandfog()
    // setup a skybox
   SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,2000)
    SetFogMode(0)
	SetCameraRange(1,0.1,10000)

endfunction

Function AddVertex(m ref as Mesh, x as float, y as float, z as float, nx as float, ny as float, nz as float, u as float, v as float, color as integer)
	vert as vertex
	vert.x = x
	vert.y = y
	vert.z = z
	vert.nx = nx
	vert.ny = ny
	vert.nz = nz
	vert.u = u
	vert.v = v
	vert.color = color
	m.VertexList.Insert(vert)

endfunction

Function AddTriangle(m ref as Mesh, v1 as integer, v2 as integer, v3 as integer)
	t as Triangle
	t.v1 = v1
	t.v2 = v2
	t.v3 = v3
	m.TriangleList.Insert(t)
endfunction

Function CreateObjectFromMeshWithColor(m ref as mesh)
	VertexCount = m.VertexList.Length + 1
	IndexCount = (m.TriangleList.Length + 1) * 2
	IndexOffset = 72 + VertexCount*36
	memblock = CreateMemblock(IndexOffset+IndexCount*4)
	SetMemblockInt(memblock,0,VertexCount)
	SetMemblockInt(memblock,4,IndexCount)
	SetMemblockInt(Memblock,8,4)
	SetMemblockInt(memblock,12,32) // no color - 36 if color
	SetmemblockInt(memblock,16,72)
	SetMemblockInt(memblock,20,IndexOffset)
	SetMemblockInt(memblock,24,0x0c000300)
	SetMemblockString(Memblock,28,"position")
	SetMemblockInt(memblock,40,0x08000300)
	SetMemblockString(memblock,44,"normal")
	SetMemblockInt(memblock,52,0x04000200)
	SetMemblockString(memblock,56,"uv")
	SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
	SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
		for i = 0 to m.VertexList.Length
		SetMemblockFloat(memblock,72+i*36,m.VertexList[i].x)
		SetMemblockFloat(memblock,76+i*36,m.VertexList[i].y)
		SetMemblockFloat(memblock,80+i*36,m.VertexList[i].z)
		SetMemblockFloat(memblock,84+i*36,m.VertexList[i].nx)
		SetMemblockFloat(memblock,88+i*36,m.VertexList[i].ny)
		SetMemblockFloat(memblock,92+i*36,m.VertexList[i].nz)
		SetMemblockFloat(memblock,96+i*36,m.VertexList[i].u)
		SetMemblockFloat(memblock,100+i*36,m.VertexList[i].v)
		SetMemblockInt(memblock,104+i*36,m.VertexList[i].color) //maybe one day or year in 2019 lol
	next

	for i = 0 to m.TriangleList.Length
		SetMemblockInt(memblock,IndexOffset+i*12,m.TriangleList[i].v1)
		SetMemblockInt(memblock,IndexOffset+i*12+4,m.TriangleList[i].v2)
		SetMemblockInt(memblock,IndexOffset+i*12+8,m.TriangleList[i].v3)
	next
	id = CreateObjectFromMeshMemblock(memblock)
//	DeleteMemblock(memblock)
endfunction id


Function CreateObjectFromMeshWithUVTexturing(m ref as mesh)
	VertexCount = m.VertexList.Length + 1
	IndexCount = (m.TriangleList.Length + 1) * 2
	IndexOffset = 60 + VertexCount*36
	memblock = CreateMemblock(IndexOffset+IndexCount*4)
	SetMemblockInt(memblock,0,VertexCount)
	SetMemblockInt(memblock,4,IndexCount)
	SetMemblockInt(Memblock,8,3)
	SetMemblockInt(memblock,12,32) // no color - 36 if color
	SetmemblockInt(memblock,16,60)
	SetMemblockInt(memblock,20,IndexOffset)
	SetMemblockInt(memblock,24,0x0c000300)
	SetMemblockString(Memblock,28,"position")
	SetMemblockInt(memblock,40,0x08000300)
	SetMemblockString(memblock,44,"normal")
	SetMemblockInt(memblock,52,0x04000200)
	SetMemblockString(memblock,56,"uv")
	//SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
	//SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
		for i = 0 to m.VertexList.Length
		SetMemblockFloat(memblock,60+i*32,m.VertexList[i].x)
		SetMemblockFloat(memblock,64+i*32,m.VertexList[i].y)
		SetMemblockFloat(memblock,68+i*32,m.VertexList[i].z)
		SetMemblockFloat(memblock,72+i*32,m.VertexList[i].nx)
		SetMemblockFloat(memblock,76+i*32,m.VertexList[i].ny)
		SetMemblockFloat(memblock,80+i*32,m.VertexList[i].nz)
		SetMemblockFloat(memblock,84+i*32,m.VertexList[i].u)
		SetMemblockFloat(memblock,88+i*32,m.VertexList[i].v)
		//SetMemblockInt(memblock,104+i*36,m.VertexList[i].color) //maybe one day or year in 2019 lol
	next

	for i = 0 to m.TriangleList.Length
		SetMemblockInt(memblock,IndexOffset+i*12,m.TriangleList[i].v1)
		SetMemblockInt(memblock,IndexOffset+i*12+4,m.TriangleList[i].v2)
		SetMemblockInt(memblock,IndexOffset+i*12+8,m.TriangleList[i].v3)
	next
	id = CreateObjectFromMeshMemblock(memblock)
//	DeleteMemblock(memblock)
endfunction id


// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  perlinheight * (n0 + n1 + n2)
/*
		AddVertex(meshID,x#	*scale#	 	,noise2d(x#,y#)*randomheight 		,y#	*scale#			,0,1,0,   0,0, MakeColor(0,noise2d(x#,y#)*col,0))
		AddVertex(meshID,(x#+scale#)*scale#	,noise2d(x#+scale#,y#-scale#)*randomheight 	,(y#-scale#)*scale#		,0,1,0,   0,0, MakeColor(0,noise2d(x#+1,y#-1)*col,0))
		AddVertex(meshID,(x#+scale#)*scale# 	,noise2d(x#+scale#,y#)*randomheight		,y# *scale#				,0,1,0,   0,0, MakeColor(0,noise2d(x#+1,y#)*col,0))


		AddVertex(meshID,x#*scale# 		,noise2d(x#,y#)*randomheight 		,y# * scale#				,0,1,0,   0,0, MakeColor(0,noise2d(x#,y#)*col,0))
		AddVertex(meshID,x#*scale# 		,noise2d(x#,y#-1)*randomheight		,(y#-scale#)*scale#		,0,1,0,   0,0, MakeColor(0,noise2d(x#,y#-1)*col,0))
		AddVertex(meshID,(x#+scale#)*scale# 	,noise2d(x#+scale#,y#-scale#)*randomheight 	,(y#-scale#)*scale#		,0,1,0,   0,0, MakeColor(0,Noise2D(x#+1,y#-1)*col,0))
*/

I have added color to memblocks and also texture with UV capabiilities if we so much

Its a start that could turn into something magical

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 21st Aug 2018 20:27

Link

@Xaby When I import models into fragmotion the objects are broken up ie a car has its wheel off to the side
I can get the .x version of the models to work in AppGameKit without importing/exporting but i have a choice of a model with no
animation and a texture or a animated model with no texture. There was some great models that could be put to use
again in AppGameKit in the darkmatter pack that came with DBPro

p.s not so sure if your allowed to give a link to the models due to the copyrights

fubar

Back to top

Profile PM Email Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 21st Aug 2018 22:11 Edited at: 21st Aug 2018 22:38

Link

For lighting I think it is basically just some planning and a whole lot of experimentation to get the exact look you like. At least that is what I saw the people who are very good at this in Unity doing. But keep in mind I don't think we have the lighting options here to match things made in Unity and Unreal. When I did the old school fps project I checked into lighting and all I found was basically one directional light (sun) and point lights. That being said I think a person could still make a very nice looking scene with some planning and experimentation.

Knocking out static ultra low poly objects is easy. I probably already have a bunch of them on my hard drive from experiments over the years.

As I recall we will need a shader to achieve the flat shaded look. I think I'd be more inclined to do a 3D project in GameGuru. I tried it out last year and it was quite slick.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 21st Aug 2018 23:58

Link

The key aesthetic with those games is they are rendered WITHOUT smoothing. I don't think i've been able to get AppGameKit to render without smoothing as yet

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 00:36 Edited at: 22nd Aug 2018 00:39

Link

Yeah that's what I meant by using a shader. Here is an article on it.

Basically you are making it so the normals in a given tiny area are the same instead of "smoothed/curved" and this produces the flat-shaded look.

Kind of odd in a way because one would think this would be the default but the default in all things seems to be to average / smooth the normals.

I only have a very basic knowledge of this stuff picked up when I was very active on the Unity forums and investigating such things.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 22nd Aug 2018 01:18

Link

Ultimate unwrap has a function where it can unweld all faces. That may do the trick although i've never tried it

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 01:27

Link

Cool! I use that too. I don't think I have ever tried it either. I just use it for texturing models super easy.

If unwelding the faces is basically adding additional points so they no longer share them then yes that may work for sure. And for ultra low poly models the additional vertices would be no issue for performance anyway.

Hmm... I might try that this week if I get a chance to.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 04:03 Edited at: 22nd Aug 2018 04:06

Link

I knocked out a quick blob thingy (and kind of messed it up in the process of quickly moving lines and points but anyway) I played around with unwelding options in Ultimate Unwrap Pro.

The best I got from this experiment is this...

The model on the left was exported with everything unwelded. The model on the right was exported with everything unwelded and NO vertex normal data.
Which of course means the point light that is hanging up above doesn't change anything on the model on the right.

I think a shader is probably the best way to go.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Golelorn

8

Years of Service

User Offline

Joined: 20th Nov 2016

Location:

Posted: 22nd Aug 2018 04:10

Link

Nice lighting effect, GarBenjamin. Really makes it pop.

Another personal low poly favorite for me is Last Day on Earth: Survival. I have followed it for a few years. It exploded on mobile the past 2 years. They have made huge improvements, plus made another similar game. I just wish it was not mobile. Everything is cash shop based, I play it every now and then for inspiration.

Back to top

Profile PM

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 22nd Aug 2018 04:21

Link

maybe try getting rid of the light and just use the sunlight functions

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 04:32 Edited at: 22nd Aug 2018 04:39

Link

I had it that way originally using sun and then turned sun off and added point light just to make the light more noticeable. I don't mind trying it again with sunlight only tomorrow though. I'm actually just chilling on cell phone before heading to bed now and if I turn computer back on I know that will be a bad thing.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 22nd Aug 2018 07:11 Edited at: 22nd Aug 2018 07:11

Link

@fubarpk

Beachbuggy original from Dark Basic Professional. Uncompressed *.x file

From the folder:
The Game Creators\Dark Basic Professional Online\Projects\Dark Physics\Information

https://github.com/TheGameCreators/Dark-Basic-Pro

Attachments

Login to view attachments

Back to top

Profile PM Website

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 22nd Aug 2018 07:23 Edited at: 22nd Aug 2018 08:49

Link

If you save with the following settings (to .x format) you will get an unsmoothed model (Not sure if you have to do the unweld as well);

Attachments

Login to view attachments

Back to top

Profile PM

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 22nd Aug 2018 09:04

Link

Quote: "Beachbuggy original from Dark Basic Professional. Uncompressed *.x file"

My apologies I just remember that being something they sold had no idea it was on GitHub

fubar

Back to top

Profile PM Email Website

basicFanatic

7

Years of Service

User Offline

Joined: 7th Jun 2017

Location:

Posted: 22nd Aug 2018 10:34 Edited at: 22nd Aug 2018 10:38

Link

"low-poly" models seldom have a lower polygon count than high-poly ones. But they lack the normal map which fakes a higher resolution.

Perhaps it would be possible to "cheat" with a normal map to make a truly low poly model appear to have more polygons, like those seen in that State of mind trailer.

Speaking of simplistic visuals, a really simple way to get flat shading is this:
SetSunActive(0)
SetAmbientColor( 255, 255, 255 )

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 13:52 Edited at: 22nd Aug 2018 14:09

Link

blink0k I just tried the .x export exactly as your screenshot shows and in this case it still appears all smoothed and the texture doesn't show up on it.

I think what the real problem is.... the triangulation. So I used UUP to untriangulate the faces. However, when I load the model into AGK2 it almost seems like their loading routine is triangulating the faces again!

I think if I spend anymore time on this it will be looking at the shader.

Anyway, time for me to head to work.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 22nd Aug 2018 16:47 Edited at: 22nd Aug 2018 16:57

Link

@basicFanatic: Are you saying they faked the amount of vertices in the State of mind trailer using normal maps ?
Or just pointing out we could try it that way ?

Quote: ""low-poly" models seldom have a lower polygon count than high-poly ones. But they lack the normal map which fakes a higher resolution. "

Right, had the same thoughts.

@Everyone: once I tried to force an object to have that hard edge look you are talking about and I wanted to continue working on it,
the code is still in the shader pack in SP_MeshManipulation file as one of the little extras you get if you look deep into my code

(not working yet)
I say "force" cause you need to build a new mesh with poligons not sharing normal data ...or share vertex data at all, then it should look right with default AppGameKit lights I think.

Back to top

Profile PM Email Website

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 17:04

Link

why not just take away the smooth surface modificator in your modelling tool? all i read seems a bit overcomplicated to me...

Back to top

Profile PM Website

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 17:24 Edited at: 22nd Aug 2018 17:28

Link

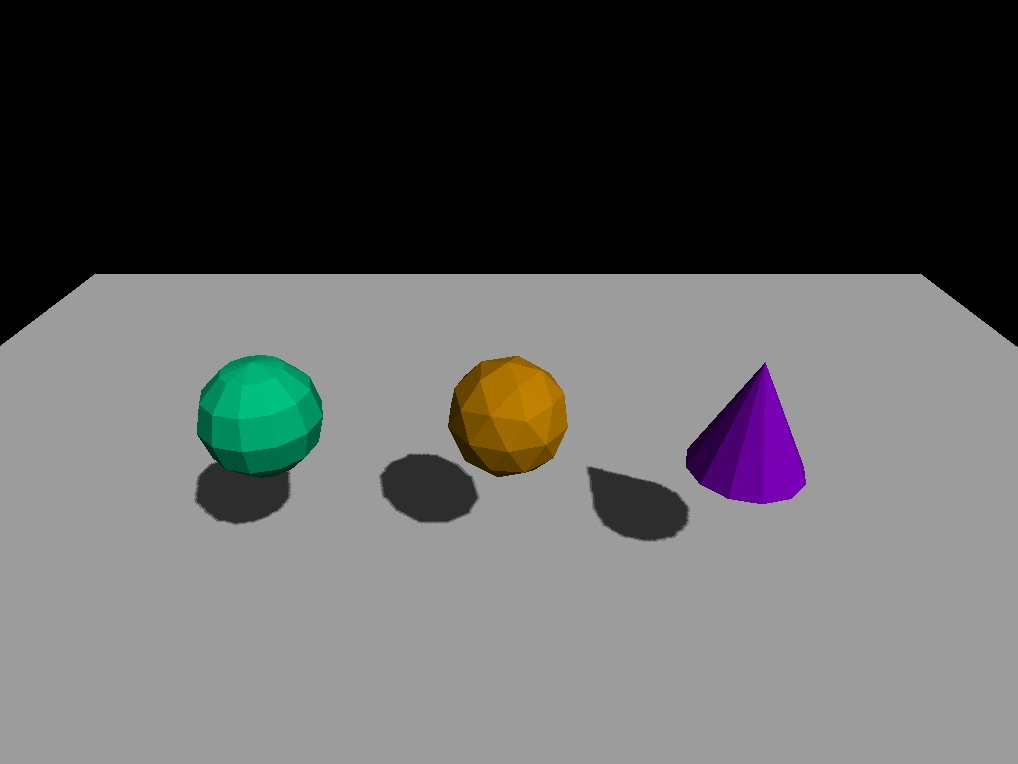

made a little test. just lowpoly primitives in blender, no smoothing, nothing else, export as *.dae, import, sunnlight.

Attachments

Login to view attachments

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 17:31

Link

In my test I did not use any smoothing modifier. Just made a cube split into multiple faces through x, y and z and then adjusted some edges and points to change the form somewhat as a test object.

Put a point light over your object and have object rotate etc. That way you can see how the faces are being lit.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 17:39

Link

i did not split edges... i mean, why should i. if you do not smooth the edges, then they stay hard.

scene with point light:

Attachments

Login to view attachments

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 17:51 Edited at: 22nd Aug 2018 17:53

Link

That's it. Very good!

I don't know the answer to your question only that when I bring models into AppGameKit they never are flat shaded by default as yours is. It's not just AppGameKit either but Unity etc there are assets just to give the flat shaded look on low poly models. Be interesting to see exactly what you are doing to achieve this without needing any shader, separating face vertexes, etc.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 17:57 Edited at: 22nd Aug 2018 18:00

Link

What modelling tool are you using? in max put the "smooth" modifier on, but do not activate it. in blender (I use bforartists) there s a button for either shading smooth or shading flat. flat shading is the way to go.

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 18:00 Edited at: 22nd Aug 2018 18:02

Link

Oh yeah I know we can get the flat shaded look in the modeling programs. Just change the shaded type.

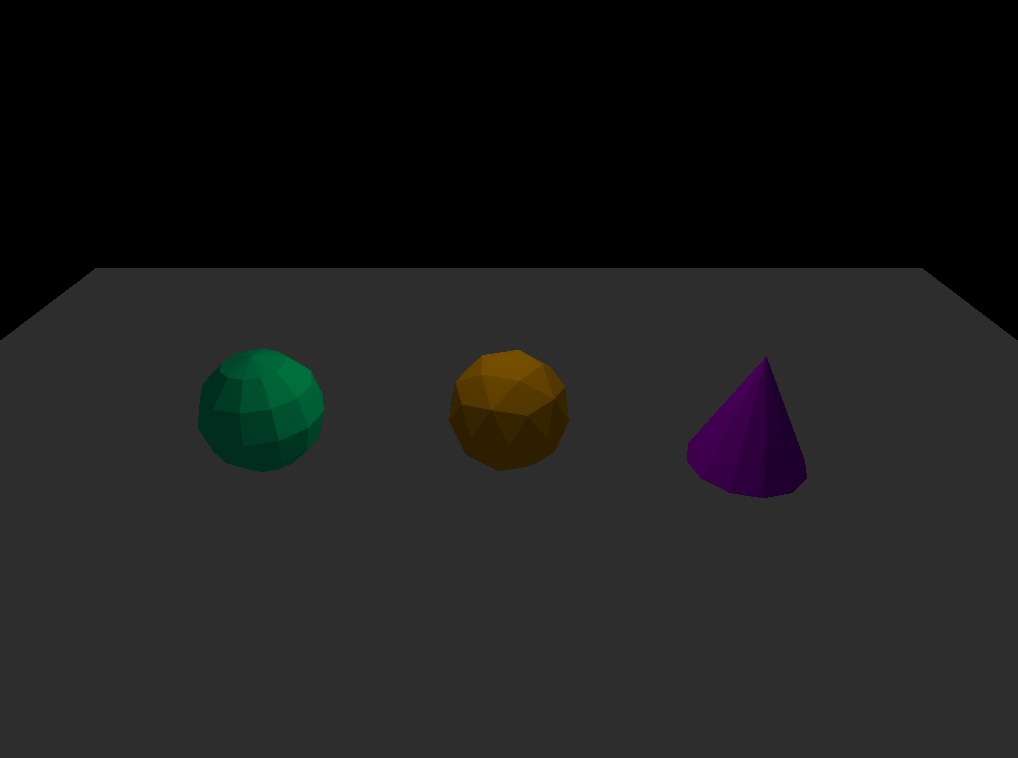

This is different my gif above is from an AppGameKit BASIC program. You need to import your models into AppGameKit and display them and add the point light in code. See how it looks then.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 18:05 Edited at: 22nd Aug 2018 18:10

Link

my pics are from agk basic...

put flat shading on and export flat shaded. thats it, and don't let the exporter smooth it.

models attached

Attachments

Login to view attachments

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 18:12 Edited at: 22nd Aug 2018 18:13

Link

Alright I will test this as soon as I am off work. If this works then you have found a highly simplified way of doing something that nearly nobody knows of. Lol There are articles all over the internet with shaders and geometry editing etc to achieve this.

Very cool I am looking forward to replacing my blobs with 2 of your models and see what I get. Thanks for sharing these.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 18:18

Link

Maybe Xaby, Fubar, Blink or Puzzler can test them out in an AppGameKit program in the meantime while I am stuck at work.

Unless they are also stuck at work. Lol

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 18:22 Edited at: 22nd Aug 2018 18:40

Link

no problem. i do not get why nobody knows this... is there something i'm missing? i mean, working with smoothing groups and all that stuff should be a modelling basic. i mean i look at it from an artists view, as i am not the coder type. but it seems kinda easy to me.

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 19:07 Edited at: 22nd Aug 2018 19:08

Link

Alright I just had a chance to test on lunch break but it isn't working for me. They still seem to be rendering smooth.

Can you upload your AppGameKit project in full that you used for the test? All I can think of is you are using certain options in AppGameKit or something like that.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 22nd Aug 2018 19:26 Edited at: 22nd Aug 2018 19:28

Link

Quote: "i do not get why nobody knows this"

I know you modelling guys can do this magic

I only view the programming and data site of it, thats why I wrote "force"ing it to have hard edges

But I still think we need some sort of occlusion/portal culling, imposter and a good LOD system to make games, even low poly looking games, which are nice and interesting to look at.
Especially if you go for open world games like above.
Not sure if that low poly style is making the LOD and imposter transitions easier to spot

Back to top

Profile PM Email Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 21:50 Edited at: 22nd Aug 2018 21:51

Link

Janbo is spot on about that I think. I only have mediocre knowledge & skills when it comes to graphics and haven't spent much time in a loooong time doing graphics learning and research and experiments. Well I mean other than my focus on ultra low res and ultra minimalistic visuals. It's just an entire different direction. Anyway as an artist who spends a lot of time working on art using and honing art creation skills your knowledge is sure to be way beyond mine on this stuff.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 22:15

Link

that's all of the code:

// Project: Lowpoly
// Created: 2018-08-22

// show all errors
SetErrorMode(2)

// set window properties
SetWindowTitle( "Lowpoly" )
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 60, 1 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts
SetVSync(1)

SetCameraPosition(1,0,100,-100)
SetCameraRotation(1,30,0,0)

SetShadowMappingMode(3)

SetSunActive(0)

LoadObject(1,"1.dae")
SetObjectColor(1,150,100,0,255)
SetObjectPosition(1,0,36,0)
SetObjectCastShadow(1,1)

LoadObject(2,"2.dae")
SetObjectColor(2,0,150,100,255)
SetObjectPosition(2,-40,36,0)
SetObjectCastShadow(2,1)

LoadObject(3,"3.dae")
SetObjectColor(3,100,0,150,255)
SetObjectPosition(3,40,36,0)
SetObjectCastShadow(3,1)

CreatePointLight(1,0,80,0,200,150,150,100)

Obj_Level_1_1=2001
CreateObjectBox(Obj_Level_1_1,300,3,300)
SetObjectPosition(Obj_Level_1_1,0,0,0)
SetObjectColor(Obj_Level_1_1,150,150,150,255)

do

//Print( ScreenFPS() )

    Sync()
loop

+ Code Snippet

// Project: Lowpoly
// Created: 2018-08-22

// show all errors
SetErrorMode(2)

// set window properties
SetWindowTitle( "Lowpoly" )
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 60, 1 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts
SetVSync(1)

SetCameraPosition(1,0,100,-100)
SetCameraRotation(1,30,0,0)

SetShadowMappingMode(3)

SetSunActive(0)


LoadObject(1,"1.dae")
SetObjectColor(1,150,100,0,255)
SetObjectPosition(1,0,36,0)
SetObjectCastShadow(1,1)

LoadObject(2,"2.dae")
SetObjectColor(2,0,150,100,255)
SetObjectPosition(2,-40,36,0)
SetObjectCastShadow(2,1)

LoadObject(3,"3.dae")
SetObjectColor(3,100,0,150,255)
SetObjectPosition(3,40,36,0)
SetObjectCastShadow(3,1)


CreatePointLight(1,0,80,0,200,150,150,100)

Obj_Level_1_1=2001
CreateObjectBox(Obj_Level_1_1,300,3,300)
SetObjectPosition(Obj_Level_1_1,0,0,0)
SetObjectColor(Obj_Level_1_1,150,150,150,255)



do




    //Print( ScreenFPS() )

    Sync()
loop

i'm not really an artist, just doing this in my free time. like many of you. but i spent some jears doing it, so there is a bit of knowledge left over.

Back to top

Profile PM Website

blink0k

Moderator

11

Years of Service

User Offline

Joined: 22nd Feb 2013

Location: the land of oz

Posted: 22nd Aug 2018 22:19 Edited at: 22nd Aug 2018 22:28

Link

@green7 I am just trying to deal with the fact that UU always smooths the model. I have a questioned them as to how to turn it off so we'll see what they say

So you need to unweld faces in UU. Save with the following options;

The result is this (Note the shading on the helmet). Not a great model to show off the render but i think you get the picture.

Project is attached.

Response from UU
Me: I have just noticed that UU will save a model with smoothing, even if the model is unsmoothed.

UU: Just FYI, that's not entirely correct. Unwrap3D exports whatever vertex normals you give it,
so what you see in Unwrap3D, is what you get "on export". However, import is different.
When you import a DirectX file, normals are not imported, so what you see "on import"
is not exactly what you see on export. So, you really can't compare that two.

Me: Is there anyway to save a model as unsmoothed?
UU: Yes, just unweld all vertices before exporting it. Ctrl+A, 3D Tools -> Unweld Faces.

Attachments

Login to view attachments

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 22nd Aug 2018 22:27

Link

Very cool two things to try after work. Maybe a big part of it is I have always used .obj format in AppGameKit and only certain formats handle this? Seems like I chose .obj because it worked very well in web builds and some didn't seem to work at all IIRC.

Anyway looking forward to trying these out. If we can get flat shaded look this simple just through export that is crazy good.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 22nd Aug 2018 23:16

Link

get bforartists: https://www.bforartists.de/ (it bases on blender and is free) or blender for those who like. i tried blender, a few times, every year for a new, but bforartists finaly made me liking it. just to say, not to start a fan war. its the result, not the tool.
import your model.
on the left select: tools / edit / and a blue icon called flat shade
export to collada.

thats it.

no knowledge about modelling needed.

Back to top

Profile PM Website

Bengismo

7

Years of Service

User Offline

Joined: 20th Nov 2017

Location: Yorkshire, England

Posted: 22nd Aug 2018 23:24 Edited at: 22nd Aug 2018 23:27

Link

Flat shading is possible to do purely in the modelling as the guys have been saying above. Its given different names in different software (vertex welding, smooth shading/groups, flatten triangles etc...)

Its even possible to mix flat and smooth shading in the same model if wanted. (not sure why anyone would want to?) Its also possible in a shader too but theres no need to bother with that - much easier to do it at source if it is wanted.

Back to top

Profile PM

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 23rd Aug 2018 00:46 Edited at: 23rd Aug 2018 00:55

Link

Yeah I see that Bengismo. What threw me off is coming from Unity where there was once a big discussion on this on using shaders, or some specialized assets from the asset store, etc along with all of the articles on the web on how to achieve flat shaded look. Not one of them ever mentioned doing it this way which is of course by far the simplest way to go. It's just bizarre but I guess knowing how programmers are they typically love to take simple things and make them way more complicated and maybe that is what is going on. I don't know.

Anyway, I just tested this approach and yes it is the way to go. Tried different ways and ultimately confirmed that when using Ultimate Unwrap Pro as Blink mentioned above the trick is to unweld the faces.

The artifacts like warping of light are only a result of converting to a gif animation and it doesn't actually do that in the program execution.

There is a point light between the two objects raised up slightly.
For the texture I made it so there are solid vertical bands of the same color. Reason being if this is correct as the light influence on faces decrease entire faces should darken and eventually when the light no longer influences the faces the entire vertical band should go "flat" exactly the same color. And as this illustrates this is exactly what happens.

So... well done Green7 and Blink!

This is fantastic to know. Next time I get the urge to do a 3D game I will definitely be taking advantage of this knowledge. And it takes us one step down the road Xaby wants to go in.

Alright no more messing around with this stuff for me. Well for a while anyway. I need to focus on my game project. But it was a fun diversion and I a huge fan of the flat shaded simplistic ultra poly look.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

JLMoondog

Moderator

15

Years of Service

User Offline

Joined: 18th Jan 2009

Location: Paradox

Posted: 23rd Aug 2018 02:17 Edited at: 23rd Aug 2018 03:27

Link

Quote: "ts even possible to mix flat and smooth shading in the same model if wanted.(not sure why anyone would want to?)"

I do this with certain models, such as character models that have some type of clothing or armor. By adding 'hard edges', through editing the vertex normals, you'll get a nice hard edge on armor pieces, or where clothing meets the character's skin. You don't want them to 'smooth' together. This also creates better modeling lighting and shadows. You'd be surprised with the difference between a model with proper vertex normals and a model with smoothed out normals. This is a technique all game artist's use and is something you should learn.

edit: If you were wondering how to do this in 3ds max, add the smooth modifier( this does not increase poly count, it's a tool to adjust vertex normals) to a model, you'll see an array of numbered buttons. These are actually layers, select layer 1, than go into edit mode, select desired polys for that group, set the smooth angle. Select the next layer and repeat. No need to 'cut' polys apart to get that 'edge' look. This will actually cause issues with boned models, in some instances will cause them to separate when you move the model's bones during animation. By using the smooth layers, the polys stay welded, your just adjusting the vertex normals so they are not pointing in the same direction as the vertex normals in a separate layer.

edit 2: make sure the model has been unwrapped first. If you unwrap the model after applying the smooth modifier it resets the models vertex normals.

Back to top

Profile PM Email Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 23rd Aug 2018 04:46

Link

I made some progress on my tower defense project so I knocked out a fence real quick...

"We finally got one"... maybe at Roswell it was more of a sphere and just maybe he had it fenced in. Granted not much of a containment given flight and all but let's not think too much and spoil the illusion...

And with this I am going to sleep.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

Bengismo

7

Years of Service

User Offline

Joined: 20th Nov 2017

Location: Yorkshire, England

Posted: 23rd Aug 2018 09:10 Edited at: 23rd Aug 2018 09:15

Link

JLMoondog wrote: "By adding 'hard edges', through editing the vertex normals, you'll get a nice hard edge on armor pieces, or where clothing meets the character's skin. You don't want them to 'smooth' together. This also creates better modeling lighting and shadows. You'd be surprised with the difference between a model with proper vertex normals and a model with smoothed out normals. "

Lol...i know that...Theres a "hard edge" at the top of the smoothed cylinder on the right of the pic i posted - otherwise it ends up looking incorrectly shaded at the top. Hard edges anywhere where you need them is fine in a gauraud (smooth) shaded model.

The point I was making was I would not flat shade a game character only to have his legs smooth. Or... I wouldnt flat shade a terrain only to have the tree's smooth shaded. I dont like mixing styles and ive not seen a game that looks good with both. I think its a style that needs to be consistant in a game otherwise people think its a bug. Flat shading is now being used as a retro style aspect to a game. Not because the hardware cant handle smooth shading or more vertices but simply because of the style aspect and the retro look to the game. Its almost cliche now that its being used more and more.

Garbenjamin wrote: "I knocked out a fence real quick"

The fence looks really good...as does the beach ball

Back to top

Profile PM

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 23rd Aug 2018 11:52

Link

Excuse me, I had to post that great example of Low-Poly-Style as well.

Back to top

Profile PM Website

Sph!nx

15

Years of Service

User Offline

Joined: 3rd Dec 2008

Location: The Netherlands

Posted: 23rd Aug 2018 16:30

Link

I love that style. Great thread guys!

Regards Sph!nx

Back to top

Profile PM

Green7

19

Years of Service

User Offline

Joined: 23rd Nov 2005

Location: Switzerland

Posted: 23rd Aug 2018 17:17

Link

I guess at last for the heightmap terrain we need a flat shading shader... i mean, sure, we can export even a flat shaded terrain from our beloved 3d software, but it does not have all of the advantages of the heightmap terrain, does it?
the advantage of a flat shading shader is for sure that you can take every model you want and make it look as you wish, on the other hand, if it is not intended to be used as flat shaded, it may not look as great.
one more thing is the color palette i think. i found a great 16 color palette, but it does for sure not fit all projects or styles. but i feel like to go with less colors is better than to use too much, if i look at the vids.

http://pixeljoint.com/forum/forum_posts.asp?TID=12795

Back to top

Profile PM Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 23rd Aug 2018 18:39 Edited at: 23rd Aug 2018 18:41

Link

@Bengismo thanks for the laugh "as does the beach ball". LOL! Fair enough. It would be easy to knock out an ultra low poly saucer but I threw that together right before bed and just wanted to "get it done". Maybe I will expand it over time when I am taking a break from my game projects.

@Xaby That Dragon looks awesome. Good luck with making something like that!

@Green7 I agree on the palette. Color choices are so important and at least when going ultra low poly I think keeping the palette down to a small number makes a lot of sense. For a quick start there are loads of ready made palettes out there too. Definitely think the terrain should be low poly flat shaded as well otherwise would look weird I think.

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 23rd Aug 2018 18:43 Edited at: 23rd Aug 2018 20:17

Link

For the sake of the upcoming community collaboration I made a Flat shading shader for you

You all know how a flat shaded sphere looks like, now just download the Demo

Demo
Flat shading

The Flat shading is calculated in the fragment shader and uses the neighbor fragments to calculate the face normal.
But with that comes limitations:
html5 and mobiles dont't support dfdx
You can't use AGK's sun and ambient as it is calculated in the vertex shader and would screw it up (looks funny I think)

I think it's nothing I can't solve and I can explain it further if anyone is interested, but for now you have something to slap on you models

Attachments

Login to view attachments

Back to top

Profile PM Email Website

GarBenjamin

AGK Developer

7

Years of Service

User Offline

Joined: 30th Nov 2016

Location: USA

Posted: 23rd Aug 2018 20:39

Link

Sounds very cool janbo. Always nice to have another option!

My Projects Most With Full Source...
[Attack of the Crows] [Christmas Command 2016]
[Simple Sprite Shaders Example] [Old School Style 3D FPS]
[Playable 2D Shmup Template] [2D Single Screen Platformer]
[FixSpriteToSprite System & Demo]
[Mutant Invaders 3D Shmup] [Unity - Atlantic Crisis]
[Unity - Treasures of Ali-Gar] [My YouTube Videos] [Twitter]

Back to top

Profile PM

puzzler2018

User Banned

Posted: 23rd Aug 2018 20:55

Link

Everyone efforts on modelling here is outstanding.

But I really do prefer media-less apps - has I havent touched any modelling software ever in my programming career - im a memblock programmer now

Good works to all!

Back to top

Profile

Sorry your browser is not supported!

AppGameKit Classic Chat / Low Poly and Light inspiration and community ideas

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments
