AppGameKit Classic Chat / [SOLVED] Transparency is driving me nuts i tell ya!

Author
Message
blink0k
Moderator
11
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 25th Oct 2018 21:38 Edited at: 25th Oct 2018 21:40
Link

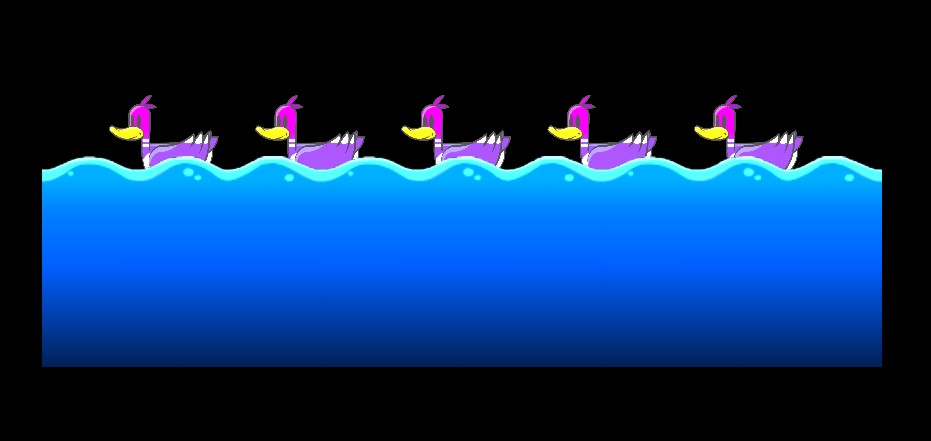

Ok i have these little ducks on a pond. I want to tilt the camera so i can see what's left and right (Use left/right arrow keys in example)

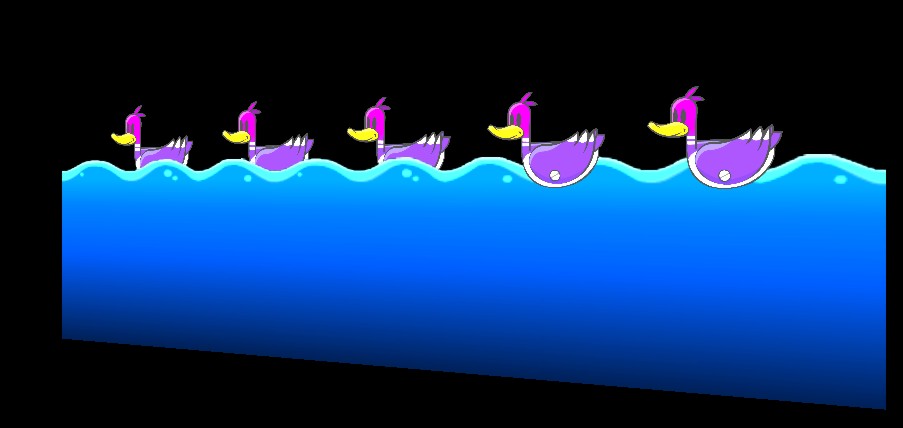

When i do this my little duckies pop right outta the water.



How can i fix this?

Thanks for your help

Attachments

Login to view attachments
Back to top
Profile PM

The author of this post has marked a post as an answer.

Go to answer

puzzler2018
User Banned
Posted: 25th Oct 2018 21:42
Link
cant think straight at moment but look at the sprite depth commands

water been the nearest depth and the ducks been the furthest ones

like
SetSpriteDepth(water, 0)
SetSpriteDepth(ducks,1)

Or something along those lines

Or is this 3D?

Same idea anyway - depths

Back to top
Profile
blink0k
Moderator
11
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 25th Oct 2018 21:48
Link
It's 3D matey and it's driving me bonkers!
Back to top
Profile PM
puzzler2018
User Banned
Posted: 25th Oct 2018 21:53 Edited at: 25th Oct 2018 21:55
Link
If you want the You will need to move the water in accordance to the ducks too instead of leaving the water position the same

Those ducks looks getting bigger the nearer they are too or is that optical illusion.

Try fixobjecttoobject ducks to the water so they will always be fixed to one object (the water plane)
Back to top
Profile
basicFanatic
7
Years of Service
User Offline
Joined: 7th Jun 2017
Location:
Posted: 25th Oct 2018 21:56 Edited at: 25th Oct 2018 22:00
Link
I have noticed this too. Objects that should logically be behind other objects just pop to the front when you move the camera. Way annoying! My solution is to increase the distance.
Back to top
Profile PM
CJB
Valued Member
20
Years of Service
User Offline
Joined: 10th Feb 2004
Location: Essex, UK
Posted: 25th Oct 2018 22:00
Link
It's a bit of a hack, but you can pretend the water is a lot further forward using:

which fixes the rendering issue.

Aaargh! Ducks!
Phone Tap!
Uzmadesign
Back to top
Profile PM Email Website
puzzler2018
User Banned
Posted: 25th Oct 2018 22:02
Link
If you like a quick example of fixobjecttoobject to correct this theory, then please let me know - if you corrected it then well done.
Back to top
Profile
Golelorn
8
Years of Service
User Offline
Joined: 20th Nov 2016
Location:
Posted: 25th Oct 2018 22:03 Edited at: 25th Oct 2018 22:03
Link
This post has been marked by the post author as the answer.
Hey BlinkOK,

Pretty simple fix. Use SetObjectAlphaMask(water, 1) instead of SetObjectTransparency(water, 1).
Back to top
Profile PM
puzzler2018
User Banned
Posted: 25th Oct 2018 22:04
Link
If that works too - Good man!!
Back to top
Profile
blink0k
Moderator
11
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 25th Oct 2018 22:10
Link
Thanks. I'll try that fixobject thingo too puzzler
Back to top
Profile PM
blink0k
Moderator
11
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 25th Oct 2018 22:11
Link
Thanks. I'll try that fixobject thingo too puzzler
Back to top
Profile PM
puzzler2018
User Banned
Posted: 25th Oct 2018 22:16 Edited at: 25th Oct 2018 22:17
Link
Mine is probably more code than its worth trying to fix - Golehorn found it and is enlightened us all with the fix. Thank Golehorn.

To Golehorn, Was it yourself querying shattering objects at all? - I worked out how to shatter loading OBJ objects on another thread. I knew you was asking.
Back to top
Profile
Golelorn
8
Years of Service
User Offline
Joined: 20th Nov 2016
Location:
Posted: 25th Oct 2018 22:32
Link
Aye, it was me. I will check it out next week. I've been working on a few other things that have bogged me down.
Back to top
Profile PM
PHeMoX
6
Years of Service
Recently Online
Joined: 9th Jan 2018
Location:
Posted: 26th Oct 2018 00:08
Link
Quote: "Pretty simple fix. Use SetObjectAlphaMask(water, 1) instead of SetObjectTransparency(water, 1)."


Thanks Golegorn, just chiming in that fix solved an issue in one of my games as well. Apparently rendering two planes that are in close range, even with using fixobjecttoobject, can cause the issue the OP mentions.
