AppGameKit Classic Chat / [SOLVED] What's the command or fix again for the 1 pixel inaccuracy for a texture? I'm getting a transparent single pixel line sometimes and suspect it's due to this single pixel thing?

Author
Message
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 19th Dec 2018 16:45
Link

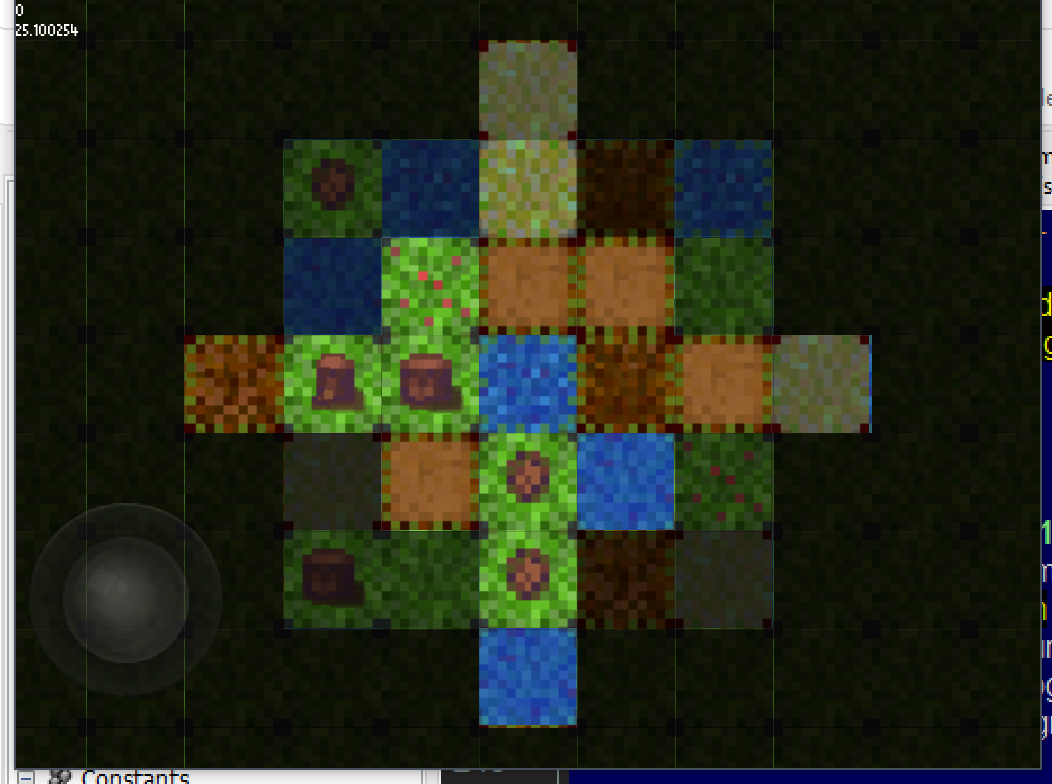

I've gone through my code, but doubt it is due to spacing of the objects themselves. They're 4.0,4.0 sized planes and they are spaced 4.0 units, so this works in terms of placement.
I have also checked the texture and the pixel line is actually outside of the texture (it's a larger texture where I'm using UVoffset information to show the correct texture, like how someone used it for animations on this forum too.).



Any ideas what I should be looking for? I do remember the manual mentioning something about a wrapping issue or 1 pixel texture issue, but can't find it anymore.

Attachments

Login to view attachments
Back to top
Profile PM

The author of this post has marked a post as an answer.

Go to answer

blink0k
Moderator
11
Years of Service
User Offline
Joined: 22nd Feb 2013
Location: the land of oz
Posted: 19th Dec 2018 19:21
Link
Does your virtual window size match your physical window size?
Back to top
Profile PM
puzzler2018
User Banned
Posted: 19th Dec 2018 19:25
Link
This post has been marked by the post author as the answer.
Try looking at

SetImageMagFilter(image,0)
SetImageMinFilter(image,0)


Back to top
Profile
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 19th Dec 2018 19:44
Link
Thanks blink0k yes, they were the same.

Using puzzler2018 his solution worked. Weird thing is... I did also set SetDefaultMinFilter(0) and
SetDefaultMagFilter(0) however I guess that didn't work as it was placed after loading my images.

Thanks guys!!

I did notice that sometimes I still see the occasional glitch of a 1 pixel line issue, however it's a world a difference and good enough for me.
Back to top
Profile PM
puzzler2018
User Banned
Posted: 19th Dec 2018 19:45
Link
Your welcome - I was scratching my head for weeks on this with blurring on minecraft. This resolved it
Back to top
Profile
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 19th Dec 2018 19:45
Link
I think I have to match the camera movement with the tile size to get rid of the other issue.
Back to top
Profile PM
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 19th Dec 2018 19:50
Link
Back to top
Profile PM
PHeMoX
6
Years of Service
User Offline
Joined: 9th Jan 2018
Location:
Posted: 19th Dec 2018 19:51
Link
Quote: "Your welcome - I was scratching my head for weeks on this with blurring on minecraft. This resolved it"


Yeah I'm a bit surprised the blur effect on textures is this strong when not using 'nearest' for filtering.
