How do I create a Bone for a 2DSkeleton? e.g. for GUI, Groups, Layers

Author

Message

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 25th Nov 2019 15:49

Link

Is it possible, to create a Bone for a 2DSkeleton?

My idea was, to use Bones as "groups" for Sprites, to move them around. Like for menus, windows and also as complex backgrounds.
Since a bone could "carry" more than one sprite and would also update all the attached sprites when moving and rotating, I thought that a bone could be used as a group of sprites. Also for Layers, GUI and other usecases.

But at this moment, I guess, it is not possible, to create a bone by myself ... or is it?

--> integer CreateSkeleton2D()
FixSkeleton2DToScreen( iSkeleton, mode )
FixSpriteToSkeleton2D( spriteID, iSkeletonID, bone, zorder )

And for detecting I could use integer GetSpriteHit( x, y )

But I can't create a window or group by my own, if I can't create a bone. So maybe, I only could create a Spine / Spriter file with one Bone and test it with that.
So what I still miss is: FixTextToSprite() or FixTextToSkeleton()

But I guess, for FixTextToSprite, it would be possible, to "UPDATE" that specific text to a specific sprite in the Loop.

Back to top

Profile PM Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 25th Nov 2019 17:08

Link

I have done it with a Spriter-File and it works, so I guess, I can do some more "windows" with that method.

+ Code Snippet

menuID = LoadSkeleton2DFromSpriterFile("OneBoneOnly.scon",1,0)
img = CreateImageColor(100,200,100,255)
spr = CreateSprite(img)
SetSpriteSize(spr,50,200)
FixSkeleton2DToScreen(menuID,1)
FixSpriteToSkeleton2D(spr, menuID, 0, 0)
FixSpriteToScreen(spr,1)
SetSkeleton2DPosition(menuID, 1100,100)
SetSkeleton2DRotation(menuID, -45)

If the Skeleton is fixed to the Screen, but the Sprite not, the Sprite would not move with the Skeleton, I would consider it a BUG!!! Because Fixing it to the Skeleton is priority in my opinion.
So the "problems":

We still don't know, which Sprites are attached onto a Bone, can't find a command for that like GetSpriteIDFrom2DSkeletonBone ...

Also don't be able to "ask" the Sprites on which Bone they are. Or if some Sprite is fixed to something. There is no "Is" or "Get"
So I guess, all Sprites used for GUI have to be in another List also maybe with there Group or Categories.
Maybe in combination with SetSpriteGroup and GetSpriteGroup. Or with SetSpriteCategoryBit( iSpriteIndex, category, flag )

So maybe a Sprite could be set to the group of a SkeletonID and maybe has to be checked in a categrory for hits

nested windows are not possible without creating bones on the fly, but using bones as a window is somewhat possible. With more bones, it would also be possible, to attach more boney, every button could be on one bone and a bone could be animated as well with skeleton effects or tweening
Maybe it would make more sense to create a bone structure with more bones than needed, like a tree, one for the "window" and e.g. 20 for the buttons, but not using all of them.

Nesting Skeleton-Animations would be great e.g. for animations when hover about a button or so or clicking, also color-transitions are possible.

Attachments

Login to view attachments

Back to top

Profile PM Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 26th Nov 2019 01:56 Edited at: 26th Nov 2019 01:58

Link

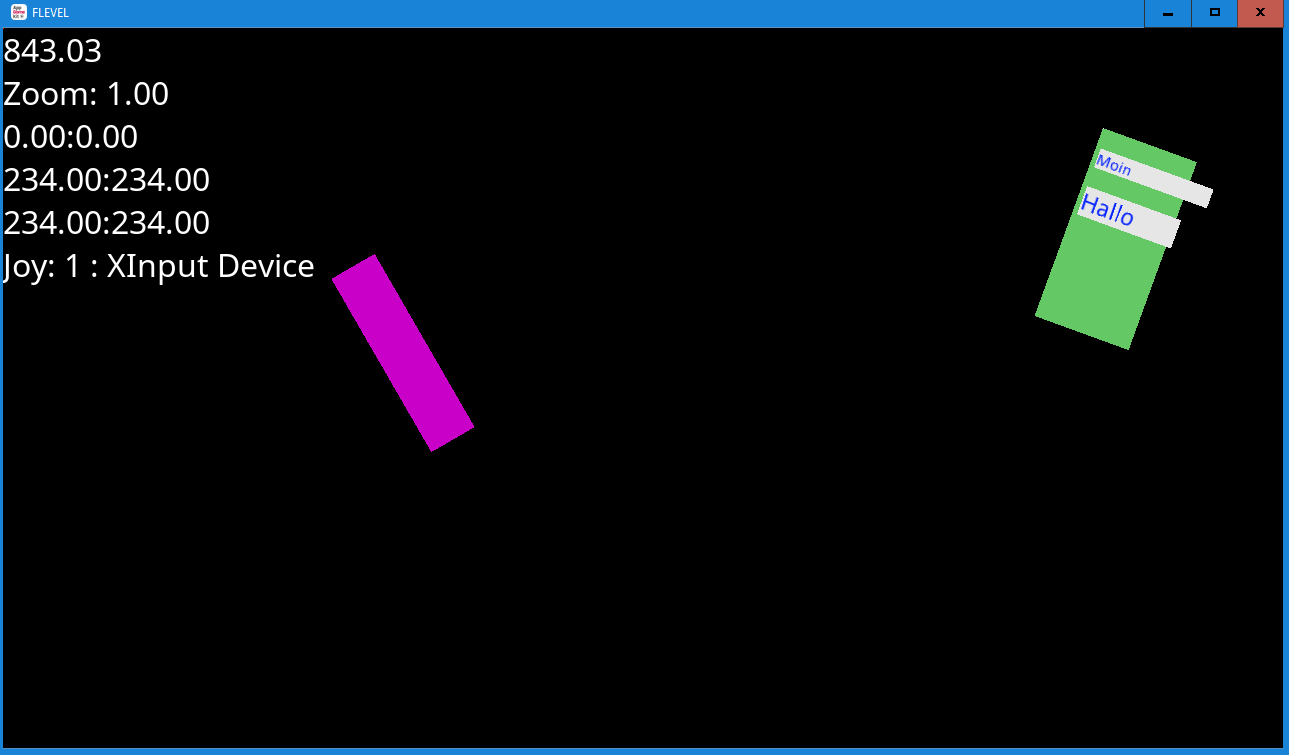

A working proof of concept. The Angles gave me a headache, because I didn't know, that the SpriteOffSet has to be set after a re-size.
Maybe there is something still wrong with GetSpriteHit ... a Bug in App Game Kit, because the Hit-Mask is not there where the visual representation of the Sprite is.
It works, and I guess, it also could be done without the Dummy-Sprite I used. I used it, to track down the problem with the offset of the hit-detection.
I guess, it is still odd behavior.

// Project: SkeletonGUI
// Created: 19-11-25, xaby

// show all errors

SetErrorMode(2)

// set window properties
SetWindowTitle( "SkeletonGUI" )
SetWindowSize( 1280, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1280, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 )

// Project: FLEVEL
// Created: 19-11-16

// show all errors

SetErrorMode(2)

// set window properties
SetWindowTitle( "FLEVEL" )
SetWindowSize( 1280, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1280, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30000, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 )

//--------------------------------------------------------------------

menuID = LoadSkeleton2DFromSpriterFile("OneBoneOnly.scon",1,0)
img = CreateImageColor(100,200,100,255)
spr = CreateSprite(img)
SetSpriteSize(spr,100,200)
FixSkeleton2DToScreen(menuID,1)
FixSpriteToSkeleton2D(spr, menuID, 0, 0)
FixSpriteToScreen(spr,1)
SetSkeleton2DPosition(menuID, 1100,100)
SetSkeleton2DRotation(menuID, 0)

img = CreateImageColor(200,0,200,255)
spr = CreateSprite(img)
SetSpriteSize(spr,200,50)
SetSpritePosition(spr,300,300)
SetSpriteAngle(spr,60)

//SetSkeleton2DPosition(menuID, 31000,31000)

// ------------ GUI ---------------------

Type FENGadgetColor
  Up as integer
  Down as integer
  Hover as integer
  NotActive as integer

  TextColor as integer
  RED as integer
  MAGENTA as integer
EndType

Global FENColor as FENGadgetColor

Function FENCreateGadgetColors()
	FENColor.Up = MakeColor(230,230,230,255) // White - Light-Grey
	FENColor.Down = MakeColor(150,255,150,255)// Green
	FENColor.Hover = MakeColor(200,230,200,255)// light Green
	FENColor.NotActive = MakeColor(100,100,100,255)

	FENColor.TextColor = MakeColor(0,30,255,255)
	FENColor.RED = MakeColor(255,0,0,255)	// for debug and so on
	FENColor.MAGENTA = MakeColor(255,0,255,255)	// for debug and so on
EndFunction

Type FENGadgetImageID
  UpImgID as integer
  DownImgID as integer
  HoverImgID as integer
  NotActiveImgID as integer
EndType

Global FENGadgetImage as FENGadgetImageID

Function FENCreateGadgetImages()
	FENGadgetImage.UpImgID = CreateImageColor(GetColorRed(FENColor.Up),GetColorGreen(FENColor.Up),GetColorBlue(FENColor.Up),GetColorAlpha(FENColor.Up))
	FENGadgetImage.DownImgID = CreateImageColor(GetColorRed(FENColor.Down),GetColorGreen(FENColor.Down),GetColorBlue(FENColor.Down),GetColorAlpha(FENColor.Down))
	FENGadgetImage.HoverImgID = CreateImageColor(GetColorRed(FENColor.Hover),GetColorGreen(FENColor.Hover),GetColorBlue(FENColor.Hover),GetColorAlpha(FENColor.Hover))
	FENGadgetImage.NotActiveImgID = CreateImageColor(GetColorRed(FENColor.NotActive),GetColorGreen(FENColor.NotActive),GetColorBlue(FENColor.NotActive),GetColorAlpha(FENColor.NotActive)) // dark-grey
EndFunction

Type FENGadget

	textID as integer
	spriteID as integer // imageID
	imageID as integer // everytime the same?
	GadgetType as integer // Btn, checkbox
	GadgetState as integer // up, down, hover, checked // like events
	Active as integer
	Visible as integer
   GadgetListID as integer // nested, 0 if no GadgetList is in use // Bone!
   GadgetListBone as integer // mostly always zero
EndType

global vecFENGadgetList as FENGadget[] // buttons and windows

Function CreateFENBtn(WindowSkeletonID, x#, y#, xl#, yl#, text$)
	temp as FENGadget

	temp.imageID = FENGadgetImage.UpImgID

	temp.spriteID = CreateSprite(temp.imageID)

	SetSpriteSize(temp.SpriteID,xl#,yl#)
	SetSpritePosition(temp.SpriteID,x#,y#)

	temp.textID = CreateText(text$)

	SetTextSize(	temp.textID, yl#)
	SetTextPosition(temp.textID,x#,y#)
	SetTextColor(temp.textID,GetColorRed(FENColor.TextColor),GetColorGreen(FENColor.TextColor),GetColorBlue(FENColor.TextColor),GetColorAlpha(FENColor.TextColor))

	temp.GadgetListID = WindowSkeletonID
	temp.GadgetListBone = 0

	FixSpriteToSkeleton2D(temp.SpriteID, temp.GadgetListID, temp.GadgetListBone, 0)
	FixSpriteToScreen(temp.SpriteID,1) //
	FixTextToScreen(temp.textID,1)

	vecFENGadgetList.insert(temp)
EndFunction

Function GetFENPointRotationX(x# as float,y# as float,angle# as float)
	value# = x#*cos(angle#)-y#*sin(angle#)
EndFunction	value#

Function GetFENPointRotationY(x# as float,y# as float,angle# as float)
	value# = y#*cos(angle#)+x#*sin(angle#)
EndFunction value#

Global FENDummySprite as integer
Global FENMousePoint as integer // is a Sprite

Function FENInit()
	FENCreateGadgetColors()
   FENCreateGadgetImages() // needs Colors before!
	FENDummySprite = CreateDummySprite()
	FixSpriteToScreen(FENDummySprite,1)

	img = CreateImageColor(255,0,0,255)
 	FENMousePoint = CreateSprite(img)

EndFunction

Function FENSetSpriteValues(SpriteID, x#, y#, xl#, yl#, angle#)

	SetSpriteSize(SpriteID,xl#, yl#)
	SetSpritePosition(SpriteID,x#,y#)
	SetSpriteAngle(SpriteID, angle#)
	SetSpriteOffset(SpriteID,0,0) // --> Drawing and HitPoint otherwise not the same

EndFunction

Function FENUpdate()
  temp as FENGadget
  For i=0 to vecFENGadgetList.length
  temp = vecFENGadgetList[i]

  tempAngle# = GetSkeleton2DAngle(temp.GadgetListID)+GetSpriteAngle(temp.SpriteID)

 	x# = GetFENPointRotationX(GetSpriteX(temp.SpriteID),GetSpriteY(temp.SpriteID),tempAngle#) // SetSpriteOffSet() maybe could made this unnecessary
   y# = GetFENPointRotationY(GetSpriteX(temp.SpriteID),GetSpriteY(temp.SpriteID),tempAngle#)

	x# = x# + GetSkeleton2DX(temp.GadgetListID)
	y# = y# + GetSkeleton2DY(temp.GadgetListID)

	SetTextPosition(temp.textID, x#, y#)
	SetTextAngle(temp.textID, tempAngle#)

	fMx# = ScreenToWorldX(GetRawMouseX())
	fMy# = ScreenToWorldY(GetRawMouseY())

	FENSetSpriteValues(FENDummySprite,x#,y#,GetSpriteWidth(temp.SpriteID),GetSpriteHeight(temp.SpriteID), tempAngle#)

	If GetSpriteHit(fMx#, fMy#) = FENDummySprite
		SetSpriteImage(temp.spriteID,FENGadgetImage.HoverImgID)
	Else
		SetSpriteImage(temp.spriteID,FENGadgetImage.UpImgID)
	EndIf

// DrawEllipse(x#,y#,10,10,FENColor.MAGENTA,FENColor.MAGENTA,1)

  Next
  FENSetSpriteValues(FENDummySprite,0,0,0,0,0)


EndFunction

// ----------- END GUI -----------------------------------------

FENInit()

SetViewZoom(0.3)
SetViewOffset(30000,30000)

SetViewOffset(0,0)
SetViewZoom(1)

CreateFENBtn(menuID, 5,60,100,30,"Hallo")
CreateFENBtn(menuID, 5,20,120,20,"Moin")

SetSkeleton2DRotation(menuID,20) // Rotation is a problem

do
    Print( Str(ScreenFPS(),2) )



    Print("Zoom: "+Str(GetViewZoom(),2))
    Print(Str(GetViewOffsetX(),2)+":"+Str(GetViewOffsetY(),2))

    Print(Str(GetRawMouseX(),2)+":"+Str(GetRawMouseX(),2))
    Print(Str(WorldToScreenX(GetRawMouseX()),2)+":"+Str(WorldToScreenY(GetRawMouseX()),2))


    FL_gamepadInput()

    FENUpdate()

   // DrawEllipse(GetSkeleton2DX(menuID),GetSkeleton2DY(menuID),10,10,FENColor.RED,FENColor.RED,1)
   // DrawEllipse(GetRawMouseX(),GetRawMouseY(),10,10,FENColor.MAGENTA,FENColor.MAGENTA,1)



    Sync()
loop

Function FL_gamepadInput()
	maxJ = 4
	ScrollSpeed# = 1000
	ZoomSpeed# = 1
	minZoom# = 0.1
	maxZoom# = 4
		For j=1 to maxJ
			If GetRawJoystickExists(j)	// If GetRawJoystickName() // geht nicht auf Android :-(
				Print ("Joy: "+Str(j)+" : "+GetRawJoystickName(j))
				SetViewOffset(GetViewOffsetX()+GetRawJoystickX(j) * GetFrameTime() * Scrollspeed#, GetViewOffsetY()+GetRawJoystickY(j) * GetFrameTime() * Scrollspeed#)
				If (GetRawJoystickRX(j)<0 and GetViewZoom() > minZoom#) or (GetRawJoystickRX(j)>0 and GetViewZoom()<maxZoom#)
					SetViewZoom(GetViewZoom()+GetRawJoystickRX(j) * GetFrameTime() * ZoomSpeed#)
				EndIf
			EndIf

		Next
Endfunction

+ Code Snippet

// Project: SkeletonGUI
// Created: 19-11-25, xaby

// show all errors

SetErrorMode(2)

// set window properties
SetWindowTitle( "SkeletonGUI" )
SetWindowSize( 1280, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1280, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 )


// Project: FLEVEL
// Created: 19-11-16

// show all errors

SetErrorMode(2)

// set window properties
SetWindowTitle( "FLEVEL" )
SetWindowSize( 1280, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1280, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30000, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 )


//--------------------------------------------------------------------

menuID = LoadSkeleton2DFromSpriterFile("OneBoneOnly.scon",1,0)
img = CreateImageColor(100,200,100,255)
spr = CreateSprite(img)
SetSpriteSize(spr,100,200)
FixSkeleton2DToScreen(menuID,1)
FixSpriteToSkeleton2D(spr, menuID, 0, 0)
FixSpriteToScreen(spr,1)
SetSkeleton2DPosition(menuID, 1100,100)
SetSkeleton2DRotation(menuID, 0)


img = CreateImageColor(200,0,200,255)
spr = CreateSprite(img)
SetSpriteSize(spr,200,50)
SetSpritePosition(spr,300,300)
SetSpriteAngle(spr,60)


//SetSkeleton2DPosition(menuID, 31000,31000)


// ------------ GUI ---------------------



Type FENGadgetColor
  Up as integer
  Down as integer
  Hover as integer
  NotActive as integer

  TextColor as integer
  RED as integer
  MAGENTA as integer
EndType

Global FENColor as FENGadgetColor

Function FENCreateGadgetColors()
	FENColor.Up = MakeColor(230,230,230,255) // White - Light-Grey
	FENColor.Down = MakeColor(150,255,150,255)// Green
	FENColor.Hover = MakeColor(200,230,200,255)// light Green
	FENColor.NotActive = MakeColor(100,100,100,255)

	FENColor.TextColor = MakeColor(0,30,255,255)
	FENColor.RED = MakeColor(255,0,0,255)	// for debug and so on
	FENColor.MAGENTA = MakeColor(255,0,255,255)	// for debug and so on
EndFunction


Type FENGadgetImageID
  UpImgID as integer
  DownImgID as integer
  HoverImgID as integer
  NotActiveImgID as integer
EndType

Global FENGadgetImage as FENGadgetImageID

Function FENCreateGadgetImages()
	FENGadgetImage.UpImgID = CreateImageColor(GetColorRed(FENColor.Up),GetColorGreen(FENColor.Up),GetColorBlue(FENColor.Up),GetColorAlpha(FENColor.Up))
	FENGadgetImage.DownImgID = CreateImageColor(GetColorRed(FENColor.Down),GetColorGreen(FENColor.Down),GetColorBlue(FENColor.Down),GetColorAlpha(FENColor.Down))
	FENGadgetImage.HoverImgID = CreateImageColor(GetColorRed(FENColor.Hover),GetColorGreen(FENColor.Hover),GetColorBlue(FENColor.Hover),GetColorAlpha(FENColor.Hover))
	FENGadgetImage.NotActiveImgID = CreateImageColor(GetColorRed(FENColor.NotActive),GetColorGreen(FENColor.NotActive),GetColorBlue(FENColor.NotActive),GetColorAlpha(FENColor.NotActive)) // dark-grey
EndFunction



Type FENGadget

	textID as integer
	spriteID as integer // imageID
	imageID as integer // everytime the same?
	GadgetType as integer // Btn, checkbox
	GadgetState as integer // up, down, hover, checked // like events
	Active as integer
	Visible as integer
   GadgetListID as integer // nested, 0 if no GadgetList is in use // Bone!
   GadgetListBone as integer // mostly always zero
EndType

global vecFENGadgetList as FENGadget[] // buttons and windows

Function CreateFENBtn(WindowSkeletonID, x#, y#, xl#, yl#, text$)
	temp as FENGadget

	temp.imageID = FENGadgetImage.UpImgID

	temp.spriteID = CreateSprite(temp.imageID)

	SetSpriteSize(temp.SpriteID,xl#,yl#)
	SetSpritePosition(temp.SpriteID,x#,y#)

	temp.textID = CreateText(text$)

	SetTextSize(	temp.textID, yl#)
	SetTextPosition(temp.textID,x#,y#)
	SetTextColor(temp.textID,GetColorRed(FENColor.TextColor),GetColorGreen(FENColor.TextColor),GetColorBlue(FENColor.TextColor),GetColorAlpha(FENColor.TextColor))

	temp.GadgetListID = WindowSkeletonID
	temp.GadgetListBone = 0

	FixSpriteToSkeleton2D(temp.SpriteID, temp.GadgetListID, temp.GadgetListBone, 0)
	FixSpriteToScreen(temp.SpriteID,1) //
	FixTextToScreen(temp.textID,1)

	vecFENGadgetList.insert(temp)
EndFunction

Function GetFENPointRotationX(x# as float,y# as float,angle# as float)
	value# = x#*cos(angle#)-y#*sin(angle#)
EndFunction	value#

Function GetFENPointRotationY(x# as float,y# as float,angle# as float)
	value# = y#*cos(angle#)+x#*sin(angle#)
EndFunction value#


Global FENDummySprite as integer
Global FENMousePoint as integer // is a Sprite

Function FENInit()
	FENCreateGadgetColors()
   FENCreateGadgetImages() // needs Colors before!
	FENDummySprite = CreateDummySprite()
	FixSpriteToScreen(FENDummySprite,1)

	img = CreateImageColor(255,0,0,255)
 	FENMousePoint = CreateSprite(img)

EndFunction

Function FENSetSpriteValues(SpriteID, x#, y#, xl#, yl#, angle#)

	SetSpriteSize(SpriteID,xl#, yl#)
	SetSpritePosition(SpriteID,x#,y#)
	SetSpriteAngle(SpriteID, angle#)
	SetSpriteOffset(SpriteID,0,0) // --> Drawing and HitPoint otherwise not the same

EndFunction


Function FENUpdate()
  temp as FENGadget
  For i=0 to vecFENGadgetList.length
  temp = vecFENGadgetList[i]

  tempAngle# = GetSkeleton2DAngle(temp.GadgetListID)+GetSpriteAngle(temp.SpriteID)

 	x# = GetFENPointRotationX(GetSpriteX(temp.SpriteID),GetSpriteY(temp.SpriteID),tempAngle#) // SetSpriteOffSet() maybe could made this unnecessary
   y# = GetFENPointRotationY(GetSpriteX(temp.SpriteID),GetSpriteY(temp.SpriteID),tempAngle#)

	x# = x# + GetSkeleton2DX(temp.GadgetListID)
	y# = y# + GetSkeleton2DY(temp.GadgetListID)

	SetTextPosition(temp.textID, x#, y#)
	SetTextAngle(temp.textID, tempAngle#)

	fMx# = ScreenToWorldX(GetRawMouseX())
	fMy# = ScreenToWorldY(GetRawMouseY())

	FENSetSpriteValues(FENDummySprite,x#,y#,GetSpriteWidth(temp.SpriteID),GetSpriteHeight(temp.SpriteID), tempAngle#)

	If GetSpriteHit(fMx#, fMy#) = FENDummySprite
		SetSpriteImage(temp.spriteID,FENGadgetImage.HoverImgID)
	Else
		SetSpriteImage(temp.spriteID,FENGadgetImage.UpImgID)
	EndIf


   // DrawEllipse(x#,y#,10,10,FENColor.MAGENTA,FENColor.MAGENTA,1)

  Next
  FENSetSpriteValues(FENDummySprite,0,0,0,0,0)


EndFunction

// ----------- END GUI -----------------------------------------


FENInit()

SetViewZoom(0.3)
SetViewOffset(30000,30000)

SetViewOffset(0,0)
SetViewZoom(1)


CreateFENBtn(menuID, 5,60,100,30,"Hallo")
CreateFENBtn(menuID, 5,20,120,20,"Moin")

SetSkeleton2DRotation(menuID,20) // Rotation is a problem


do
    Print( Str(ScreenFPS(),2) )



    Print("Zoom: "+Str(GetViewZoom(),2))
    Print(Str(GetViewOffsetX(),2)+":"+Str(GetViewOffsetY(),2))

    Print(Str(GetRawMouseX(),2)+":"+Str(GetRawMouseX(),2))
    Print(Str(WorldToScreenX(GetRawMouseX()),2)+":"+Str(WorldToScreenY(GetRawMouseX()),2))


    FL_gamepadInput()

    FENUpdate()

   // DrawEllipse(GetSkeleton2DX(menuID),GetSkeleton2DY(menuID),10,10,FENColor.RED,FENColor.RED,1)
   // DrawEllipse(GetRawMouseX(),GetRawMouseY(),10,10,FENColor.MAGENTA,FENColor.MAGENTA,1)



    Sync()
loop


Function FL_gamepadInput()
	maxJ = 4
	ScrollSpeed# = 1000
	ZoomSpeed# = 1
	minZoom# = 0.1
	maxZoom# = 4
		For j=1 to maxJ
			If GetRawJoystickExists(j)	// If GetRawJoystickName() // geht nicht auf Android :-(
				Print ("Joy: "+Str(j)+" : "+GetRawJoystickName(j))
				SetViewOffset(GetViewOffsetX()+GetRawJoystickX(j) * GetFrameTime() * Scrollspeed#, GetViewOffsetY()+GetRawJoystickY(j) * GetFrameTime() * Scrollspeed#)
				If (GetRawJoystickRX(j)<0 and GetViewZoom() > minZoom#) or (GetRawJoystickRX(j)>0 and GetViewZoom()<maxZoom#)
					SetViewZoom(GetViewZoom()+GetRawJoystickRX(j) * GetFrameTime() * ZoomSpeed#)
				EndIf
			EndIf

		Next
Endfunction

Attachments

Login to view attachments

Back to top

Profile PM Website

Sorry your browser is not supported!

AppGameKit Classic Chat / How do I create a Bone for a 2DSkeleton? e.g. for GUI, Groups, Layers

Attachments

Attachments
