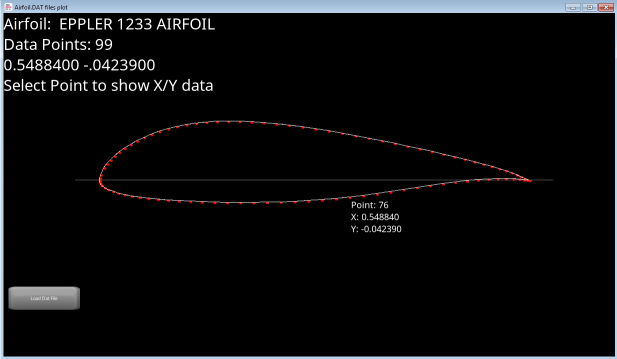

// Project: Airfoil.DAT files plot
// Created: 20-03-26
// show all errors

SetErrorMode(2)

// set window properties
SetWindowTitle( "Airfoil.DAT files plot " )
SetWindowSize( 1280, 720, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1280, 720 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 )

Global scalex As Float = 900
Global scaley As Float = 900
Global StartX As Float = 200
Global StartY As Float = 350
Global coord As Float = 100
Global spr As Integer[200]
Global txt As Integer[200]
Global header As String
Global counter As Integer
Global dot As Integer
Global editstring As String
Global fid As String

Type airfoil
	id As Integer
	s As String
	x As Float
	y As Float
	Calc_x As Float
	Calc_y As Float
EndType

Global plot As airfoil[200]


AddVirtualButton(1,0,0,80)
SetVirtualButtonText(1,"Load Dat File")
SetVirtualButtonSize(1,150,50)
SetVirtualButtonPosition(1,85,GetDeviceHeight()-90)


Do

	spritehit=GetSpriteHit(GetPointerX(),GetPointerY())

	If spritehit > 0
		s= spritehit - 100000
		If spritehit
			txt$ = "Point: "+Str(plot[s].id)+Chr(10)+"X: "+Str(plot[s].x)+Chr(10)+"Y: "+Str(plot[s].y)
			If GetTextExists(s)
				SetTextString(s,txt$)
				Else
				CreateText(s,txt$)
			EndIF
			SetTextPosition(s,GetPointerX(),GetPointerY())
			SetTextSize(s,25)
			SetTextColor(s,255,255,255,255)
		EndIF
	Else
		DeleteAllText()
	EndIF

	If GetVirtualButtonPressed(1)
		Load_AirfoilDatFile()
		draw_airfoildots()
	EndIF

	draw_airfoillines()

	If Len(fid) =0
		Print("Please load an Airfoil DAT file, to Continue")
	Else
		Print("Airfoil: "+header)
		Print("Data Points: "+Str(Counter))
		Print(plot[s].s)
		Print("Select Point to show X/Y data")
	EndIF

	Sync()

Loop

Function load_airfoilDatFile()
	DeleteAllSprites()
	DeleteAllText()

	DrawEllipse(120,120,3,3,MakeColor(255,0,0,255),MakeColor(255,0,0,255),1)
	dot = GetImage(117,117,6,6)


	For a = 0 To plot.length - 1
		plot[a].id=0
		plot[a].s=""
		plot[a].x=0
		plot[a].y=0
		plot[a].Calc_x=0
		plot[a].Calc_y=0
	Next a

	fid = ChooseRawFile("*.dat",1)
	a = OpenToRead("raw:"+fid)
	counter=0
	While FileEOF(a) = 0
		If counter = 0
			header = ReadLine(a)
			Inc counter
			Else
			plot[counter].s = ReadLine(a)
			Inc counter
			plot[counter].id = counter
		EndIF
	EndWhile
	CloseFile(a)

	For a = 0 To plot.length - 1
		If Len(plot[a].s) <> 0
			plot[a].id = a
			If a > 0
				l = FindString(plot[a].s," ",1,1)
				plot[a].x = ValFloat(Mid(plot[a].s,1,l))
				plot[a].y = ValFloat(Mid(plot[a].s,l,Len(plot[a].s)-l))

				plot[a].Calc_x = (((coord * plot[a].x) * scaleX) / 100)
				plot[a].Calc_y = (((coord * plot[a].y) * scaley) / 100)
			EndIF
		EndIF
	Next a

EndFunction

Function draw_airfoillines()
	For a = 0 To plot.length - 1
		If Len(plot[a].s) <> 0
			If a = 1
				DrawLine(StartX-50 , StartY , ScaleX+startx+50 , StartY ,120,120,120)
			EndIF
			If a > 1
				DrawLine(StartX + plot[a].Calc_x, StartY - plot[a].Calc_y, StartX + plot[a-1].Calc_x, StartY - plot[a-1].Calc_y ,255,255,255)
			EndIF
		EndIF
	Next a
EndFunction


Function draw_airfoildots()
	For a = 1 To plot.length
		If Len(plot[a].s) <> 0
			If a > 1
				spr[a] = CreateSprite(dot)
				plot[a].id = spr[a]-100000
				SetSpritePosition(spr[a],StartX + plot[a].Calc_x,StartY - plot[a].Calc_y)
			EndIF
		EndIF
	Next a
EndFunction
