//Shader code by Mark Blosser
//WEBSITE: www.hyrumark.com
//EMAIL: [email protected]
//Description: Shader for dynamic entities, normal mapping,specular, reflectivity,
// and "hero" spec that always faces player. "LightSource" variable is pulled from FPSC for accurate lighting.
//
//Textures:
//"texture_D.dds" diffuse texture
//"texture_I.dd" specular texture, alpha channel is reflectivity mask
//"texture_N.dds" normal map texture
//"texture_S.dds" reflectivity texture
/************* UNTWEAKABLES **************/
float4x4 World : WORLD;
float4x4 WorldViewProj : WorldViewProjection;
float4x4 WorldIT : WorldInverseTranspose;
float4x4 ViewInv : ViewInverse;
float4 eyePos : CameraPosition;
float time: Time;
/******TWEAKABLES***************************/
float SpecExpon : Power
<
string UIWidget = "slider";
float UIMin = 1.0;
float UIMax = 128.0;
float UIStep = 1.0;
string UIName = "specular power";
> = 64.0;
/******VALUES PULLED FROM FPSC - NON TWEAKABLE**********/
float4 AmbiColor : Ambient
<
string UIName = "Ambient Light Color";
> = {0.1f, 0.1f, 0.1f, 1.0f};
float4 SurfColor : Diffuse
<
string UIName = "Surface Color";
string UIType = "Color";
> = {0.50f, 0.50f, 0.50f, 1.0f};
float4 LightSource
<
string UIType = "Fixed Light Source";
> = {50000.0f,50000.0f, -0.0f, 1.0f};
/****************** TEXTURES AND SAMPLERS*********************/
texture DiffuseMap : DiffuseMap
<
string Name = waterfall_large_D.dds;
string type = "2D";
>;
//could be anything here - ill,spec,normal,cube
texture EffectMap : DiffuseMap
<
string Name = waterfall_large_I.dds;
string type = "2D";
>;
texture NormalMap : DiffuseMap
<
string Name = waterfall_large_N.dds;
string type = "2D";
>;
texture EnvironmentMap
<
string type = "2D";
string name = waterfall_large_I.dds;
>;
//Diffuse Texture _D
sampler2D DiffuseSampler = sampler_state
{
Texture = <DiffuseMap>;
MipFilter = LINEAR;
MinFilter = LINEAR;
MagFilter = LINEAR;
AddressU = WRAP;
AddressV = WRAP;
};
//Effect Texture _I (could be anything here - ill,spec,normal,cube)
sampler2D EffectSampler = sampler_state
{
Texture = waterfall_large_I.dds;
MipFilter = LINEAR;
MinFilter = LINEAR;
MagFilter = LINEAR;
AddressU = WRAP;
AddressV = WRAP;
};
//Effect Texture _N (could be anything here - ill,spec,normal,cube)
sampler2D NormalSampler = sampler_state
{
Texture = waterfall_large_N.dds;
MipFilter = LINEAR;
MinFilter = LINEAR;
MagFilter = LINEAR;
AddressU = WRAP;
AddressV = WRAP;
};
//Effect Texture _S fake cubemap texture (blurred 2d image)
sampler EnvironmentSampler = sampler_state
{
Texture = waterfall_large_S.dds;
MipFilter = LINEAR;
MinFilter = LINEAR;
MagFilter = LINEAR;
AddressU = WRAP;
AddressV = WRAP;
};
;
/************* DATA STRUCTS **************/
struct appdata {
float4 Position : POSITION;
float4 UV0 : TEXCOORD0;
float4 Normal : NORMAL;
float4 Tangent : TANGENT0;
float4 Binormal : BINORMAL0;
};
/*data passed to pixel shader*/
struct vertexOutput
{
float4 Position : POSITION;
float2 TexCoord : TEXCOORD0;
float3 LightVec : TEXCOORD2;
float3 WorldNormal : TEXCOORD3;
float3 WorldTangent : TEXCOORD4;
float3 WorldBinorm : TEXCOORD5;
float4 WPos : TEXCOORD6;
};
/*******Vertex Shader***************************/
vertexOutput mainVS(appdata IN)
{
vertexOutput OUT;
//float4 tempPos = float4(IN.Position, 1);
float4 worldSpacePos = mul(IN.Position, World);
OUT.WorldNormal = normalize(mul(IN.Normal, WorldIT).xyz);
OUT.WorldTangent = mul(IN.Tangent, WorldIT).xyz;
OUT.WorldBinorm = mul(IN.Binormal, WorldIT).xyz;
OUT.LightVec = normalize (LightSource - worldSpacePos );
OUT.Position = mul(IN.Position, WorldViewProj);
OUT.TexCoord = IN.UV0;
OUT.WPos = worldSpacePos;
/*******************************************************************************************/
return OUT;
}
/****************Framgent Shader*****************/
float4 mainPS(vertexOutput IN) : COLOR
{
//Code chunk to keep time value from getting too high/////////////////////
float looptime = 50; //looptime in seconds
float loopcounter = floor(time/looptime); //increments by one every 50 seconds (or whatever "looptime" is)
float offset ; //initialize offset value used below
offset = looptime*loopcounter; //offset time value -increments every looptime
float speed =(time) - (offset) ;
///////////////////////////////////////////////////////////////////////////
//scrolling the uv coordinates
float2 scroll = IN.TexCoord + float2(-0.0,-0.70)*speed;
float4 diffuse = tex2D(DiffuseSampler,scroll.xy); //sample diffuse texture
float4 effectmap = tex2D(EffectSampler,IN.TexCoord.xy); //sample specular map texture
float3 normalmap = tex2D(NormalSampler,scroll.xy) *2-1 ; //sample and expand normal map
float3 Ln = (IN.LightVec);
float3 Nn = normalize(IN.WorldNormal);
float3 Tn = normalize(IN.WorldTangent);
float3 Bn = normalize(IN.WorldBinorm);
float3 Nb = (normalmap.z * Nn) + (1.0*(normalmap.x * Tn + normalmap.y * Bn));
Nb = normalize(Nb);
//normalized view vector for accurate specular highlights from LightSource
float3 ViewVector = (eyePos - IN.WPos);
float3 Vn = normalize(ViewVector);
//reflection mapping for windows and flat surfaces
float3 G = normalize(2 * dot(Nb, Vn) * Nb - Vn); // glance vector (view space)
float3 Reflection = float3(-G.x, G.y, -G.z);
float4 Env = tex2D(EnvironmentSampler,Reflection);
//float4 Env = texCUBE(EnvironmentSampler,Reflection); //no longer works without an actual cubemap
//half vectors
float3 Hn = normalize(Vn+Ln);
//calculate lighting Half Lamert scale and bias
//float4 lighting = lit(pow(0.5*(dot(Ln,Nb))+0.5,1.0),dot(Hn,Nb),24);
float4 spec = pow(max(dot(Nb,Hn),0),24);
//SurfColor = SurfColor + 0.3;
SurfColor = clamp(SurfColor,0.1,0.5);
//specular light contribution
float4 specContrib = spec * effectmap * SurfColor ;
//Cubemap reflection contribution
float4 Reflectivity = Env;
float4 result = (0.6*diffuse*SurfColor)+(0.4*Reflectivity)+1.4*specContrib;
result.w = 0.5 * diffuse.w;
return result;
}
/****** technique ********************************/
technique dx9textured
{
pass P0
{
// lighting
Lighting = FALSE;
FogEnable = FALSE;
ZWriteEnable = FALSE;
// samplers
//Sampler[0] = (LightmapSampler);
//Sampler[1] = (DiffuseSampler);
//Sampler[2] = (IllSpecSampler);
//Sampler[3] = (NormalSampler);
// shaders
VertexShader = compile vs_2_0 mainVS();
PixelShader = compile ps_2_0 mainPS();
}
}
Where is there a syntax list for the effects?

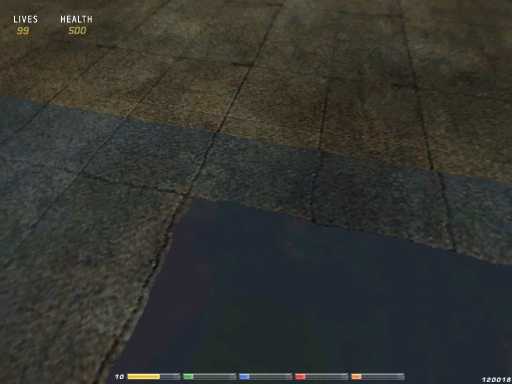

I dont understad why i still have a static waterfall sheet... I don't understand what most of these values are for, i entered what I thought it was requiring but i didnt make any progress. i've been looking for an fx syntax list but i can't find one if it exists
