Recently added Convex extrusion for both x and z axis, a method that could be used for bringing an edited photo to life
note: If both are selected you should get a cylindrical dome edge to one side of the object, still lots to do.

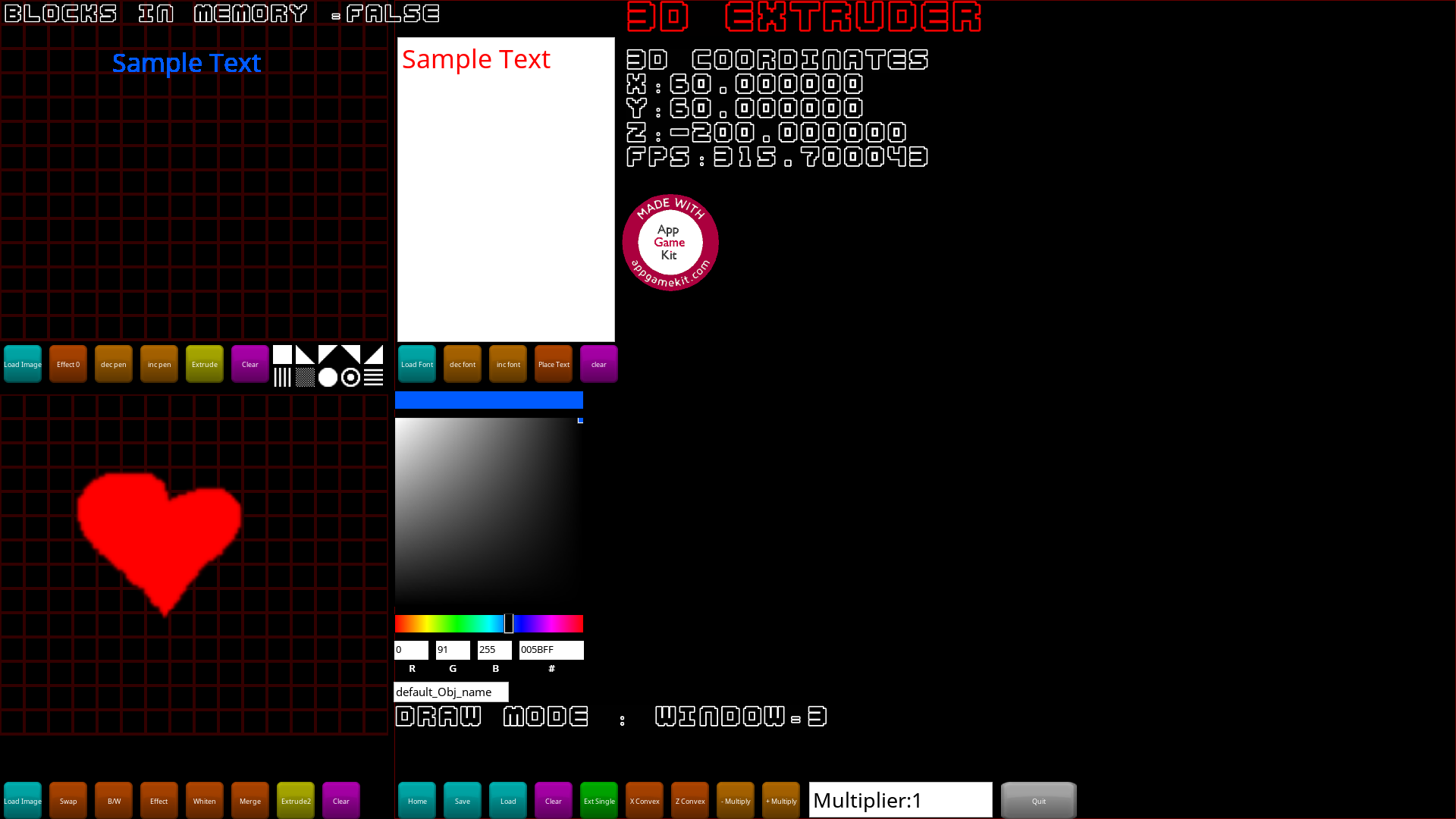

Program converts a drawing to a 3d image
Window 1
Left mouse draws
Right mouse erases

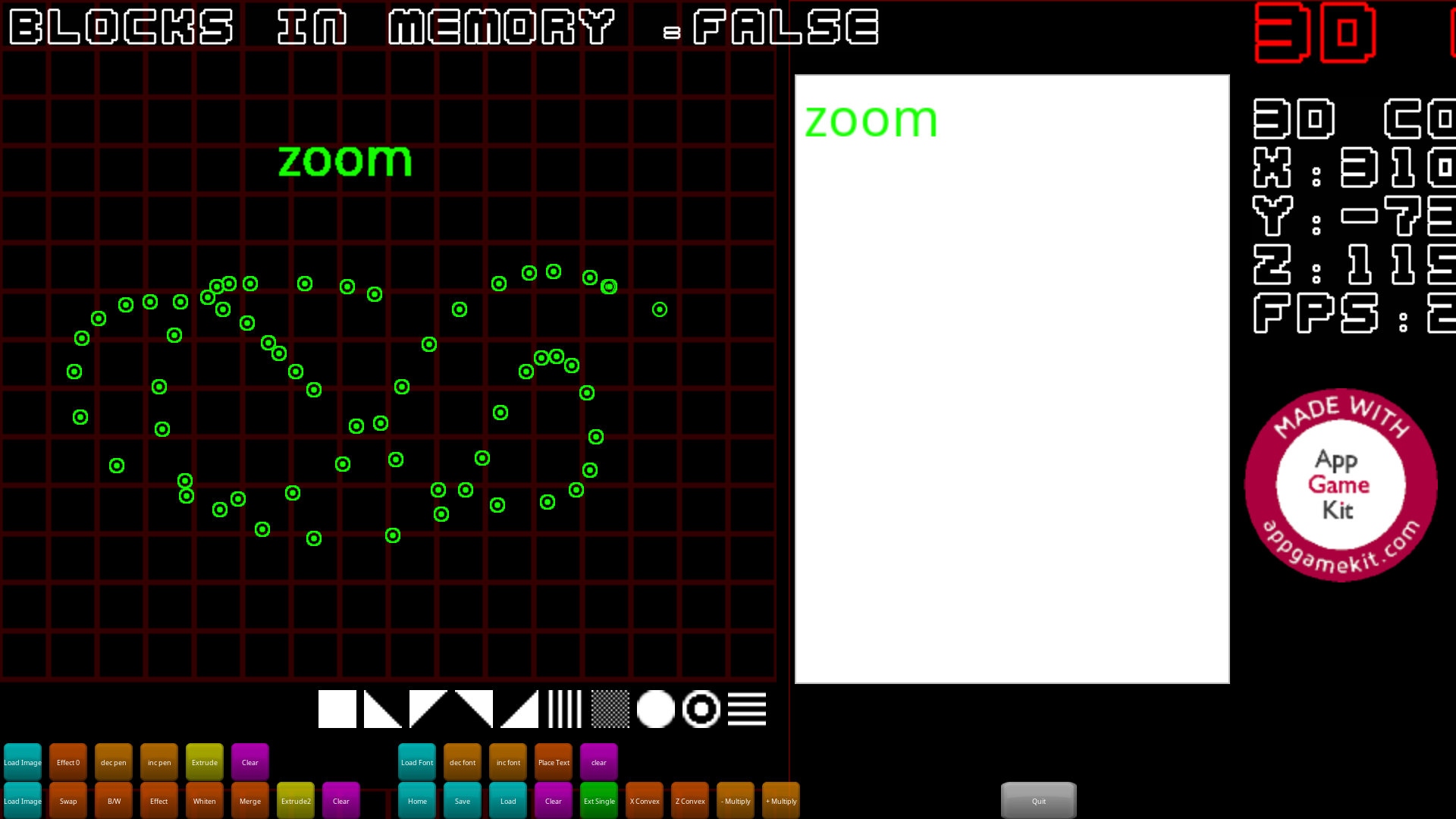

F2 Zooms into window 1
F3 Zooms into window 2
F4 Zooms out
ESC quits program
in draw Modes (window 0 or 1)
Left click draws with selected colour
middle mouse button flood fills an area
Right click draws black
Shift back space undoes previous draw
possible extrsusions
extsingle extrudes based on color ie white is tall black is short
extsingle
xconvex extrudes top as an xconvex
zconvex extrudes top as an zconvex
using both at once produces a spherical top
extdouble
same as extsingle with the exception it does it in both positive and negeative directions
Extflat
ignores xconvex and yconvex
The multiplier
just uses maths to amplify the ammount
please note
the extrude button is in one of the draw windows
this is so as two draws can be worked on and tested
the merge button is used to merge two drawings
the text box in window 3 saves the objects in the folders media directory
mouse left click outside of window 1 pans camera
numeric keypad adjusts position of camera
The effect buttons invert/reverse colors

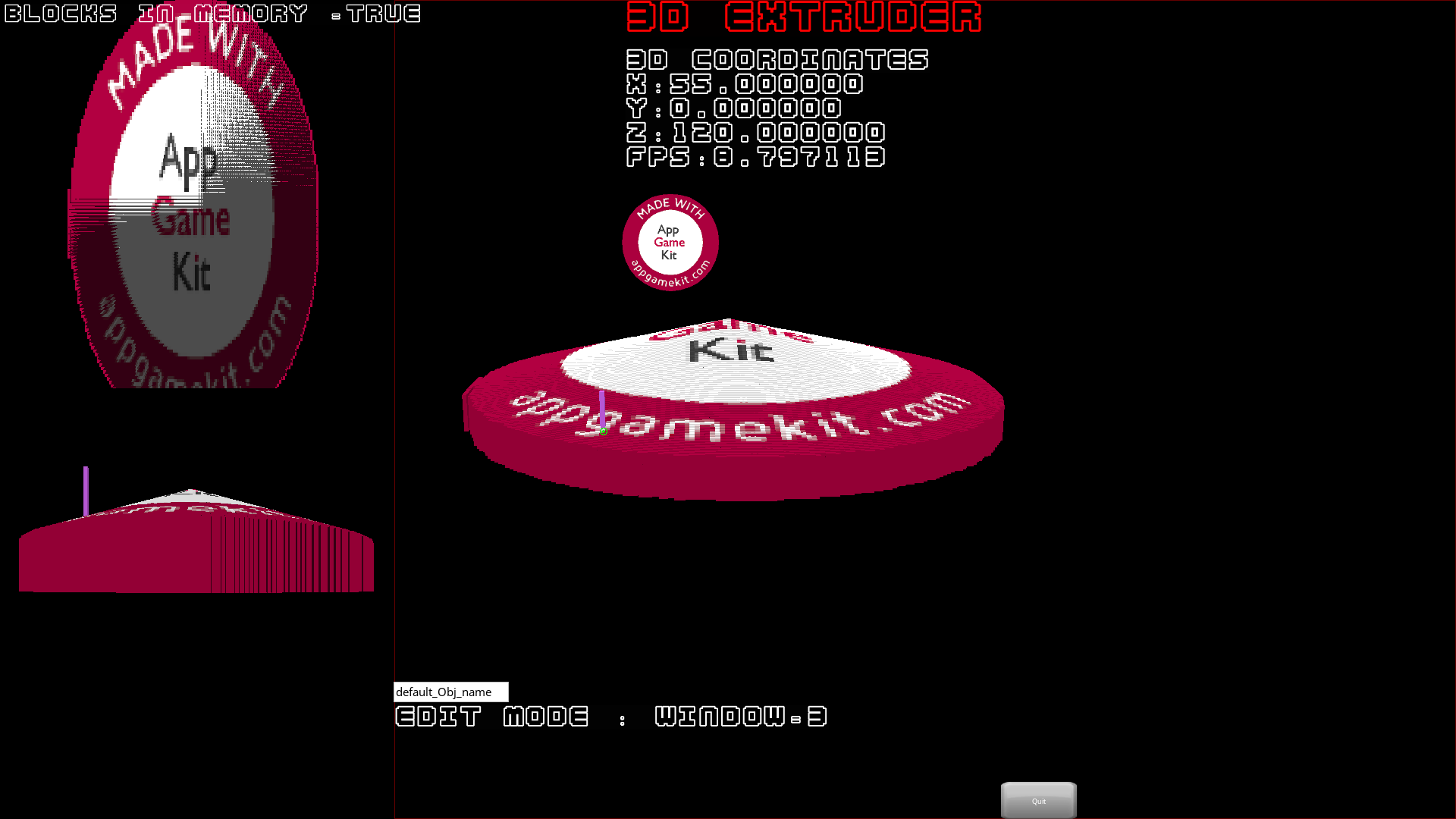

Extrude converts the image to a 3d object
dec and inc pen adjusts the drawing pen
any image may be loaded and converted to a 3d model
in edit mode and window 3
move mouse around with left click an move
shift left click raises box
shift right click lowers box
shift backspace undoes
del deletes selected block
---------------------------------------------------------
PS a remake of the program called mesh extrude available on the forums. The new version adds, some basic drawing ability
and can extrude quite fast and saves in colour using an object material file. There are other little options like merging between
two window workspaces, grayscaling the work window etc. Lots to do, not sure what people think of this development
so im putting out a video.
fubarpk
