//  Truevision 3D SDK 3D test
// Declare what you are using in this application
using System;
using System.Drawing;
using System.Collections;
using System.ComponentModel;
using System.Windows.Forms;
using System.Data;
using TrueVision3D; //Add the TrueVision3D lib to the USES clause.

namespace Truevision_Game_Test
{


    /// <summary>
    /// Summary description for Form1.
    /// </summary>
    public class Form1 : System.Windows.Forms.Form
    {

        /// <summary>
        ///  These are the classes that have to be declared if you choose to use them
        /// We will need the classes so C# knows what part of Truevision we are using
        /// and makes truevision related commands valid (only valid to those in declared classes)
        /// So if were were to use anything 'Global' then we would us TVGlobals and declare any name we
        /// decide for it, make it sensible.
        /// For this we will need only to use these ones here (Some are not used, but
        /// they are from previous test leading up to this code
        /// </summary>

        TrueVision3D.TVEngineClass tv;
        TrueVision3D.TVSceneClass scene;
        TrueVision3D.TVInputEngineClass input;
        TrueVision3D.TVMeshClass teapot;
        TrueVision3D.TVScreen2DText tv2dt;
        TrueVision3D.TVGlobals TVGlobal;
        TrueVision3D.TVMeshClass Room;
        TrueVision3D.TVCamera Camera;


        //These variables will need to be declared, these will be used for camera positions etc
        //at the moment they carry no value we will use, but we have made them as floats
        //and you should know what a float is, if not, I pity you.


        float sngPositionX;
        float sngPositionY;
        float sngPositionZ;
        float sngLookAtX;
        float sngLookAtY;
        float sngLookAtZ;
        float sngWalk;
        float sngStrafe;
        float sngAngleX, sngAngleY;


        //More variables, but more of the mouse input
        int tmpMouseX, tmpMouseY;
        short tmpMouseB1, tmpMouseB2, tmpMouseB3;
        int tmpMouseScrollOld, tmpMouseScrollNew;
        //Declare the 'finished' varible and set its initial value
        int NotFinished = 1;


        //This stuff is all automatic in C#, I wouldn't worry about the automatic stuff
        private System.Windows.Forms.PictureBox pictureBox1;
        //these three are for the menu strip, you can ignore it
        private MenuStrip menuStrip1;
        private ToolStripMenuItem gameToolStripMenuItem;
        private ToolStripMenuItem quitToolStripMenuItem;

        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.Container components = null;

        public Form1()
        {
            //
            // Required for Windows Form Designer support
            //
            InitializeComponent();



            //
            // TODO: Add any constructor code after InitializeComponent call
            //
        }

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        protected override void Dispose(bool disposing)
        {
            NotFinished = 0;
            tv = null;
            scene = null;

            if (disposing)
            {
                if (components != null)
                {
                    components.Dispose();
                }
            }
            base.Dispose(disposing);
        }

        //This next bit is Windows form generated until the comment signifying an end

        #region Windows Form Designer generated code
        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(Form1));
            this.pictureBox1 = new System.Windows.Forms.PictureBox();
            this.menuStrip1 = new System.Windows.Forms.MenuStrip();
            this.gameToolStripMenuItem = new System.Windows.Forms.ToolStripMenuItem();
            this.quitToolStripMenuItem = new System.Windows.Forms.ToolStripMenuItem();
            ((System.ComponentModel.ISupportInitialize)(this.pictureBox1)).BeginInit();
            this.menuStrip1.SuspendLayout();
            this.SuspendLayout();
            //
            // pictureBox1
            //
            this.pictureBox1.Dock = System.Windows.Forms.DockStyle.Fill;
            this.pictureBox1.Location = new System.Drawing.Point(0, 24);
            this.pictureBox1.Name = "pictureBox1";
            this.pictureBox1.Size = new System.Drawing.Size(584, 461);
            this.pictureBox1.TabIndex = 0;
            this.pictureBox1.TabStop = false;
            //
            // menuStrip1
            //
            this.menuStrip1.Items.AddRange(new System.Windows.Forms.ToolStripItem[] {
            this.gameToolStripMenuItem});
            this.menuStrip1.Location = new System.Drawing.Point(0, 0);
            this.menuStrip1.Name = "menuStrip1";
            this.menuStrip1.Size = new System.Drawing.Size(584, 24);
            this.menuStrip1.TabIndex = 2;
            this.menuStrip1.Text = "menuStrip1";
            //
            // gameToolStripMenuItem
            //
            this.gameToolStripMenuItem.DropDownItems.AddRange(new System.Windows.Forms.ToolStripItem[] {
            this.quitToolStripMenuItem});
            this.gameToolStripMenuItem.Name = "gameToolStripMenuItem";
            this.gameToolStripMenuItem.Size = new System.Drawing.Size(50, 20);
            this.gameToolStripMenuItem.Text = "Game";
            //
            // quitToolStripMenuItem
            //
            this.quitToolStripMenuItem.Name = "quitToolStripMenuItem";
            this.quitToolStripMenuItem.Size = new System.Drawing.Size(107, 22);
            this.quitToolStripMenuItem.Text = "Quit";
            this.quitToolStripMenuItem.Click += new System.EventHandler(this.quitToolStripMenuItem_Click);
            //
            // Form1
            //
            this.AutoScaleBaseSize = new System.Drawing.Size(5, 13);
            this.ClientSize = new System.Drawing.Size(584, 485);
            this.Controls.Add(this.pictureBox1);
            this.Controls.Add(this.menuStrip1);
            this.Icon = ((System.Drawing.Icon)(resources.GetObject("$this.Icon")));
            this.MainMenuStrip = this.menuStrip1;
            this.Name = "Form1";
            this.StartPosition = System.Windows.Forms.FormStartPosition.CenterScreen;

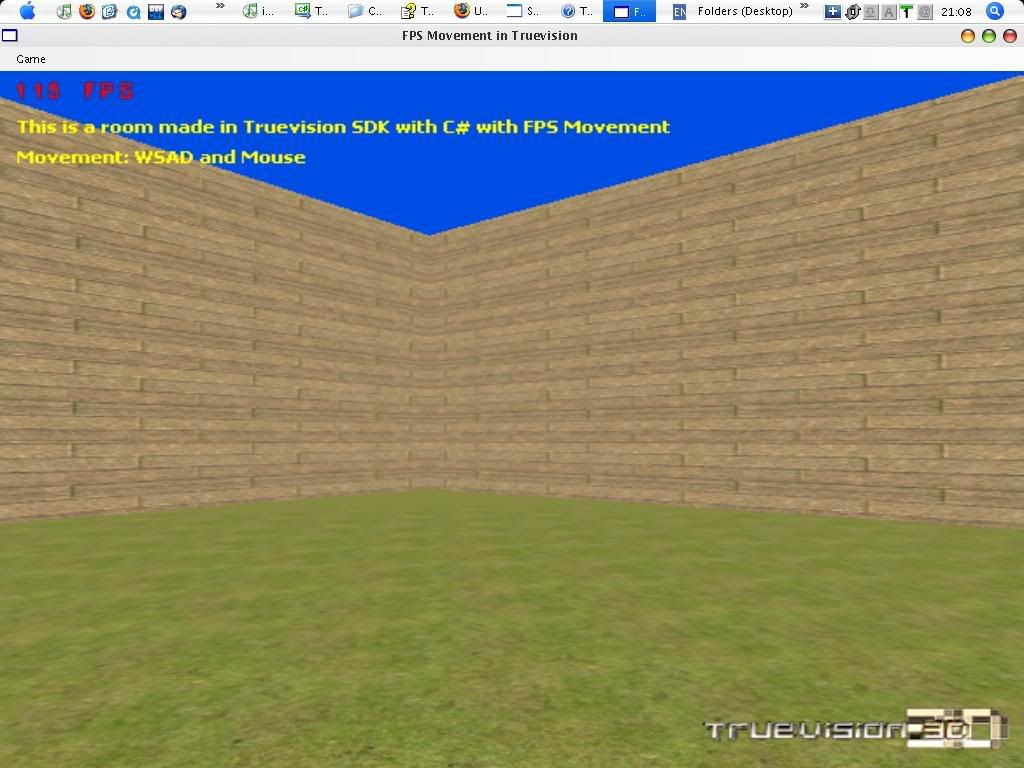

            this.Text = "FPS Movement in Truevision";
            this.Load += new System.EventHandler(this.Form1_Load);
            ((System.ComponentModel.ISupportInitialize)(this.pictureBox1)).EndInit();
            this.menuStrip1.ResumeLayout(false);
            this.menuStrip1.PerformLayout();
            this.ResumeLayout(false);
            this.PerformLayout();

        }
        #endregion

        /// <summary>
        /// End of windows forms generated code
        ///
        /// The main entry point for the application.
        /// Starts the application
        /// </summary>
        [STAThread]
        static void Main()
        {
            Application.Run(new Form1());
        }
        //This private void is useful for loading parts, there is no loop, so texture/object files
        //all can be loaded here
        private void Form1_Load(object sender, System.EventArgs e)
        {
            // SetUp the newly declared parts
            //For those experienced with Dark Basic, it could be described as this part is like
            //x# = object position x(1), however you will need these when you want to make
            //a command, you will use these labels as prefixes to the commands you will need
            //to use, look at tv = new TVEngineClass(); tv would be used as tv.something, for
            //example, look futher down to find tv.SetDebugFile, the command SetDebugFile is
            //a command from the Engine class (look at the classes in the TV3D help files)
            //which is why you will need the .tv infront of it

            //We declared these new labels, now when these labels if you like are
            //used at anytime like 'tv.DisplayFPS' tv will start a new class of the
            //TV EngineClass and will use the 'DisplayFPS' command found inside of it
            //So be sure to use all of the previous declared ones
            tv = new TVEngineClass();
            scene = new TVSceneClass();
            teapot = new TVMeshClass();
            tv2dt = new TVScreen2DText();
            TVGlobal = new TVGlobals();
            Room = new TVMeshClass();
            Camera = new TVCamera();
            input = new TVInputEngineClass();
            //Show the App before we init
            this.Show();
            this.Focus();

            //Set the debug output file
            tv.SetDebugFile("c:\testcsharp.txt");

            //Display the FPS
            tv.DisplayFPS = true;



            //This will execute the application as fullscreen
            //Arguements are = width(1024),height(768),depth(32),TnL?(true),Vsync,depthmode(The current DMode calculates the best one for your system
            //gamma, Form Handle)
            tv.Init3DFullscreen(1024, 768, 32, true, true, CONST_TV_DEPTHMODE.TV_DEPTHBUFFER_BESTBUFFER, 1, 0);

            //swap this next comment with the full screen to get a window mode which will execute through
            //the picture box labelled
            //tv.Init3DWindowedMode(pictureBox1.Handle.ToInt32(), true);
            scene.SetSceneBackGround(0.3f, 0.5f, 0.9f);
            //Earlier we made the variable, now they get numbers, just do as so
            //Set Variables
            sngPositionX = 0;
            sngPositionY = 20;
            sngPositionZ = 0;
            sngLookAtX = 0;
            sngLookAtY = 20;
            sngLookAtZ = 50;

            sngWalk = 0;
            sngStrafe = 0;

            //Set the Scene camera, this will position and point the camera as set by the
            //previous variable
            scene.SetCamera(sngPositionX, sngPositionY, sngPositionZ, sngLookAtX, sngLookAtY, sngLookAtZ);

            //This will load the textures needed and give name numbers (rather than in DBP giving numbers)
            scene.LoadTexture("C:/Documents and Settings/Bryn/Desktop/Folders (Desktop)/Cinema 4D CE 6/boat texture2.bmp", -1, -1, "wall");
            scene.LoadTexture("C:/Documents and Settings/Bryn/Desktop/Folders (Desktop)/Cinema 4D CE 6/grass_T.bmp", -1, -1, "floor");


            // create a new mesh object and call it "room"
            //This will declare progress of building a room object
            Room = (TVMeshClass)scene.CreateMeshBuilder("room");

            // add the walls to the room, and texture them, it looks confusing, but look for it
            //in the help file and what each part means is clearly explained (as with all commands)
            Room.AddWall3D(TVGlobal.GetTex("wall"), 350.0f, -350.0f, -350.0f, -350.0f, 350.0f, 5.0f, true, false, -50.0f, 5.0f, 5.0f);
            Room.AddWall3D(TVGlobal.GetTex("wall"), -350.0f, -350.0f, -350.0f, 350.0f, 350.0f, 5.0f, true, false, -50.0f, 5.0f, 5.0f);
            Room.AddWall3D(TVGlobal.GetTex("wall"), -350.0f, 350.0f, 350.0f, 350.0f, 350.0f, 5.0f, true, false, -50.0f, 5.0f, 5.0f);
            Room.AddWall3D(TVGlobal.GetTex("wall"), 350.0f, 350.0f, 350.0f, -350.0f, 350.0f, 5.0f, true, false, -50.0f, 5.0f, 5.0f);
            Room.AddFloor(TVGlobal.GetTex("floor"), -350.0f, -350 - 0f, 350.0f, 350.0f, -50.0f, 10.0f, 10.0f, true, false);
            // The render loop
            //Anything that needs to loop, will be placed here
            //This will start the loop (Not Finished had to be declared, so as during
            //the variable 'notfinished' equals the number 1, all these commands will be
            //execute continuously, hence a loop
            while (NotFinished == 1)
            {
                //Check Movement and Input
                CheckMovement();
                // Clear and Render
                tv.Clear(false);







                //This will render all availible meshes in the scene, except, we don't have anymeshes !
                //Just yet, but its a good place holder for when you add them
                scene.RenderAllMeshes(false);

                //Our 'hello world' sort of thing
                //Its pretty much straigh forward, but make sure this goes AFTER
                //Render all meshes, otherwise the text will be behind the meshes/3D objects
                tv2dt.ACTION_BeginText();
                tv2dt.NormalFont_DrawText("This is a room made in Truevision SDK with C# with FPS Movement", 10, 30, TVGlobal.RGBA(255, 255, 255, 1), "Arial10");
                tv2dt.NormalFont_DrawText("Movement: WSAD and Mouse", 10, 50, TVGlobal.RGBA(255, 255, 255, 1), "Arial10");
                tv2dt.ACTION_EndText();

                //Well, this is so that the images actually render themselves
                tv.RenderToScreen();

                // Process application messages
                Application.DoEvents();


            }

        }


        //you may ignore these 2 private voids and move onto Check Movement()
        private void button1_Click(object sender, System.EventArgs e)
        {
            Application.Exit();
        }

        private void quitToolStripMenuItem_Click(object sender, EventArgs e)
        {
            Application.Exit();
        }


        private void CheckMovement()
        {


            //Check if we pressed the W key, if so, then we are
            // walking forward.
            if (input.IsKeyPressed(CONST_TV_KEY.TV_KEY_W))
            {
                sngWalk = 1.0f;
            }

            // If we are not walking forward, maybe we are walking backward
            // by using the S button? If so, set walk speed to negative.
            if (input.IsKeyPressed(TrueVision3D.CONST_TV_KEY.TV_KEY_S))
            {
                sngWalk = -1.0f;
            }


            // Check if we pressed the A key, if so, then strafe
            // on the left.
            if (input.IsKeyPressed(TrueVision3D.CONST_TV_KEY.TV_KEY_A))
            {
                sngStrafe = 1.0f;
            }

            // If we are not strafing left, maybe we want to strafe to the
            // right, using the D key? If so, set strafe to negative.
            if (input.IsKeyPressed(TrueVision3D.CONST_TV_KEY.TV_KEY_D))
            {

                sngStrafe = -1.0f;

            }

            // Now, for the mouse input...

            // We pass the actual value of the mouse scroller to the variable
            // that holds the old mouse scroller value.
            tmpMouseScrollOld = tmpMouseScrollNew;

            // By using GetMouseState, we get the movement of the mouse
            // with the speed of the movement. The fastest the mouse movement
            // will be, the higher will be the return.
            input.GetMouseState(ref tmpMouseX, ref tmpMouseY, ref tmpMouseB1, ref tmpMouseB2, ref tmpMouseB3, ref tmpMouseScrollNew);

            // by adding or substracting the mouse return value.
            sngAngleX = sngAngleX - ((float)tmpMouseY / 100);
            sngAngleY = sngAngleY - ((float)tmpMouseX / 100);

            // We will add a simple check, so we can't look up at more
            // than 80 degrees nor down than -80 degrees.
            if (sngAngleX > 1.3)
            {
                sngAngleX = 1.3f;
            }
            if (sngAngleX < -1.3)
            {
                sngAngleX = -1.3f;
            }


            // Okay, now for the smothing of the movement... We checked
            // above if we were pressing a key. If so, then we updated the
            // movement variable to 1 (positive or negative). Here, we
            // lower this value until it get to 0. This method give us a
            // smoother camera movement. We start by updating the forward
            // and backward (walk) movement.

            if (sngWalk > 0)
            {
                sngWalk = sngWalk - 0.05f;
                if (sngWalk < 0)
                {
                    sngWalk = 0.0f;
                }
            }

            if (sngWalk < 0)
            {
                sngWalk = sngWalk + 0.05f;
                if (sngWalk > 0)
                {
                    sngWalk = 0;
                }
            }

            // Now, we update the left and right (strafe) movement.
            if (sngStrafe > 0)
            {
                sngStrafe = sngStrafe - 0.05f;
                if (sngStrafe < 0)
                {
                    sngStrafe = 0;
                }
            }

            if (sngStrafe < 0)
            {
                sngStrafe = sngStrafe + 0.05f;
                if (sngStrafe > 0)
                {
                    sngStrafe = 0;
                }
            }

            // Update the vectors using the angles and positions.
            sngPositionX = sngPositionX + (float)(System.Math.Cos((double)sngAngleY) * sngWalk * tv.TimeElapsed()) + (float)(System.Math.Cos((double)sngAngleY + 3.141596 / 2) * sngStrafe * tv.TimeElapsed());
            sngPositionZ = sngPositionZ + (float)(System.Math.Sin((double)sngAngleY) * sngWalk * tv.TimeElapsed()) + (float)(System.Math.Sin((double)sngAngleY + 3.141596 / 2) * sngStrafe * tv.TimeElapsed());
            sngLookAtX = sngPositionX + (float)System.Math.Cos((double)sngAngleY);
            sngLookAtY = sngPositionY + (float)System.Math.Tan((double)sngAngleX);
            sngLookAtZ = sngPositionZ + (float)System.Math.Sin((double)sngAngleY);

            // With the new values of the camera vectors (position and
            // look at), we update the scene's camera.
            scene.SetCamera(sngPositionX, sngPositionY, sngPositionZ, sngLookAtX, sngLookAtY, sngLookAtZ);
        }
    }
}
