Hello!

So whenever I move a waypoint and drop it with the mouse, the program casts a ray starting at the waypoints position x,y+50000,z and ending at the waypoints position x,y-50000,z to find the ground.

But no matter where you drop it, it wont find the ground. There is no collision at all, even if it is over the level. Is there a reason why the ray is not colliding with the level?

TheComet

Back to top

Profile PM Email Website

Latch

18

Years of Service

User Offline

Joined: 23rd Jul 2006

Location:

Posted: 24th May 2009 06:35

Link

Why a 100000 unit range ? but that's beside the point... Why not just reduce that range to see if it is the cause?

Also what is the ground? What I mean is, what type of collision are you using on the ground? And what function(s) are you using to return the collision values?

Enjoy your day.

Back to top

Profile PM

TheComet

17

Years of Service

User Offline

Joined: 18th Oct 2007

Location: I`m under ur bridge eating ur goatz.

Posted: 24th May 2009 11:28 Edited at: 24th May 2009 11:45

Link

It works when reduced to 1000.

I use spakry's, so to set up the object, I use SetupComplexObjectDBC(100,1,2) (so polygon collision), then I cast the ray with if IntersectObjectDBC(100,0,wx,50000,wz,wx,-50000,wz,1) then blabla, but that doesn't collide.

If I do the same and use if IntersectObjectDBC(100,0,wx,500,wz,wx,-500,wz,1) then blalbla it works.

I am using a 100000 unit range because I am not expecting a level to be higher than that for my editor.

TheComet

Back to top

Profile PM Email Website

Latch

18

Years of Service

User Offline

Joined: 23rd Jul 2006

Location:

Posted: 24th May 2009 19:21

Link

Are you returning the height of the land? And if so, what functions are you using for that, specifically?

You should be using
getStaticCollisionX()
getStaticCollisionY()
getStaticCollisionZ()

In this line:

if IntersectObjectDBC(100,0,wx,50000,wz,wx,-50000,wz,1)
the 1 at the end is an exclusion of object 1, it's not being tested. What happens if you change this value to 0?

Also make sure you are using float values for xyz .

Make sure your landscape has it's normals pointing outwards, towards the ray. The ray will not return collision detection if it is hitting the back of a face. That means if you are inside a box and casting the ray from inside the box, it will not detect collision with the walls unless the box is inside out. Likewise, is you are under the terrain and cast a ray up, it will not detect collision unless your terrain has normals on both sides.

And it doesn't seem to be the range, this bit of code returns true on collision:

+ Code Snippet

sync on
sync rate 0

#include "DBCcollisions.dba"
load dll "DBCcollision.dll",1
make object cube 1,25

`setupComplexObjectDBC(<objNum>,<GroupNum>,<FacesPerNode>)
setupComplexObjectDBC(1,0,8)

do
   `intersectObjectDBC(<obj/groupNum>,<GroupFlag>,<oldx>,<oldy>,<oldz>,<x>,<y>,<z>,<excludeObj>)
   result=intersectObjectDBC(1,0,0.0,50000.0,0.0,0.0,-50000.0,0.0,0)
   text 0,0,str$(result)

   sync
loop

Make sure you are using updateObjectDBC(<objNum>

Enjoy your day.

Back to top

Profile PM

TheComet

17

Years of Service

User Offline

Joined: 18th Oct 2007

Location: I`m under ur bridge eating ur goatz.

Posted: 25th May 2009 14:26 Edited at: 25th May 2009 14:28

Link

All of your requirements are fulfilled, I just can't figure it...

EDIT:

Found the problem! Here is the code:

+ Code Snippet

         rem stick them to the ground
         for t=102 to waypoint_start
            if way_selected(t)=1
               s#=(y#-object position y(t))
               sx#=object position x(t)
               sy#=object position y(t)
               sz#=object position z(t)
               if intersectObjectDBC(100,0,sx#,sy#+50000.0,sz#,sx#,sy#-50000.0,sz#,1)!0
                  scale object t,s#,s#,s#
                  position object t,sx#,GetStaticCollisionY(),sz#
                  s#=(y#-object position y(t))
                  position object t,sx#,GetStaticCollisionY()+(s#/49),sz#
               else
                  texture object t,54
               endif
               SetupObjectDBC(t,2,0)
               UpdateObjectDBC(t)
            endif
         next t

The problem was, that it should be sy#+50000.0 and not sy#+50000

Thanks Latch!

TheComet

Make the path of your enemies easier with Waypoint Pro!

Back to top

Profile PM Email Website

TheComet

17

Years of Service

User Offline

Joined: 18th Oct 2007

Location: I`m under ur bridge eating ur goatz.

Posted: 25th May 2009 20:39

Link

Sorry for double posting, but another problem has come about.

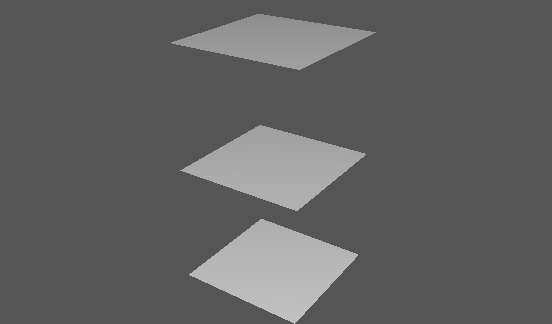

Please download the attachment, The short program loads in the object displayed below, and casts a ray from x#,y#+50000.0,z#,x#,y#-50000.0,z#, where the coordinates x#,y#,z# are the objects positions, and positions a red cube at the collision point.

The X object is one sided. Why is it that the collision is on the middle plain?

TheComet

Make the path of your enemies easier with Waypoint Pro!

Attachments

Login to view attachments

Back to top

Profile PM Email Website

TheComet

17

Years of Service

User Offline

Joined: 18th Oct 2007

Location: I`m under ur bridge eating ur goatz.

Posted: 28th May 2009 12:27

Link

Anyone?

Make the path of your enemies easier with Waypoint Pro!

Back to top

Profile PM Email Website

Latch

18

Years of Service

User Offline

Joined: 23rd Jul 2006

Location:

Posted: 28th May 2009 13:20

Link

Only thing that comes to mind is the normals for your object may be a little off and the greater the distance of the ray cast, the greater the margin of error. It seems to work at 32767 (I was checking 15 bit numbers just in case that was a limit for speed's sake) and my test of the cube works at 50000.

Enjoy your day.
