// Project:
// Created:

// show all errors
SetErrorMode(2)

// set window properties
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

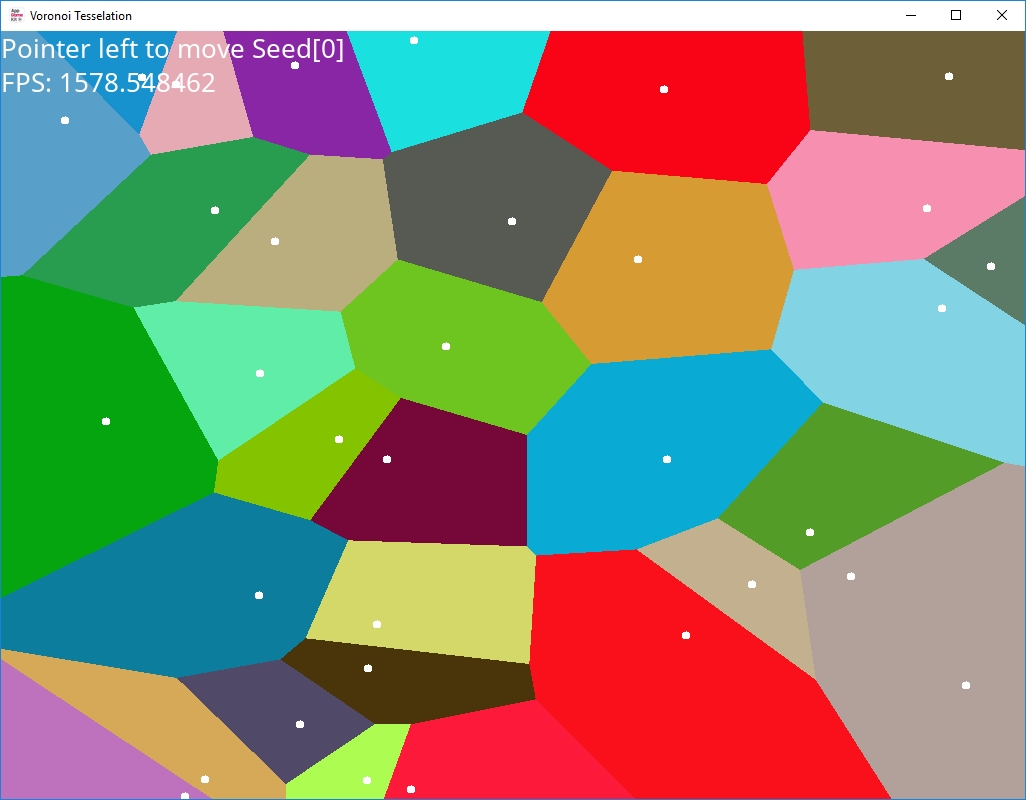

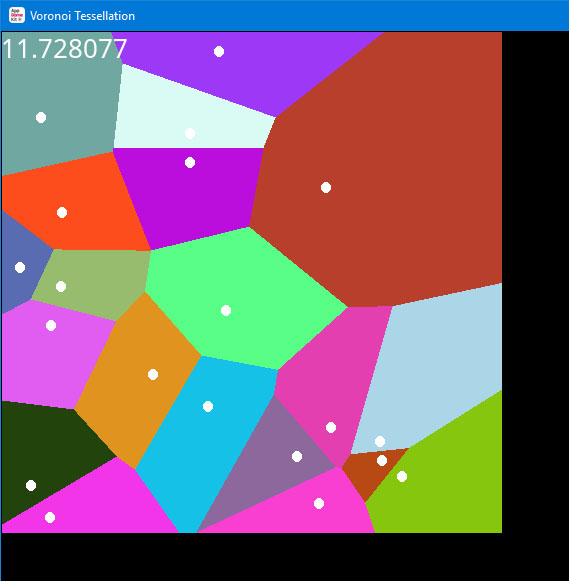

SetWindowTitle("Voronoi Tessellation")

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 60, 0 )
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts



Type Point2D
	x as integer
	y as integer
	color as integer
EndType



global points as Point2D[20]

for i = 1 to points.length
	points[i].x = random(1, 500)
	points[i].y = random(1, 500)
	points[i].color = makeColor(random(0,255), random(0,255), random(0,255))
next i

pc = makeColor(255,255,255)

do


	for x = 1 to 500
		for y = 1 to 500
			i = getClosestVoronoi(x, y)
			drawBox(x, y, x+1, y+1, points[i].color,points[i].color,points[i].color,points[i].color, 1)
		next y
	next x


	for i = 1 to points.length
		drawEllipse(points[i].x, points[i].y, 5, 5, pc, pc, 1)
	next i






    Print( ScreenFPS())
    Sync()
loop



function getClosestVoronoi(x as integer, y as integer)
	dist = 10000000
	for i = 1 to points.length
		d = (points[i].x - x)^2 + (points[i].y - y)^2
		if d < dist
			dist = d
			index = i
		endif
	next i
endfunction index

SetErrorMode(2)
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate(0, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts


global tilesize = 8
#constant WIDTH = 1024/tilesize
#constant HEIGHT = 768/tilesize
#constant areas = 50

Type VoronoiPoint
	x as integer
	y as integer
	terrain as integer
EndType

voronoi as VoronoiPoint[areas]

randomizeVoronoiPoints(voronoi)



dim map[WIDTH, HEIGHT] as integer

dud = createSprite(0)
setSpriteSize(dud, tilesize, tilesize)



maxPoints = 3


for x = 0 to WIDTH-1
	for y = 0 to HEIGHT-1
		map[x,y] = cloneSprite(dud)
		setSpritePosition(map[x,y], x*tilesize, y*tilesize)
		i = getNearestVoronoi(voronoi, x, y, maxPoints)
		if voronoi[i].terrain = 0 then setSpriteColor(map[x,y], 0,0,255,255)
		if voronoi[i].terrain = 1 then setSpriteColor(map[x,y], 0,255,0,255)
	next y
next x


colors as integer[2]
colors[0] = makeColor(0, 0, 200)
colors[1] = makeColor(0,200,0)




do


	for i = 0 to maxPoints
		drawBox(voronoi[i].x*tilesize, voronoi[i].y*tilesize, voronoi[i].x*tilesize+tilesize, voronoi[i].y*tilesize+tilesize, colors[voronoi[i].terrain],colors[voronoi[i].terrain],colors[voronoi[i].terrain],colors[voronoi[i].terrain], 1)
	next i


	if getRawKeyPressed(32) = 1
		randomizeVoronoiPoints(voronoi)
		for x = 0 to WIDTH-1
			for y = 0 to HEIGHT-1
				i = getNearestVoronoi(voronoi, x, y, maxPoints)
				if voronoi[i].terrain = 0 then setSpriteColor(map[x,y], 0,0,255,255)
				if voronoi[i].terrain = 1 then setSpriteColor(map[x,y], 0,255,0,255)
			next y
		next x
	endif

	if getRawKeyPressed(38) = 1
		inc maxPoints
		redrawMap(voronoi, maxPoints)
	endif
	if getRawKeyPressed(40) = 1
		dec maxPoints
		redrawMap(voronoi, maxPoints)
	endif

	if maxPoints < 2 then maxPoints = 2
	if maxPoints > areas-1 then maxPoints = areas-1



	print("Max Points: "+str(maxPoints+1))
	print(screenfps())
    sync()
loop


function redrawMap(v ref as VoronoiPoint[], maxPoints as integer)
		for x = 0 to WIDTH-1
			for y = 0 to HEIGHT-1
				i = getNearestVoronoi(v, x, y, maxPoints)
				if v[i].terrain = 0 then setSpriteColor(map[x,y], 0,0,255,255)
				if v[i].terrain = 1 then setSpriteColor(map[x,y], 0,255,0,255)
			next y
		next x
endfunction


function randomizeVoronoiPoints(v ref as VoronoiPoint[])
	for i = 0 to areas-1
		v[i].x = random(0, WIDTH-1)
		v[i].y = random(0, HEIGHT-1)
		v[i].terrain = random(0, 1)
	next i
endfunction



function getNearestVoronoi(v ref as VoronoiPoint[], x, y, max)
	d = 9999999
	nearest = -1
	if max > areas-1 then max = areas-1
	for i = 0 to max
		g = (v[i].x-x)^2 + (v[i].y-y)^2
		if g < d
			d = g
			nearest = i
		endif
	next i

endfunction nearest
