Posted: 25th Jul 2018 20:00 Edited at: 26th Jul 2018 22:52

Link

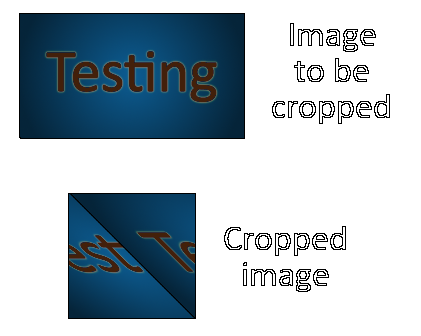

I've been working on a function to crop an image but I'm stuck at the moment. This is what is happening on screen:

The function:

// How I'm calling the function. The original image is 1920x1080.
newImgID = CropImage( 1, 0, 0, 1080, 1080 )

function clamp( _val as integer, _min as integer, _max as integer )
	if _val < _min
		exitfunction _min
	elseif _val > _max
		exitfunction _max
	endif
endfunction _val

function CropImage( _imgID, _x, _y, _w, _h )
	if GetImageExists( _imgID ) = 0 then exitfunction 0

	_imgWidth = GetImageWidth( _imgID )
	//~ _imgHeight = GetImageHeight( _imgID )

	_memFrom = CreateMemblockFromImage( _imgID )
	_memFromMax = GetMemblockSize( _memFrom ) - 4

	_memToSize = ( ( _w * _h ) * 4 ) + 12
	_memTo = CreateMemblock( _memToSize )
	_memToMax = _memToSize - 4

	// Set header.
	SetMemblockInt( _memTo, 0, _w )
	SetMemblockInt( _memTo, 4, _h )
	SetMemblockInt( _memTo, 8, 32 )

	_memTo_P = 12

	for yy = _y to _h
		for xx = _x to _w
			_memFrom_P = ( xx + ( yy * _imgWidth ) ) * 4
			_memFrom_P = clamp( _memFrom_P, 12, _memFromMax )
			_memTo_P = clamp( _memTo_P, 12, _memToMax )

			SetMemblockByte(_memTo, _memTo_P, GetMemblockByte( _memFrom, _memFrom_P ) )
			SetMemblockByte(_memTo, _memTo_P + 1, GetMemblockByte( _memFrom, _memFrom_P + 1 ) )
			SetMemblockByte(_memTo, _memTo_P + 2, GetMemblockByte( _memFrom, _memFrom_P + 2 ) )
			SetMemblockByte(_memTo, _memTo_P + 3, GetMemblockByte( _memFrom, _memFrom_P + 3 ) )

			//~ Print_int( "xx: ", xx )
			//~ Print_int( "yy: ", yy )
			//~ Print_int( "_memTo_P: ", _memTo_P )
			//~ Print_int( "_memFrom_P: ", _memFrom_P )

			inc _memTo_P, 4

			//~ Sync()
			//~ sleep( 750 )
		next xx
	next yy

	retImg = CreateImageFromMemblock( _memTo )

	DeleteMemblock( _memTo )
	DeleteMemblock( _memTo_P )

endfunction retImg

+ Code Snippet


// How I'm calling the function. The original image is 1920x1080.
newImgID = CropImage( 1, 0, 0, 1080, 1080 )

function clamp( _val as integer, _min as integer, _max as integer )
	if _val < _min
		exitfunction _min
	elseif _val > _max
		exitfunction _max
	endif
endfunction _val

function CropImage( _imgID, _x, _y, _w, _h )
	if GetImageExists( _imgID ) = 0 then exitfunction 0

	_imgWidth = GetImageWidth( _imgID )
	//~ _imgHeight = GetImageHeight( _imgID )

	_memFrom = CreateMemblockFromImage( _imgID )
	_memFromMax = GetMemblockSize( _memFrom ) - 4

	_memToSize = ( ( _w * _h ) * 4 ) + 12
	_memTo = CreateMemblock( _memToSize )
	_memToMax = _memToSize - 4

	// Set header.
	SetMemblockInt( _memTo, 0, _w )
	SetMemblockInt( _memTo, 4, _h )
	SetMemblockInt( _memTo, 8, 32 )

	_memTo_P = 12

	for yy = _y to _h
		for xx = _x to _w
			_memFrom_P = ( xx + ( yy * _imgWidth ) ) * 4
			_memFrom_P = clamp( _memFrom_P, 12, _memFromMax )
			_memTo_P = clamp( _memTo_P, 12, _memToMax )

			SetMemblockByte(_memTo, _memTo_P, GetMemblockByte( _memFrom, _memFrom_P ) )
			SetMemblockByte(_memTo, _memTo_P + 1, GetMemblockByte( _memFrom, _memFrom_P + 1 ) )
			SetMemblockByte(_memTo, _memTo_P + 2, GetMemblockByte( _memFrom, _memFrom_P + 2 ) )
			SetMemblockByte(_memTo, _memTo_P + 3, GetMemblockByte( _memFrom, _memFrom_P + 3 ) )

			//~ Print_int( "xx: ", xx )
			//~ Print_int( "yy: ", yy )
			//~ Print_int( "_memTo_P: ", _memTo_P )
			//~ Print_int( "_memFrom_P: ", _memFrom_P )

			inc _memTo_P, 4

			//~ Sync()
			//~ sleep( 750 )
		next xx
	next yy

	retImg = CreateImageFromMemblock( _memTo )

	DeleteMemblock( _memTo )
	DeleteMemblock( _memTo_P )

endfunction retImg

Key Input Overhaul Plugin
Notepad++ AGK/OpenGL Shader Syntax Highlighting + Auto Completion
Notepad++ Autocompletion tier 1
AGK Sprite Shape Tool

Attachments

Login to view attachments

Back to top

Profile PM

Bengismo

7

Years of Service

User Offline

Joined: 20th Nov 2017

Location: Yorkshire, England

Posted: 25th Jul 2018 20:18 Edited at: 25th Jul 2018 20:18

Link

Why not use the inbuilt function to do this without memblocks???

https://www.appgamekit.com/documentation/Reference/Image/CopyImage.htm

It allows you to crop an image with one line of code

Back to top

Profile PM

Bengismo

7

Years of Service

User Offline

Joined: 20th Nov 2017

Location: Yorkshire, England

Posted: 25th Jul 2018 20:22

Link

And you algorithm is wrong...the loop variables are wrong and dont set the destination or start points quite right either

Back to top

Profile PM

puzzler2018

User Banned

Posted: 25th Jul 2018 20:22 Edited at: 25th Jul 2018 20:24

Link

Maybe Iron was liking to try for himself cause was curious on how its done.

Saying someone is wrong is not helping - guide Iron in the right direction...

Back to top

Profile

Bengismo

7

Years of Service

User Offline

Joined: 20th Nov 2017

Location: Yorkshire, England

Posted: 25th Jul 2018 20:34 Edited at: 27th Jul 2018 21:36

Link

In that case then....he wont want our help now would he?? Because hes enjoying it so much figuring it out!!.....lol

Letting someone know there is a function to do exactly waht they want is helping. The right direction is to use the function to do it. lol

Ha.... If he does want to know what the errors are (loop variables and destination offsets) then will happily post them up but im thinking its more likely he didnt know that CopyImage also worked as a Cropimage.
Its been asked before on here...

Better to give someone the logical answer then help them learn a long winded overly complex and slower way of doing it.....

EDIT: In case you do want a working version of your function

function CropImage( _imgID, _x, _y, _w, _h )
    if GetImageExists( _imgID ) = 0 then exitfunction 0

    _imgWidth = GetImageWidth( _imgID )

    _memFrom = CreateMemblockFromImage( _imgID )

    _memToSize = ( ( _w * _h ) * 4 ) + 12
    _memTo = CreateMemblock( _memToSize )

    // Set header.
    SetMemblockInt( _memTo, 0, _w )
    SetMemblockInt( _memTo, 4, _h )
    SetMemblockInt( _memTo, 8, 32 )


    for yy = 0 to _h-1
        for xx = 0 to _w-1
            _memFrom_P = 12+ 4*( (xx+_x) + ( (yy+_y) * _imgWidth ) )
            _memTo_P = 12+ 4*(xx + yy*_w)

            SetMemblockInt(_memTo, _memTo_P, GetMemblockInt( _memFrom, _memFrom_P ) )
            //SetMemblockByte(_memTo, _memTo_P + 1, GetMemblockByte( _memFrom, _memFrom_P + 1 ) )
            //SetMemblockByte(_memTo, _memTo_P + 2, GetMemblockByte( _memFrom, _memFrom_P + 2 ) )
            //SetMemblockByte(_memTo, _memTo_P + 3, GetMemblockByte( _memFrom, _memFrom_P + 3 ) )

        next xx
    next yy

    retImg = CreateImageFromMemblock( _memTo )

DeleteMemblock( _memFrom )
    DeleteMemblock( _memTo )

endfunction retImg

+ Code Snippet

function CropImage( _imgID, _x, _y, _w, _h )
    if GetImageExists( _imgID ) = 0 then exitfunction 0

    _imgWidth = GetImageWidth( _imgID )

    _memFrom = CreateMemblockFromImage( _imgID )

    _memToSize = ( ( _w * _h ) * 4 ) + 12
    _memTo = CreateMemblock( _memToSize )

    // Set header.
    SetMemblockInt( _memTo, 0, _w )
    SetMemblockInt( _memTo, 4, _h )
    SetMemblockInt( _memTo, 8, 32 )


    for yy = 0 to _h-1
        for xx = 0 to _w-1
            _memFrom_P = 12+ 4*( (xx+_x) + ( (yy+_y) * _imgWidth ) )
            _memTo_P = 12+ 4*(xx + yy*_w)

            SetMemblockInt(_memTo, _memTo_P, GetMemblockInt( _memFrom, _memFrom_P ) )
            //SetMemblockByte(_memTo, _memTo_P + 1, GetMemblockByte( _memFrom, _memFrom_P + 1 ) )
            //SetMemblockByte(_memTo, _memTo_P + 2, GetMemblockByte( _memFrom, _memFrom_P + 2 ) )
            //SetMemblockByte(_memTo, _memTo_P + 3, GetMemblockByte( _memFrom, _memFrom_P + 3 ) )

        next xx
    next yy

    retImg = CreateImageFromMemblock( _memTo )

    DeleteMemblock( _memFrom )
    DeleteMemblock( _memTo )

endfunction retImg

Back to top

Profile PM

puzzler2018

User Banned

Posted: 25th Jul 2018 21:16

Link

Your a star lol

Iron - please use the inbuilt function - good work though

Back to top

Profile

puzzler2018

User Banned

Posted: 25th Jul 2018 21:25

Link

But then - what if Paul didnt put the function - then how would you do it.

Better programmers I feel is learning how things are achieved rather than just using a function - i have done that thousands of times.

Some people want easiness and quickness to get things done and some likes to try to achieve something constructive

Anyway

Back to top

Profile

Bengismo

7

Years of Service

User Offline

Joined: 20th Nov 2017

Location: Yorkshire, England

Posted: 25th Jul 2018 21:40

Link

Puzzler.... how come you didnt post the answer as you have done this 1000's of times?

Constructive.... is posting solutions as I have done....

Thanks for your fantastic input and help this evening though

...

Back to top

Profile PM

IronManhood

9

Years of Service

User Offline

Joined: 6th Feb 2015

Location: US

Posted: 25th Jul 2018 22:54 Edited at: 25th Jul 2018 23:06

Link

I didn't know CopyImage also cropped an image. I was curious to know how image cropping worked in case I needed to write some method of doing so. Learning is fun isn't it? (kill me) Throwing image cropping in with CopyImage makes sense from the AppGameKit developers perspective but it doesn't from a user perspective because it makes it harder to find the correct function to use. I suggest that those two are separated into their own functions.

Back to top

Profile PM

Scraggle

Moderator

21

Years of Service

User Offline

Joined: 10th Jul 2003

Location: Yorkshire

Posted: 26th Jul 2018 08:44

Link

You could take a look at my Image Functions (link in signature), they do this and a lot more.

Animation Station - WIP
Code Breaker
Super Brick Smash
Happy Flapper
Additional Image Functions (9 sprite slicing etc.)
Additional String Functions
XML read, write, parse
Black theme for Geeny
RGB->HSV->RGB
SpriteSheet XML Control

Back to top

Profile PM Email

Phaelax

DBPro Master

21

Years of Service

User Offline

Joined: 16th Apr 2003

Location: Metropia

Posted: 27th Jul 2018 05:44 Edited at: 27th Jul 2018 05:46

Link

Wrote this up real quick for ya, haven't tested it. I also have DBP code that can crop an image/sprite by UV manipulation. The benefit of that method is the cropping follows the rotation of the sprite.

+ Code Snippet


// local coordinates of source image
// Returns ID of cropped image
function crop(srcImg, x1, y1, x2, y2)
	src = createMemblockFromImage(srcImg)
	srcWidth = getMemblockInt(src, 0)

	destWidth = x2 - x1
	destHeight = y2 - y1
	size = destWidth*destHeight*4 + 12
	dest = createMemblock(size)
	setMemblockInt(dest, 0, destWidth)
	setMemblockInt(dest, 4, destHeight)
	setMemblockInt(dest, 8, 32)

	for x = x1 to x2
		for y = y1 to y2
			srcPos = (y*srcWidth+ x)*4 + 12
			destPos = ((y-y1)*destWidth + (x-x1))*4 + 12
			setMemblockInt(dest, destPos, getMemblockInt(src, srcPos))
		next y
	next x

	img = createImageFromMemblock(dest)
	deleteMemblock(src)
	deleteMemblock(dest)

endfunction img

As far as your code goes, the issues I see are:

for yy = _y to _h
for xx = _x to _w

Should probably be:

for yy = _y to _y+_h
for xx = _x to _x+_w
