Is there anything like a Minecraft clone out there, made with AGK?

Author

Message

puzzler2018

User Banned

Posted: 3rd Apr 2018 22:52 Edited at: 3rd Apr 2018 23:04

It doesnt do anything other than create a few triangles which shows how to use Color in memblocks on the same mesh

Convert to a cube and things will fall into place next few days

I now can get rid of the layers idea I thought of hopefully - 1 mesh per chunk instead of 7 layers per layer per chunk

We will get there

Edit - thanks to Tom Toad for the bit on the F1 on this, in knowing to add the color attribute

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 3rd Apr 2018 23:15 Edited at: 3rd Apr 2018 23:21

Link

The teaser definitely showed progress

and was allot better than my attempt lol

fubar

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 3rd Apr 2018 23:43 Edited at: 3rd Apr 2018 23:47

Link

Bless -

Now we created memblock with the defined variables, we could possibly use

SetMemBlockInt(chk,24,0x0C000300) //float, 3 components, no normalizing, position
SetMemblockString(chk,28,"position")
SetMemblockInt(chk,40,0x08000300) //same as position, but for normals
SetMemblockString(chk,44,"normal")
SetMemblockInt(chk,52,0x08010401) //For color we have byte, 4 components, normalize data
SetMemblockString(chk,56,"color")

position, normal, color attributes in a shader too using setConstantByName variables defined on the memblock through to the shader.

Wll need to add a uniform color, uniform normal or uniform position in the shader code

This is going way too much for me at moment

Maybe!!

Back to top

Profile

puzzler2018

User Banned

Posted: 4th Apr 2018 00:19

Link

For shaders we need to understand what each of the elements are capable of doing

Vertex Shader

Pixel Shader

I would send position and normals to the vertex shader code

and colours to the pixel shader

Its not as easy said than done.

What we all think?

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 5th Apr 2018 03:42

Link

puzzler Have you got a function that can create a memblock from a mesh with multiple indices
that in turn can recreate the mesh with multiple indices from that memblock

I have been trying but I have came up blank

+ Code Snippet

function createMapMemblock(newobj as integer)
	meshes = GetObjectNumMeshes(newobj)
	newMem = CreateMemblock(50000)
	offsetNew=0:vertices=0:indices=0
	for a = 0 to meshes
		mem = CreateMemblockFromObjectMesh(newobj,a)
		//vertices=vertices+GetMemblockInt(mem,0) //vertices
		//indices=indices+GetMemblockInt(mem,4) //indices
		CopyMemblock(mem, newMem,0,offsetNew, GetMemblockSize(mem))
		offsetNew=offsetNew+(GetMemblockSize(mem))
		DeleteMemblock(mem)
	next a
	//SetMemblockInt(newMem,0,vertices) //vertices
	//SetMemblockInt(newMem,4,indices) //indices

endfunction newMem

it dont work but i think it could if certain data was set and certain data copied
maybe i need to write out the bytes of the original object and reload them i dont know

fubar

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 6th Apr 2018 22:57

Link

Thanks furbarpk, you have introduced and interesting concept on finding world coordinates - thanks for that.

This is far not been neglected - just been having a little bit of a time out from hard core programming.

Be back on this again from tomorrow hopefully

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 7th Apr 2018 02:07

Link

Your welcome thanks for your help aswell

for anyone interested the thread is https://forum.thegamecreators.com/thread/221994
it includes a single mesh terrain editor that modifies the texture and terrain in real time by just clicking
with the left mouse button. The next step will be to get it to work with multiple meshed objects

fubar

Back to top

Profile PM Email Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 7th Apr 2018 16:31

Link

I saw that post, and I thought, that we could have the same optimisation solution

https://twitter.com/bonzajplc/status/962762369532399617

@bonzajplc wrote: "#unity3d Tip: If you want to draw a lot of small objects - DON'T use mesh instancing! Instead go for DrawProcedural with numIndices * numInstances primitives and then assemble the meshes in shader. In my case I got around 100% speedup and could make this scene at 60fps: #gamedev"

Back to top

Profile PM Website

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 7th Apr 2018 18:01

Link

That's an extremely impressive demo Xaby the shader used for it, must be very well written! all those balls falling on
what looks like a minecraft world with physics. My thoughts tho is shaders arent for the light hearted and puzzler is
achieving some very good results with frame rates at the moment. In a way that is easier for someone to follow and
learn from than i think the way they are achieving that in unity. But it would be good to hear the opinions of some
of the shader experts in here that would understand how the demo was achieved allot more than i can only imagine.
Instancing meshes using a shader may be a great alternative but not supported on mobile and tablets very well.

What do others think?

fubar

Back to top

Profile PM Email Website

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 7th Apr 2018 22:50

Link

I'm pretty sure we can't do mesh instancing on t1, I looked at that.....it seems to be a common way of doing grass these days but you have to pass more data into the shader. So I imagine in t2 it would be possible, but not t1.

May be wrong though, I gave up on that avenue pretty quickly in favour of meshes so it's utterly possible I missed something, or there's a way around it. I've got a fairly large number of objects rendering across a large landscape at speed......in the next 2-3 weeks I should have something pretty decent to show.

One thing is for sure, instanced rendering seems to do very little in AppGameKit T1.

Back to top

Profile PM

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 7th Apr 2018 23:35 Edited at: 7th Apr 2018 23:35

Link

In OpenGL you can pass attributes per instance, instead of per vertex, but we don't have access to it in AppGameKit Tier1.
I'm still not completely sure what InstanceObject() does.
For dynamic objects I would try AGK's InstanceObject or just draw the same object with DrawObject() again.
For static objects I think merging it into one mesh, like it is discussed here, is a pretty good solution.

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 10th Apr 2018 22:07

Link

Hi guys,

for starters that demo is awesome and thanks to Santman and Janbo for you imputs.

This is all in mind.. and will back soon with something - I might tackle shader things too but thats long way to go for that..

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 15th Apr 2018 17:42

Link

I hope everything is ok @puzzler

fubar

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 15th Apr 2018 22:04

Link

Hi, Yeah im ok thanks- sorry ive been been tied up with other things recently (not game programming), work tiring me out too etc so finding difficult to make time to programming.

Ill try and give myself an hour a night and get started aggain with this and get something to you all by end of the week

using meshing

Back to top

Profile

puzzler2018

User Banned

Posted: 30th Apr 2018 17:52 Edited at: 30th Apr 2018 17:54

Link

Sorry folks, i have been neglecting this for a while now, maybe cause I exhausted myself on it for all those weeks back

ill boost my motivation this week to do some more work done on it.

and Im sure most of you like to see this thread spring back to life again too, I certainly do at least

Shall crack on with it again

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 1st May 2018 03:33 Edited at: 1st May 2018 03:56

Link

All good puzzler we all get a bit drained on projects and need a break, I am one that's excited to see this thread worked on again.
But with that said it did give me a chance to test my new learned skills on different projects.

Before this project I had not attempted projects in 3D mainly because getting good low poly models that work with AppGameKit is hard and then
theres all the extra math. But this thread gave me excitement as it created everything by code

. Still not sure how you create all the meshes
from planes with different textures too and then you even kull objects. So the project is a very good one

fubar

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 1st May 2018 18:46 Edited at: 1st May 2018 18:48

Link

Hi folks

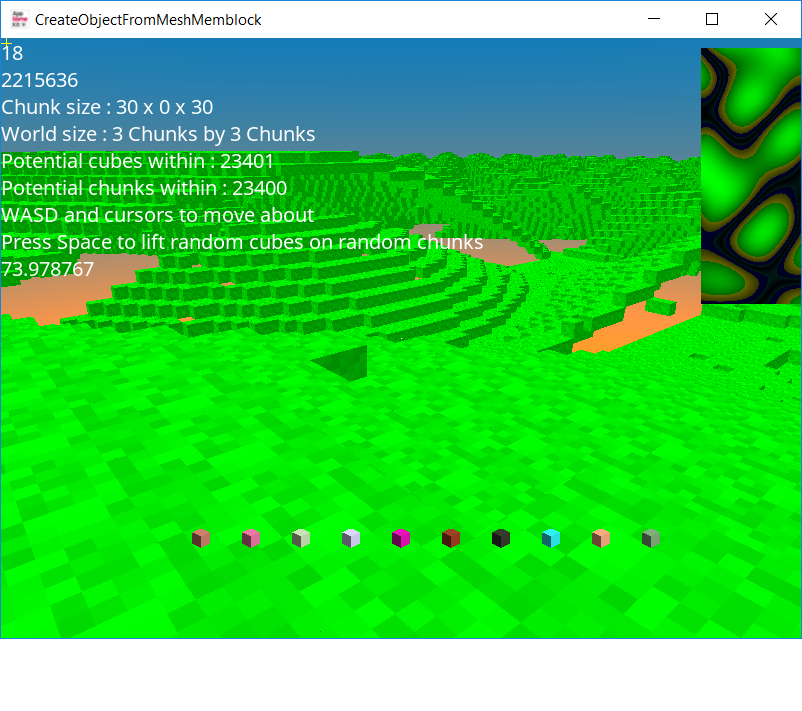

This is using mesh IDs for each textured block on a single object - can use up to 256 mesh indexes, so why not make use of them

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=10 // size of the chunk
#constant blocksizey=1  // size of the chunk
#constant blocksizez=10 // size of the chunk
#constant blocksize#=50 // size of each cube

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=10 // how many of the 16x16 chunks are generated and surrounded

// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype

type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene

// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[7000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount

// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet

// Initialise Game

InitialiseGame()

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()
	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
	createtree(0)
	createocean()

buildmap()

//	generatechunk()
	buildchunks()

initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-10,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)

for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1

	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
				pos# = random(0,2) * blocksize#

	//			if worldlayers


				if worldlayers[worldlayer].location[x,z] = 0 then addplane(chunks, xpos#,pos#*blocksize#,zpos#,blockcount,x,y,z)


				worldlayers[worldlayer].location[x,z] = meshid

				inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id
	worldchunks=CreateObjectFromMeshMemblock(chunks)

endfunction worldchunks

function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)

	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

	for meshid=1 to 3 // multiple textures on each chunk - lets do 3 to start with
		for wx=1 to totalworldchunks
			for wz=1 to totalworldchunks

// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which

worldlayers[a].id=generatechunk(meshid,a)

SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			SetObjectVisible(worldlayers[a].id,1)


			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around

			if wx = totalworldchunks/2 and wz=totalworldchunks/2
				centrechunk=a
			endif

			inc a
			inc totalcubecount,blocksizex*blocksizey*blocksizez
		next
	next
	next

	SetObjectVisible(worldlayers[centrechunk].id,1)

/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=(blocksizex * (totalworldchunks*5))
	cameray#=(blocksizey*10)
	cameraz#=(blocksizez * (totalworldchunks * 5))

endfunction

function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,1//Left
	if GetRawKeyState(39) then inc camerax#,1//Right
	if GetRawKeyState(38) then inc cameraz#,1//Forward
	if GetRawKeyState(40) then dec cameraz#,1//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)

if GetRawKeyState(13)

		for v=0 to 23
			SetMeshMemblockVertexColor(100,v,random(100,200),random(100,200),random(100,200),255)
		next
	endif

if GetRawKeyPressed(27) then end

endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction

function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,10000000)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk

function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

+ Code Snippet

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=10 // size of the chunk
#constant blocksizey=1  // size of the chunk
#constant blocksizez=10 // size of the chunk
#constant blocksize#=50 // size of each cube

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=10 // how many of the 16x16 chunks are generated and surrounded



// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts


SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype



type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene





// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[7000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount


// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet


// Initialise Game



InitialiseGame()



do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()
	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
	createtree(0)
	createocean()

	buildmap()


//	generatechunk()
	buildchunks()

	initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-10,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)


	for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

	next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1

	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
				pos# = random(0,2) * blocksize#

	//			if worldlayers


				if worldlayers[worldlayer].location[x,z] = 0 then addplane(chunks, xpos#,pos#*blocksize#,zpos#,blockcount,x,y,z)


				worldlayers[worldlayer].location[x,z] = meshid

				inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id
	worldchunks=CreateObjectFromMeshMemblock(chunks)

endfunction worldchunks

function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)

	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

	for meshid=1 to 3 // multiple textures on each chunk - lets do 3 to start with
		for wx=1 to totalworldchunks
			for wz=1 to totalworldchunks

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which



			worldlayers[a].id=generatechunk(meshid,a)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			SetObjectVisible(worldlayers[a].id,1)


			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around

			if wx = totalworldchunks/2 and wz=totalworldchunks/2
				centrechunk=a
			endif

			inc a
			inc totalcubecount,blocksizex*blocksizey*blocksizez
		next
	next
	next

	SetObjectVisible(worldlayers[centrechunk].id,1)



/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

				//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=(blocksizex * (totalworldchunks*5))
	cameray#=(blocksizey*10)
	cameraz#=(blocksizez * (totalworldchunks * 5))

endfunction


function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,1//Left
	if GetRawKeyState(39) then inc camerax#,1//Right
	if GetRawKeyState(38) then inc cameraz#,1//Forward
	if GetRawKeyState(40) then dec cameraz#,1//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)




	if GetRawKeyState(13)

		for v=0 to 23
			SetMeshMemblockVertexColor(100,v,random(100,200),random(100,200),random(100,200),255)
		next
	endif

	if GetRawKeyPressed(27) then end



endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

	newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction


function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,10000000)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

	vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk


function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

The mesh indexes will use a mesh memblock, so memory issues could arise if aim high, have to tweak the chunk sizees and how many layers we want.

This gives a nice example and how i would do it for multiple textured objects on a object

More to come

Enjoy

Back to top

Profile

puzzler2018

User Banned

Posted: 1st May 2018 20:34 Edited at: 1st May 2018 20:47

Link

My bad - that last example generated chunks like createobjectbox does

This verson uses InstanceObject

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=45 // size of the chunk
#constant blocksizey=1  // size of the chunk
#constant blocksizez=45 // size of the chunk
#constant blocksize#=50 // size of each cube

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=10 // how many of the 16x16 chunks are generated and surrounded

// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype

type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene

// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[7000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount

// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet

// Initialise Game

InitialiseGame()

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()
	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
	createtree(0)
	createocean()

buildmap()

//	generatechunk()
	buildchunks()

initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-10,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)

for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1

	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
				pos# = random2(0,1)

	//			if worldlayers


				if worldlayers[worldlayer].location[x,z] = 0 then addplane(chunks, xpos#,pos#*blocksize#,zpos#,blockcount,x,y,z)


				worldlayers[worldlayer].location[x,z] = meshid+1

				inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id
	worldchunks=CreateObjectFromMeshMemblock(chunks)

endfunction worldchunks
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)

	genchunk = generatechunk(1,1)

	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=0 to 0 // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which

//			worldlayers[a].id = generatechunk(meshid,a)
			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
//			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)

			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			inc totalcubecount,blocksizex*blocksizey*blocksizez

		next

next
	next

//	SetObjectVisible(worldlayers[centrechunk].id,1)

/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=0
	cameray#=(blocksizey*10)
	cameraz#=0
endfunction

function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,1//Left
	if GetRawKeyState(39) then inc camerax#,1//Right
	if GetRawKeyState(38) then inc cameraz#,1//Forward
	if GetRawKeyState(40) then dec cameraz#,1//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)

if GetRawKeyState(13)

		for v=0 to 23
			SetMeshMemblockVertexColor(100,v,random(100,200),random(100,200),random(100,200),255)
		next
	endif

if GetRawKeyPressed(27) then end

endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction

function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,8000000)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk

function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

+ Code Snippet

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=45 // size of the chunk
#constant blocksizey=1  // size of the chunk
#constant blocksizez=45 // size of the chunk
#constant blocksize#=50 // size of each cube

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=10 // how many of the 16x16 chunks are generated and surrounded



// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts


SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype



type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene





// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[7000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount


// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet


// Initialise Game



InitialiseGame()



do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()
	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
	createtree(0)
	createocean()

	buildmap()


//	generatechunk()
	buildchunks()

	initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-10,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)


	for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

	next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1

	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
				pos# = random2(0,1)

	//			if worldlayers


				if worldlayers[worldlayer].location[x,z] = 0 then addplane(chunks, xpos#,pos#*blocksize#,zpos#,blockcount,x,y,z)


				worldlayers[worldlayer].location[x,z] = meshid+1

				inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id
	worldchunks=CreateObjectFromMeshMemblock(chunks)

endfunction worldchunks
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)

	genchunk = generatechunk(1,1)

	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=0 to 0 // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which



//			worldlayers[a].id = generatechunk(meshid,a)
			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
//			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)

			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			inc totalcubecount,blocksizex*blocksizey*blocksizez

		next

	next
	next

//	SetObjectVisible(worldlayers[centrechunk].id,1)



/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

				//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=0
	cameray#=(blocksizey*10)
	cameraz#=0
endfunction


function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,1//Left
	if GetRawKeyState(39) then inc camerax#,1//Right
	if GetRawKeyState(38) then inc cameraz#,1//Forward
	if GetRawKeyState(40) then dec cameraz#,1//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)




	if GetRawKeyState(13)

		for v=0 to 23
			SetMeshMemblockVertexColor(100,v,random(100,200),random(100,200),random(100,200),255)
		next
	endif

	if GetRawKeyPressed(27) then end



endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

	newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction


function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,8000000)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

	vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk


function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

Fly up with the WASDs

and FPS is respectable too

WOW!!!!

EDIT

Change the following to:-

+ Code Snippet

19. #constant totalworldchunks=49 // how many of the 16x16 chunks are generated and surrounded

96. global worldlayers as _worldlayers[10000] // this stores each the chunks id, used to join them all up together

Nearly 2Billion Cubes

Beat that Mr Minecraft

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 1st May 2018 20:50

Link

both examples are good
but the second I must say wow so many objects

fubar

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 1st May 2018 20:55

Link

Thanks - will perlin it tomorrow / Thursday

Back to top

Profile

puzzler2018

User Banned

Posted: 2nd May 2018 19:21 Edited at: 2nd May 2018 19:23

Link

The first example I gave where it generated the chunk works well for setmemblockvertexposition, and instanceobject doesnt work with that - so its the first one we need to work with.

Here is an example of increasing the height of cubes

Press and hold space

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=16 // size of the chunk
#constant blocksizey=1  // size of the chunk
#constant blocksizez=16 // size of the chunk
#constant blocksize#=16 // size of each cube

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=2 // how many of the 16x16 chunks are generated and surrounded

// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype

type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene

// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[20000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount

// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet

// Initialise Game

InitialiseGame()

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()

	if GetRawKeyState(32)
		layer=Random(1,totalcubecount-1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(worldlayers[layer].mesh,a,GetMeshMemblockVertexX(worldlayers[layer].mesh,a),GetMeshMemblockVertexy(worldlayers[layer].mesh,a)+blocksize#,GetMeshMemblockVertexz(worldlayers[layer].mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,worldlayers[layer].mesh)

	endif
	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
	createtree(0)
	createocean()

buildmap()

//	generatechunk()
	buildchunks()

initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-10,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)

for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1

	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


				pos#=perlinmap[perlinx,perlinzz,0].noise*10
		//		pos#=Noise2D(x,z) * blocksize#
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
//				pos# = random2(0,1)

	//			if worldlayers


				addplane(chunks, xpos#,0,zpos#,blockcount,x,y,z)

					//if worldlayers[worldlayer].location[x,z] = 0 then


				worldlayers[worldlayer].location[x,z] = meshid+1

				inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id

worldchunks=CreateObjectFromMeshMemblock(chunks)
	worldlayers[worldlayer].id=CreateObjectFromMeshMemblock(chunks)
//	CreateMemblockFromObjectMesh(worldchunks,1)

worldlayers[worldlayer].mesh=CreateMemblockFromObjectMesh(worldchunks,1)

endfunction worldchunks
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)

	genchunk = generatechunk(1,1)

	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=1 to 1 // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which

worldlayers[a].id = generatechunk(meshid,a)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)

			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			totalcubecount=a

		next

next
	next

//	SetObjectVisible(worldlayers[centrechunk].id,1)

/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=0
	cameray#=(blocksizey*10)
	cameraz#=0
endfunction

function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,10//Left
	if GetRawKeyState(39) then inc camerax#,10//Right
	if GetRawKeyState(38) then inc cameraz#,10//Forward
	if GetRawKeyState(40) then dec cameraz#,10//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)

if GetRawKeyPressed(27) then end

endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print ("Press Space to lift random cubes on random chunks")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction

function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,8000000)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk

function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise/13
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

+ Code Snippet

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=16 // size of the chunk
#constant blocksizey=1  // size of the chunk
#constant blocksizez=16 // size of the chunk
#constant blocksize#=16 // size of each cube

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=2 // how many of the 16x16 chunks are generated and surrounded



// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts


SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype



type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene





// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[20000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount


// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet


// Initialise Game



InitialiseGame()



do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()

	if GetRawKeyState(32)
		layer=Random(1,totalcubecount-1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(worldlayers[layer].mesh,a,GetMeshMemblockVertexX(worldlayers[layer].mesh,a),GetMeshMemblockVertexy(worldlayers[layer].mesh,a)+blocksize#,GetMeshMemblockVertexz(worldlayers[layer].mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,worldlayers[layer].mesh)

	endif
	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
	createtree(0)
	createocean()

	buildmap()


//	generatechunk()
	buildchunks()

	initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-10,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)


	for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

	next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1

	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


				pos#=perlinmap[perlinx,perlinzz,0].noise*10
		//		pos#=Noise2D(x,z) * blocksize#
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
//				pos# = random2(0,1)

	//			if worldlayers


				addplane(chunks, xpos#,0,zpos#,blockcount,x,y,z)

					//if worldlayers[worldlayer].location[x,z] = 0 then


				worldlayers[worldlayer].location[x,z] = meshid+1

				inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id


	worldchunks=CreateObjectFromMeshMemblock(chunks)
	worldlayers[worldlayer].id=CreateObjectFromMeshMemblock(chunks)
//	CreateMemblockFromObjectMesh(worldchunks,1)

	worldlayers[worldlayer].mesh=CreateMemblockFromObjectMesh(worldchunks,1)

endfunction worldchunks
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)

	genchunk = generatechunk(1,1)

	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=1 to 1 // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which



			worldlayers[a].id = generatechunk(meshid,a)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)

			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			totalcubecount=a

		next

	next
	next

//	SetObjectVisible(worldlayers[centrechunk].id,1)



/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

				//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=0
	cameray#=(blocksizey*10)
	cameraz#=0
endfunction


function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,10//Left
	if GetRawKeyState(39) then inc camerax#,10//Right
	if GetRawKeyState(38) then inc cameraz#,10//Forward
	if GetRawKeyState(40) then dec cameraz#,10//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)





	if GetRawKeyPressed(27) then end



endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print ("Press Space to lift random cubes on random chunks")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

	newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction


function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,8000000)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

	vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk


function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise/13
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

We can now change blocks / cubes on any chunk with it looking like its duplicating like one of my previous examples a few week back.

Setmemblockvertexpositon is the way to go with adding / removing blocks

More later

Back to top

Profile

puzzler2018

User Banned

Posted: 2nd May 2018 20:03

Link

Replace to whole DO LOOP with this

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()

	if GetRawMouseLeftState()
		layer=Random(1,totalcubecount-1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(worldlayers[layer].mesh,a,GetMeshMemblockVertexX(worldlayers[layer].mesh,a),GetMeshMemblockVertexy(worldlayers[layer].mesh,a)+blocksize#,GetMeshMemblockVertexz(worldlayers[layer].mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,worldlayers[layer].mesh)

	endif

if GetRawMouseRightState()
		layer=Random(1,totalcubecount-1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(worldlayers[layer].mesh,a,GetMeshMemblockVertexX(worldlayers[layer].mesh,a),GetMeshMemblockVertexy(worldlayers[layer].mesh,a)-blocksize#,GetMeshMemblockVertexz(worldlayers[layer].mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,worldlayers[layer].mesh)

	endif

sync()
loop

+ Code Snippet

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()

	if GetRawMouseLeftState()
		layer=Random(1,totalcubecount-1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(worldlayers[layer].mesh,a,GetMeshMemblockVertexX(worldlayers[layer].mesh,a),GetMeshMemblockVertexy(worldlayers[layer].mesh,a)+blocksize#,GetMeshMemblockVertexz(worldlayers[layer].mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,worldlayers[layer].mesh)

	endif

	if GetRawMouseRightState()
		layer=Random(1,totalcubecount-1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(worldlayers[layer].mesh,a,GetMeshMemblockVertexX(worldlayers[layer].mesh,a),GetMeshMemblockVertexy(worldlayers[layer].mesh,a)-blocksize#,GetMeshMemblockVertexz(worldlayers[layer].mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,worldlayers[layer].mesh)

	endif

	sync()
loop

Press Left and Right mouse buttons now

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 2nd May 2018 20:27

Link

Very good @puzzler

Im heading to bed lol its 5am so i really should sleep
been up doing a texture for a model

fubar

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 2nd May 2018 21:36 Edited at: 2nd May 2018 21:48

Link

Thanks

Has anyone got Setmemblockvertexposition working on InstanceObject(s) at all?

EDIT

unless we have to add the memblock header info into it after instancing it

for example

+ Code Snippet


	SetMemblockInt(chk,0,???)
	SetMemblockInt(chk,4,0)
	SetMemblockInt(chk,8,3)
	SetMemblockInt(chk,12,32)
	SetMemblockInt(chk,16,60)
	SetMemblockInt(chk,20,0)
	SetMemBlockInt(chk,24,0x0C000300) //float, 3 components, no normalizing, position
	SetMemblockString(chk,28,"position")
	SetMemblockInt(chk,40,0x08000300) //same as position, but for normals
	SetMemblockString(chk,44,"normal")
	SetMemblockInt(chk,52,0x08010401) //For color we have byte, 4 components, normalize data
	SetMemblockString(chk,56,"color")

but not sure if this is correct,

Back to top

Profile

puzzler2018

User Banned

Posted: 2nd May 2018 22:05

Link

I think the best way to attack this is to

- create a chunk
- create an instance of that chunk,
- retrieve the memblock header info from it
- note the header values already applied
- add the position/color header info as extras
- changing the "starting vertex data" of where the data starts - cause this will be different if adding the positon/color setups onto it

Tough!!!

Back to top

Profile

puzzler2018

User Banned

Posted: 2nd May 2018 22:16

Link

Unless InstanceObject is the similar to creating Shortcuts on Wiindows to files for example - that are just memory pointers to a master object. OUCH!! if thats the case

Back to top

Profile

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 3rd May 2018 11:32 Edited at: 3rd May 2018 11:37

Link

@puzzler2018

InstanceObjects are no real Objects. You also can't clone an Instance of an Object or Instancing an Instance. So for that, we have to save the IDs of the Instance and from which Object it was an Instance, so we can look up in the list and Clone or Instancing from that Original-Object.

@ShortCut -- as Alias on Windows ... (Linux has a soft and a hard-link)
I think a link can provide more information. Because under Windows you would get the Real-Object as reference. With the file-size and thumbnail and so on ... and not the size of the INK (Link), I guess since Windows 7 or so.
For using Instances like that, we have to know: GetInstanceObjectID(ObjectID or InstanceObjectID)

Position, Rotation, Colour and so on, are "cloned", but not the Mesh-Data itself.

Back to top

Profile PM Website

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 3rd May 2018 13:02

Link

Instancing uses one mesh for multiple objects. So day for example you had a tree mesh, you could have one object once then instance it multiple times......so in theory it's one draw call repeated. But, from what I've seen the real advantage here is done within a shader and we can't really use that properly.for example, some grass demos use instancing to generate thousands of blades based around a mathematicaloffset value for each instance. It may be AppGameKit sets all this up for us, but I've never found significant boosts from instancing an object.

Maybe someone else had better luck?

Back to top

Profile PM

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 3rd May 2018 15:53

Link

I tested the loading times on Intel HD graphics (3000, 4000) and with Instances it is much faster, because the mesh-data don't have to be loaded multiple times into the RAM.

e.g. 6 MB for the animated soldier (you can get it down to 2 or 3 MB, but maybe our compressed object is about 6 MB) and now you are on a low-end PC or Android device. And loading time is insane.
So 50 animated soldiers would take 300 MB in RAM and have to be loaded 50 times from the harddrive or flash. But with Instances, you have only the first time the load. It is the same with textures. You don't need 50 times the same texture in memory and don't have to decode 50 times the PNG or JPEG.
You do it onces and than reference to the ImageID.

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 3rd May 2018 18:12

Link

Thanks guys:- im really sorry to disappoint but will have to go with the one without instanceobject - cause we cannot change the Vertices on a chunk to remove / add blocks or adjust the heights of the blocks

Its going to be painful but will do it

Here is the example of multple textured meshes and built an underground chunk 16x32x16

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=16 // size of the chunk
#constant blocksizey=1 // size of the chunk
#constant blocksizez=16 // size of the chunk
#constant blocksize#=64 // size of each cube
#constant memblocksize#=800000

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=2 // how many of the 16x16 chunks are generated and surrounded

// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype

type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene

// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[20000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount, blockcount, totalblockcount, chunklevelid

// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet

// Initialise Game

InitialiseGame()

chunklevelid=15000

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
//	displaydebuginfo()

	if GetRawKeyPressed(48)

	endif

	if GetRawMouseLeftState()
		layer=Random(1,totalcubecount-1)
		mesh = CreateMemblockFromObjectMesh(worldlayers[layer].id,1)
		cube = random(0,blocksizex*blocksizez)*36


		for a=cube to cube+35

			SetMeshMemblockVertexPosition(mesh,a,GetMeshMemblockVertexX(mesh,a),GetMeshMemblockVertexy(mesh,a)+blocksize#,GetMeshMemblockVertexz(mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,mesh)
		DeleteMemblock(mesh)
	endif

if GetRawMouseRightState()
		layer=Random(1,totalcubecount-1)
		mesh = CreateMemblockFromObjectMesh(worldlayers[layer].id,1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(mesh,a,GetMeshMemblockVertexX(mesh,a),GetMeshMemblockVertexy(mesh,a)-blocksize#,GetMeshMemblockVertexz(mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,mesh)
		DeleteMemblock(mesh)

	endif

sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
//	createtree(0)
	//createocean()

buildmap()
	totalblockcount=1

//	generatechunk()
	buildchunks()

initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-blocksize#,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)

for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer,air)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1
	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise*10
		//		pos#=Noise2D(x,z) * blocksize#
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
//				pos# = random2(0,1)
	pos#=0
	//			if worldlayers

				if random(1,50) <air
					addplane(chunks, xpos#,pos#,zpos#,blockcount,x,y,z)
				 	inc blockcount
				endif

				worldlayers[worldlayer].location[x,z] = meshid+1
				inc totalblockcount
				//inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id

//	worldchunks=CreateObjectFromMeshMemblock(chunks)
	worldlayers[worldlayer].id=CreateObjectFromMeshMemblock(chunks)
//	CreateMemblockFromObjectMesh(worldchunks,1)

//	worldlayers[worldlayer].mesh=CreateMemblockFromObjectMesh(worldchunks,1)

endfunction
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)


	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=0 to 3 // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which

generatechunk(meshid,a,20)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			//SetObjectColor(worldlayers[a].id,textures[meshid].r,textures[meshid].g,textures[meshid].b,255)
			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			totalcubecount=a

		next

next
	next

// load the chunk (underground)
		for y=1 to 32
			a=y
			for meshid=0 to 2
				generatechunk(meshid,a,25)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

				SetObjectPosition(worldlayers[a].id,0,0-y * blocksize#,0)
				SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			//SetObjectColor(worldlayers[a].id,textures[meshid].r,textures[meshid].g,textures[meshid].b,255)
				SetObjectVisible(worldlayers[a].id,1)
			next
		next

//	SetObjectVisible(worldlayers[centrechunk].id,1)

/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=0
	cameray#=(blocksizey*10)
	cameraz#=0
endfunction

function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,10//Left
	if GetRawKeyState(39) then inc camerax#,10//Right
	if GetRawKeyState(38) then inc cameraz#,10//Forward
	if GetRawKeyState(40) then dec cameraz#,10//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	//if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)

if GetRawKeyPressed(27) then end

endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalblockcount))
	print("Potential chunks within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print ("Press Space to lift random cubes on random chunks")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction

function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,memblocksize#)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk

function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise/13
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

+ Code Snippet

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=16 // size of the chunk
#constant blocksizey=1 // size of the chunk
#constant blocksizez=16 // size of the chunk
#constant blocksize#=64 // size of each cube
#constant memblocksize#=800000


// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256
#constant totalworldchunks=2 // how many of the 16x16 chunks are generated and surrounded



// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts


SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype



type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene





// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[20000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount, blockcount, totalblockcount, chunklevelid


// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet


// Initialise Game



InitialiseGame()

chunklevelid=15000

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
//	displaydebuginfo()

	if GetRawKeyPressed(48)

	endif

	if GetRawMouseLeftState()
		layer=Random(1,totalcubecount-1)
		mesh = CreateMemblockFromObjectMesh(worldlayers[layer].id,1)
		cube = random(0,blocksizex*blocksizez)*36


		for a=cube to cube+35

			SetMeshMemblockVertexPosition(mesh,a,GetMeshMemblockVertexX(mesh,a),GetMeshMemblockVertexy(mesh,a)+blocksize#,GetMeshMemblockVertexz(mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,mesh)
		DeleteMemblock(mesh)
	endif

	if GetRawMouseRightState()
		layer=Random(1,totalcubecount-1)
		mesh = CreateMemblockFromObjectMesh(worldlayers[layer].id,1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(mesh,a,GetMeshMemblockVertexX(mesh,a),GetMeshMemblockVertexy(mesh,a)-blocksize#,GetMeshMemblockVertexz(mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,mesh)
		DeleteMemblock(mesh)

	endif

	sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
//	createtree(0)
	//createocean()

	buildmap()
	totalblockcount=1


//	generatechunk()
	buildchunks()

	initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-blocksize#,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)


	for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

	next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer,air)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1
	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise*10
		//		pos#=Noise2D(x,z) * blocksize#
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
//				pos# = random2(0,1)
	pos#=0
	//			if worldlayers

				if random(1,50) <air
					addplane(chunks, xpos#,pos#,zpos#,blockcount,x,y,z)
				 	inc blockcount
				endif

				worldlayers[worldlayer].location[x,z] = meshid+1
				inc totalblockcount
				//inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	next y
//	worldlayers[chks].id


//	worldchunks=CreateObjectFromMeshMemblock(chunks)
	worldlayers[worldlayer].id=CreateObjectFromMeshMemblock(chunks)
//	CreateMemblockFromObjectMesh(worldchunks,1)

//	worldlayers[worldlayer].mesh=CreateMemblockFromObjectMesh(worldchunks,1)

endfunction
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)


	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=0 to 3 // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which



			generatechunk(meshid,a,20)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			//SetObjectColor(worldlayers[a].id,textures[meshid].r,textures[meshid].g,textures[meshid].b,255)
			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			totalcubecount=a

		next

	next
	next

// load the chunk (underground)
		for y=1 to 32
			a=y
			for meshid=0 to 2
				generatechunk(meshid,a,25)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

				SetObjectPosition(worldlayers[a].id,0,0-y * blocksize#,0)
				SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			//SetObjectColor(worldlayers[a].id,textures[meshid].r,textures[meshid].g,textures[meshid].b,255)
				SetObjectVisible(worldlayers[a].id,1)
			next
		next

//	SetObjectVisible(worldlayers[centrechunk].id,1)



/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)


		SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

				//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=0
	cameray#=(blocksizey*10)
	cameraz#=0
endfunction


function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,10//Left
	if GetRawKeyState(39) then inc camerax#,10//Right
	if GetRawKeyState(38) then inc cameraz#,10//Forward
	if GetRawKeyState(40) then dec cameraz#,10//Backward
	if GetRawKeyState(87) then inc cameray#,1//87 W
	if GetRawKeyState(83) then dec cameray#,1//87 S
	//if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)





	if GetRawKeyPressed(27) then end



endfunction

function setupinventoryitems()

    for a=0 to 9
        swap()
        box=CreateObjectBox(.5,.5,.5)
        SetObjectRotation(box,0,45,0)
        red=random(0,255):playblocks[a].red=red
        green=random(0,255):playblocks[a].green=green
        blue=random(0,255):playblocks[a].blue=blue
        SetObjectColor(box,red,green,blue,255)
		SetObjectTransparency(box,1)
        render()
        playblocks[a].spr=CreateSprite(getimage(screenwidth/2-50,screenheight/2-50,screenwidth/2+50,screenheight/2+50))

        DeleteObject(box)
    next
    DrawLine(0,0,1,1,MakeColor(255,255,255),MakeColor(255,255,255),1)
    mouse=createsprite(GetImage(0,0,1,1))
    SetRawMouseVisible(0)

endfunction


function displayinventoryandhealth()

        SetSpritePosition(mouse,screenwidth/2,screenheight/2)

    for a=0 to 9
        SetSpritePosition(playblocks[a].spr,(screenwidth/2-(50*5))+a*50,screenheight-150)

    next


endfunction

// this creates the centre pointer
function createblockpointer()
    swap()

    DrawLine(0,5,10,5,MakeColor(255,255,0),MakeColor(255,255,0))
    DrawLine(5,0,5,10,MakeColor(255,255,0),MakeColor(255,255,0))
//    DrawEllipse(5,5,5,5,MakeColor(255,255,0),MakeColor(255,255,0),0)

    render()
    mouse = CreateSprite(GetImage(0,0,50,50))
    SetRawMousePosition(screenwidth/2,screenheight/2)
    SetRawMouseVisible(0)
endfunction

function displaydebuginfo()
	print (GetRawLastKey())
	print (GetPolygonsDrawn())
	print ("Chunk size : " + str(blocksizex) + " x " + str(blocksizey) + " x " + str(blocksizez) )
	print ("World size : " + str(totalworldchunks) + " Chunks by " + str(totalworldchunks)+ " Chunks")
	print("Potential cubes within : " + str(totalblockcount))
	print("Potential chunks within : " + str(totalcubecount))
	print("WASD and cursors to move about")
	print ("Press Space to lift random cubes on random chunks")
	print (ScreenFPS())
endfunction

function movecamerawithmouse()

	fDiffX# = (GetPointerX() - startx#)/6.0
	fDiffY# = (GetPointerY() - starty#)/6.0

	newX# = angx# + fDiffY#
	if ( newX# > 89 ) then newX# = 89
	if ( newX# < -89 ) then newX# = -89
	SetCameraRotation( 1, newX#, angy# + fDiffX#, 0 )
	SetCameraPosition(1,camerax#,cameray#,cameraz#)

endfunction


function initialisememblock(chk,meshid)
		createobjectplane(999,7,7)

	deletememblock(1)
	deletememblock(chk)
	CreateMemblockFromObjectMesh(1,999,meshid)
	creatememblock(chk,memblocksize#)
endfunction
function makememblock(chk,meshid)
	rem here we read the memblock to get it's data
	off=0
	vertcount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertcount)
	off=off+4
	indicecount=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indicecount)
	off=off+4
	attspervert=GetMemblockInt(1,off) // 3=position, normals & UV data
	SetMemblockInt(chk,off,3)
	off=off+4
	vertsize=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertsize)
	off=off+4
	vertoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,vertoff)
	off=off+4
	indexoff=GetMemblockInt(1,off)
	SetMemblockInt(chk,off,indexoff)
	off=off+4
	vertdat1=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat1)
	vertdat2=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat2)
	vertdat3=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat3)
	vertdat4=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat4)
	vertstring$=GetMemblockstring(1,off+4,vertdat4)

	SetMemblockstring(chk,off+4,vertstring$)
	off=off+4+vertdat4
	vertdat5=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat5)
	vertdat6=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat6)
	vertdat7=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat7)
	vertdat8=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat8)
	vertstring2$=GetMemblockstring(1,off+4,vertdat8)
	SetMemblockstring(chk,off+4,vertstring2$)
	off=off+4+vertdat8
	vertdat9=GetMemblockbyte(1,off)
	SetMemblockbyte(chk,off,vertdat9)
	vertdat10=GetMemblockbyte(1,off+1)
	SetMemblockbyte(chk,off+1,vertdat10)
	vertdat11=GetMemblockbyte(1,off+2)
	SetMemblockbyte(chk,off+2,vertdat11)
	vertdat12=GetMemblockbyte(1,off+3)
	SetMemblockbyte(chk,off+3,vertdat12)
	vertstring3$=GetMemblockstring(1,off+4,vertdat12)
	SetMemblockstring(chk,off+4,vertstring3$)
	off=off+4+vertdat12

	vertnumchoice=0
	off=vertoff+(vertnumchoice*vertsize)
	xpos#=GetMemblockFloat(1,off)
	ypos#=GetMemblockFloat(1,off+4)
	zpos#=GetMemblockFloat(1,off+8)
	xnorm#=GetMemblockFloat(1,off+12)
	ynorm#=GetMemblockFloat(1,off+16)
	znorm#=GetMemblockFloat(1,off+20)
	u#=GetMemblockFloat(1,off+24)
	v#=GetMemblockFloat(1,off+28)
	deleteobject(999)
endfunction chk


function addplane(chk,xoff#,yoff#,zoff#,blockcount,x,z,y)
	off=0
	SetMemblockInt(chk,off,vertcount*(blockcount*6))
	newfacecount=0
	rem the front face
	//if z>1
	//if world[x,z-1,y]=0
		for a=0 to 5
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 0
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 1
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 2
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 3
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 4
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 5
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+(a*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,-1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the right face
	//if x<chunksize
	//if world[x+1,z,y]=0
		for a=6 to 11
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 6
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 7
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 8
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 9
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 10
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 11
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-6)*vertsize)
			setmemblockfloat(chk,off+12,1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the rear face
	//if z<chunksize
	//if world[x,z+1,y]=0
		for a=12 to 17
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 12
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 13
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 14
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 15
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 16
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 17
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-12)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,1.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the left face
	//if x>1
	//if world[x-1,z,y]=0
		for a=18 to 23
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 18
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 19
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 20
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 21
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 22
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 23
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-18)*vertsize)
			setmemblockfloat(chk,off+12,-1.0)
			setmemblockfloat(chk,off+16,0.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the top face
	//if y<chunksize
	//if world[x,z,y+1]=0
		for a=24 to 29
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 24
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 25
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 26
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 27
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 28
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 29
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#+(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
			endselect
			off2=vertoff+((a-24)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
	rem the bottom face
	//if y>2
	//if world[x,z,y-1]=0
		for a=30 to 35
			off=vertoff+((a+((blockcount-1)*36))*vertsize)
			select a
				case 30
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 31
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 32
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 33
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#)
				endcase
				case 34
					setmemblockfloat(chk,off,xoff#-(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
				case 35
					setmemblockfloat(chk,off,xoff#+(blocksize#/2))
					setmemblockfloat(chk,off+4,yoff#-(blocksize#/2))
					setmemblockfloat(chk,off+8,zoff#+blocksize#)
				endcase
			endselect
			off2=vertoff+((a-30)*vertsize)
			setmemblockfloat(chk,off+12,0.0)
			setmemblockfloat(chk,off+16,-1.0)
			setmemblockfloat(chk,off+20,0.0)
			setmemblockfloat(chk,off+24,GetMemblockFloat(1,off2+24))
			setmemblockfloat(chk,off+28,GetMemblockFloat(1,off2+28))
			facesdrawn=facesdrawn+1
			newfacecount=newfacecount+1
		next a
	//endif
	//endif
endfunction

function generateperlinimage()
    // Generate image from memblock
	size = perlinw * perlinh * 4 + 12
	mem = CreateMemblock(size)
	SetMemblockInt(mem,0,perlinw)
	SetMemblockInt(mem,4,perlinh)
	SetMemblockInt(mem,8,32)

	offset as integer = 12
	a as float, b as float
	a = 5.0
	b = 2.0

	for y = 0 to perlinh - 1
		for x = 0 to perlinw - 1
			a = a + 0.0001
			b = b + 0.002

        // Try out these two noise methods
        //noise = 255.0*Noise2D(x/10.0,y/10.0)
        noise = 255.0* Noise2D(x/255.0,y/255.0)

        noise = abs(noise)

        //if x<chunksize# and y<chunksize# then
            perlinmap[x,y,0].noise=noise/13
        //clouds
        if noise>255
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
			perlinmap[x,y,0].texture = 6 // snow
            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif


         //greenary
        if noise>100 and noise<=255
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
			perlinmap[x,y,0].texture = 0 // grass
            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        //sand
        if noise>50 and noise<=100
            perlinmap[x,y,0].r = noise
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = 0
 			perlinmap[x,y,0].texture = 5 // sand

            SetMemblockByte(mem, offset, noise)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, 0)
            SetMemblockByte(mem, offset+3, 255)
        endif
        // water
        if noise>25 and noise<=50
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = noise
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 4 // lightwater

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, 0)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        if noise<=25
            perlinmap[x,y,0].r = 0
            perlinmap[x,y,0].g = 0
            perlinmap[x,y,0].b = noise
 			perlinmap[x,y,0].texture = 3 // deep water

            SetMemblockByte(mem, offset, 0)
            SetMemblockByte(mem, offset+1, noise)
            SetMemblockByte(mem, offset+2, noise)
            SetMemblockByte(mem, offset+3, 255)
        endif

        offset = offset + 4
    next
next

map=CreateImageFromMemblock(mem)
DeleteObject(mem)
endfunction map




// ***************************************************************************************************
// Ken Perlin's Simplex Noise 2D. AGK Version.
// Ported from Stefan Gustavson's Java implementation
// (http://staffwww.itn.liu.se/~stegu/simplexnoise/simplexnoise.pdf)
// 2015.02.03
// AGK reference https://forum.thegamecreators.com/thread/213532
// Thank you Thank you

#constant PN3DF2 = 0.5*(sqrt(3.0)-1.0)
#constant PN3DG2 = (3.0-sqrt(3.0))/6.0

Type sPNVECTOR
    x as float
    y as float
    z as float
endtype

Global PNHash as integer[512]
Global PNGrad3 as sPNVECTOR[256]


Function NoiseInit()
    Local n as integer, rn as integer
    For n=0 To 255
        PNHash[n] = n
    Next n
    For n=0 To 255
        rn=Random(0, 255)
        PNHash.swap(n,rn)
    Next n
    For n=0 To 255
        PNHash[256 + n] = PNHash[n]
    Next n
    PNHash[511] = PNHash[0]

    For n=0 To 15
        PNGrad3[n * 16 + 0].x = 1 : PNGrad3[n * 16 + 0].y = 1 : PNGrad3[n * 16 + 0].z = 0
        PNGrad3[n * 16 + 1].x = -1 : PNGrad3[n * 16 + 1].y = 1 : PNGrad3[n * 16 + 1].z = 0
        PNGrad3[n * 16 + 2].x = 1 : PNGrad3[n * 16 + 2].y = -1 : PNGrad3[n * 16 + 2].z = 0
        PNGrad3[n * 16 + 3].x = -1 : PNGrad3[n * 16 + 3].y = -1 : PNGrad3[n * 16 + 3].z = 0

        PNGrad3[n * 16 + 4].x = 1 : PNGrad3[n * 16 + 4].y = 0 : PNGrad3[n * 16 + 4].z = 1
        PNGrad3[n * 16 + 5].x = -1 : PNGrad3[n * 16 + 5].y = 0 : PNGrad3[n * 16 + 5].z = 1
        PNGrad3[n * 16 + 6].x = 1 : PNGrad3[n * 16 + 6].y = 0 : PNGrad3[n * 16 + 6].z = -1
        PNGrad3[n * 16 + 7].x = -1 : PNGrad3[n * 16 + 7].y = 0 : PNGrad3[n * 16 + 7].z = -1

        PNGrad3[n * 16 + 8].x = 0 : PNGrad3[n * 16 + 8].y = 1 : PNGrad3[n * 16 + 8].z = 1
        PNGrad3[n * 16 + 9].x = 0 : PNGrad3[n * 16 + 9].y = -1 : PNGrad3[n * 16 + 9].z = 1
        PNGrad3[n * 16 + 10].x = 0 : PNGrad3[n * 16 + 10].y = 1 : PNGrad3[n * 16 + 10].z = -1
        PNGrad3[n * 16 + 11].x = 0 : PNGrad3[n * 16 + 11].y = -1 : PNGrad3[n * 16 + 11].z = -1

        PNGrad3[n * 16 + 12].x = 1 : PNGrad3[n * 16 + 12].y = 1 : PNGrad3[n * 16 + 12].z = 0
        PNGrad3[n * 16 + 13].x = -1 : PNGrad3[n * 16 + 13].y = 1 : PNGrad3[n * 16 + 13].z = 0
        PNGrad3[n * 16 + 14].x = 0 : PNGrad3[n * 16 + 14].y = -1 : PNGrad3[n * 16 + 14].z = 1
        PNGrad3[n * 16 + 15].x = 0 : PNGrad3[n * 16 + 15].y = -1 : PNGrad3[n * 16 + 15].z = -1
    Next n
endfunction

function Noise2D(xin as float, yin as float)
    local n0 as float, n1 as float, n2 as float, s as float, t as float, x0 as float, y0 as float, xs as float, ys as float
    local i as integer, j as integer, i1 as integer, j1 as integer, i2 as integer, j2 as integer, gi0 as integer, gi1 as integer, gi2 as integer
    local x1 as float, y1 as float, x2 as float, y2 as float, x3 as float, y3 as float, t0 as float, t1 as float, t2 as float

    s = (xin + yin) * PN3DF2
    xs = xin + s

    i = floor(xs)
    ys = yin + s

    j = floor(ys)
    t = (i + j) * PN3DG2

    x0 = xin - (i - t)
    y0 = yin - (j - t)

    if x0>y0
        i1=1
        j1=0
    else
        i1=0
        j1=1
    endif

    x1 = x0 - i1 + PN3DG2
    y1 = y0 - j1 + PN3DG2
    x2 = x0 - 1.0 + 2.0 * PN3DG2
    y2 = y0 - 1.0 + 2.0 * PN3DG2

    i = i && 255
    j = j && 255

    gi0 =  PNHash[i + PNHash[j]] && 15
    gi1 = PNHash[i + i1 + PNHash[j + j1]] && 15
    gi2 = PNHash[i + 1 + PNHash[j+ 1]] && 15

    t0 = 0.5 - x0*x0-y0*y0
    if t0<0
        n0 = 0.0
    else
        t0 = t0 * t0
        n0 = t0 * t0 * (PNGrad3[gi0].x * x0 + PNGrad3[gi0].y * y0)
    endif

    t1 = 0.5 - x1*x1-y1*y1
    if t1<0
        n1 = 0.0
    else
        t1 = t1 * t1
        n1 = t1 * t1 * (PNGrad3[gi1].x * x1 + PNGrad3[gi1].y * y1)
    endif

    t2 = 0.5 - x2*x2-y2*y2
    if t2<0
        n2 = 0.0
    else
        t2 = t2 * t2
        n2 = t2 * t2 * (PNGrad3[gi2].x * x2 + PNGrad3[gi2].y * y2)
    endif

endfunction  70.0 * (n0 + n1 + n2)
function createtextures(sizex# as float, sizey# as float,density, toptexture, bottomtexture)

    if bottomtexture=0
        //do a full block of the same texture
        texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey# step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)

    else
        // do an half block with a different texture at bottom
            texturecount=toptexture
            swap()

            for a=0 to sizex# step density
                for b=0 to sizey#/3 step density

                    rr=random(1,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next
            texturecount=bottomtexture
            for a=0 to sizex# step density
                for b=sizey#/3 to sizey# step density

                    rr=random(0,textures[texturecount].dr)


                    if textures[texturecount].dr-rr >0 then colorred=textures[texturecount].r - rr
                    if textures[texturecount].dg-rr >0 then colorgreen=textures[texturecount].g - rr
                    if textures[texturecount].db-rr >0 then colorblue=textures[texturecount].b - rr
                    if colorred<0 then colorred=textures[texturecount].r
                    if colorgreen<0 then colorgreen=textures[texturecount].g
                    if colorblue<0 then colorblue=textures[texturecount].b
                    drawbox(a,b,(A+density),(B+density), MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue),MakeColor(colorred,colorgreen,colorblue), 1)
                next
            next

            render()
            textures[texturecount].id = getimage(0,0,sizex#, sizey#)


    endif


endfunction textures[texturecount].id

function definetextures()


//          grass=createtexture(64,64,0,200,0,8)
//grass
    textures[0].r=0   :textures[0].dr=50
    textures[0].g=255 :textures[0].dg=50
    textures[0].b=0   :textures[0].db=50


//dirt
    textures[1].r=139  :textures[1].dr=50
    textures[1].g=69:textures[1].dg=50
    textures[1].b=19:textures[1].db=50

//goldgold=createtexture(8,8,255,215,100,1)

    textures[2].r=255   :textures[2].dr=50
    textures[2].g=215 :textures[2].dg=50
    textures[2].b=100  :textures[2].db=50


//  water=createtexture(8,8,0,0,100,1)
    textures[3].r=0   :textures[3].dr=50
    textures[3].g=0 :textures[3].dg=50
    textures[3].b=100  :textures[3].db=50

//  lightwater=createtexture(8,8,39,89,45,1)
    textures[4].r=0  :textures[4].dr=50
    textures[4].g=100 :textures[4].dg=50
    textures[4].b=100  :textures[4].db=50

//  =createtexture(8,8,39,89,45,1)
    textures[5].r=194   :textures[5].dr=50
    textures[5].g=178 :textures[5].dg=50
    textures[5].b=128  :textures[5].db=50


// create the texturs
    textures[0].id = CreateTextures(8,8,1,0,0)  // top
    textures[1].id = CreateTextures(8,8,1,1,1)  // bottom
    textures[2].id = CreateTextures(8,8,1,2,2) // sides
    textures[3].id = CreateTextures(8,8,1,3,3) // sides
    textures[4].id = CreateTextures(8,8,1,4,4) // sides
    textures[5].id = CreateTextures(8,8,1,5,5) // sides



endfunction
function setupskyandfog()
    // setup a skybox
    SetSunActive(1)
    SetSkyBoxHorizonSize(4.1,4)
    SetSkyBoxHorizonColor(90,132,150)//nice horizon blue
    SetSkyBoxSkyColor(0,122,193)//thunder horison thunderblue
    SetSkyBoxVisible(1)
    SetFogColor(155,155,155)
    SetFogRange(1000,20000)
    SetFogMode(1)
endfunction

Fly around with WASD
Move around with cursors

Espectallly look underneath

Time to take it to the extreme now by seeing its memory limitations before it boooooms and then

Back to top

Profile

puzzler2018

User Banned

Posted: 4th May 2018 19:27 Edited at: 4th May 2018 19:28

Link

Hi

I dont think we will get any better than this - but is respectable for a nice mini mincraft

// Project: CreateObjectFromMeshMemblock
// Created: 2018-03-02

// show all errors
SetErrorMode(2)

// Setup the hard coded constants
#constant screenwidth=800
#constant screenheight=600
#constant blocksizex=16 // size of the chunk
#constant blocksizey=10 // size of the chunk
#constant blocksizez=16 // size of the chunk
#constant blocksize#=16 // size of each cube

#constant memblocksize#=300000

#constant landair = 20 // how many cubes within a layer has air blocks (empty spaces) ratio of 0 to 50
#constant mainchunkair = 20 // how many cubes within a layer has air blocks (empty spaces) ratio of 0 to 50
#constant totalworldchunks=4 // how many of the 16x16 chunks are generated and surrounded

#constant maxtexturemeshes=2 // how many different textured blocks on for each layer

// camera/ player speed
#constant playerspeed#=.1

// setup perlinmapdata
#constant perlinw = 256 //power of 2
#constant perlinh = 256 //power of 2
#constant perlinz = 256

// set window properties

SetWindowTitle( "CreateObjectFromMeshMemblock" )
SetWindowSize( screenwidth, screenheight, 1 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth,screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 1200, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

SetDefaultMagFilter(0)
SetDefaultMinFilter(0)

// setup the types - each entity may have multiple of entities to keep track of, these can be stored as Types
type _textures
    id              // texture store
    r,g,b           // colors
    dr,dg,db        // depths (because minecraft tiles is built with rectangular different shades of the color)
    texturessize
endtype

type _worldlayers
	id
	mesh
	location as integer[blocksizex,blocksizez] // check if a object already exists in the meshes
	taken
endtype

type _perlinmap
    r
    g
    b
    a
	texture
    noise
endtype

type _playblocks
    spr
    red
    green
    blue
endtype
global playblocks as _playblocks[10]

type _tree

	cones as integer[10]
	stump
	height#
endtype
global tree as _tree[10000] // how many in the scene

// Initialise Globals

// Inventory Variables
global playerblocks // stored the players object of which will use to add/destroy
global currentselectedplayblock,mouse

// world variables
global perlinmap as _perlinmap[perlinw,perlinh,perlinz]
global perlinx, perlinzz

global worldlayers as _worldlayers[20000] // this stores each the chunks id, used to join them all up together
                                         // use "Totalworldchunks" to set how many joined on the x and z axis
global worldchunks
global chunks, totalcubecount, blockcount, totalblockcount, chunklevelid

// textures
global textures as _textures[50]         // used to store textures (not ready yet)

// memblock variables
global face,vertcount,vertoff,vertsize

// Camera Variables
global camerax#,cameray#,cameraz#
global angx#,angy#,startx#,starty#

// Object variables
global treecount=0
global ocean

// Run the Game Title Screen
// title() - Not ready yet

// Initialise Game

InitialiseGame()

chunklevelid=15000

do
	movecamerawithmouse()
	displayinventoryandhealth()
	checkkeypresses()
	displaydebuginfo()

	if GetRawKeyPressed(48)

	endif

	if GetRawMouseLeftState()
		layer=Random(1,totalcubecount-1)
		mesh = CreateMemblockFromObjectMesh(worldlayers[layer].id,1)
		cube = random(0,blocksizex*blocksizez)*36


		for a=cube to cube+35

			SetMeshMemblockVertexPosition(mesh,a,GetMeshMemblockVertexX(mesh,a),GetMeshMemblockVertexy(mesh,a)+blocksize#,GetMeshMemblockVertexz(mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,mesh)
		DeleteMemblock(mesh)
	endif

if GetRawMouseRightState()
		layer=Random(1,totalcubecount-1)
		mesh = CreateMemblockFromObjectMesh(worldlayers[layer].id,1)
		cube = random(0,blocksizex*blocksizez)*36
		for a=cube to cube+35

			SetMeshMemblockVertexPosition(mesh,a,GetMeshMemblockVertexX(mesh,a),GetMeshMemblockVertexy(mesh,a)-blocksize#,GetMeshMemblockVertexz(mesh,a))
		next
		SetObjectMeshFromMemblock(worldlayers[layer].id,1,mesh)
		DeleteMemblock(mesh)

	endif

sync()
loop

function InitialiseGame()

	createblockpointer()
	definetextures()
	setupinventoryitems()

	setupskyandfog()
//	createtree(0)
	//createocean()

buildmap()
	totalblockcount=1

//	generatechunk()
	buildchunks()

initialisecamera()

endfunction

function createocean()
	ocean=CreateObjectPlane(100000,100000)
	SetObjectRotation(ocean,90,0,0)
	SetObjectColor(ocean,0,0,50,255)
	SetObjectPosition(ocean,getobjectx(ocean),-blocksize#,getobjectz(ocean))
endfunction

function createtree(id)

	tree[id].height#=random(1,4)
	tree[id].stump = CreateObjectCylinder(tree[id].height#*2,tree[id].height#/2,10)
	SetObjectColor(tree[id].stump, 83, 53, 10,255)

for a=0 to tree[id].height#*1.5

		tree[id].cones[a] = CreateObjectCone(a,2+a,50)

		SetObjectPosition(tree[id].cones[a],0,2+(tree[id].height#)-a,0)

		SetObjectColor(tree[id].cones[a],random(50,100),random(120,170),0,255)
		fixobjecttoobject(tree[id].cones[a],tree[id].stump)

next
endfunction tree[treecount].stump

function generatechunk(meshid,worldlayer,air)

	totalcubecount=0

	chunks=100 // memory reference ic
	blockcount=1
	makememblock(chunks, meshid)

	xpos#=0:ypos#=0:zpos#=0
//	for y=1 to blocksizey
		for z=1 to blocksizez
			for x=1 to blocksizex

//				pos=random(1,blocksize#)


//				pos#=perlinmap[perlinx,perlinzz,0].noise*10
		//		pos#=Noise2D(x,z) * blocksize#
	//			pos#=blocksize# * (cos(x) * sin(z)) * 10
//				pos# = random2(0,1)
	pos#=0
	//			if worldlayers

				if random(1,50) <landair
					addplane(chunks, xpos#,pos#,zpos#,blockcount,x,0,z)
				 	inc blockcount
				endif

				worldlayers[worldlayer].location[x,z] = meshid+1
				inc totalblockcount
				//inc blockcount
				inc totalcubecount
				xpos#=xpos#+blocksize#
				inc perlinx
				if perlinx>256 then perlinx=1
			next x
			zpos#=zpos#+blocksize#
			xpos#=0
			inc perlinzz
			if perlinzz>256 then perlinzz=1
		next z
		zpos#=0
		xpos#=0
		ypos#=ypos#+blocksize#
//		perlinx=1
	//	perlinzz=1
	//next y
//	worldlayers[chks].id

//	worldchunks=CreateObjectFromMeshMemblock(chunks)
	worldlayers[worldlayer].id=CreateObjectFromMeshMemblock(chunks)
//	CreateMemblockFromObjectMesh(worldchunks,1)

//	worldlayers[worldlayer].mesh=CreateMemblockFromObjectMesh(worldchunks,1)

endfunction
function buildmap()
	// start perlin map data
	NoiseInit()
	mapimg=generateperlinimage()
	mapsprite = CreateSprite(mapimg)
	//SetSpriteSize(mapsprite,128,128)
	SetSpritePosition(mapsprite,screenwidth-100,10)
endfunction

function buildchunks()
	totalcubecount=0
	a=1
	initialisememblock(100,1)


	// you may get memory issues if dont tweak the chunk size - cause having 3 meshes on the memblock will soon build up
	// to 100,000 (limit) and causing GPU memory runtime failures. If you do, try reducing the chunk size (at the top of the
	// program

		for wx=-totalworldchunks to totalworldchunks
			for wz=-totalworldchunks to totalworldchunks
				for meshid=0 to maxtexturemeshes // multiple textures on each chunk - lets do 3 to start with

			// set the vertices of each block in the chunk for the perlin map noise

			 // choose a random block and find the starting vertice
			// mesh 100 is the mesh for the 16x16 chunk of which

generatechunk(meshid,a,8)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

			SetObjectPosition(worldlayers[a].id,wx*(blocksizex*blocksize#),0,wz*(blocksizez*blocksize#))
			SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			//SetObjectColor(worldlayers[a].id,textures[meshid].r,textures[meshid].g,textures[meshid].b,255)
			SetObjectVisible(worldlayers[a].id,1)

			inc a

			// find the centre chunk of starting position, we then can make chunks invisible say 4 surround chunks and render later
			// when move around


			totalcubecount=a

		next

next
	next

// load the chunk (underground)
		for y=1 to blocksizey
			a=y
			for meshid=0 to maxtexturemeshes
				generatechunk(meshid,a,mainchunkair)
//			worldlayers[a].id = InstanceObject(genchunk)
//			AddObjectMeshFromMemblock(worldlayers[a].id, chunk)

				SetObjectPosition(worldlayers[a].id,0,0-y * blocksize#,0)
				SetObjectImage(worldlayers[a].id,textures[meshid].id,0)
			//SetObjectColor(worldlayers[a].id,textures[meshid].r,textures[meshid].g,textures[meshid].b,255)
				SetObjectVisible(worldlayers[a].id,1)
			next
		next

//	SetObjectVisible(worldlayers[centrechunk].id,1)

/*
	for a=-5 to 5
		SetObjectVisible(worldlayers[centrechunk-totalworldchunks-a].id,1)
//		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)

		SetObjectVisible(worldlayers[centrechunk-totalworldchunks+a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk-totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk+totalworldchunks-a].id,1)
		SetObjectVisible(worldlayers[centrechunk+totalworldchunks+a].id,1)
		//SetObjectVisible(worldlayers[centrechunk+totalworldchunks+1].id,1)

SetObjectVisible(worldlayers[centrechunk-a].id,1)
	//	SetObjectVisible(worldlayers[centrechunk+1].id,1)
	next
*/

endfunction

function add_a_tree()
// Add a tree
//					inc treecount
					createtree(treecount)
//					if treecount>tree.length-1 then treecount=tree.length-1

//	tree[treecount].stump=InstanceObject(tree[0].stump)
					treex#=random(1,(blocksizex * totalworldchunks)*blocksize#)
					treez#=random(1,(blocksizez * totalworldchunks)*blocksize#)
					SetObjectPosition(tree[treecount].stump,treex#,blocksize#,treez#)
					inc treecount
endfunction

function initialisecamera()

	setcamerarange(1,0.1,10000.0)
    setcameraposition(1,getcamerax(1),600,getcameraz(1))
	angx#=0:angy#=0:startx#=1024/2:starty#=768/2
	SetRawMousePosition(1024/2,768/2)
	camerax#=(blocksizex*blocksize#)/2
	cameray#=(blocksizey)

	cameraz#=(blocksizez * blocksize#)/2
endfunction

function checkkeypresses()
	if GetRawKeyState(37) then dec camerax#,playerspeed#//Left
	if GetRawKeyState(39) then inc camerax#,playerspeed#//Right
	if GetRawKeyState(38) then inc cameraz#,playerspeed#//Forward
	if GetRawKeyState(40) then dec cameraz#,playerspeed#//Backward
	if GetRawKeyState(87) then inc cameray#,playerspeed#//87 W
	if GetRawKeyState(83) then dec cameray#,playerspeed#//87 S
	//if cameray#<(blocksizey*10) then cameray#=(blocksizey*10)
