AppGameKit Classic Chat / Is there anything like a Minecraft clone out there, made with AGK?

Author

Message

puzzler2018

User Banned

Posted: 29th Jan 2019 22:58 Edited at: 29th Jan 2019 23:03

Mesh memblocks is not scary - promise people... its worth learning

I wouldnt got where I am today wish Mesh Memblocks without (in no particular order)

Tom Toad (not sure if he realises)
Rick Nasher
Fubarpk
Santman
Janbo
Bengismo

and few others

Cheers guys

Back to top

Profile

puzzler2018

User Banned

Posted: 31st Jan 2019 22:01

I feel ive dismissed this a bit - so will catch up with this work at weekend amongst other things

Things to acheive this weekend is:-

- Removal / Adding blocks to the new way of collisioning we created together (by ideas from other threads).

- occluded faces implemented properly

- Multiple Texture mapping cubes on an Atlas map (done this before) but could be better

Think that will do for a weekend

Back to top

Profile

puzzler2018

User Banned

Posted: 3rd Feb 2019 22:35 Edited at: 3rd Feb 2019 22:35

I must have brought an idea with lego working on Minecraft style engine but with the nobbles

https://forum.thegamecreators.com/thread/223727

Back to top

Profile

puzzler2018

User Banned

Posted: 10th Feb 2019 20:40

This is a very extremly interesting video about using normals to work out to cull backfaces or not - its just about the order of how we building triangles/vertexes up - all must be in a rotation manner

Quite pleasantly surprised

Back to top

Profile

puzzler2018

User Banned

Posted: 11th Feb 2019 12:49

So as long as we define the cubes vertexes (or any objects) the right way round (clockwise) or (anticlockwise) and not a mixture then, work out the Normals for each face.

Just as long as every single triangle uses the same rotation premise on building it, then the normal results can be used to decide to draw or not a face.

So, If the results

Normalise()

if sqrt( NormalX# + NormalY# + NormalZ# ) > 0

draw that face to the mesh

else

don't bother

endif

Amazing trick!! and cannot wait to give this a bash pronto!!

Back to top

Profile

chafari

Valued Member

18

Years of Service

User Offline

Joined: 2nd May 2006

Location: Canary Islands

Posted: 11th Feb 2019 20:42

Nice video puzzler . This is the way freebasic works....I love it !! and is total free ...Somehow we have to fooling the eye to give the appearance of 3D .

An easy example converted to Agk.

// Project: 2d3D
// Created: 2019-02-11
SetWindowSize( 1024, 768, 0 )
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery

dim coordx[4]
dim coordy[4]
giro as float
x as float
y as float
giro=90
x=0
y=0
c=0
w=makecolor(255,255,255)
do
 for i= 1 to 4
    coordx[i]=250+sin(i*giro+x)*200
    coordy[i]=250+cos(i*giro+x)*(50-y)
 next i

if ( GetRawKeyState( 38 ) ) then y=y+2
 if ( GetRawKeyState( 40 ) ) then y=y-2
 if ( GetRawKeyState( 37 ) ) then x=x+2
 if ( GetRawKeyState( 39 ) ) then x=x-2
for i= 1 to 200
    drawline(coordx[1],coordy[1]+i,coordx[2],coordy[2]+i,10000,10000,1)
    drawline(coordx[2],coordy[2]+i,coordx[3],coordy[3]+i,50000,10000,1)
    drawline(coordx[3],coordy[3]+i,coordx[4],coordy[4]+i,90000,70000,1)
    drawline(coordx[1],coordy[1]+i,coordx[4],coordy[4]+i,80000,20000,1)
 next

drawline(coordx[1],coordy[1],coordx[2],coordy[2],w,w,1)
drawline(coordx[2],coordy[2],coordx[3],coordy[3],w,w,1)
drawline(coordx[3],coordy[3],coordx[4],coordy[4],w,w,1)
drawline(coordx[4],coordy[4],coordx[1],coordy[1],w,w,1)

drawline(coordx[1],coordy[1],coordx[1],coordy[1]+200,w,w,1)
drawline(coordx[2],coordy[2],coordx[2],coordy[2]+200,w,w,1)
drawline(coordx[3],coordy[3],coordx[3],coordy[3]+200,w,w,1)
drawline(coordx[4],coordy[4],coordx[4],coordy[4]+200,w,w,1)

drawline(coordx[1],coordy[1]+200,coordx[2],coordy[2],w,w,1)
drawline(coordx[2],coordy[2]+200,coordx[3],coordy[3],w,w,1)
drawline(coordx[3],coordy[3]+200,coordx[4],coordy[4],w,w,1)
drawline(coordx[4],coordy[4]+200,coordx[1],coordy[1],w,w,1)

drawline(coordx[1],coordy[1]+200,coordx[2],coordy[2]+200,w,w,1)
drawline(coordx[2],coordy[2]+200,coordx[3],coordy[3]+200,w,w,1)
drawline(coordx[3],coordy[3]+200,coordx[4],coordy[4]+200,w,w,1)
drawline(coordx[4],coordy[4]+200,coordx[1],coordy[1]+200,w,w,1)

drawline(coordx[1],coordy[1],coordx[3],coordy[3],w,w,1)
drawline(coordx[1],coordy[1]+200,coordx[3],coordy[3]+200,w,w,1)

    print("use cursor key")
    Print( ScreenFPS() )
    Sync()
loop

// Project: 2d3D
// Created: 2019-02-11
SetWindowSize( 1024, 768, 0 )
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery

dim coordx[4]
dim coordy[4]
giro as float
x as float
y as float
giro=90
x=0
y=0
c=0
w=makecolor(255,255,255)
do
 for i= 1 to 4
    coordx[i]=250+sin(i*giro+x)*200
    coordy[i]=250+cos(i*giro+x)*(50-y)
 next i

 if ( GetRawKeyState( 38 ) ) then y=y+2
 if ( GetRawKeyState( 40 ) ) then y=y-2
 if ( GetRawKeyState( 37 ) ) then x=x+2
 if ( GetRawKeyState( 39 ) ) then x=x-2
for i= 1 to 200
    drawline(coordx[1],coordy[1]+i,coordx[2],coordy[2]+i,10000,10000,1)
    drawline(coordx[2],coordy[2]+i,coordx[3],coordy[3]+i,50000,10000,1)
    drawline(coordx[3],coordy[3]+i,coordx[4],coordy[4]+i,90000,70000,1)
    drawline(coordx[1],coordy[1]+i,coordx[4],coordy[4]+i,80000,20000,1)
 next

drawline(coordx[1],coordy[1],coordx[2],coordy[2],w,w,1)
drawline(coordx[2],coordy[2],coordx[3],coordy[3],w,w,1)
drawline(coordx[3],coordy[3],coordx[4],coordy[4],w,w,1)
drawline(coordx[4],coordy[4],coordx[1],coordy[1],w,w,1)

drawline(coordx[1],coordy[1],coordx[1],coordy[1]+200,w,w,1)
drawline(coordx[2],coordy[2],coordx[2],coordy[2]+200,w,w,1)
drawline(coordx[3],coordy[3],coordx[3],coordy[3]+200,w,w,1)
drawline(coordx[4],coordy[4],coordx[4],coordy[4]+200,w,w,1)

drawline(coordx[1],coordy[1]+200,coordx[2],coordy[2],w,w,1)
drawline(coordx[2],coordy[2]+200,coordx[3],coordy[3],w,w,1)
drawline(coordx[3],coordy[3]+200,coordx[4],coordy[4],w,w,1)
drawline(coordx[4],coordy[4]+200,coordx[1],coordy[1],w,w,1)

drawline(coordx[1],coordy[1]+200,coordx[2],coordy[2]+200,w,w,1)
drawline(coordx[2],coordy[2]+200,coordx[3],coordy[3]+200,w,w,1)
drawline(coordx[3],coordy[3]+200,coordx[4],coordy[4]+200,w,w,1)
drawline(coordx[4],coordy[4]+200,coordx[1],coordy[1]+200,w,w,1)

drawline(coordx[1],coordy[1],coordx[3],coordy[3],w,w,1)
drawline(coordx[1],coordy[1]+200,coordx[3],coordy[3]+200,w,w,1)

    print("use cursor key")
    Print( ScreenFPS() )
    Sync()
loop

I'm not a grumpy grandpa

Back to top

Profile PM Email

puzzler2018

User Banned

Posted: 11th Feb 2019 21:20

Wow - nice snippet Chafari - works well but the projection is slightly off when go up and down on the Y but should be easily remidied with multiplication matrixes

Thanks for your time and input..

Back to top

Profile

fubarpk

Retired Moderator

19

Years of Service

User Offline

Joined: 11th Jan 2005

Playing: AGK is my friend

Posted: 11th Feb 2019 22:07

that's Clever Chafari

fubar

Back to top

Profile PM Email Website

chafari

Valued Member

18

Years of Service

User Offline

Joined: 2nd May 2006

Location: Canary Islands

Posted: 12th Feb 2019 00:33

@puzzler / fubarpk thanks for your coments. This snippet needs some adjustments to work correctly. We have to limit the y movements and draw top & down face. I made this inspired by the video tutorial. Theres a tecnic of raycasting that looks like maze 3D using 2D programms .

I'm not a grumpy grandpa

Back to top

Profile PM Email

puzzler2018

User Banned

Posted: 12th Feb 2019 12:37

Well done chafari. Ya bet me to it lol.

Back to top

Profile

puzzler2018

User Banned

Posted: 12th Feb 2019 22:08 Edited at: 12th Feb 2019 22:17

Here is my version of basic normalising normals

/// Project: Mesh Template
// Created: 2019-01-12

// show all errors
SetErrorMode(2)

#constant screenwidth=1024
#constant screenheight=768
#constant fullscreen=0
#constant screenrate=0
#constant size=32  // Size of the chunk in X and Z direction - make this small so the chunk can be quickly rebuilt in processing
#constant renderdistance=0 // how many chunks surrounding each other - call it render distance variable

// set window properties
SetWindowTitle( "Mesh Template" )
SetWindowSize( screenwidth, screenheight, fullscreen )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth, screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( screenrate, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

global angx#,angy#,startx#,starty#,cube,collisioncoordx,collisioncoordz,collisioncoordy
global numofchunks, numofcubes,chunk
global img,camerax#,cameray#,cameraz#,centrespr, minx,miny,minz,maxx,maxy,maxz, actualverts
global vertexcounter=0

// meshmemblock types
Type Vertex
    air as integer
    x as float
    y as float
    z as float
    nx as float
    ny as float
    nz as float
    u as float
    v as float
endtype

Type _tris
    v1 as float
    v2 as float
    v3 as float
    nx# as float
    ny# as float
    nz# as float
	display as integer
endtype

Type Mesh
    VertexList as Vertex[]
endtype

global MeshID as Mesh
global Tris as _tris[3]

// front - counter clockwise direction
AddTriangles(0,0,0,  1,1,0,  0,1,0)
AddTriangles(0,0,0,  1,0,0,  1,1,0)

// back - counter clockwise direction
AddTriangles(1,0,1,  0,1,1,  1,1,1)
AddTriangles(1,0,1,  0,0,1,  0,1,1)

obj = CreateObjectFromMeshWithUVTexturing(meshid,1,0)

startx#=screenwidth/2
starty#=screenheight/2
do
	RotateObjectLocalY(obj,.1)
	print("Polies "+ str(GetPolygonsDrawn()))
	print("Tiangles"+ str(GetPolygonsDrawn()*3))
	movecamera()
    Print( ScreenFPS() )
    Sync()
loop

function movecamera()
	fDiffX# = (GetPointerX() - startx#)/4.0
    fDiffY# = (GetPointerY() - starty#)/4.0
    newX# = angx# + fDiffY#
    if ( newX# > 89 ) then newX# = 89
    if ( newX# < -89 ) then newX# = -89
    SetCameraRotation(1, newX#, angy# + fDiffX#, 0 )

endfunction

function emptymesh()
	meshid.VertexList.length=-1
endfunction

function calculatenormals()

	x1#=tris[1].v1 - tris[0].v1
	y1#=tris[1].v2 - tris[0].v2
	z1#=tris[1].v3 - tris[0].v3

	x2#=tris[2].v1 - tris[0].v1
	y2#=tris[2].v2 - tris[0].v2
	z2#=tris[2].v3 - tris[0].v3

// calculate the normals of the directions perduncicular the other point working on to find the dot point for each axis
	nx# = (y1# * z2#) - (z1# * y2#)
	ny# = (z1# * x2#) - (x1# * z2#)
	nz# = (x1# * y2#) - (y1# * x2#)
	length# = sqrt((nx# * nx#) + (ny#*ny#) + (nz# * nz#))

// normalise those results between 0.0 and 1.0
	nx#=nx#/length#
	ny#=ny#/length#
	nz#=nz#/length#

// bacface culling - if the result of the normal is >0 is this in front camera facing
	if nz#>0
		AddVertex(meshid,tris[0].v1, tris[0].v2,tris[0].v3,   0,0,1)
		AddVertex(meshid,tris[1].v1, tris[1].v2,tris[1].v3,   0,0,1)
		AddVertex(meshid,tris[2].v1, tris[2].v2,tris[2].v3,   0,0,1)
	else

// no  - dont create anything - wont see anyway
	endif

endfunction

Function AddVertex(m ref as Mesh, x as float, y as float, z as float, u as float, v as float, air as integer)
    vert as vertex
    vert.x = x
    vert.y = y
    vert.z = z
    vert.u = u
    vert.v = v
    m.VertexList.Insert(vert)
endfunction

Function AddTriangles(x as float, y as float, z as float, x2 as float, y2 as float, z2 as float, x3 as float, y3 as float, z3 as float)

	tris[0].v1= x
	tris[0].v2= y
	tris[0].v3= z

	tris[1].v1= x2
	tris[1].v2= y2
	tris[1].v3= z2

tris[2].v1= x3
	tris[2].v2= y3
	tris[2].v3= z3

calculatenormals()

endfunction

Function CreateObjectFromMeshWithUVTexturing(m ref as mesh, MeshIndex,texture)
    DeleteMemblock(chunkmesh)
    VertexCount = m.VertexList.Length + 1

    IndexCount = 0
    IndexOffset = 60 + VertexCount*36
    chunkmesh = CreateMemblock(IndexOffset+IndexCount*4)
    SetMemblockInt(chunkmesh,0,VertexCount)
    SetMemblockInt(chunkmesh,4,IndexCount)
    SetMemblockInt(chunkmesh,8,3)
    SetMemblockInt(chunkmesh,12,32) // no color - 36 if color
    SetmemblockInt(chunkmesh,16,60)
    SetMemblockInt(chunkmesh,20,IndexOffset)
    SetMemblockInt(chunkmesh,24,0x0c000300)
    SetMemblockString(chunkmesh,28,"position")
    SetMemblockInt(chunkmesh,40,0x08000300)
    SetMemblockString(chunkmesh,44,"normal")
    SetMemblockInt(chunkmesh,52,0x04000200)
    SetMemblockString(chunkmesh,56,"uv")
    //SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
    //SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
    for i = 0 to m.VertexList.Length

			SetMemblockFloat(chunkmesh,60+i*32,m.VertexList[i].x)
			SetMemblockFloat(chunkmesh,64+i*32,m.VertexList[i].y)
			SetMemblockFloat(chunkmesh,68+i*32,m.VertexList[i].z)
			SetMemblockFloat(chunkmesh,72+i*32,m.VertexList[i].nx)
			SetMemblockFloat(chunkmesh,76+i*32,m.VertexList[i].ny)
			SetMemblockFloat(chunkmesh,80+i*32,m.VertexList[i].nz)
			SetMemblockFloat(chunkmesh,84+i*32,m.VertexList[i].u)
			SetMemblockFloat(chunkmesh,88+i*32,m.VertexList[i].v)
    next
	DeleteObject(1)

CreateObjectFromMeshMemblock(1,chunkmesh)
    SetObjectImage(1,texture,0)
	SetObjectColor(1,255,255,255,10)
endfunction 1

/// Project: Mesh Template
// Created: 2019-01-12

// show all errors
SetErrorMode(2)

#constant screenwidth=1024
#constant screenheight=768
#constant fullscreen=0
#constant screenrate=0
#constant size=32  // Size of the chunk in X and Z direction - make this small so the chunk can be quickly rebuilt in processing
#constant renderdistance=0 // how many chunks surrounding each other - call it render distance variable

// set window properties
SetWindowTitle( "Mesh Template" )
SetWindowSize( screenwidth, screenheight, fullscreen )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth, screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( screenrate, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

global angx#,angy#,startx#,starty#,cube,collisioncoordx,collisioncoordz,collisioncoordy
global numofchunks, numofcubes,chunk
global img,camerax#,cameray#,cameraz#,centrespr, minx,miny,minz,maxx,maxy,maxz, actualverts
global vertexcounter=0


// meshmemblock types
Type Vertex
    air as integer
    x as float
    y as float
    z as float
    nx as float
    ny as float
    nz as float
    u as float
    v as float
endtype

Type _tris
    v1 as float
    v2 as float
    v3 as float
    nx# as float
    ny# as float
    nz# as float
	display as integer
endtype


Type Mesh
    VertexList as Vertex[]
endtype

global MeshID as Mesh
global Tris as _tris[3]


// front - counter clockwise direction
AddTriangles(0,0,0,  1,1,0,  0,1,0)
AddTriangles(0,0,0,  1,0,0,  1,1,0)

// back - counter clockwise direction
AddTriangles(1,0,1,  0,1,1,  1,1,1)
AddTriangles(1,0,1,  0,0,1,  0,1,1)



obj = CreateObjectFromMeshWithUVTexturing(meshid,1,0)


startx#=screenwidth/2
starty#=screenheight/2
do
	RotateObjectLocalY(obj,.1)
	print("Polies "+ str(GetPolygonsDrawn()))
	print("Tiangles"+ str(GetPolygonsDrawn()*3))
	movecamera()
    Print( ScreenFPS() )
    Sync()
loop


function movecamera()
	fDiffX# = (GetPointerX() - startx#)/4.0
    fDiffY# = (GetPointerY() - starty#)/4.0
    newX# = angx# + fDiffY#
    if ( newX# > 89 ) then newX# = 89
    if ( newX# < -89 ) then newX# = -89
    SetCameraRotation(1, newX#, angy# + fDiffX#, 0 )

endfunction


function emptymesh()
	meshid.VertexList.length=-1
endfunction

function calculatenormals()

	x1#=tris[1].v1 - tris[0].v1
	y1#=tris[1].v2 - tris[0].v2
	z1#=tris[1].v3 - tris[0].v3

	x2#=tris[2].v1 - tris[0].v1
	y2#=tris[2].v2 - tris[0].v2
	z2#=tris[2].v3 - tris[0].v3

// calculate the normals of the directions perduncicular the other point working on to find the dot point for each axis
	nx# = (y1# * z2#) - (z1# * y2#)
	ny# = (z1# * x2#) - (x1# * z2#)
	nz# = (x1# * y2#) - (y1# * x2#)
	length# = sqrt((nx# * nx#) + (ny#*ny#) + (nz# * nz#))

// normalise those results between 0.0 and 1.0
	nx#=nx#/length#
	ny#=ny#/length#
	nz#=nz#/length#

// bacface culling - if the result of the normal is >0 is this in front camera facing
	if nz#>0
		AddVertex(meshid,tris[0].v1, tris[0].v2,tris[0].v3,   0,0,1)
		AddVertex(meshid,tris[1].v1, tris[1].v2,tris[1].v3,   0,0,1)
		AddVertex(meshid,tris[2].v1, tris[2].v2,tris[2].v3,   0,0,1)
	else

// no  - dont create anything - wont see anyway
	endif



endfunction


Function AddVertex(m ref as Mesh, x as float, y as float, z as float, u as float, v as float, air as integer)
    vert as vertex
    vert.x = x
    vert.y = y
    vert.z = z
    vert.u = u
    vert.v = v
    m.VertexList.Insert(vert)
endfunction

Function AddTriangles(x as float, y as float, z as float, x2 as float, y2 as float, z2 as float, x3 as float, y3 as float, z3 as float)

	tris[0].v1= x
	tris[0].v2= y
	tris[0].v3= z

	tris[1].v1= x2
	tris[1].v2= y2
	tris[1].v3= z2


	tris[2].v1= x3
	tris[2].v2= y3
	tris[2].v3= z3

	calculatenormals()


endfunction

Function CreateObjectFromMeshWithUVTexturing(m ref as mesh, MeshIndex,texture)
    DeleteMemblock(chunkmesh)
    VertexCount = m.VertexList.Length + 1

    IndexCount = 0
    IndexOffset = 60 + VertexCount*36
    chunkmesh = CreateMemblock(IndexOffset+IndexCount*4)
    SetMemblockInt(chunkmesh,0,VertexCount)
    SetMemblockInt(chunkmesh,4,IndexCount)
    SetMemblockInt(chunkmesh,8,3)
    SetMemblockInt(chunkmesh,12,32) // no color - 36 if color
    SetmemblockInt(chunkmesh,16,60)
    SetMemblockInt(chunkmesh,20,IndexOffset)
    SetMemblockInt(chunkmesh,24,0x0c000300)
    SetMemblockString(chunkmesh,28,"position")
    SetMemblockInt(chunkmesh,40,0x08000300)
    SetMemblockString(chunkmesh,44,"normal")
    SetMemblockInt(chunkmesh,52,0x04000200)
    SetMemblockString(chunkmesh,56,"uv")
    //SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
    //SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
    for i = 0 to m.VertexList.Length

			SetMemblockFloat(chunkmesh,60+i*32,m.VertexList[i].x)
			SetMemblockFloat(chunkmesh,64+i*32,m.VertexList[i].y)
			SetMemblockFloat(chunkmesh,68+i*32,m.VertexList[i].z)
			SetMemblockFloat(chunkmesh,72+i*32,m.VertexList[i].nx)
			SetMemblockFloat(chunkmesh,76+i*32,m.VertexList[i].ny)
			SetMemblockFloat(chunkmesh,80+i*32,m.VertexList[i].nz)
			SetMemblockFloat(chunkmesh,84+i*32,m.VertexList[i].u)
			SetMemblockFloat(chunkmesh,88+i*32,m.VertexList[i].v)
    next
	DeleteObject(1)

    CreateObjectFromMeshMemblock(1,chunkmesh)
    SetObjectImage(1,texture,0)
	SetObjectColor(1,255,255,255,10)
endfunction 1

Normalising

function calculatenormals()

	x1#=tris[1].v1 - tris[0].v1
	y1#=tris[1].v2 - tris[0].v2
	z1#=tris[1].v3 - tris[0].v3

	x2#=tris[2].v1 - tris[0].v1
	y2#=tris[2].v2 - tris[0].v2
	z2#=tris[2].v3 - tris[0].v3

	nx# = (y1# * z2#) - (z1# * y2#)
	ny# = (z1# * x2#) - (x1# * z2#)
	nz# = (x1# * y2#) - (y1# * x2#)
	length# = sqrt((nx# * nx#) + (ny#*ny#) + (nz# * nz#))


	nx#=nx#/length#
	ny#=ny#/length#
	nz#=nz#/length#

	tris[3].nx# = nx#
	tris[3].ny# = ny#
	tris[3].nz# = nz#


	if nz#>0
		AddVertex(meshid,tris[0].v1, tris[0].v2,tris[0].v3,   0,0,1)
		AddVertex(meshid,tris[1].v1, tris[1].v2,tris[1].v3,   0,0,1)
		AddVertex(meshid,tris[2].v1, tris[2].v2,tris[2].v3,   0,0,1)
	else
	endif



endfunction

I will convert this to a cube soon and then many OBJs

Catch up soon

Tier 1 Developer

Back to top

Profile

puzzler2018

User Banned

Posted: 20th Feb 2019 23:01

thought to bump this before becomes locked

Ill get to this soon

Tier 1 Developer

Back to top

Profile

nonom

7

Years of Service

User Offline

Joined: 12th Nov 2017

Location: Picking mushrooms

Posted: 9th Mar 2019 16:27

Quote: "Rome wasnt built in two weeks - if this takes 2 days/2 weeks/2 months or 2 years. then im happy, as long as get this 100%"

Let me hijack your thread like you did with the mine. A few threads (months) ago you was really angry, at this point, i tho to nomitate you like valuable peson because I don't like the people crying.

Your work is much fine, but the person is so farof his work, this thread talks itself.

Stop trolling the threads and focus in your own work.

Back to top

Profile PM Email Website

nonom

7

Years of Service

User Offline

Joined: 12th Nov 2017

Location: Picking mushrooms

Posted: 9th Mar 2019 16:29

Seems the forum cannot let me post in your thread like you did in the mine.

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 9th Mar 2019 16:30

But chill out - This is Xaby thread

Tier 1 Developer

Back to top

Profile

nonom

7

Years of Service

User Offline

Joined: 12th Nov 2017

Location: Picking mushrooms

Posted: 9th Mar 2019 16:30

Still spamming about your version of Perlin Noise?.

Back to top

Profile PM Email Website

puzzler2018

User Banned

Posted: 9th Mar 2019 17:51

Hey folks - I might actually pick this up again later in the year after a small break with different programming styles maybe..

But there will be lots more meshmemblock and memory management building to make this world even bigger.

and yes there will still be Perlin Noise to it..

Tier 1 Developer

Back to top

Profile

puzzler2018

User Banned

Posted: 11th Mar 2019 22:21

Now we moving on to Studio - I just had a thought on Studio could handle this? any thoughts?

Tier 1 Developer

Back to top

Profile

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 12th Mar 2019 01:13

So at the moment studio is just an ide.......it's identical to agk.

Back to top

Profile PM

puzzler2018

User Banned

Posted: 12th Mar 2019 22:34

lol - I was thinking more on what Vulkhan can give us for this type of app

Tier 1 Developer

Back to top

Profile

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 13th Mar 2019 09:45 Edited at: 13th Mar 2019 09:46

Ah I see. Well from what I've seen on YouTube, Vulcan apparently gives a 20-30% increase on glsl, but that I think is a newer glsl than AppGameKit has, so I'm hopefully for a bit of a boost ... but I wouldn't expect miracles.

In terms of 3d performance and tier 1, the core of agk is a restricting factor.....for example Preben significantly increased the speed that transparent and hidden objects were handled through optimisation, and that's key for agk.

For this though, how is that a hold up? I already showed agk can handle tens of thousands of blocks in 4k at 50 ish fps....are you having major frame rate issues? How memblocks are handled won't be impacted as they are nothing to do with the gpu, and as we dont have threading handling background generation of landscape and ai is also always going to be tough.

Don't you recall the original Minecraft, huge holes in the world, chunks not generating, people falling into nothing etc?

The new modern Microsoft version is super slick, and highly threaded process driven.

Back to top

Profile PM

shadey

14

Years of Service

User Offline

Joined: 25th Jan 2010

Location:

Posted: 18th Mar 2019 19:15

I have been messing with the 3D for some time now, and found indeed that even just using single faced planes( the ones blender creates) ... the more you use simply the more AppGameKit 2 slows down, totally not a poly count issue par say when it comes to speed,but obviously decimate the hell out of high poly counts!!

I had created a 3D Editor to place many grouped objects easily,and though it is still handy to place objects visually, it is the 'many' bit that I wont be doing under AppGameKit 2 as it stands! I am hoping this VULCAN thing improves this myself! This is strictly mobile type speed I am talking though!

Hail to the king, baby!

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 18th Mar 2019 19:24 Edited at: 18th Mar 2019 19:25

Thanks - the reason why it slows down is because of the amount of "draw calls" the CPU sends to the GPU

a 10x10x10 chunk say is 1,000 objects, so 1,000 draw calls to the GPU in one sync frame

- we just need to build that chunk to a meshmemblock first so that it only sends 1 draw call

Hope that makes sense

Tier 1 Developer

Back to top

Profile

shadey

14

Years of Service

User Offline

Joined: 25th Jan 2010

Location:

Posted: 18th Mar 2019 20:35 Edited at: 18th Mar 2019 20:45

of course it does! this would be handy for my editor as i would be ultimately saving out and dealing with one object,as opposed to possibly hundreds!!
Right now I am using blender to simply sculpt my landscape for instance a golf sim:

This is fast because I am only dealing with 2 objects here, the ball and the whole landscape, previously I had done about the same level using separate objects in my editor,planes/trees and so on...
However every object I added, the more it slowed down on runtime, no matter how much I decimated the models in question, like the tree, and I had a giant rock.....!

I know what you are after here is minecraft and yeh,the only way for speed is what you suggest!
Essentially you want to be doing simply what blender does when I export the scene as a .obj file!
Another good reason is that you end up saving enough speed to add realtime shadows and the shaders that some people useI they really do make a game look more polished, and because of the use of only 2 objects, will be using realtime shadows in the above golf I hope!

Hail to the king, baby!

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 18th Mar 2019 20:46

Sure - that looks like a promising app too.. we all like a bit of tactical golf these days.

yes - adding more and more tree and rock like structures will make FPS come down a few bars... thats all depends on the poly counts for each.. and adding Shadows will seriously decrement it too.

If you need something to start you going with meshmemblock then i can post a template.

Tier 1 Developer

Back to top

Profile

shadey

14

Years of Service

User Offline

Joined: 25th Jan 2010

Location:

Posted: 18th Mar 2019 20:53 Edited at: 18th Mar 2019 20:58

hmmm,how easy would it be to implement it into my engine though I wonder!!!
It would be very cool if it is easy, then yes please!!
btw, isnt all this only useful for static objects of course?!
But still very needy..
In minecraft you have to deal with the non static A.I!
Another headache, but I have been coding some A.I so not so bad when I realized it is better to increment through an array than using a loop!! as you get to hit the syncs() quicker!

Hail to the king, baby!

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 18th Mar 2019 21:08

We will have to rebuild the mesh each time there is a change of an object - but if make the meshmemblock small enough, would have to be on a mesh grid system

Like

Where the red sqaure is the mesh the player is located on and any objects that move about say will be objects on that red sqaure that would be rebuild. when move around - then we just change the mesh to the land area of where the player is on the grid.

The golf ball will just stay as an AppGameKit object

Difficult isnt it

Ill try and put this theory into practice for you - but not jut now, in a few days ill provide some code to see it in action

What are your trees and rocks - are they OBJ files - cause you will need our OBJ importer too

Tier 1 Developer

Attachments

Login to view attachments

Back to top

Profile

shadey

14

Years of Service

User Offline

Joined: 25th Jan 2010

Location:

Posted: 18th Mar 2019 21:15 Edited at: 18th Mar 2019 21:20

yeh they are .obj,though the engine can also import .fbx for animated objects. And immediately loop plays the first layer upon placing them
I would think your system best suited for static objects and still would be awesome!!
So essentially a good way for me would be to place the objects as i do,in the editor, but then at runtime, just before the main loop, do the magic on all static objects to create a single one
then delete all the static objects used,of course this would require reloading of level after each run

Hail to the king, baby!

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 18th Mar 2019 21:18

ok cool - ill take a look and have a think about that model... Do you have an example FBX file to have a play with..

Could you also possibly create your own thread regarding this, so its not upsetting this one too much. otherwise we all will just get confused eventually and then ill pick this up on that thread

Cheers

Tier 1 Developer

Back to top

Profile

shadey

14

Years of Service

User Offline

Joined: 25th Jan 2010

Location:

Posted: 18th Mar 2019 21:21 Edited at: 18th Mar 2019 21:24

be my guest!! tis your system

But thanks very much if you can help! I just wanted to solidify the facts about speed issues regarding 3D in general and after a solution myself!!
It would be so awesome if AppGameKit 2 had something similar to BSP!

Hail to the king, baby!

Back to top

Profile PM Website

puzzler2018

User Banned

Posted: 18th Mar 2019 21:24 Edited at: 18th Mar 2019 21:26

Its not for me to create a thread for you about it - unless really want me to.

If you like - can take a look at https://forum.thegamecreators.com/thread/223640

I can continue this, there

Tier 1 Developer

Back to top

Profile

shadey

14

Years of Service

User Offline

Joined: 25th Jan 2010

Location:

Posted: 18th Mar 2019 21:27

ok.i will follow that! tnx.

Hail to the king, baby!

Back to top

Profile PM Website

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 19th Mar 2019 16:21 Edited at: 19th Mar 2019 16:23

Speed isn't just poly count, its draw calls. Been through this before. If you send 6000 objects to be drawn, each is transferred and processed individually. If you merge them into a single mesh, it's one draw call and will be hundreds, or even thousands of times faster.

That's how I had tens of thousands of cubes running so fast, and how I do vegetation.

Back to top

Profile PM

puzzler2018

User Banned

Posted: 19th Mar 2019 17:53

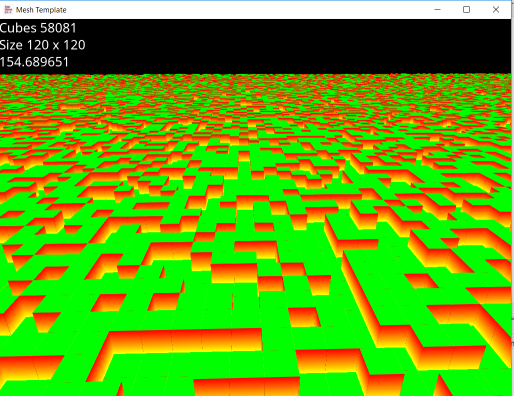

Yeah i understand perfectly these days - it was more for Shadey

Code to produce that is

/// Project: Mesh Template
// Created: 2019-01-12

// show all errors
SetErrorMode(2)

#constant screenwidth=1024
#constant screenheight=768
#constant fullscreen=0
#constant screenrate=0
#constant size=120  // Size of the chunk in X and Z direction - make this small so the chunk can be quickly rebuilt in processing
#constant renderdistance=0 // how many chunks surrounding each other - call it render distance variable

// set window properties
SetWindowTitle( "Mesh Template" )
SetWindowSize( screenwidth, screenheight, fullscreen )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth, screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( screenrate, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

global angx#,angy#,startx#,starty#
global camerax#,cameray#,cameraz#


// meshmemblock types
Type Vertex
    air as integer
    x as float
    y as float
    z as float
    nx as float
    ny as float
    nz as float
    u as float
    v as float
endtype

Type Triangle
    v1 as integer
    v2 as integer
    v3 as integer
endtype

Type Mesh
    VertexList as Vertex[]
endtype

global MeshID as Mesh





startx#=screenwidth/2
starty#=screenheight/2
SetRawMousePosition(startx#,starty#)
cubecount=0
for x=-size to size
// y loop
        for z=-size to size
			addCubeToMesh(x,random(0,1),z,1,1,1,1)
            inc cubecount
        next
// next
next



obj=CreateObjectFromMeshWithUVTexturing(meshid,1,createimage())

camerax#=0
cameray#=3
cameraz#=0
speed#=.01


SetCameraRange(1,.01,1000)
do

     print("Cubes " + str(cubecount))
    print("Size " + str(size) + " x " + str(size))
    movecamera()
    Print( ScreenFPS() )
    Sync()
loop

function setcameradata()
        SetCameraPosition(1,camerax#,cameray#,cameraz#)

        //collision object centre
        SetObjectPosition(6,camerax#,cameray#,cameraz#)
        //collision object bottom
        SetObjectPosition(7,camerax#,cameray#-.5,cameraz#)
        //collision object above
        SetObjectPosition(8,camerax#,cameray#+.5,cameraz#)
        //collision object front
        SetObjectPosition(9,camerax#,cameray#,cameraz#+.5)
        //collision object behin
        SetObjectPosition(10,camerax#,cameray#,cameraz#-.5)
        //collision object left
        SetObjectPosition(11,camerax#-.5,cameray#,cameraz#)
        //collision object right
        SetObjectPosition(12,camerax#+.5,cameray#,cameraz#)
endfunction

function movecamera()
    fDiffX# = (GetPointerX() - startx#)/4.0
    fDiffY# = (GetPointerY() - starty#)/4.0
    newX# = angx# + fDiffY#
    if ( newX# > 89 ) then newX# = 89
    if ( newX# < -89 ) then newX# = -89
    SetCameraRotation(1, newX#, angy# + fDiffX#, 0 )

endfunction
function addCubeToMesh(x#,y#,z#,sizex#,sizey#,sizez#,c)


    // do adjacent culling check
    cx = floor(x#)
    cy = floor(y#)
    cz = floor(z#)


    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0  ,0      , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0  ,.5 , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, .5  ,0     , c)

    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, .5 ,0      , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0  ,.5 , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, .5 ,.5 , c)

    // BOTTOM face - top right corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0.5,0      , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 1,0        , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5    , c)

    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 1,0        , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 1,0.5      , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5        , c)


    // Left Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0.5,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0,1, c)


    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0.5,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0.5,1, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0,1, c)

    // Right Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0,1, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5, c)

    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0,1, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,1, c)


    // Front Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0   , 0    , 0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0   , 0    , 1  , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0   , .5 , 1  , c)

    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5  , 1, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5  , .5  , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0  , 0    , .5  , c)

    // Back Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0   , 0   , 0.5, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0   , .5   , 1  , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0   , 0   , 1  , c)


    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5   , 1, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0  , 0    , .5  , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5  , .5 , c)



endfunction


function emptymesh()
    meshid.VertexList.length=-1
endfunction

Function AddVertex(m ref as Mesh, x as float, y as float, z as float, nx as float, ny as float, nz as float, u as float, v as float, air as integer)
    vert as vertex
    vert.x = x
    vert.y = y
    vert.z = z
    vert.nx = nx
    vert.ny = ny
    vert.nz = nz
    vert.u = u
    vert.v = v
    vert.air = air
    m.VertexList.Insert(vert)

endfunction
Function CreateObjectFromMeshWithUVTexturing(m ref as mesh, MeshIndex,texture)
    DeleteMemblock(chunkmesh)
    VertexCount = m.VertexList.Length + 1

    IndexCount = 0
    IndexOffset = 60 + VertexCount*36
    chunkmesh = CreateMemblock(IndexOffset+IndexCount*4)
    SetMemblockInt(chunkmesh,0,VertexCount)
    SetMemblockInt(chunkmesh,4,IndexCount)
    SetMemblockInt(chunkmesh,8,3)
    SetMemblockInt(chunkmesh,12,32) // no color - 36 if color
    SetmemblockInt(chunkmesh,16,60)
    SetMemblockInt(chunkmesh,20,IndexOffset)
    SetMemblockInt(chunkmesh,24,0x0c000300)
    SetMemblockString(chunkmesh,28,"position")
    SetMemblockInt(chunkmesh,40,0x08000300)
    SetMemblockString(chunkmesh,44,"normal")
    SetMemblockInt(chunkmesh,52,0x04000200)
    SetMemblockString(chunkmesh,56,"uv")
    //SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
    //SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
        for i = 0 to m.VertexList.Length

        if m.VertexList[i].air = 1 // has a block there
            SetMemblockFloat(chunkmesh,60+i*32,m.VertexList[i].x)
            SetMemblockFloat(chunkmesh,64+i*32,m.VertexList[i].y)
            SetMemblockFloat(chunkmesh,68+i*32,m.VertexList[i].z)
            SetMemblockFloat(chunkmesh,72+i*32,m.VertexList[i].nx)
            SetMemblockFloat(chunkmesh,76+i*32,m.VertexList[i].ny)
            SetMemblockFloat(chunkmesh,80+i*32,m.VertexList[i].nz)
            SetMemblockFloat(chunkmesh,84+i*32,m.VertexList[i].u)
            SetMemblockFloat(chunkmesh,88+i*32,m.VertexList[i].v)
        endif
        //SetMemblockInt(memblock,104+i*36,m.VertexList[i].color) //maybe one day or year in 2019 lol
    next
//    DeleteAllObjects()
    DeleteObject(1)

    CreateObjectFromMeshMemblock(1,chunkmesh)
    SetObjectImage(1,texture,0)
    SetObjectColor(1,255,255,255,10)
endfunction 1

function checkCollisionv2(objwith,objID as integer,objID2 as integer)
    start_x#=getobjectx(objID)
    start_y#=getobjecty(objID)
    start_z#=getobjectz(objID)

    end_x#=getobjectx(objID2)
    end_y#=getobjecty(objID2)
    end_z#=getobjectz(objID2)


// determine which object has been hit
    object_Hit = ObjectRayCast(objwith,start_x#,start_y#,start_z#,end_x#,end_y#,end_z#)

endfunction object_Hit

function createimage()

swap()
startx=0
starty=0
DrawBox(startx,starty,startx+50,starty+50,MakeColor(0,255,0),MakeColor(0,255,0),MakeColor(0,255,0),MakeColor(0,255,0),1)

startx=50
starty=0
DrawBox(startx,starty,startx+50,starty+50,MakeColor(255,255,0),MakeColor(255,255,0),MakeColor(255,255,0),MakeColor(255,255,0),1)

startx=0
starty=50
DrawBox(startx,starty,startx+50,starty+50,MakeColor(255,0,0),MakeColor(255,0,0),MakeColor(255,255,0),MakeColor(255,255,0),1)


render()

img=GetImage(0,0,100,100)
	SaveImage(img,"test.png")
endfunction img


/// Project: Mesh Template
// Created: 2019-01-12

// show all errors
SetErrorMode(2)

#constant screenwidth=1024
#constant screenheight=768
#constant fullscreen=0
#constant screenrate=0
#constant size=120  // Size of the chunk in X and Z direction - make this small so the chunk can be quickly rebuilt in processing
#constant renderdistance=0 // how many chunks surrounding each other - call it render distance variable

// set window properties
SetWindowTitle( "Mesh Template" )
SetWindowSize( screenwidth, screenheight, fullscreen )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth, screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( screenrate, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

global angx#,angy#,startx#,starty#
global camerax#,cameray#,cameraz#


// meshmemblock types
Type Vertex
    air as integer
    x as float
    y as float
    z as float
    nx as float
    ny as float
    nz as float
    u as float
    v as float
endtype

Type Triangle
    v1 as integer
    v2 as integer
    v3 as integer
endtype

Type Mesh
    VertexList as Vertex[]
endtype

global MeshID as Mesh





startx#=screenwidth/2
starty#=screenheight/2
SetRawMousePosition(startx#,starty#)
cubecount=0
for x=-size to size
// y loop
        for z=-size to size
			addCubeToMesh(x,random(0,1),z,1,1,1,1)
            inc cubecount
        next
// next
next



obj=CreateObjectFromMeshWithUVTexturing(meshid,1,createimage())

camerax#=0
cameray#=3
cameraz#=0
speed#=.01


SetCameraRange(1,.01,1000)
do

     print("Cubes " + str(cubecount))
    print("Size " + str(size) + " x " + str(size))
    movecamera()
    Print( ScreenFPS() )
    Sync()
loop

function setcameradata()
        SetCameraPosition(1,camerax#,cameray#,cameraz#)

        //collision object centre
        SetObjectPosition(6,camerax#,cameray#,cameraz#)
        //collision object bottom
        SetObjectPosition(7,camerax#,cameray#-.5,cameraz#)
        //collision object above
        SetObjectPosition(8,camerax#,cameray#+.5,cameraz#)
        //collision object front
        SetObjectPosition(9,camerax#,cameray#,cameraz#+.5)
        //collision object behin
        SetObjectPosition(10,camerax#,cameray#,cameraz#-.5)
        //collision object left
        SetObjectPosition(11,camerax#-.5,cameray#,cameraz#)
        //collision object right
        SetObjectPosition(12,camerax#+.5,cameray#,cameraz#)
endfunction

function movecamera()
    fDiffX# = (GetPointerX() - startx#)/4.0
    fDiffY# = (GetPointerY() - starty#)/4.0
    newX# = angx# + fDiffY#
    if ( newX# > 89 ) then newX# = 89
    if ( newX# < -89 ) then newX# = -89
    SetCameraRotation(1, newX#, angy# + fDiffX#, 0 )

endfunction
function addCubeToMesh(x#,y#,z#,sizex#,sizey#,sizez#,c)


    // do adjacent culling check
    cx = floor(x#)
    cy = floor(y#)
    cz = floor(z#)


    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0  ,0      , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0  ,.5 , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, .5  ,0     , c)

    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, .5 ,0      , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0  ,.5 , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, .5 ,.5 , c)

    // BOTTOM face - top right corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0.5,0      , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 1,0        , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5    , c)

    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 1,0        , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 1,0.5      , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5        , c)


    // Left Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0.5,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0,1, c)


    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0, 0.5,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0.5,1, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0, 0,1, c)

    // Right Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0,1, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5, c)

    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0,1, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0, 0.5,1, c)


    // Front Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0   , 0    , 0.5, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0   , 0    , 1  , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0   , .5 , 1  , c)

    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5  , 1, c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5  , .5  , c)
    AddVertex(meshid, x#-(sizex#/2)         ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0  , 0    , .5  , c)

    // Back Side - bottom left corner texture
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0   , 0   , 0.5, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0   , .5   , 1  , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)          , 0,1,0   , 0   , 1  , c)


    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)-sizey#   ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5   , 1, c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)          , 0,1,0  , 0    , .5  , c)
    AddVertex(meshid, x#-(sizex#/2)+sizex#  ,y#+(sizey#/2)          ,z#+(sizez#/2)-sizez#   , 0,1,0  , .5  , .5 , c)



endfunction


function emptymesh()
    meshid.VertexList.length=-1
endfunction

Function AddVertex(m ref as Mesh, x as float, y as float, z as float, nx as float, ny as float, nz as float, u as float, v as float, air as integer)
    vert as vertex
    vert.x = x
    vert.y = y
    vert.z = z
    vert.nx = nx
    vert.ny = ny
    vert.nz = nz
    vert.u = u
    vert.v = v
    vert.air = air
    m.VertexList.Insert(vert)

endfunction
Function CreateObjectFromMeshWithUVTexturing(m ref as mesh, MeshIndex,texture)
    DeleteMemblock(chunkmesh)
    VertexCount = m.VertexList.Length + 1

    IndexCount = 0
    IndexOffset = 60 + VertexCount*36
    chunkmesh = CreateMemblock(IndexOffset+IndexCount*4)
    SetMemblockInt(chunkmesh,0,VertexCount)
    SetMemblockInt(chunkmesh,4,IndexCount)
    SetMemblockInt(chunkmesh,8,3)
    SetMemblockInt(chunkmesh,12,32) // no color - 36 if color
    SetmemblockInt(chunkmesh,16,60)
    SetMemblockInt(chunkmesh,20,IndexOffset)
    SetMemblockInt(chunkmesh,24,0x0c000300)
    SetMemblockString(chunkmesh,28,"position")
    SetMemblockInt(chunkmesh,40,0x08000300)
    SetMemblockString(chunkmesh,44,"normal")
    SetMemblockInt(chunkmesh,52,0x04000200)
    SetMemblockString(chunkmesh,56,"uv")
    //SetMemblockInt(memblock,60,0x08010401) // maybe one day or year in 2019 lol
    //SetMemblockString(memblock,64,"color") // maybe one day or year in 2019 lol
        for i = 0 to m.VertexList.Length

        if m.VertexList[i].air = 1 // has a block there
            SetMemblockFloat(chunkmesh,60+i*32,m.VertexList[i].x)
            SetMemblockFloat(chunkmesh,64+i*32,m.VertexList[i].y)
            SetMemblockFloat(chunkmesh,68+i*32,m.VertexList[i].z)
            SetMemblockFloat(chunkmesh,72+i*32,m.VertexList[i].nx)
            SetMemblockFloat(chunkmesh,76+i*32,m.VertexList[i].ny)
            SetMemblockFloat(chunkmesh,80+i*32,m.VertexList[i].nz)
            SetMemblockFloat(chunkmesh,84+i*32,m.VertexList[i].u)
            SetMemblockFloat(chunkmesh,88+i*32,m.VertexList[i].v)
        endif
        //SetMemblockInt(memblock,104+i*36,m.VertexList[i].color) //maybe one day or year in 2019 lol
    next
//    DeleteAllObjects()
    DeleteObject(1)

    CreateObjectFromMeshMemblock(1,chunkmesh)
    SetObjectImage(1,texture,0)
    SetObjectColor(1,255,255,255,10)
endfunction 1

function checkCollisionv2(objwith,objID as integer,objID2 as integer)
    start_x#=getobjectx(objID)
    start_y#=getobjecty(objID)
    start_z#=getobjectz(objID)

    end_x#=getobjectx(objID2)
    end_y#=getobjecty(objID2)
    end_z#=getobjectz(objID2)


// determine which object has been hit
    object_Hit = ObjectRayCast(objwith,start_x#,start_y#,start_z#,end_x#,end_y#,end_z#)

endfunction object_Hit

function createimage()


swap()
startx=0
starty=0
DrawBox(startx,starty,startx+50,starty+50,MakeColor(0,255,0),MakeColor(0,255,0),MakeColor(0,255,0),MakeColor(0,255,0),1)

startx=50
starty=0
DrawBox(startx,starty,startx+50,starty+50,MakeColor(255,255,0),MakeColor(255,255,0),MakeColor(255,255,0),MakeColor(255,255,0),1)


startx=0
starty=50
DrawBox(startx,starty,startx+50,starty+50,MakeColor(255,0,0),MakeColor(255,0,0),MakeColor(255,255,0),MakeColor(255,255,0),1)


render()

	img=GetImage(0,0,100,100)
	SaveImage(img,"test.png")
endfunction img

This will produce 1 draw call, instead of 58,081 draw calls

Tier 1 Developer

Attachments

Login to view attachments

Back to top

Profile

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 19th Mar 2019 18:11 Edited at: 19th Mar 2019 18:13

Looking back through the thread a little, rocks and trees can all be combined to, where the same texture is used.

For example, just like the grass, every instance of a rock that uses a specific texture can be combined into a single memblock mesh, then all rocks are one draw call. And trees, and anything else that uses the same UV cords and textures.

In my project, the final build does just that, and will scan for duplicate items then combine them into a single mesh for speed. Memblocks, though larger, also load much faster then any model format, especially groups. Loading 80,000+ grass planes in a chunk of a world as one memblock mesh is infinitely faster than loading dozens of models. Plus you only need to assign the one image to the memblock, so that's easier to.

There are lots and lots of ways to get speed up, but a lot of it comes down to trial and error. For example another.....in shaders I've found texture look ups are very expensive, and link to the texture size. By holding two versions in memory, one full size texture and one much smaller one, then swapping between them beyond a certain distance, gave me about a 40%-60% speed boost, even with mip mapping.

3d is a difficult animal to balance just right. Lol.

Back to top

Profile PM

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 2nd Jun 2019 07:33

I wasn't here in a while. Thanks a lot for your hard work with the memblocks and that. Hope we can have a good time here in the board. Feel free to post your progress.

Back to top

Profile PM Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 27th Apr 2020 18:01

How fast time is running. Nearly a year is gone. Did anyone tried something with the code?

Back to top

Profile PM Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 2nd May 2020 10:45

I found this today. Maybe it is time, to create something in AppGameKit again

Back to top

Profile PM Website

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 3rd May 2020 23:46

Did no-one ever finish the mine craft clone?

Back to top

Profile PM

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 19th May 2020 21:56

WHo wants to collaborate on this. I already made the code for the basic world building, and know how to add in destroying of blocks etc, and will move those fucntions to a C plug in for speed - anyone want to have a cracka t doing the seed generation for the world if I finish the basic code?

Back to top

Profile PM

MADATCHA

6

Years of Service

User Offline

Joined: 17th Jun 2018

Location:

Posted: 20th May 2020 08:29 Edited at: 20th May 2020 08:30

Would love to collab but only working from phone would love to see what you have
Always have fun following you

Back to top

Profile PM

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 24th Jul 2020 21:45

@Santmann: I'd collab but only if started from scratch and hosted on github

Back to top

Profile PM Email Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 27th Jul 2020 05:45

@Santman, what do you mean with C-plugIn? Will it run on Android 4.1 than? The thing Puzzler2018 build with Memblocks seems ultrafast.

@janbo sounds great.

Back to top

Profile PM Website

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 27th Jul 2020 11:25 Edited at: 27th Jul 2020 11:29

@Xaby: I wont start this on my own so hit me up with the Github link

I actually made a voxel game before Minecraft was a thing, and rewrote it in AppGameKit again 5 jeahrs ago: https://forum.thegamecreators.com/thread/215869
The thing missing, was combining the faces into chuncks, the rest was there... checking neighbouring blocks for face generation, Box UV coordinates, Creating/removing blocks...

Back to top

Profile PM Email Website

Santman

13

Years of Service

User Offline

Joined: 15th Sep 2011

Location: Inverness

Posted: 28th Jul 2020 17:26

Janbo, what do you mean starting from scratch? If you've already done voxel stuff then there wont be anything left to do there, it's just the procedural stuff left.

Back to top

Profile PM

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 28th Jul 2020 20:49 Edited at: 28th Jul 2020 20:55

Well the code is from my 9-5 jeahr younger me, and I think I can do it much better now.
And everyone can jump in and help...

For the procedural stuff I guess I have 2D and 3D perlin noise too ^^
Used it for marching cube terrain...

Back to top

Profile PM Email Website

Xaby

FPSC Reloaded TGC Backer

17

Years of Service

User Offline

Joined: 17th Apr 2007

Location: Berlin

Posted: 30th Jul 2020 10:01

@Janbo, did "War Balls" still exists? Reminds me on "Puzzle Dimension" from "Doctor Entertainment AB"

Tell me, if that is like you thought about. Is my first time I made on.
https://github.com/Xabyn/agk_wurfelcraft

Back to top

Profile PM Website

janbo

16

Years of Service

User Offline

Joined: 10th Nov 2008

Location: Germany

Posted: 30th Jul 2020 10:19

Never finished it, but the code is somwhere on my harddrive.

Yeah, we can chat over Discord, work together and I'll show you how great Github is

Back to top

Profile PM Email Website

Back to top

Login to post a reply

Server time is: 2024-11-22 04:27:19
Your offset time is: 2024-11-22 04:27:19
