Ooooh I see. I did consider that possibility, but considered it unlikely as the
emoticon usually means "what you just said was really stupid". No hard feelings then! (there weren't any anyway lol)

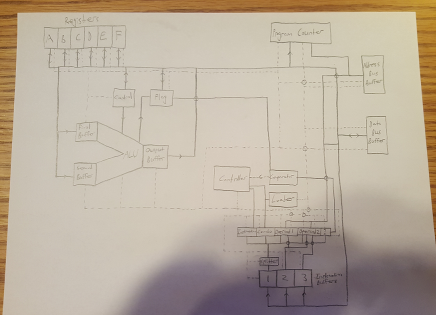

Over the past couple days, I have developed a basic instruction set of my own. Just got finished (roughly) drawing a block diagram for the processor:
The lower right area cumulatively serves as the instruction decoder/processor controller, and it turned out quite complex apparently! Solid lines indicate data travel (some have arrows indicating direction), dotted lines are control lines.
For those curious, the processor's four instructions are:
move (from) to (where)
math (operand 1 & destination) and (operand 2)
comp (value 1) with (value 2)
jump (where)
Each instruction can be made conditional if desired.
I plan to assemble a 16 bit version of it all from discrete logic ICs sometime, assuming I have the money and my interest stays steady for long enough.
